1989 Bekum Model BM-303D Dual Sided Continuous Extrusion Blow Molding Machine

PRICE REDUCTION

This machine can produce a trimmed, oriented and ready to fill bottle

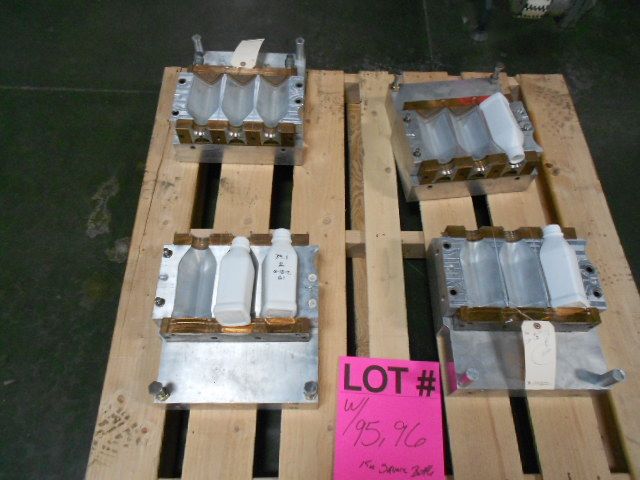

Includes (2) Sets of (3) Cavity Molds to produce 15 ounce square bottle

BM-303 data sheets

Description

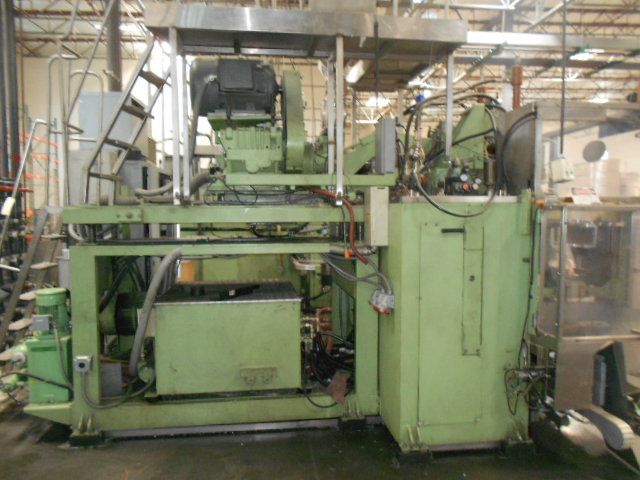

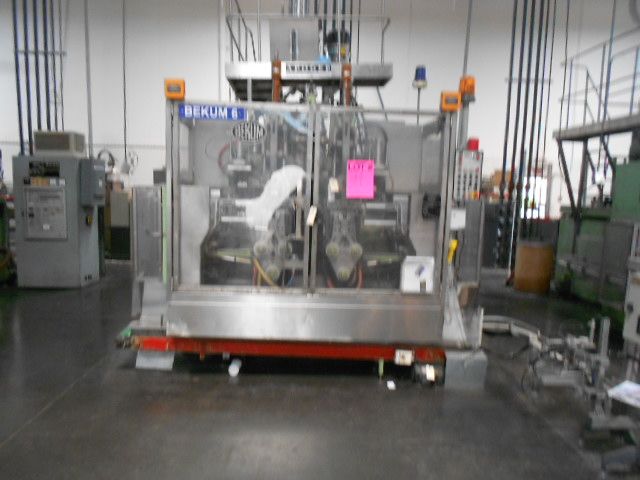

1989 Bekum Model BM-303D Dual Sided Continuous Extrusion Blow Molding Machine

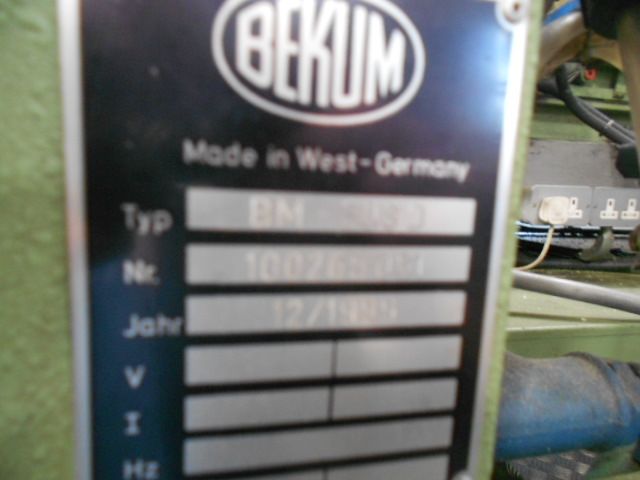

– Serial number- 100265081

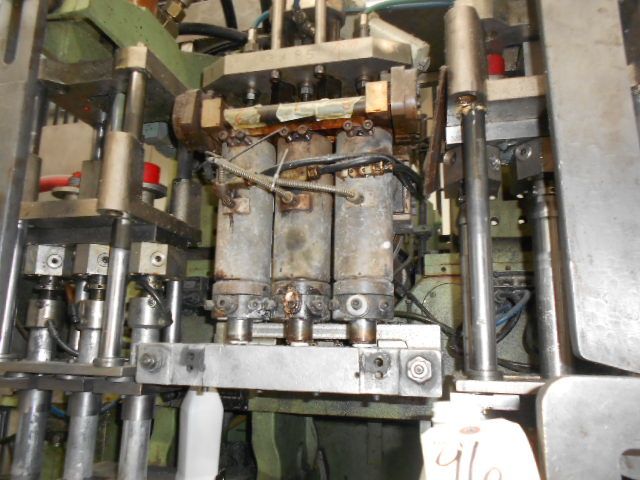

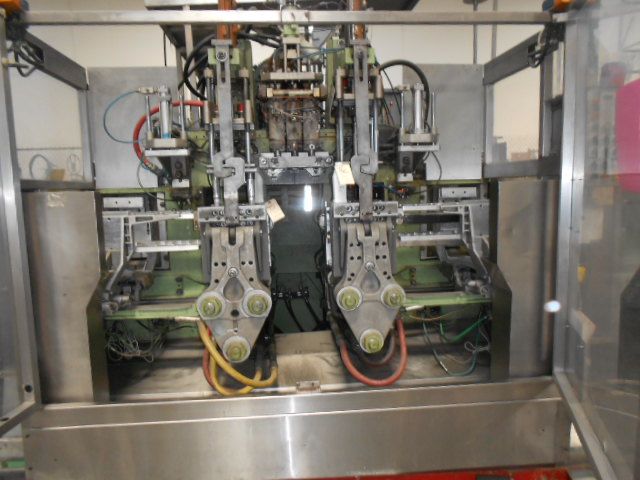

– Head configuration- triple parison head with 85 mm distance between head centers
– Press arrangement- dual sided machine

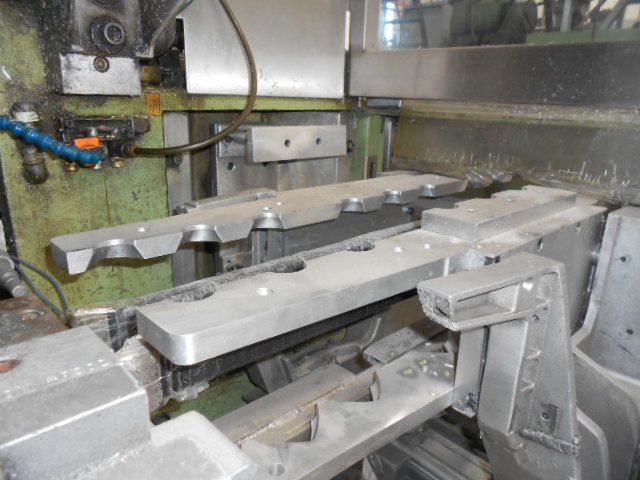

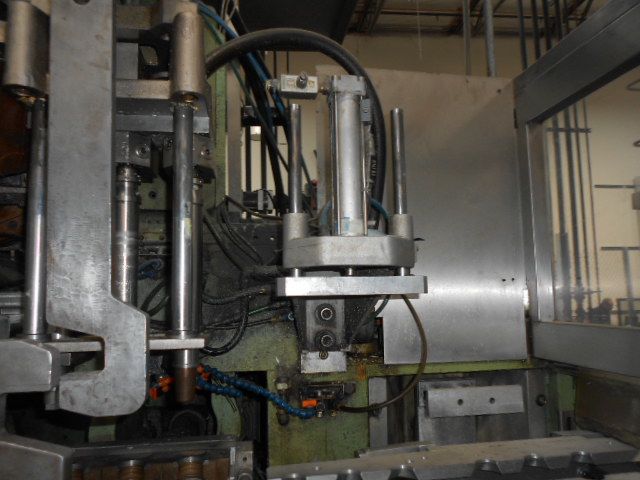

– In machine trimming capability

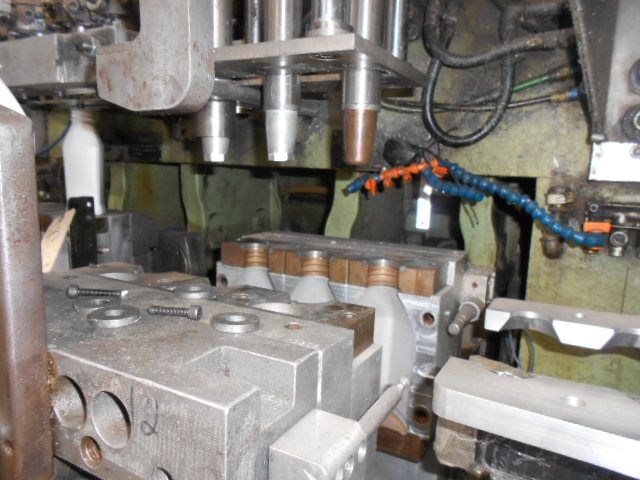

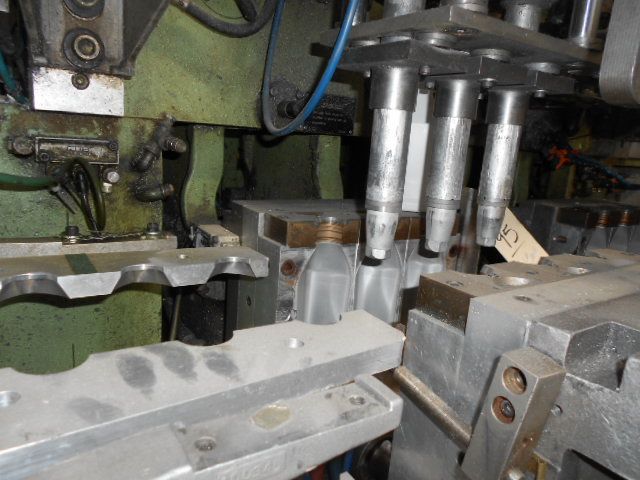

– Mold length- 400 mm
– Mold width- 300 mm
– Mold depth- 2 x 100 mm
– Daylight opening- maximum- 200 mm
– Mold closing force- 5.6 tons

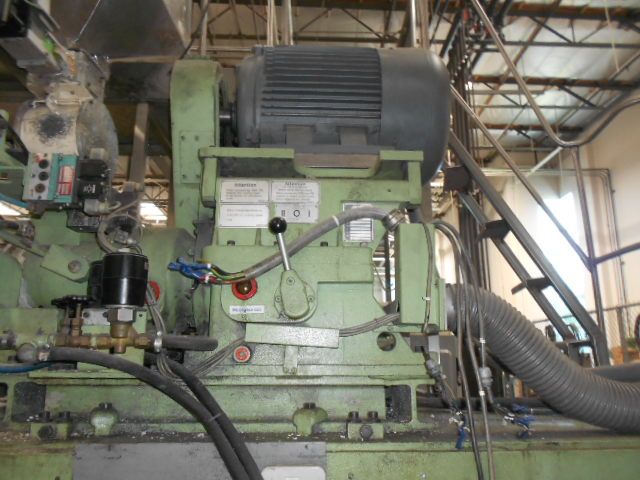

– Extruder diameter- 60 mm
– Extruder horse power- 60
– Power specifications- 460 volts- 3 phase- 60 cycles
– Machine has been upgraded with the following:

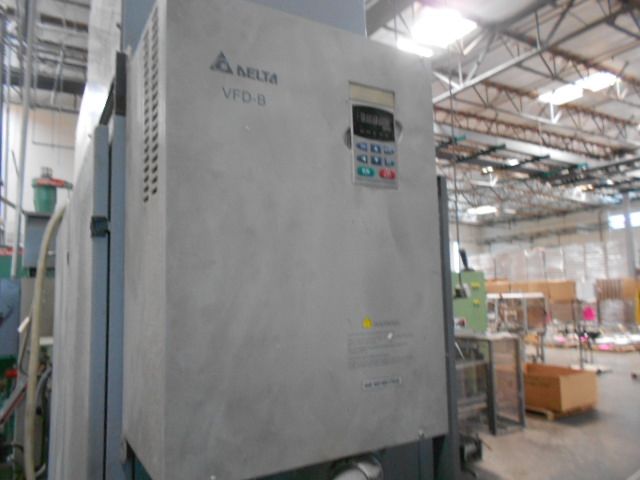

– Delta Model VFD-B AC variable frequency drive – Offer includes the following:

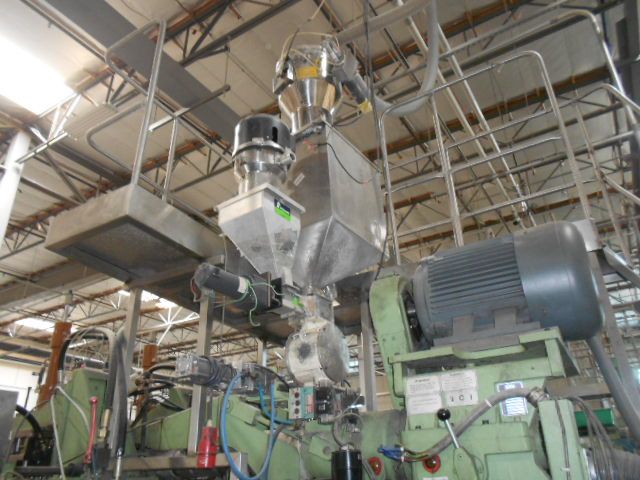

– Feed hopper

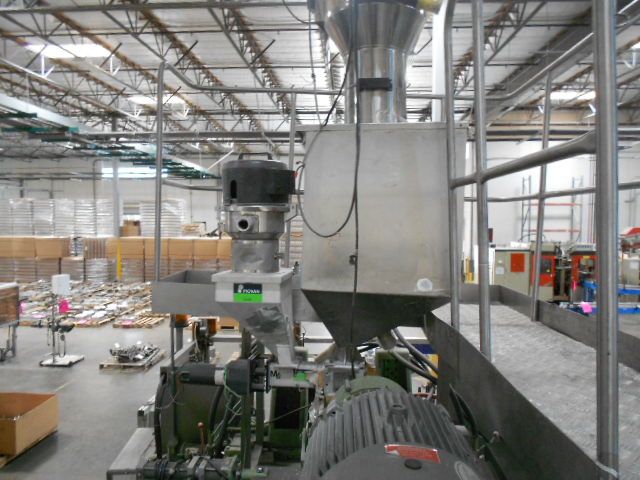

– Piovan vacuum loader and color feeder

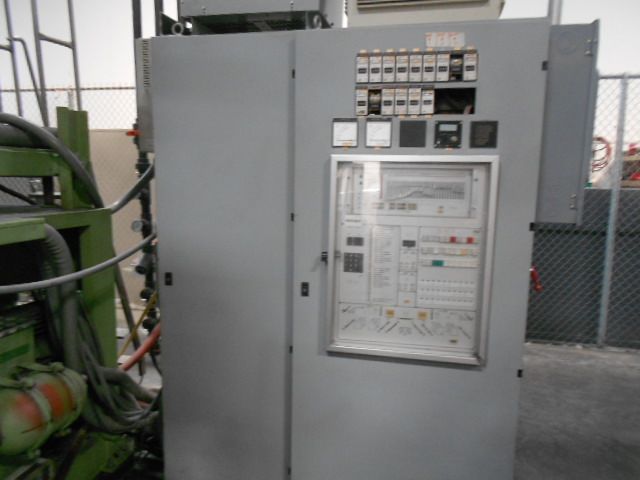

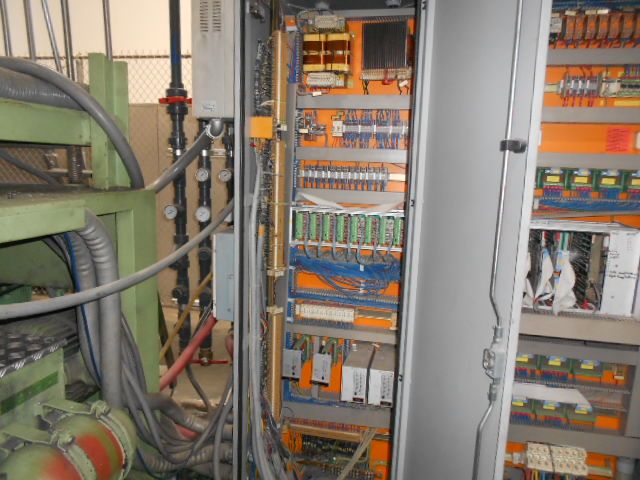

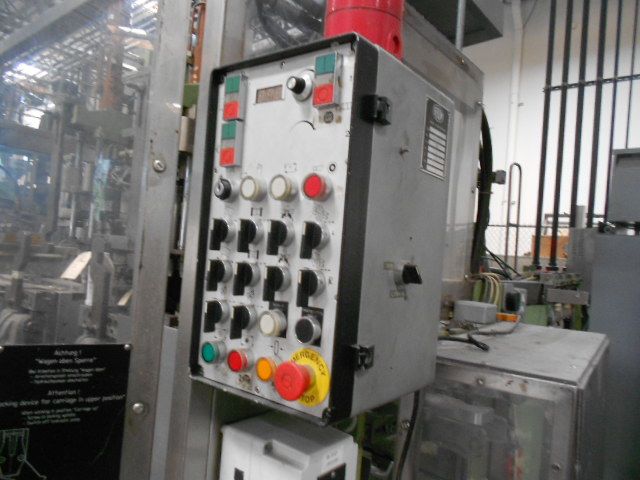

– Controls- Bekum 29 point parison programmer
