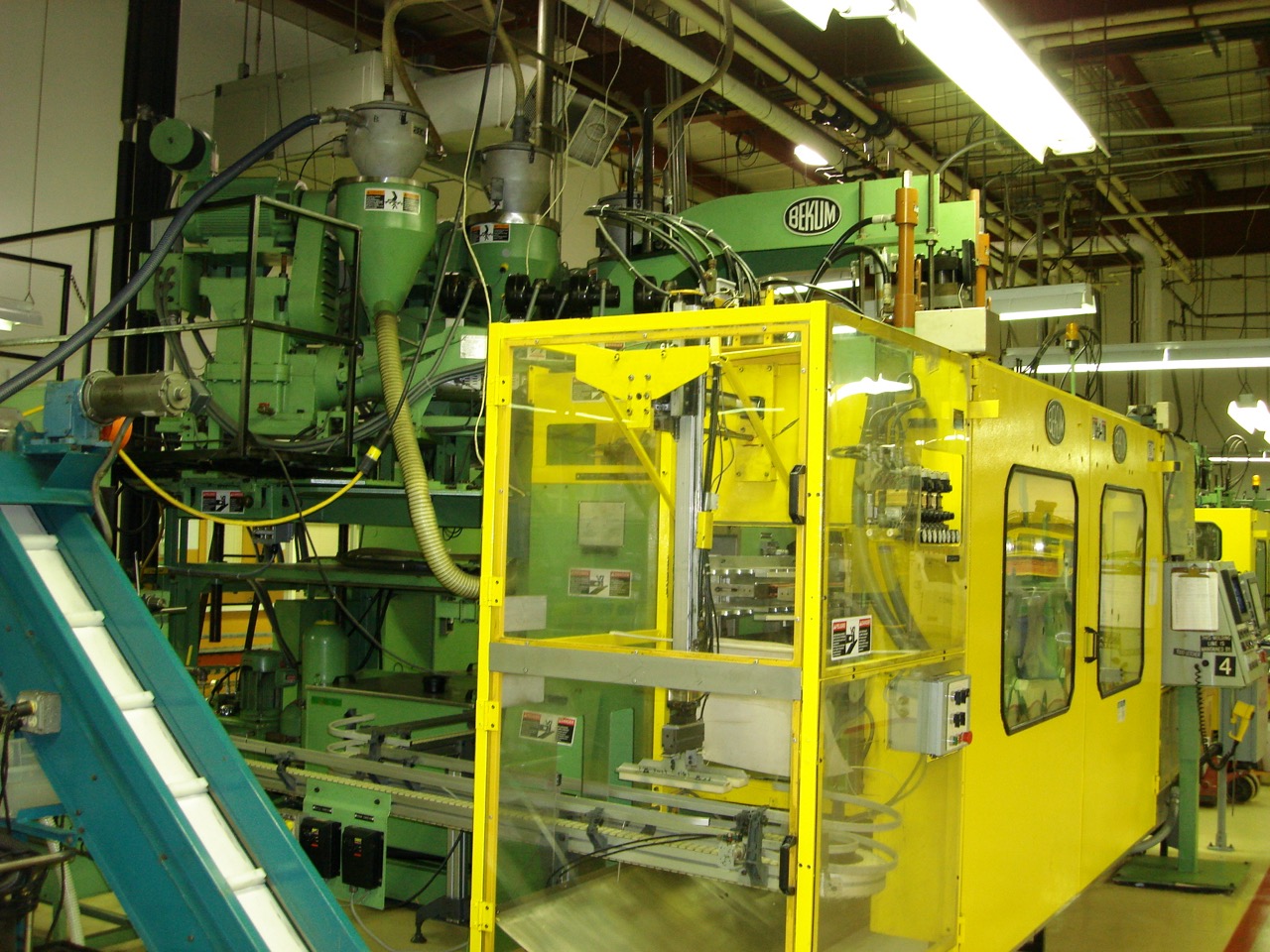

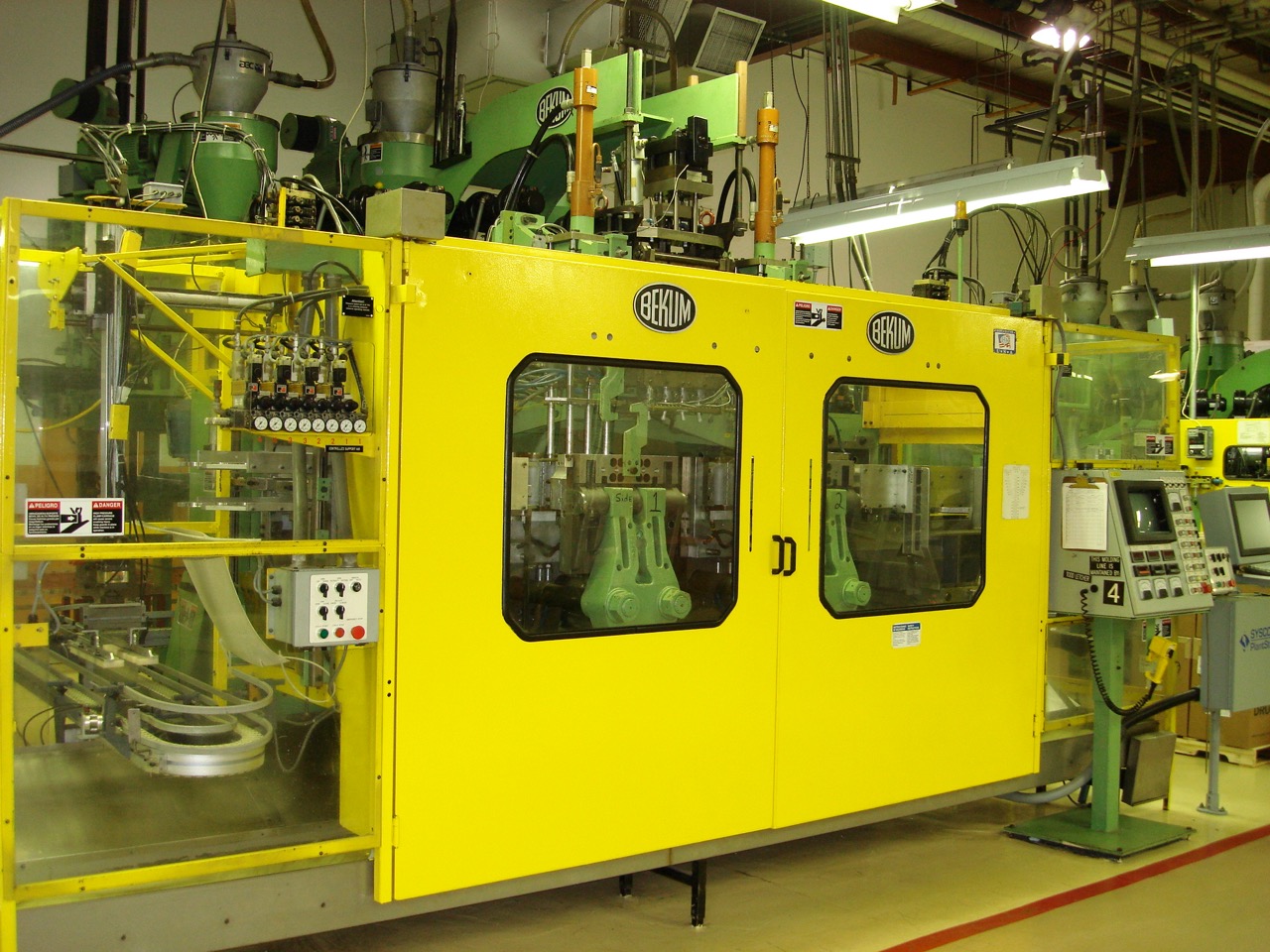

Image- 1991 Bekum Model 602D Blow Molding Machine

1991 Bekum Model BM 602D Dual Sided Continuous Extrusion Blow Molding Machine

Machine Makes 3 Layer Bottle

Categories: Blow Molding Machines, Continuous Extrusion Tags: bekum, blow molding machine, Continuous Extrusion

Description

Description

1991 Bekum Model BM 602D Dual Sided Continuous Extrusion Blow Molding Machine

– Head configuration- 3 parison head with 115 mm distances between centers

– Currently set up to produce HDPE bottles

– Press arrangement- dual sided machine

– Maximum mold length- 470 mm

– Maximum mold width- 440 mm – Mold depth- 2 x 130

– Daylight- 220 mm

– Clamp force- 11.2 tons

– Dry cycle time is 2.6 seconds

– Extruder diameters- (3) extruders- 60 mm diameter each

– Extruder drive/ L:D ratio- 30 H.P. each/ 24:1

– Machine includes the following features:

– In machine trimming capability

– Bottle exits machine trimmed and oriented ready for filling

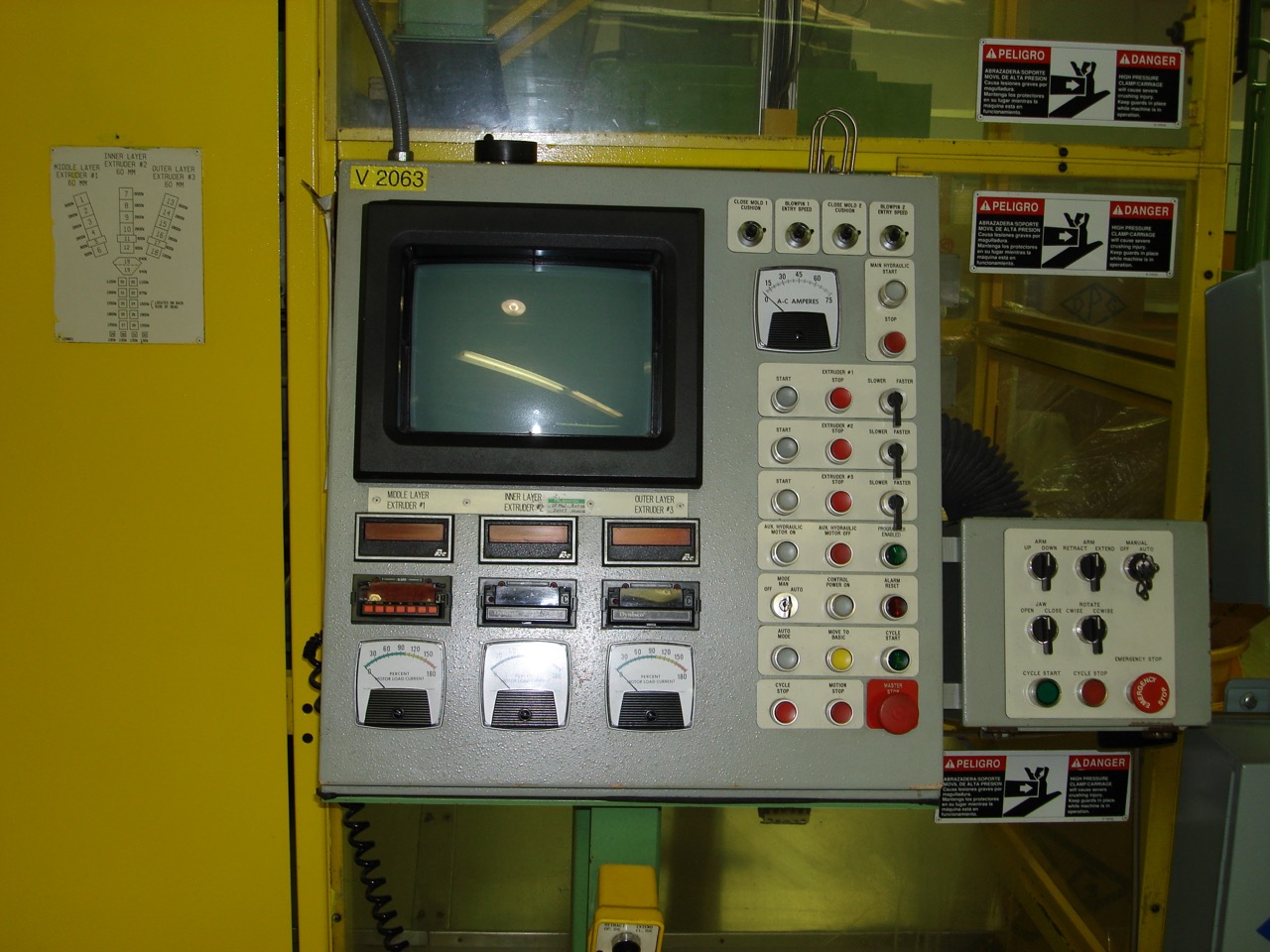

– Controls- Barber Coleman Maco 8000 controller

– Condition- Very good
