Jomar Model 135 Injection Blow Molding Machine

Well Maintained and In Operation

Maintained in a Clean Room like Environment

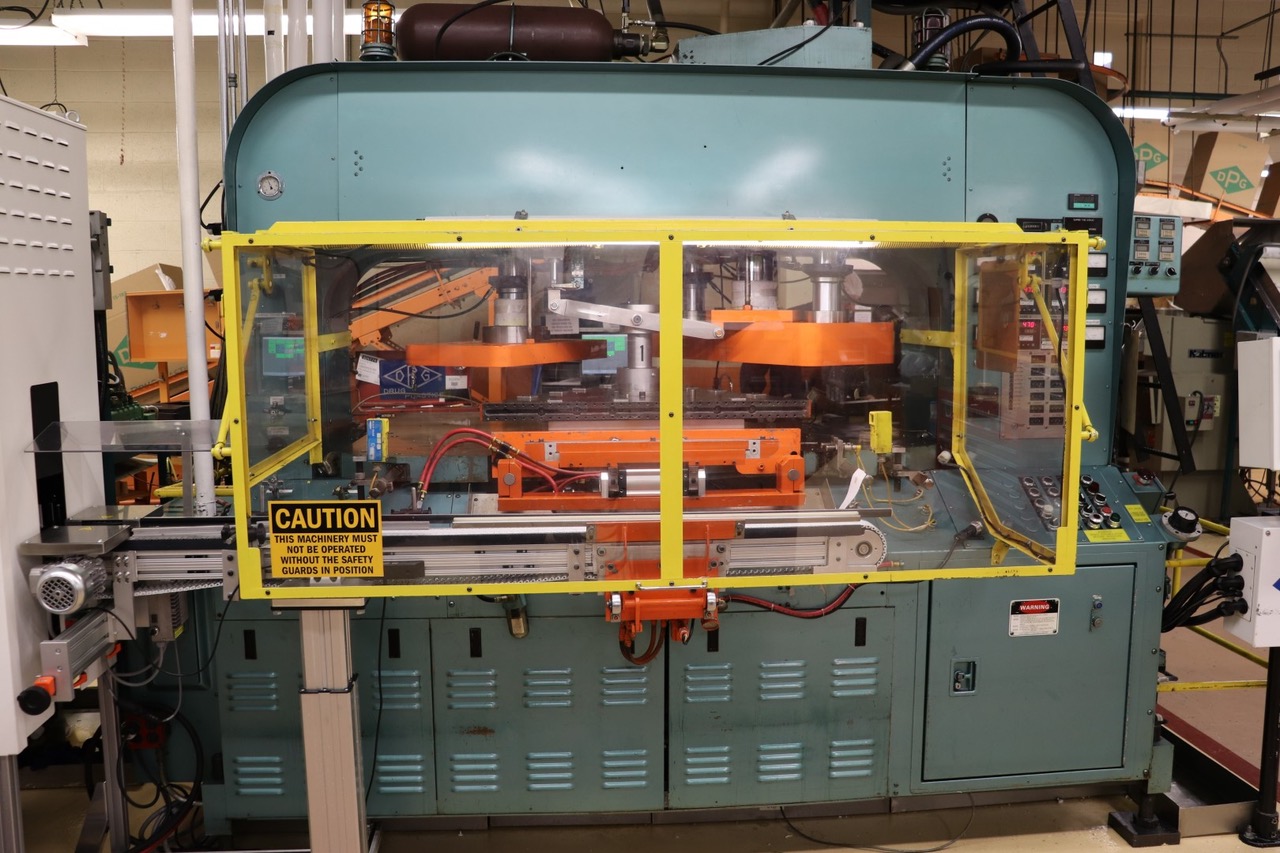

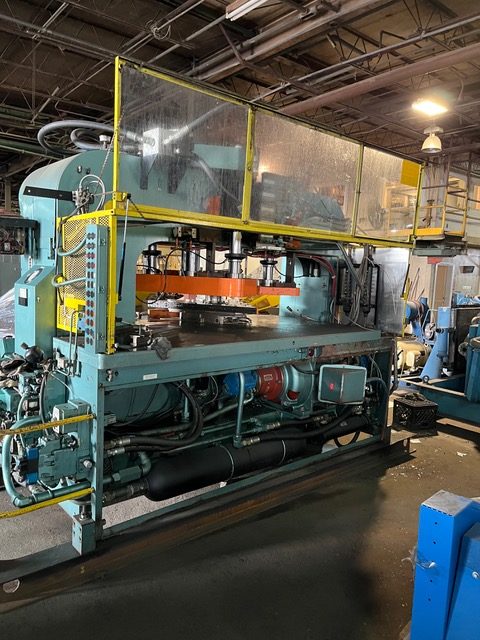

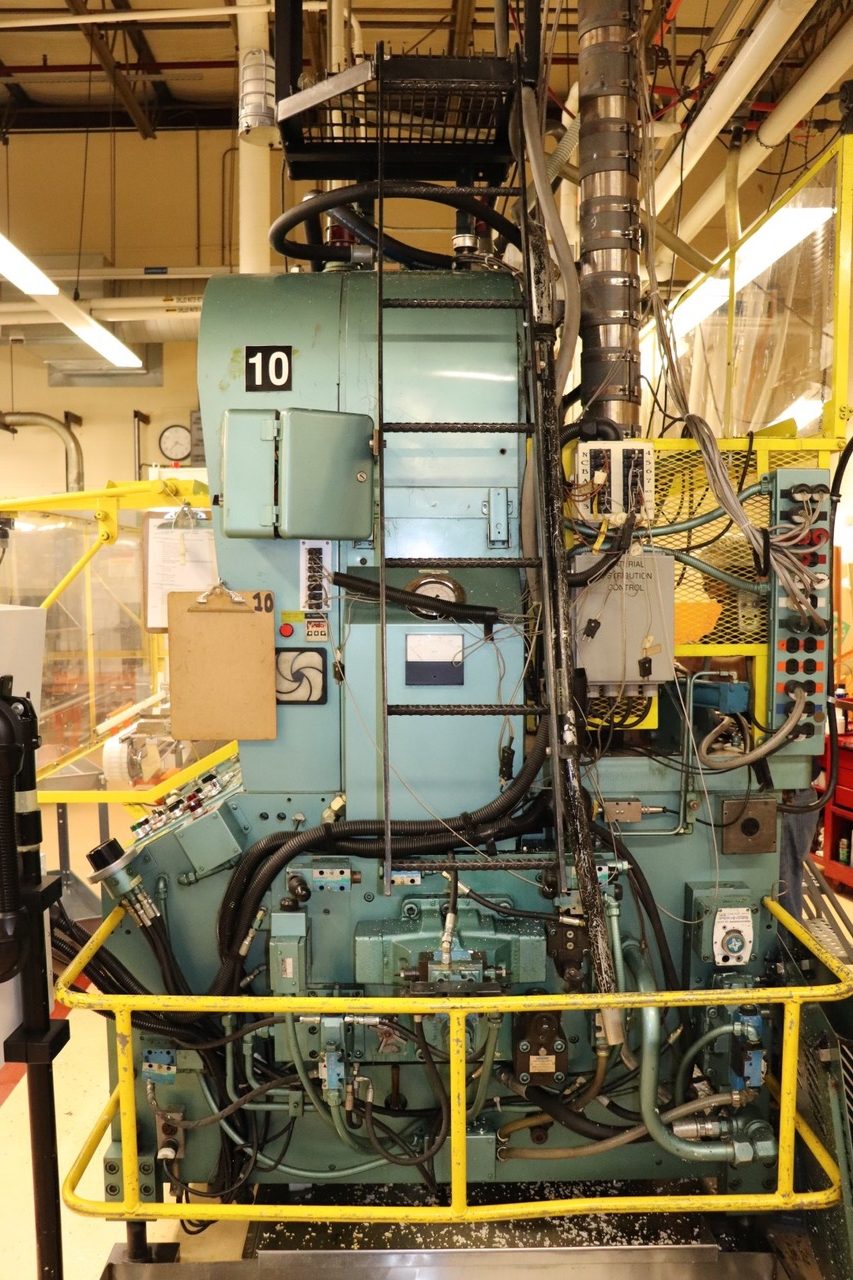

1997 Jomar Model 135 injection blow molding machine





Product Description

Jomar Model 135 Injection Blow Molding Machine

– Year of manufacture- 1997

-Closing force- blow mold clamp- 28 tons

-Closing force- parison clamp- 135 tons

-Shut height- 10”

-Press stroke- 6”

– Maximum die set- 22.0” wide x 44.0” long

– The maximum distance between outside mold cavities- 36”

-Maximum container size- 5.8” diameter x 10” long

-Screw diameter- 2.5”

-Electrical specifications- 460 volts- 60 cycles- 3 phase

– Bottle orienting stripper system

– Outboard cylinder reducing pressure for smaller molds

-Perform molds as follows (available at additional cost):

   -9 cavity mold to make a 30.2-gram preform (was making a 12-ounce cone top brake fluid bottle)

   -11 cavity mold to make a 28.6-gram preform (was making a 10-ounce cylinder bottle)

   -10 cavity mold to make a 35.6-gram preform (was making a 12-ounce power steering fluid bottle

   -18 cavity mold to make a 13-gram preform (was making a 4-ounce cylinder bottle)

-Condition- Good- can be inspected in storage-  video of the machine in operation available upon request
