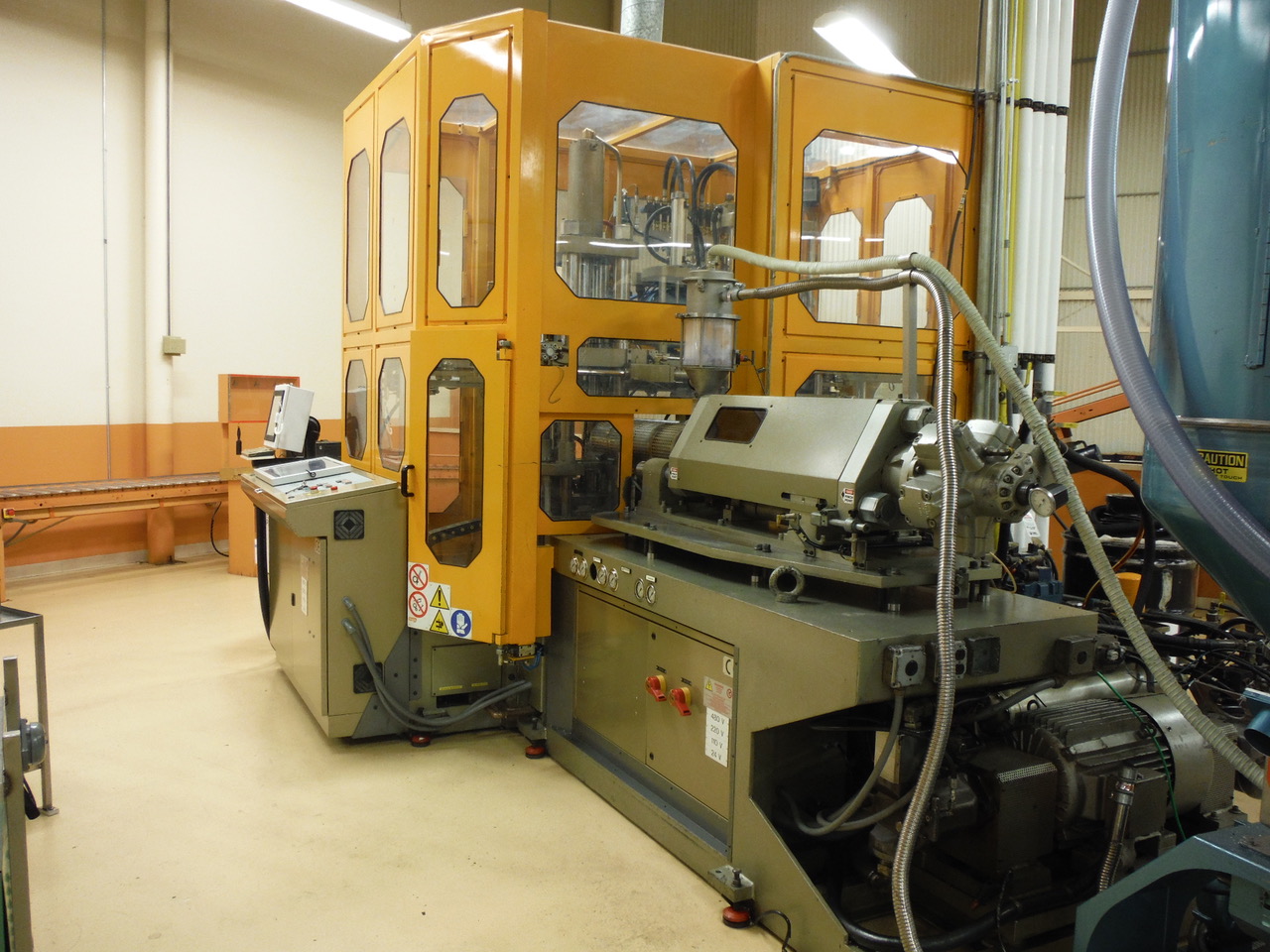

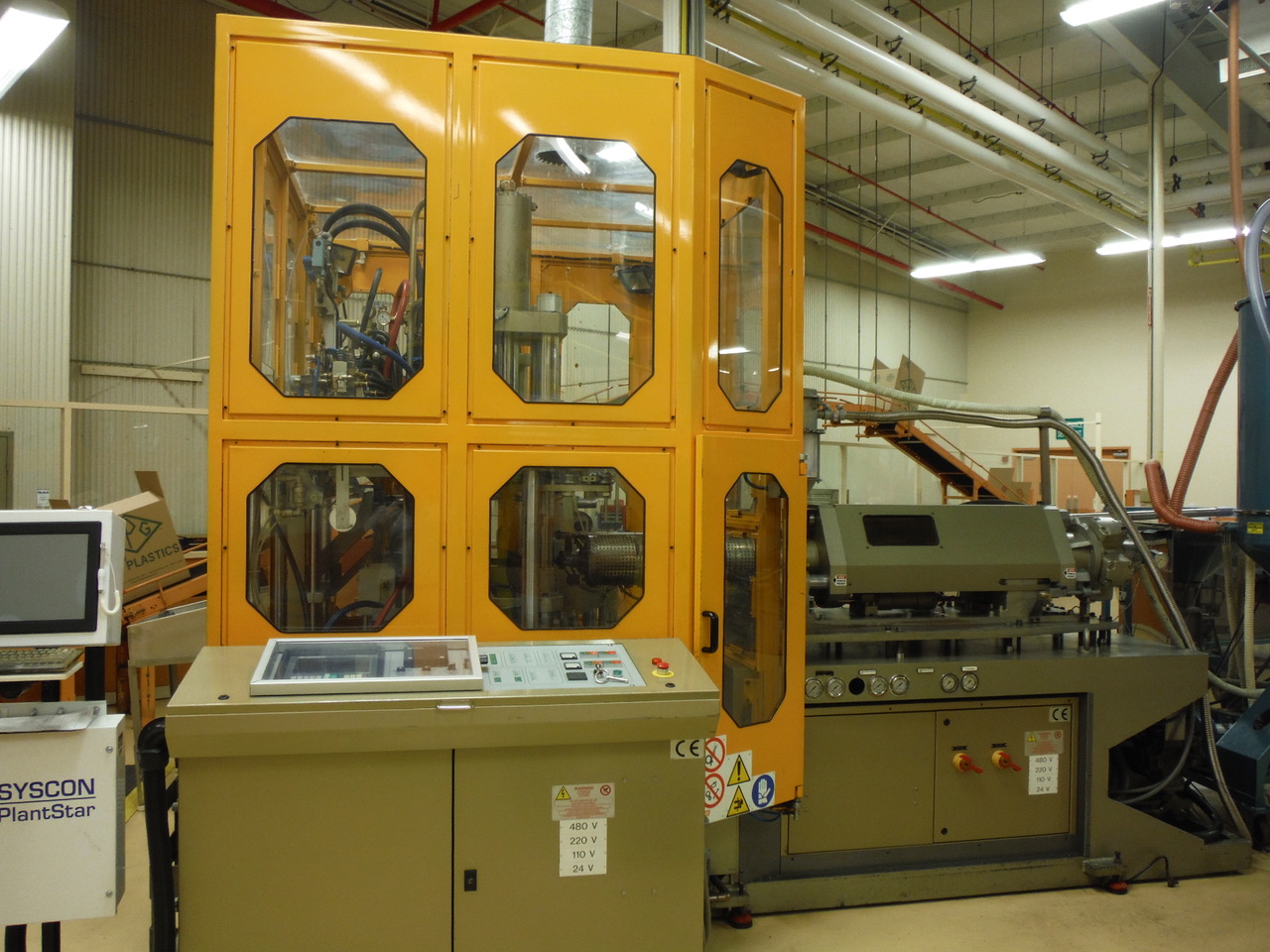

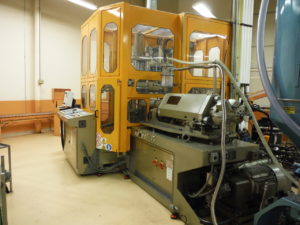

Magic Model VF 146/8 PET Injection Stretch Blow Molding Machine

– Screw diameter- 54 mm

– Injection capacity- 354 cc

– Type controller- Gefran

Product Description

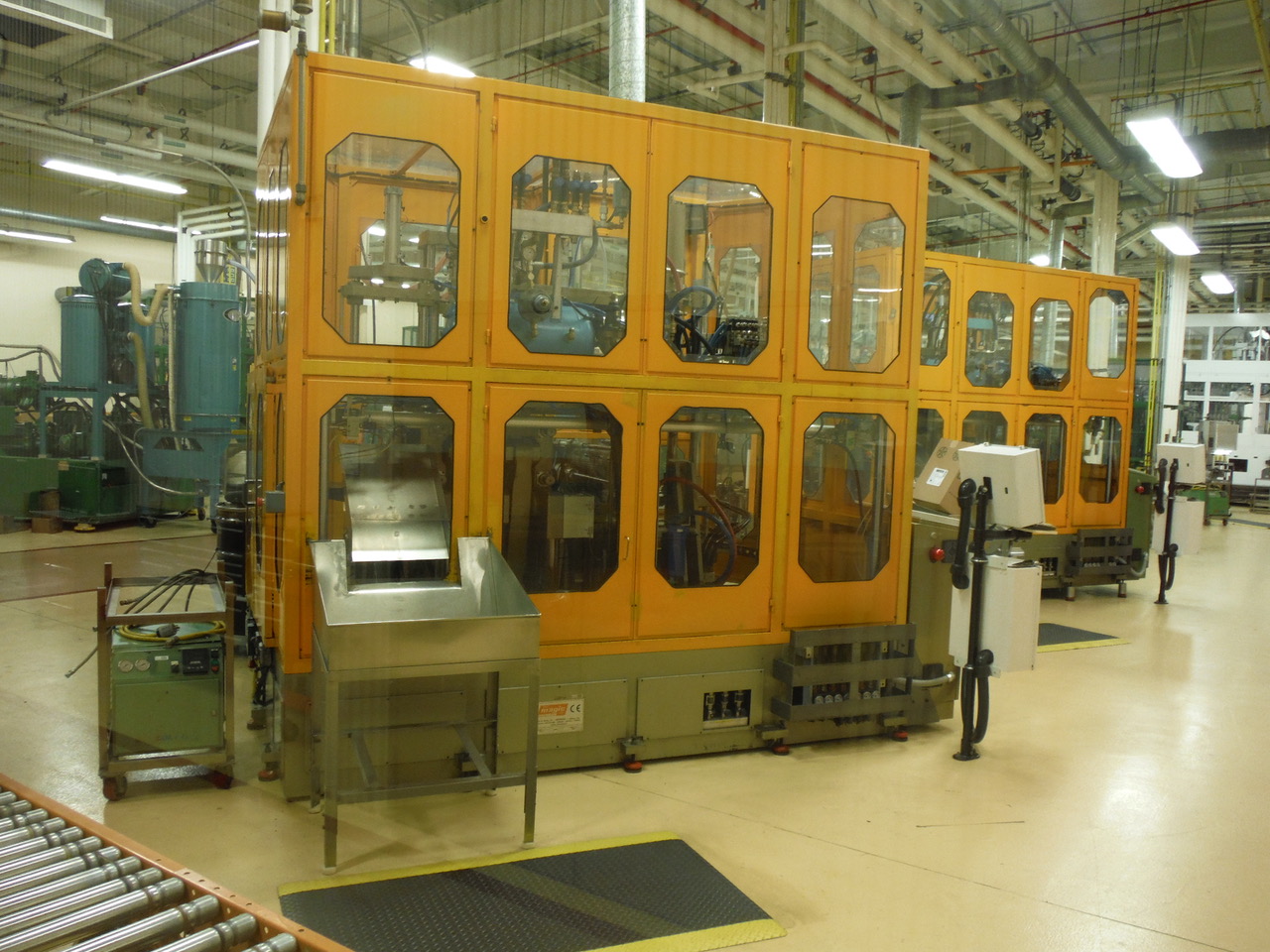

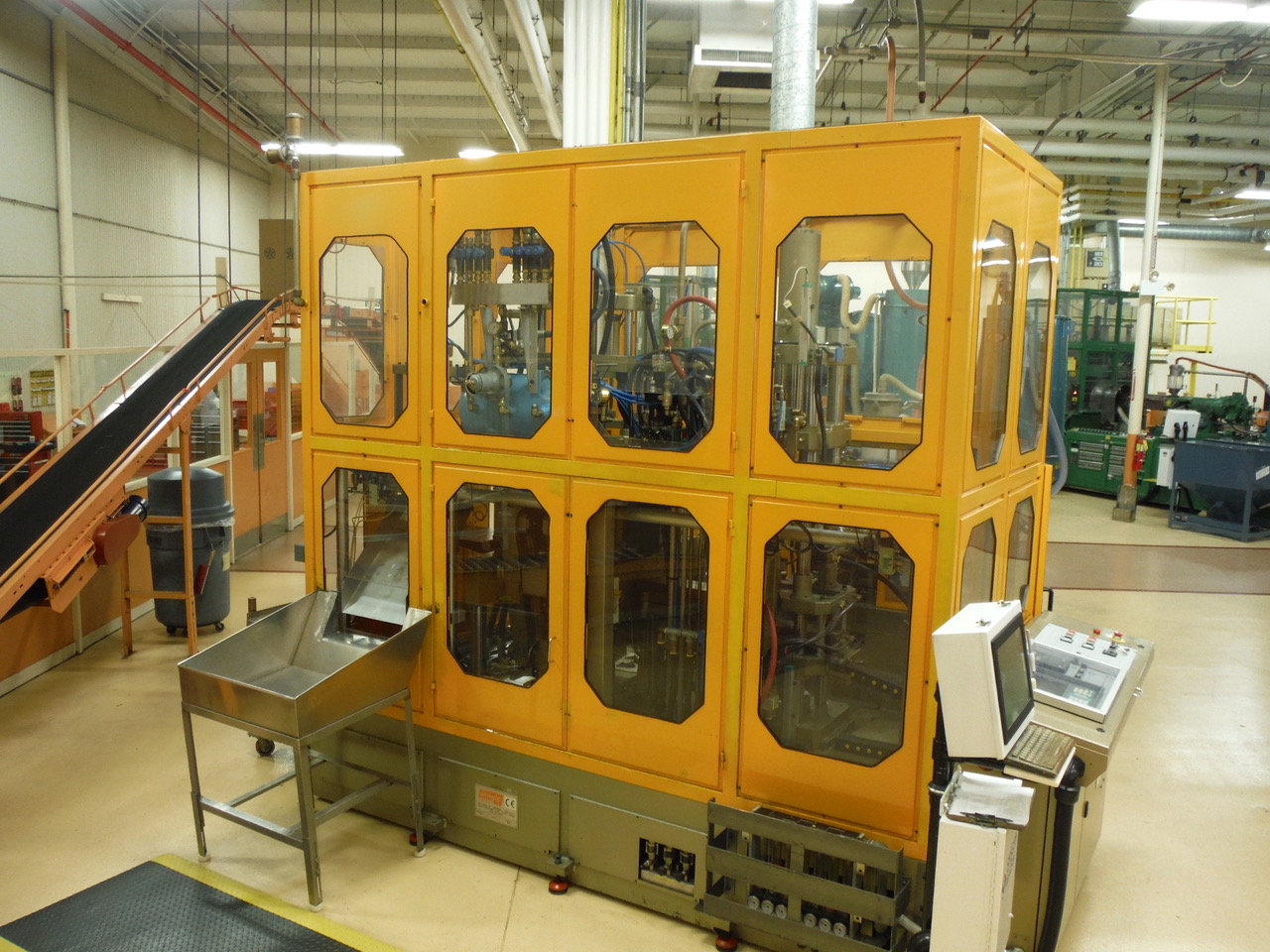

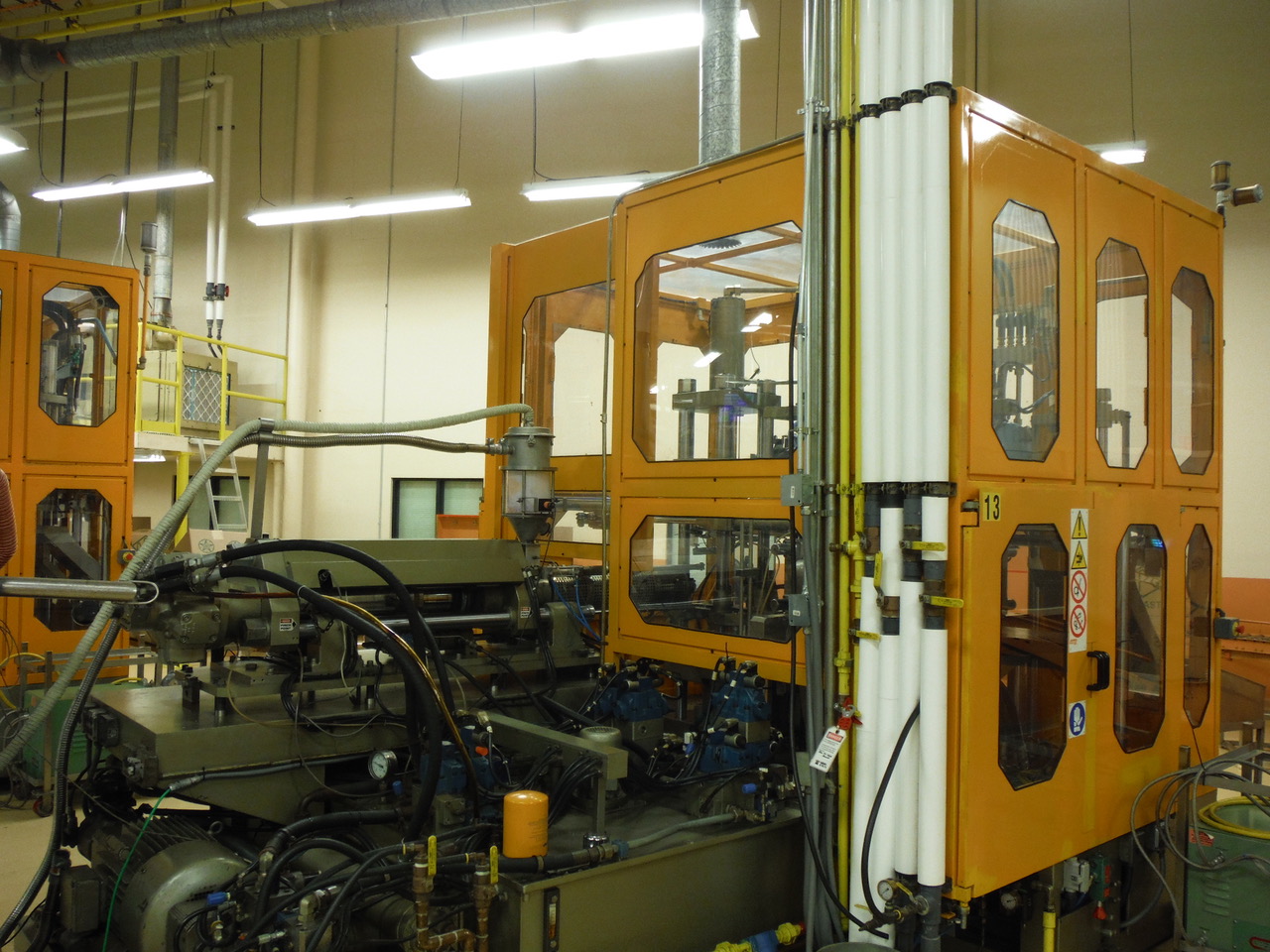

Magic Model VF 146/8 PET Injection Stretch Blow Molding Machine

– Year- 1999

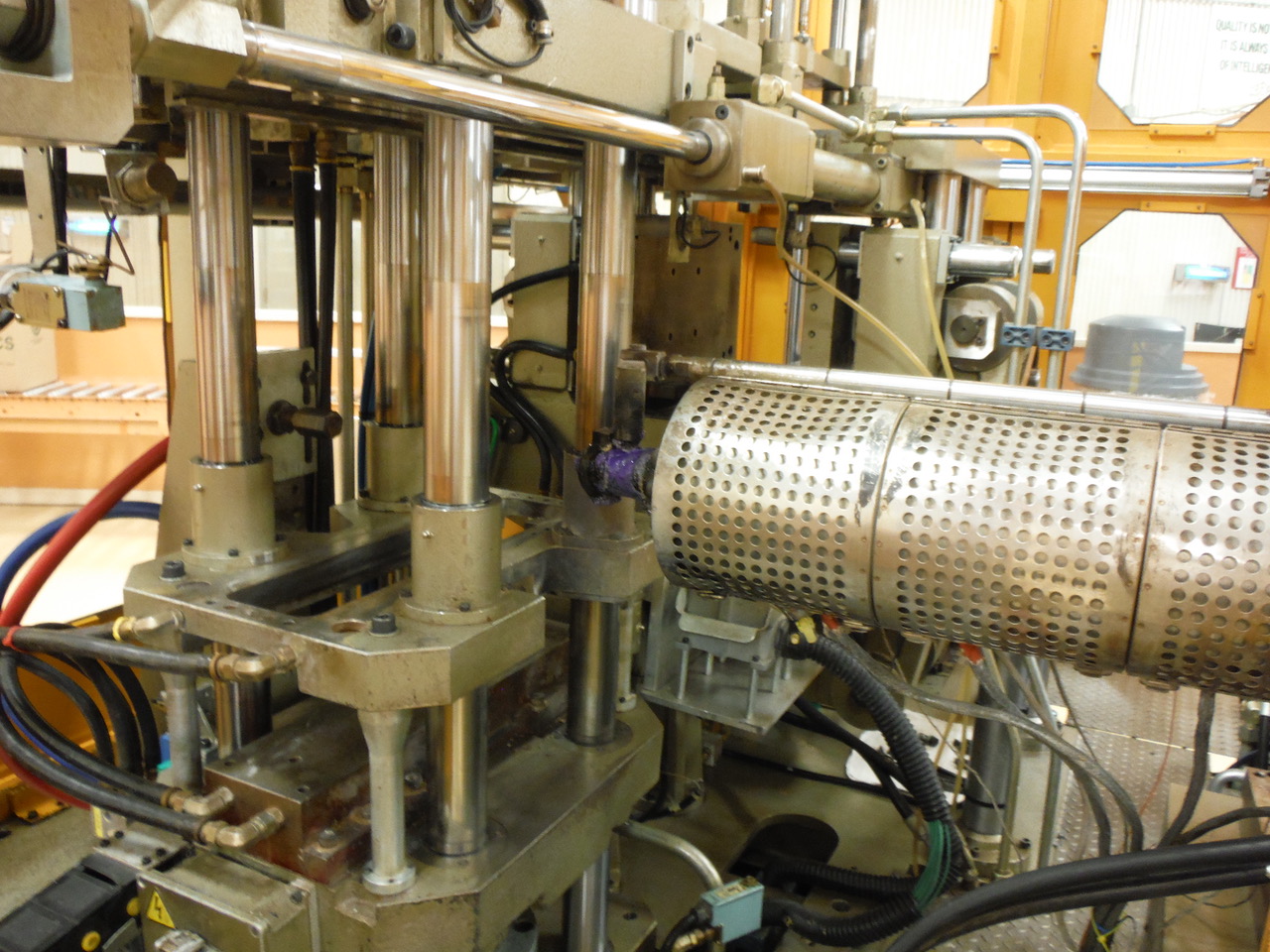

– Injection unit information:

   – Screw diameter- 54 mm

   – Injection capacity- 354 cc

   – Hydraulic motor- 26 Kw

   – Injection pressure- 1500 bar

   – Screw rpm- 0-170

   –  Heating zones- 4

   – Heating power- 14.5 Kw

   – Plasticization capacity (@ 170 rpm)- 147 kg/hour

– Injection  station information:

   – Clamping force- 225 KN

   – Operating hydraulic pressure- 170 bar

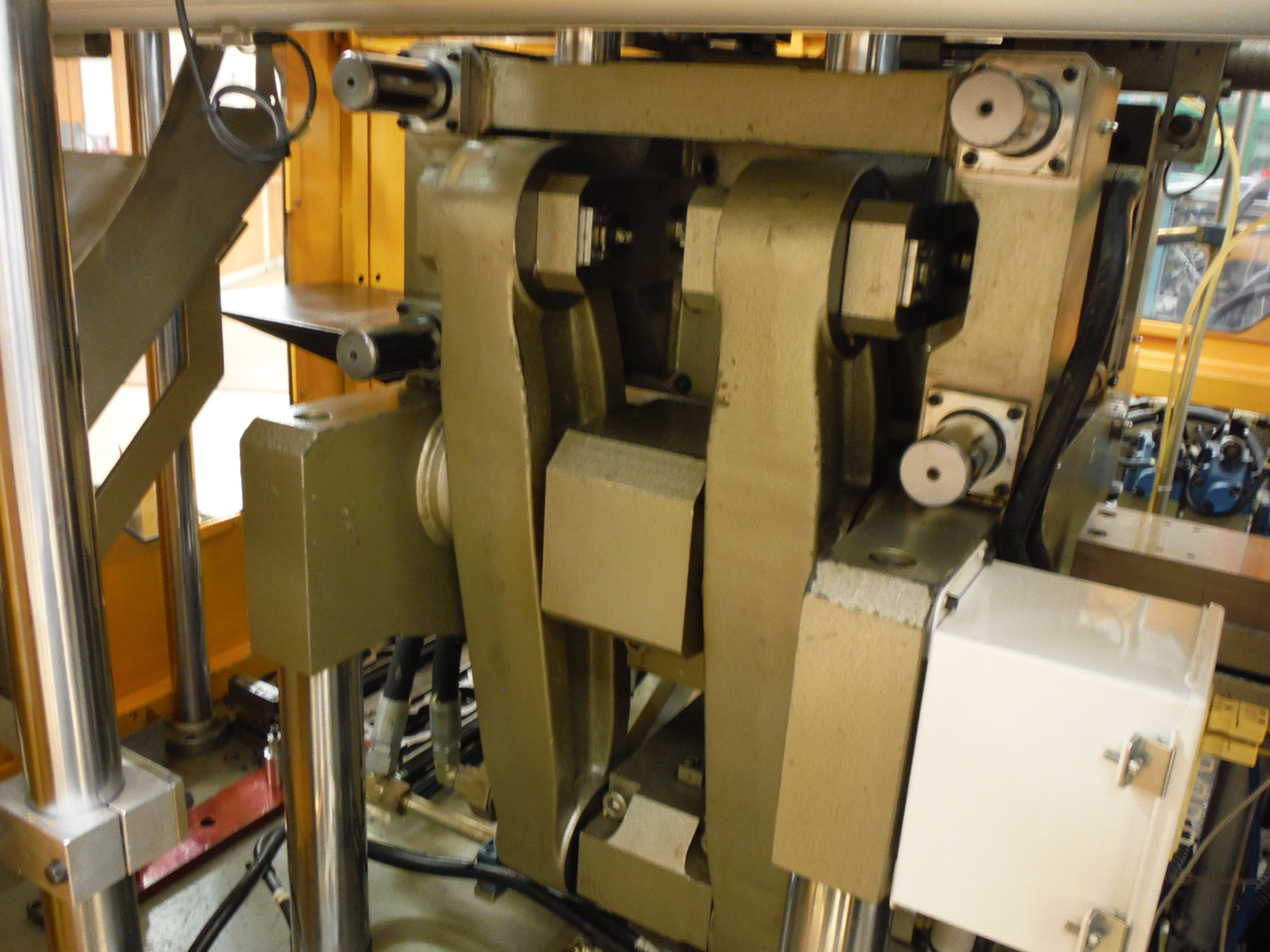

– Blow station information:

   – Maximum volume of container- 2000 cc

   – Clamping force- 300 KN

   – Dry cycle- 9 seconds

   – Operating hydraulic pressure- 160 bar

   – Opening stroke- 180 mm

   – Maximum mold dimensions (width x height x thickness)- 610 mm x 840 mm x 181 mm

– Electric motor rating- 30 Kw

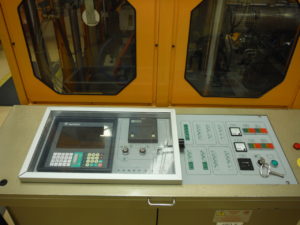

– Type controller- Gefran

– Number of operating hours- 72,864

– Machine dimensions- length x width x height- (mm)- 4200 x 3600 x 3050

– Machine weight- Approximately 25,000 pounds

Please inquire about other available components which include the following:

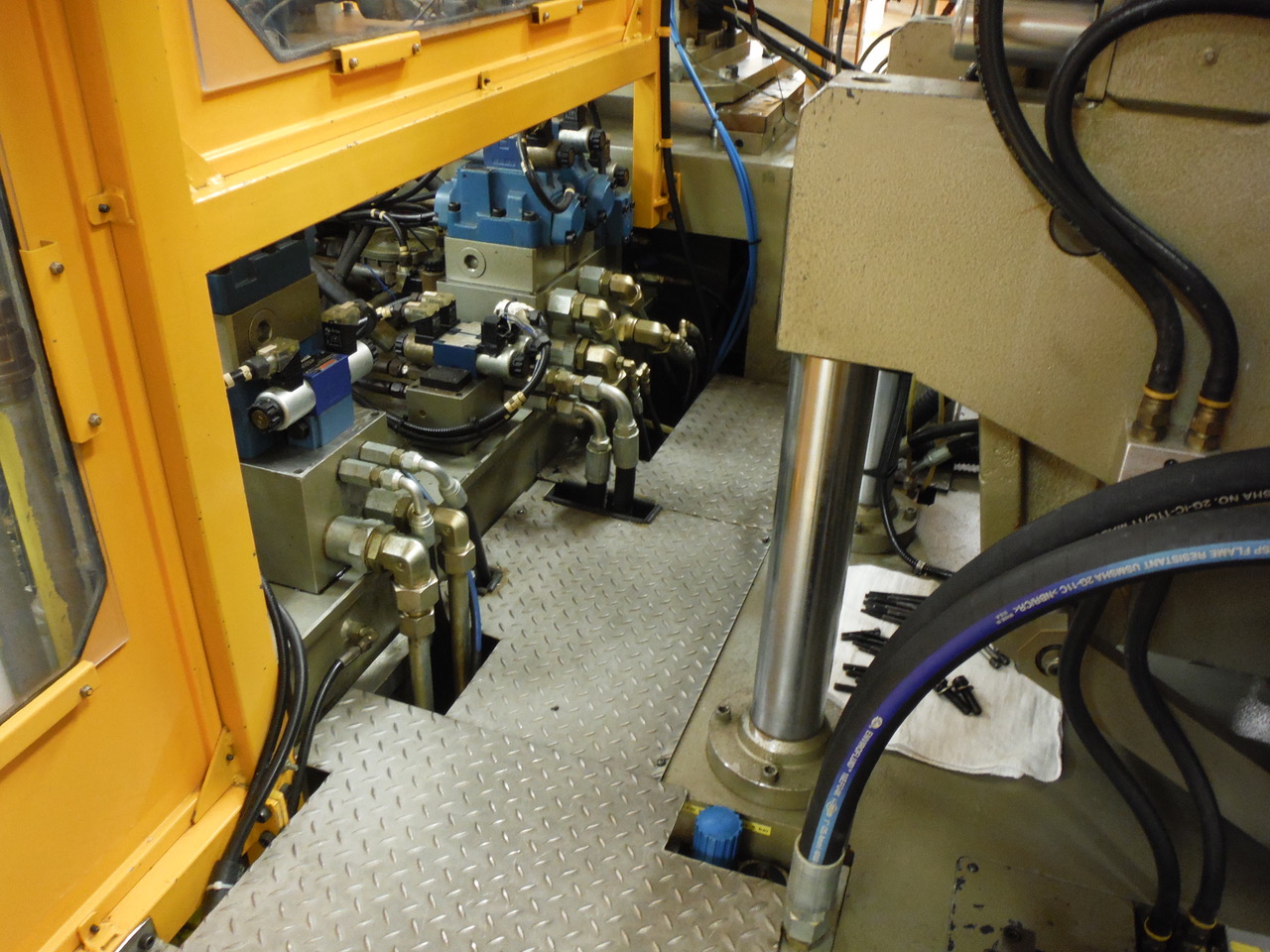

-Complete Hydraulic tank system

-Complete Injection press

-Complete Blow Mold Press

-Complete electrical control cabinet

-Complete Injection unit

-Electrical Parts, Electronic control items

-Hydraulic hoses

-Condition- Very Good, well maintained
