1998 sudek SBO 10 PET Stretch BMM 1

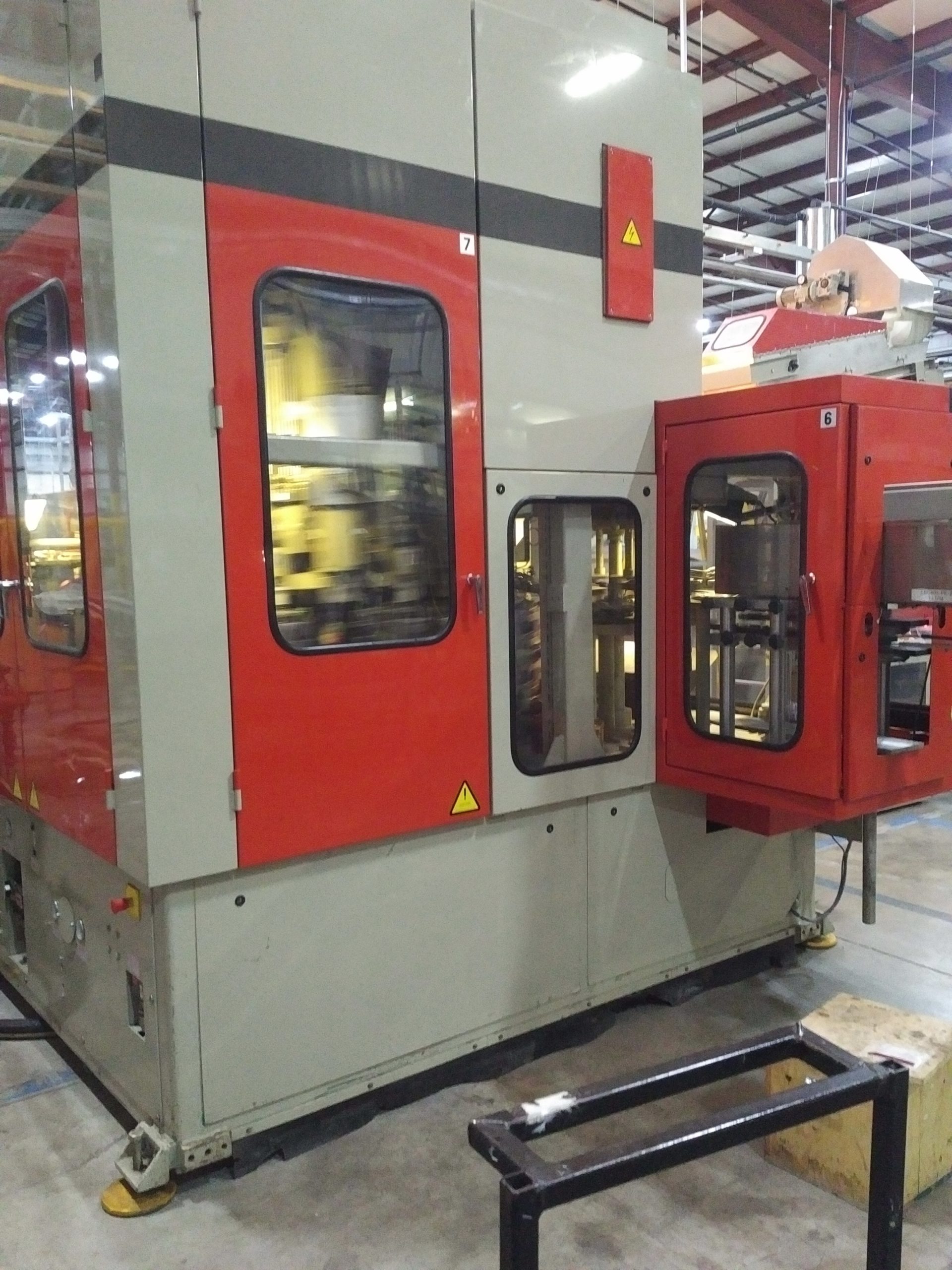

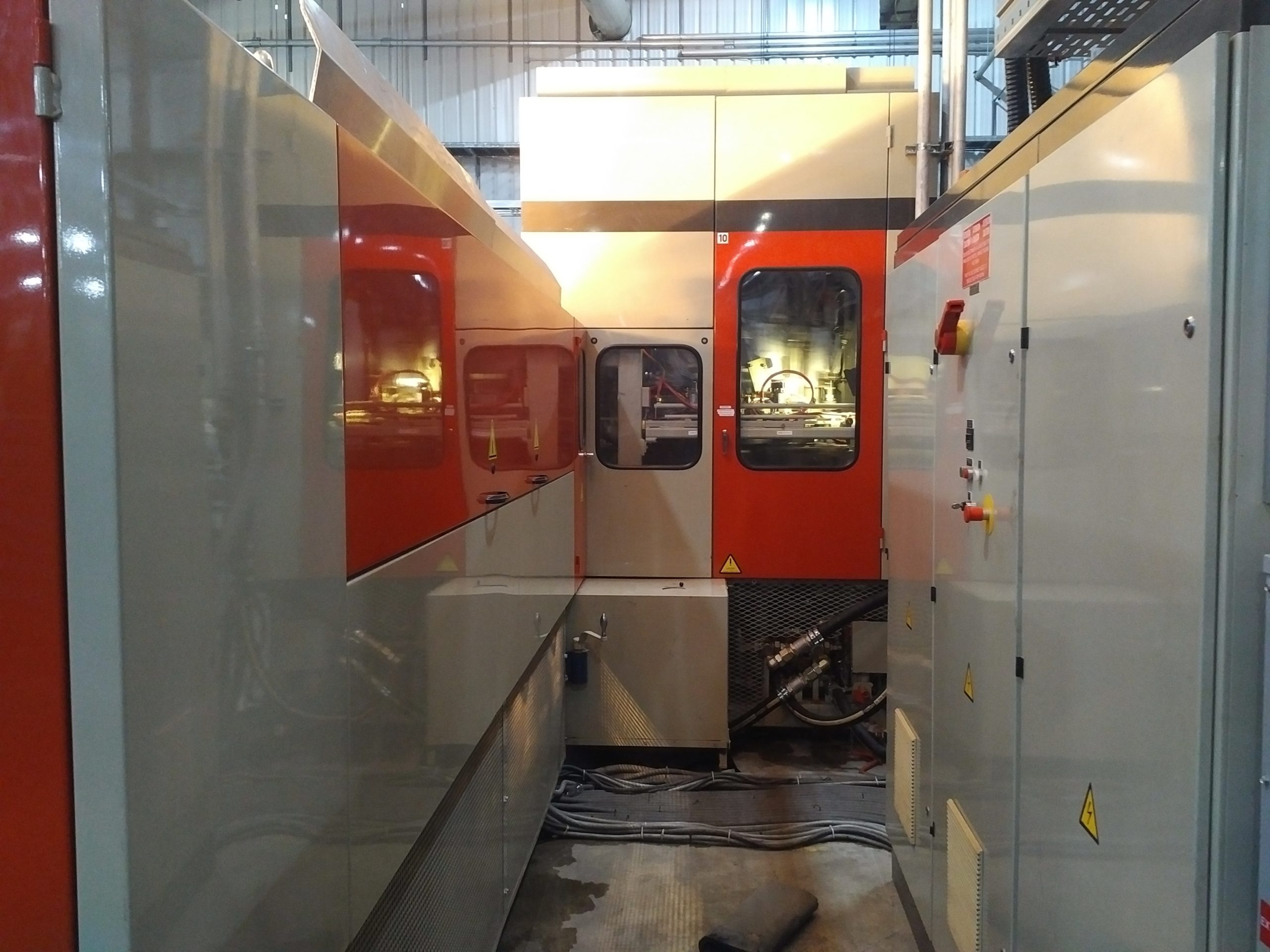

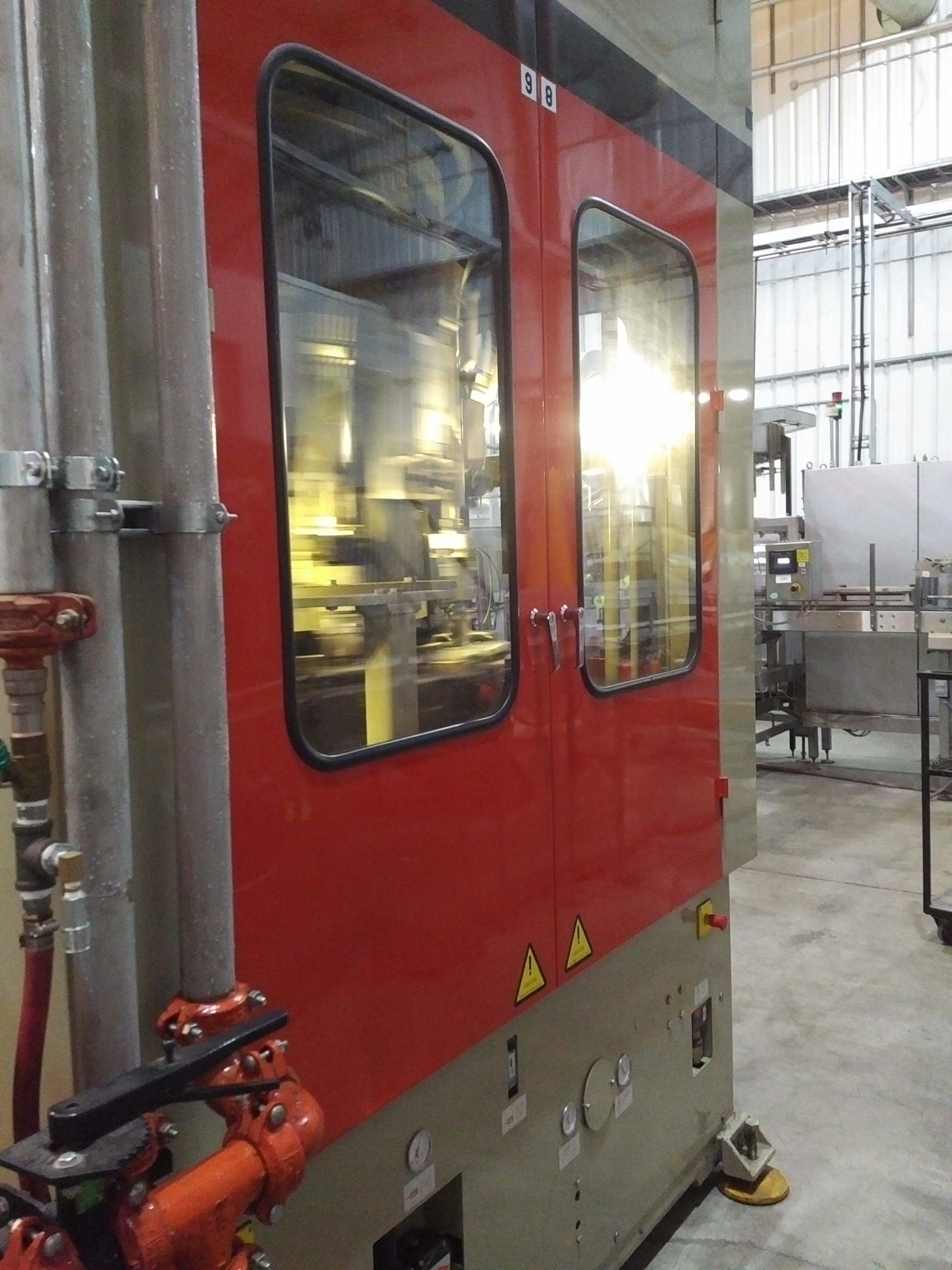

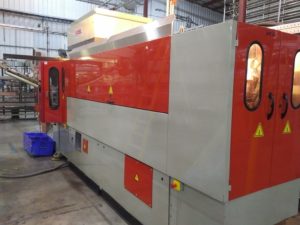

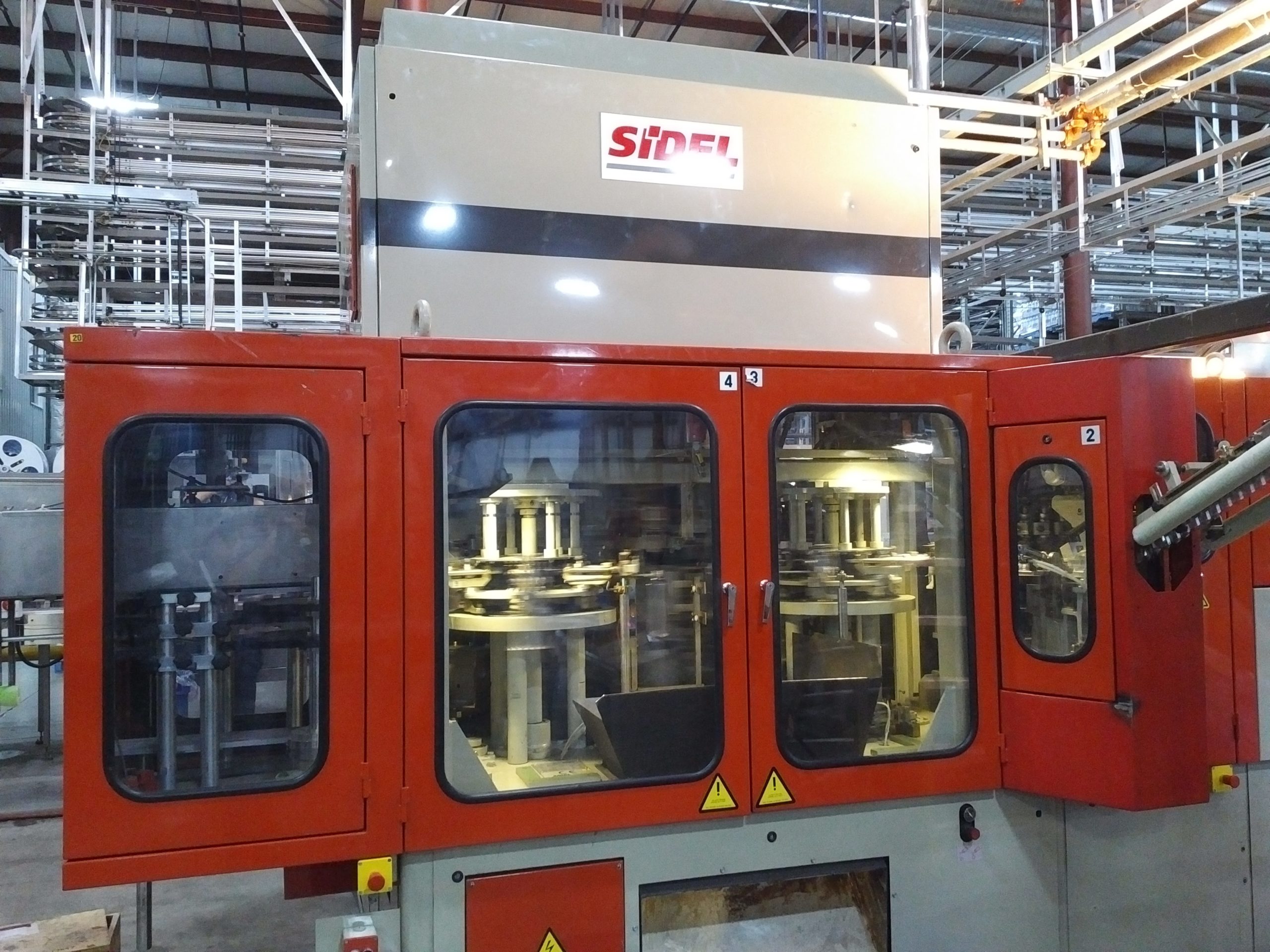

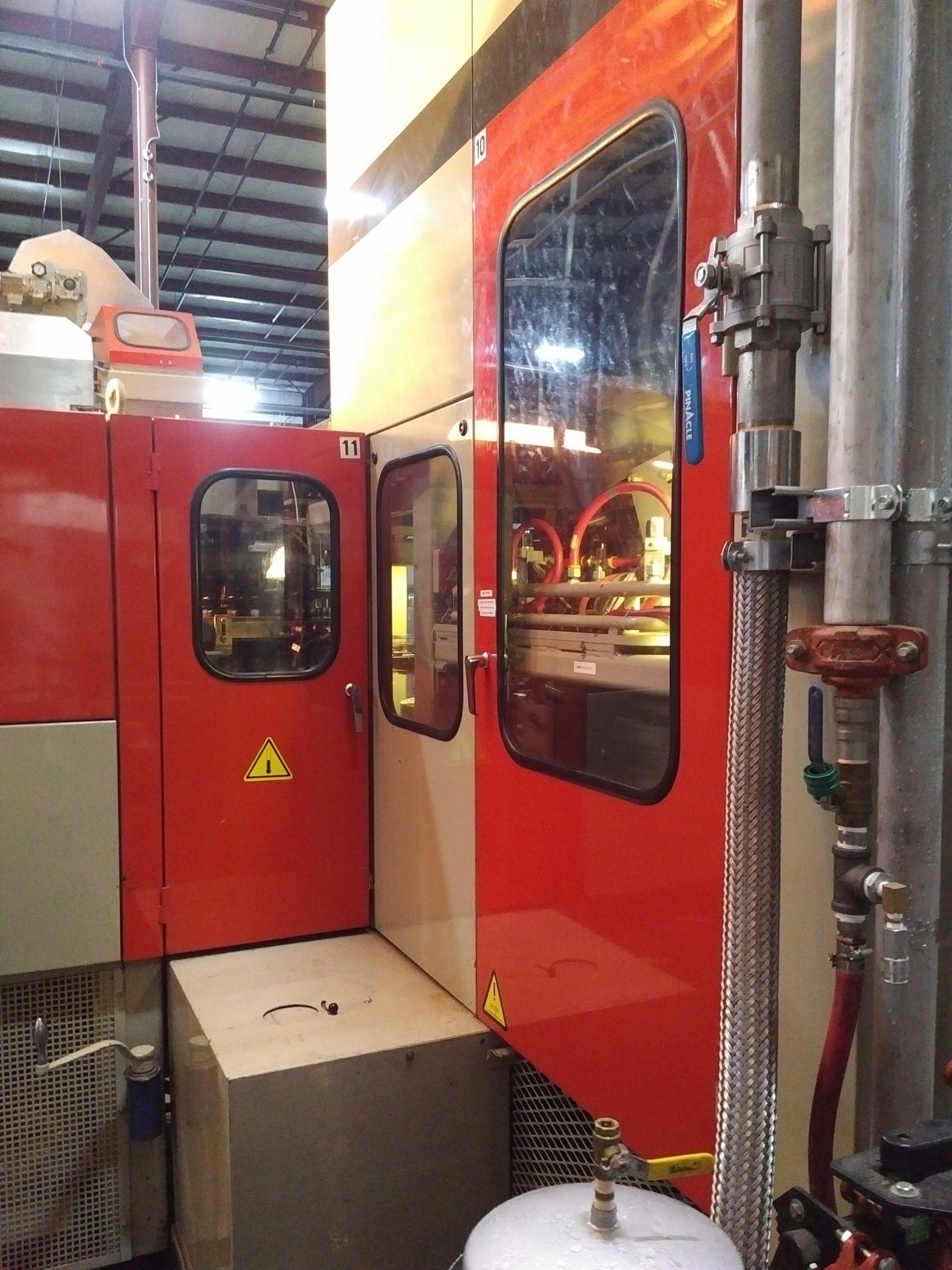

Sidel Model SBO 10 PET Stretch Blow Molding Machine

– Series I machine

– Number of cavities- 10

– Capable of producing up to a 3-liter bottle

– Nominal production capacity- 12,000 bottles per hour

Categories: Blow Molding Machines, PET Two-Step Stretch Tags: blow molding machine, PET Stretch blow molding machine, sidel

Description

Description

Sidel Model SBO 10 PET Stretch Blow Molding Machine

– Series I machine

– Number of cavities- 10

– Nominal production capacity- 12,000 bottles per hour

– Type mold hangers- GUPM

– Preform inside neck dia- max- 34 m.m.

– Preform support ring dia.- max- 51 m.m.

– Preform length including neck- max- 210 m.m.

– Bottle diameter- max- 130 m.m.

– Bottle height- max- 388 m.m.

– Power specifications- 460 volts/3 phase/60 Hz

– Offer includes the following:

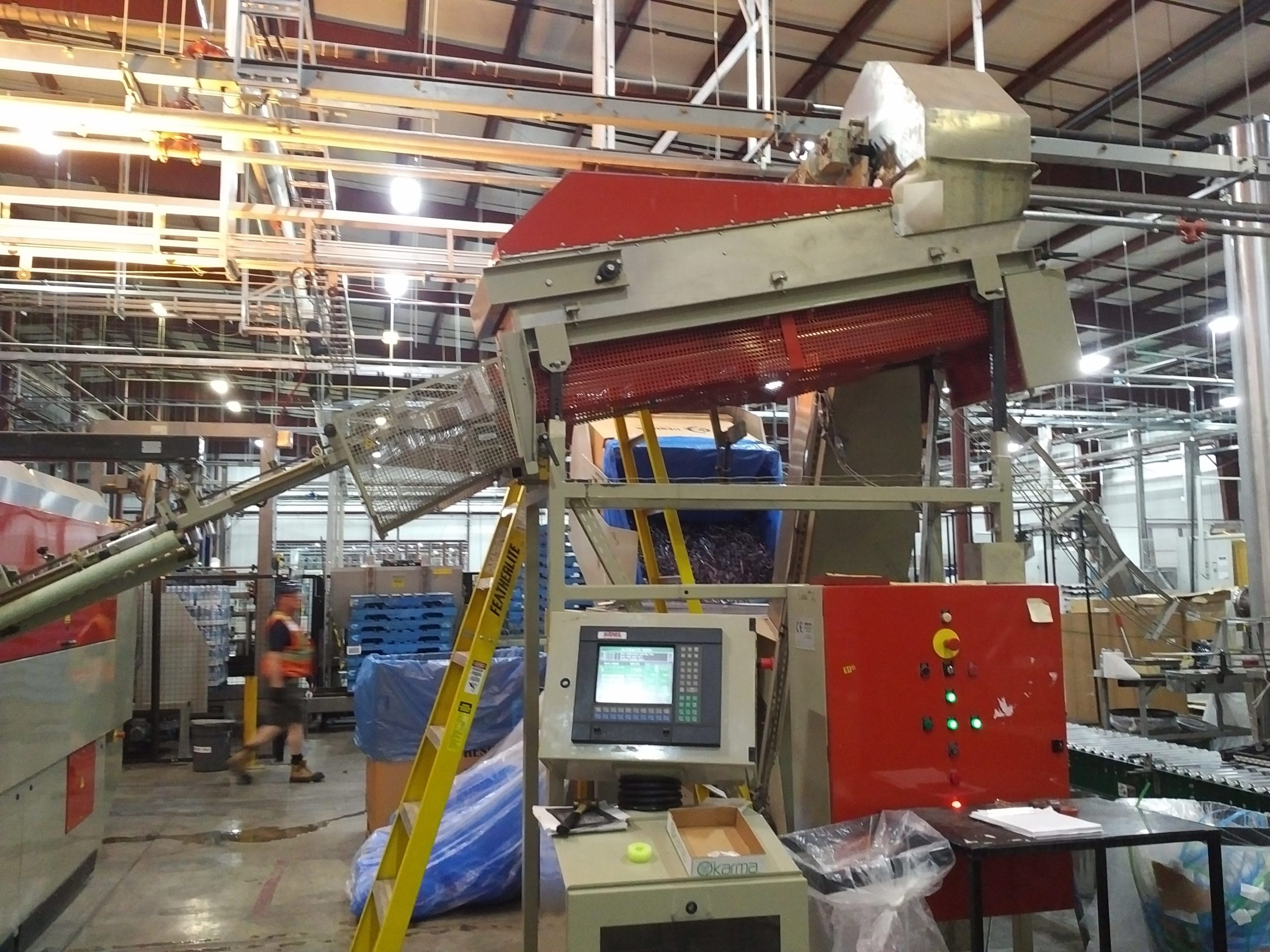

– Preform dumper

– Preform hopper/elevator

– Preform un scrambler

– Preform loading guide rails

– Year – 1998

– Condition- Very good- less than 20,000 operating hours
