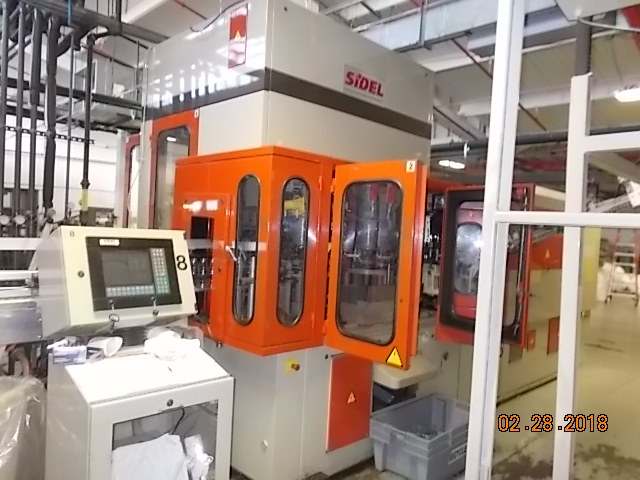

Sidel Model SBO 6/10 PET Stretch Blow Molding Machine

SBO 6/10 (6 cavities and 10 heating sections)

Two-step blow molding process.  This entails a preform being injection molded.  The preform is then blown and stretched to specifications.

The Machine is in very good condition.

Description

Sidel Model SBO 6/10 PET Stretch Blow Molding Machine

– Number of cavities- 6

– Production capacity- 7200 bottles per hour

– Type mold hangers- GUPM

– Oven type- linear

– Number of heating modules- 10

– Bottle diameter- maximum- 120 m.m.

– Bottle length including neck- maximum- 388 m.m.

– Inside neck diameter- minimum/maximum 19 m.m. / 34 m.m.

– Neck height- minimum/maximum- 10 m.m. / 41 m.m.

– Support ring diameter- minimum/maximum- 19 m.m. / 51 m.m.

– Length of perform including neck- maximum- 210 m.m

– Includes optical inspection unit

– Controls- Sidel programmable controller with CRT
