Uniloy Milacron Model HSM 10/D Continuous Extrusion Blow Molding Machine

– Head configuration- dual parison head with 300 mm distance between centers of die heads

– Maximum die diameter- 140 mm

– Press configuration- dual clamp

Product Description

Uniloy Milacron Model HSM 10/D Continuous Extrusion Blow Molding Machine

-Year- 2001

– Head configuration- dual parison head with 300 mm distance between centers of die heads

– Maximum die diameter- 140 mm

– Press configuration- dual clamp

– Maximum mold dimensions- 650 mm wide x 500 mm height (with mold protruding 50 mm above top platen)

– Mold thickness- 2 x 150 mm

– Mold opening- 300 mm

– Mold horizontal stroke- 660 mm

– Clamp force- 200 kn

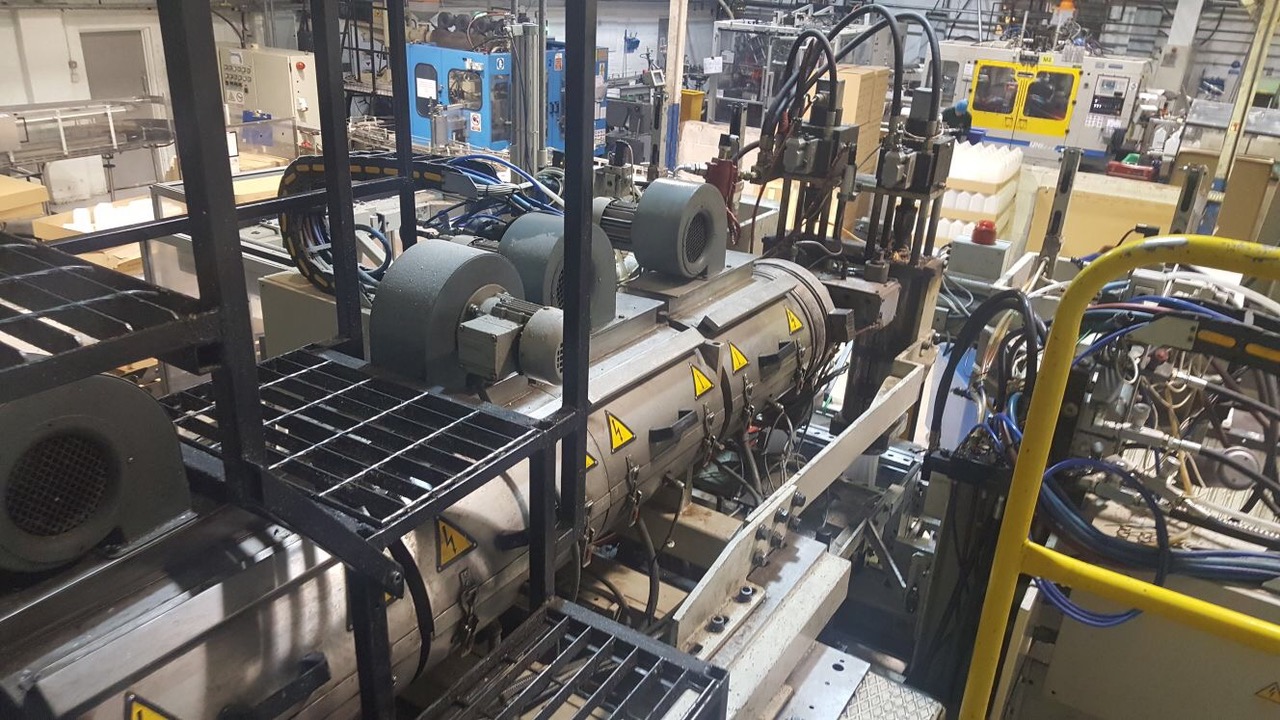

– Extruder diameter/L:D ratio- 100 mm/24:1

– Plasticizing rate (HDPE)- 260 kilograms/ hour

– Electrical specifications- 400 volts/50 Hz/3 phase

– New screw installed in last 3 years

– New Proportional valves for the carriage and mold installed in last 3 years

– New transducers installed in last 3 years

– New hydraulic pump installed approximately 10 months ago

– Condition- Very good- can be inspected in operation
