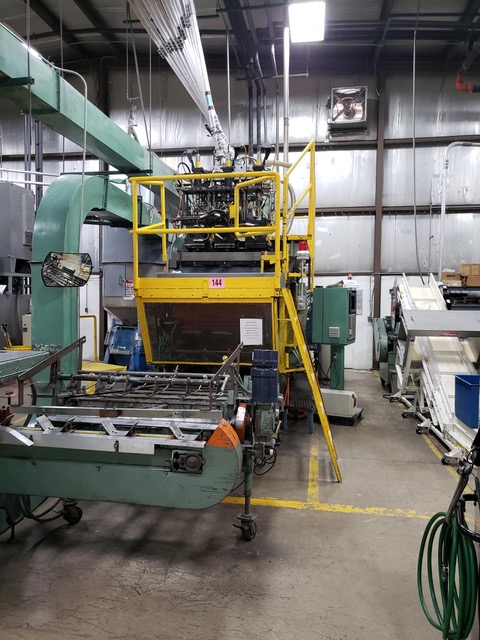

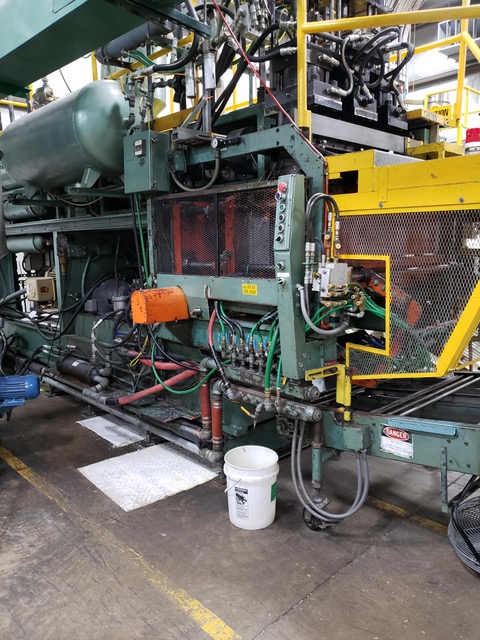

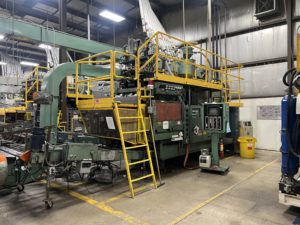

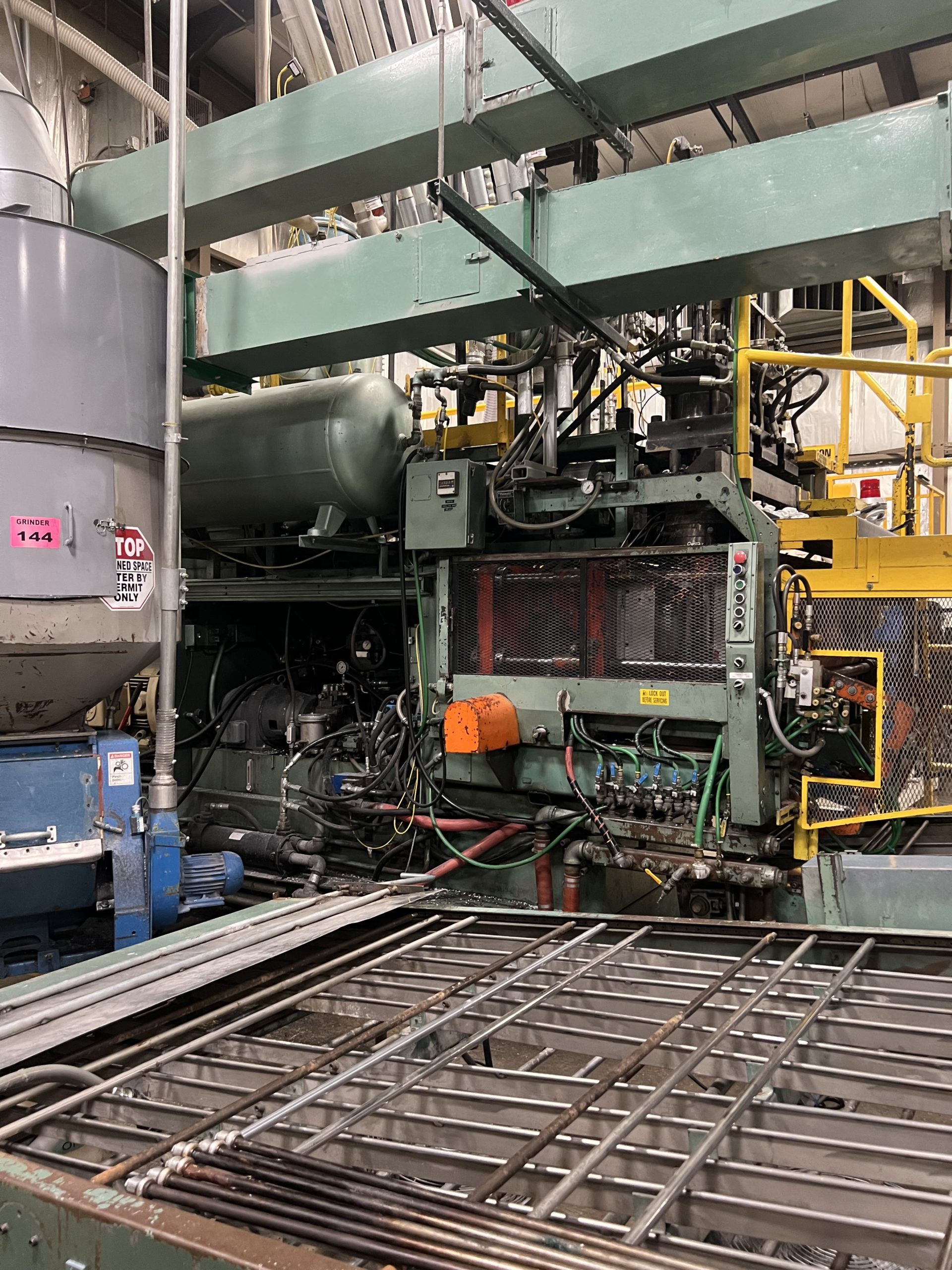

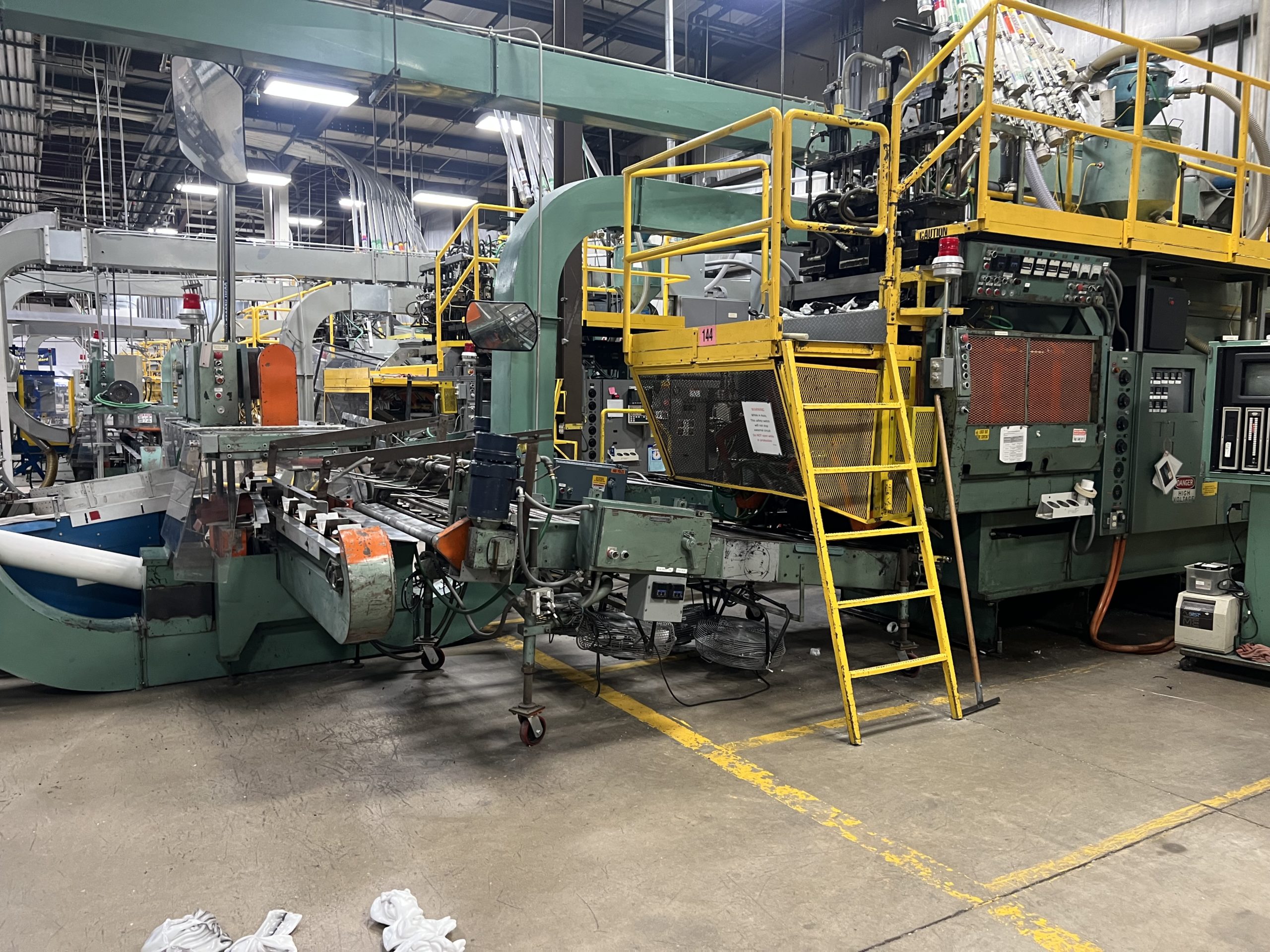

Uniloy Model 350 R4 (3) Head Blow Molding Machine

Description

Uniloy Model 350 R4 (3) Head Blow Molding Machine

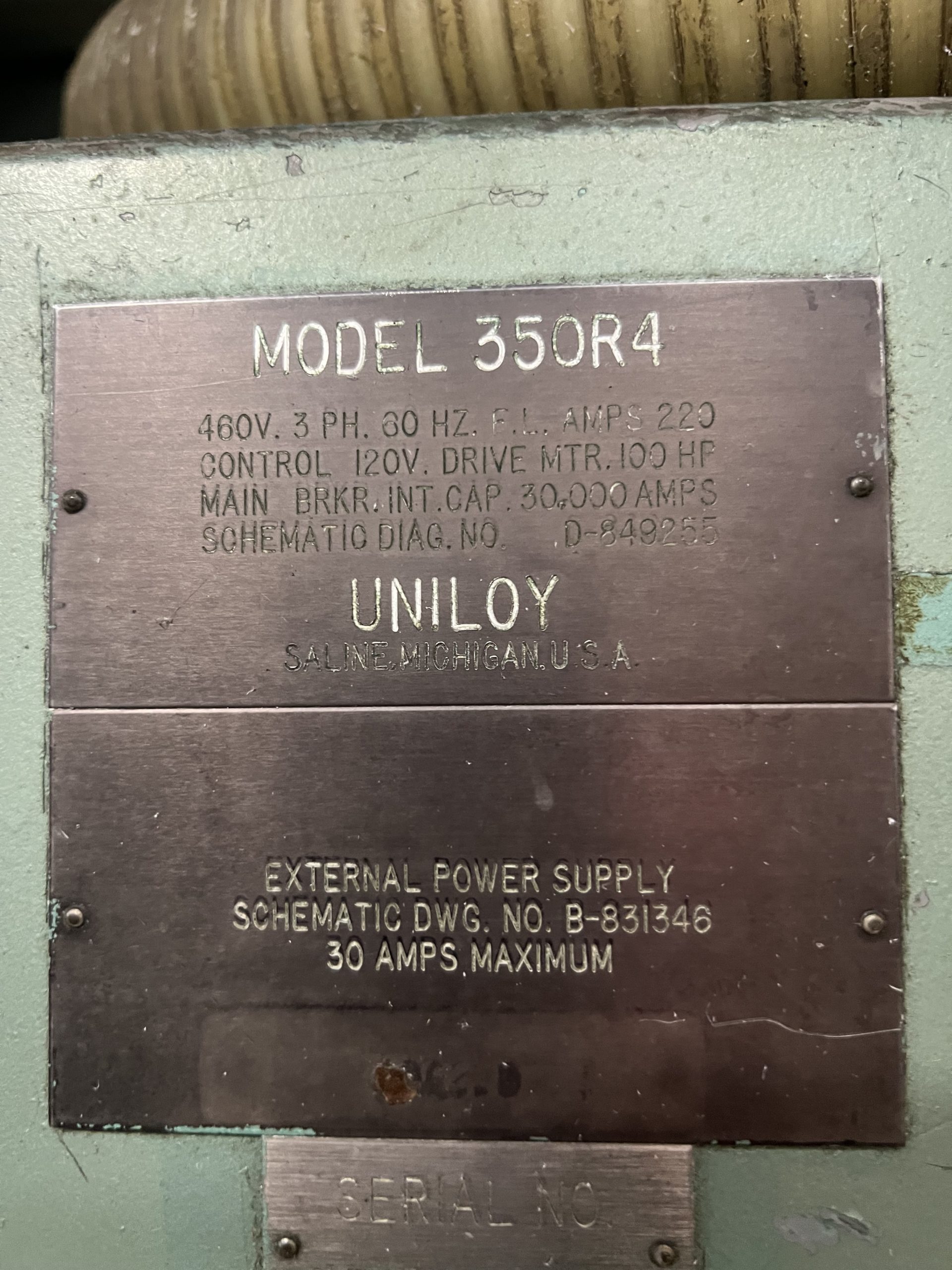

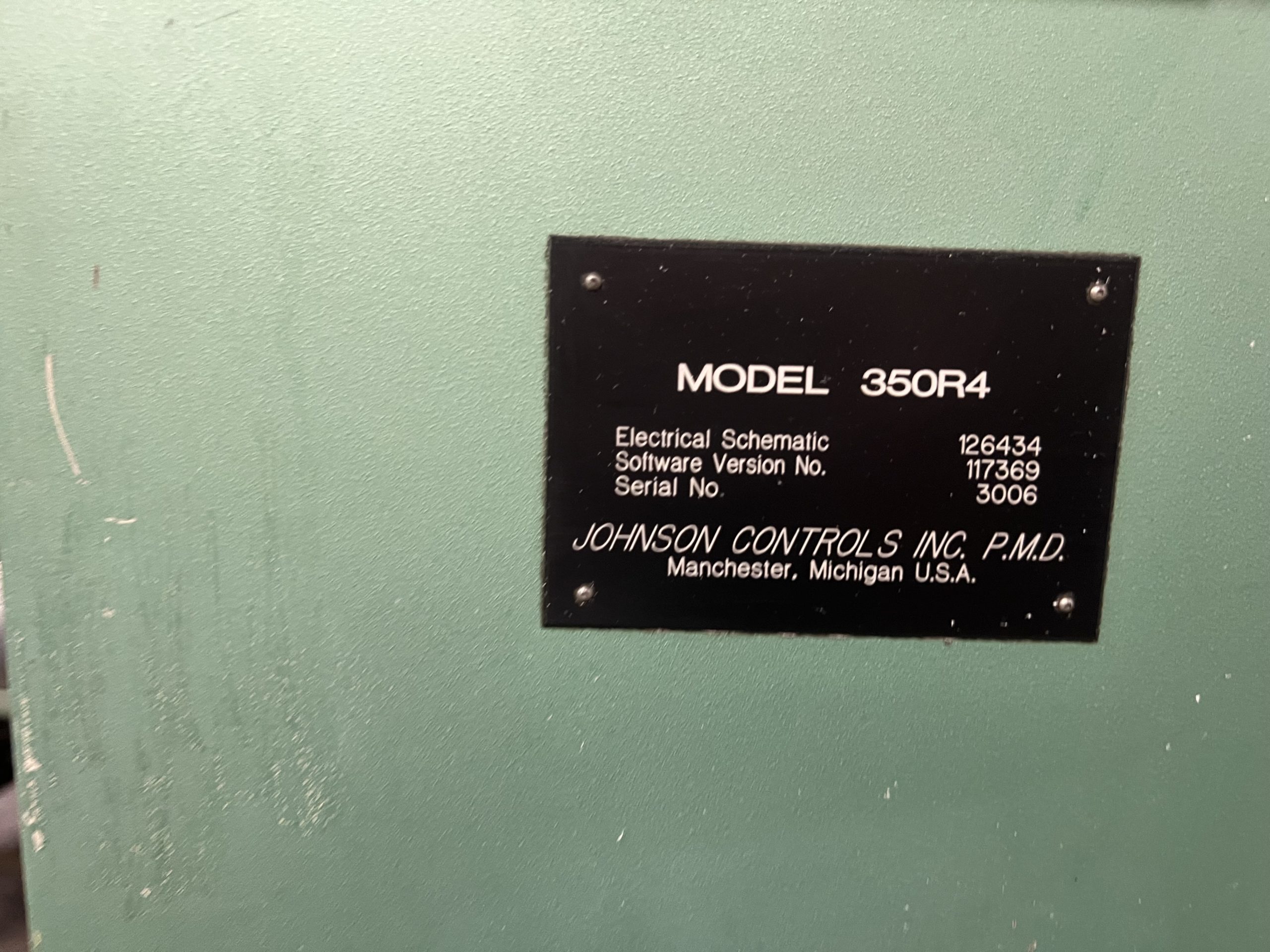

– Serial number- 3006

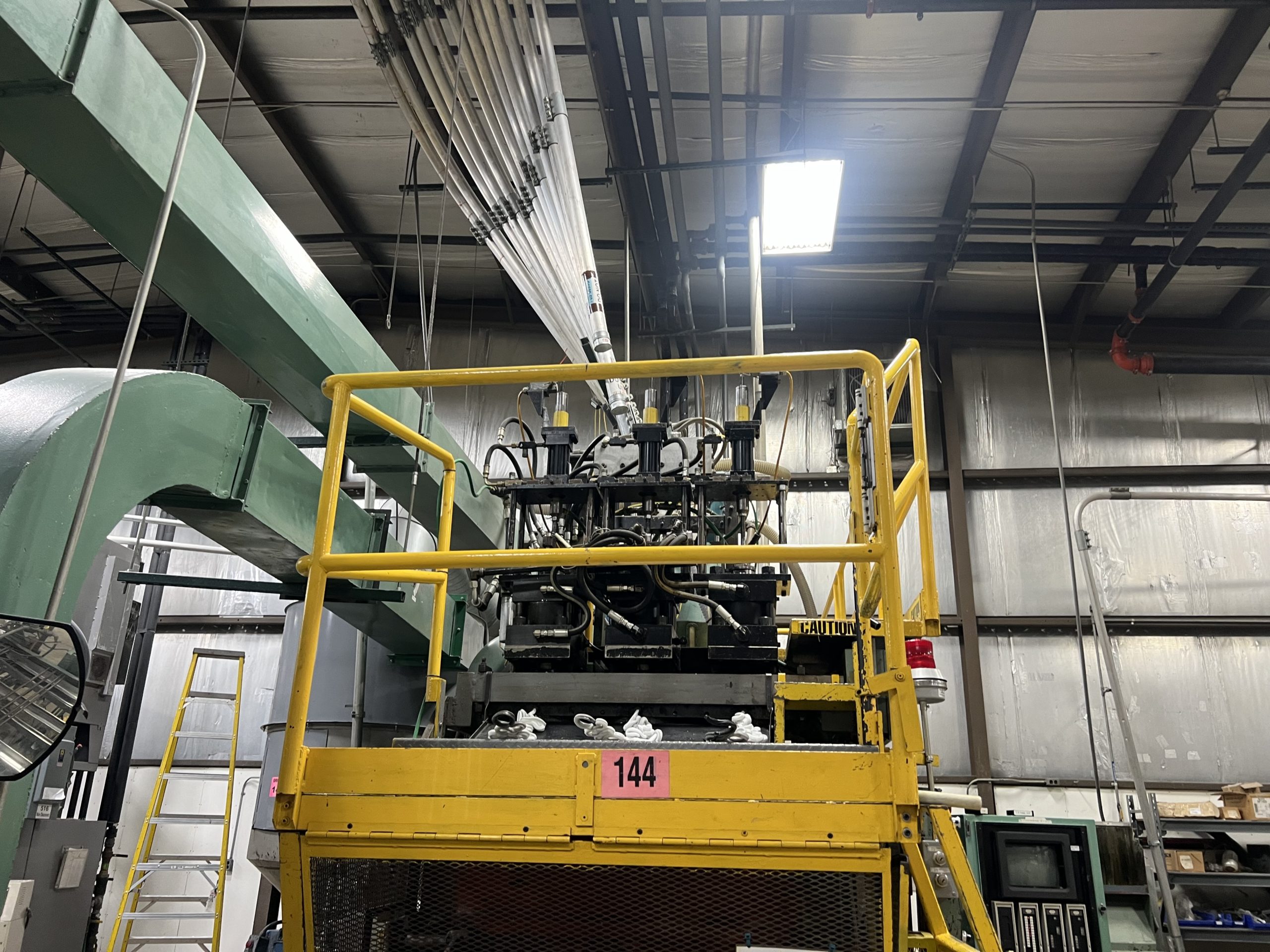

– Head configuration- (3) heads with 14 1/2” center to center distances between heads
– Heads are “large gut” and programmable
– Extruder diameter- 3 1/2”
– Nominal shot size- 1600 grams
– Clamp force- 90 tons

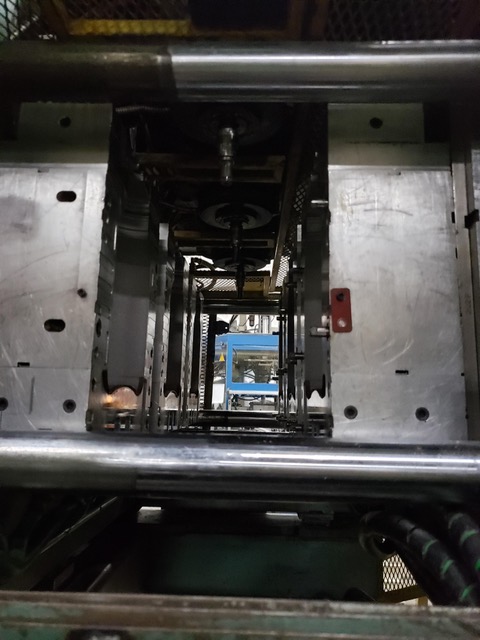

– Platen dimensions- 44” wide x 21” height
– Number of tie bars- 4

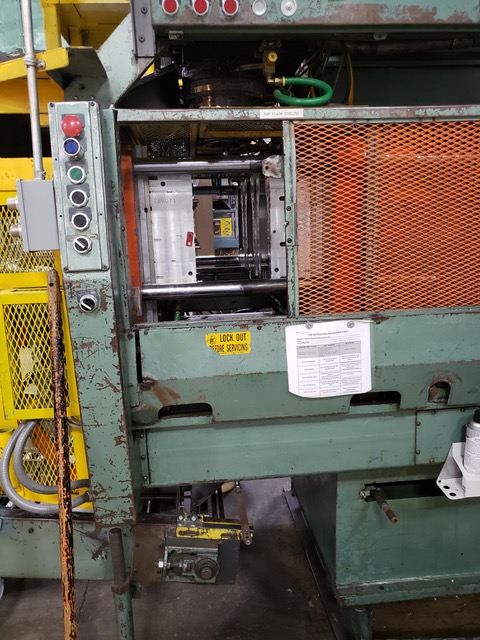

– Rotac clamp closing system
– Machine has side shift capability so that the machine can produce an offset center neck finish
– Machine has been upgraded with the following features:

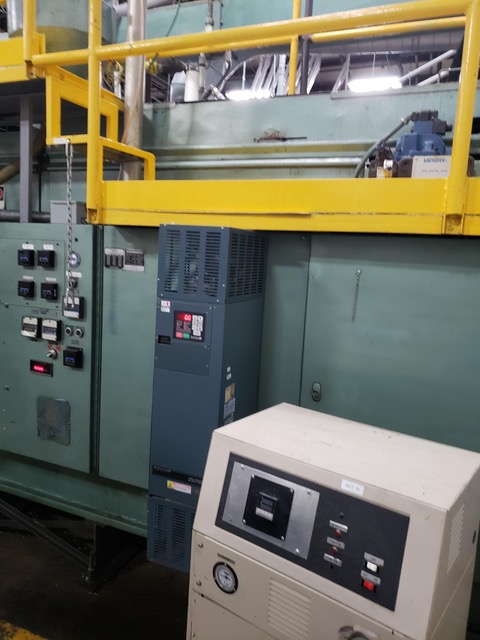

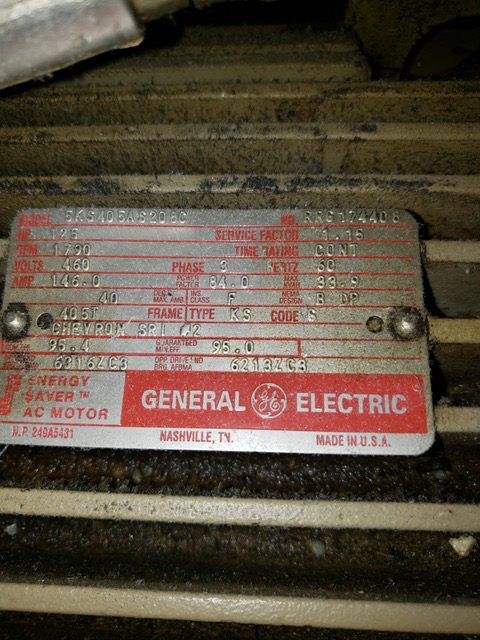

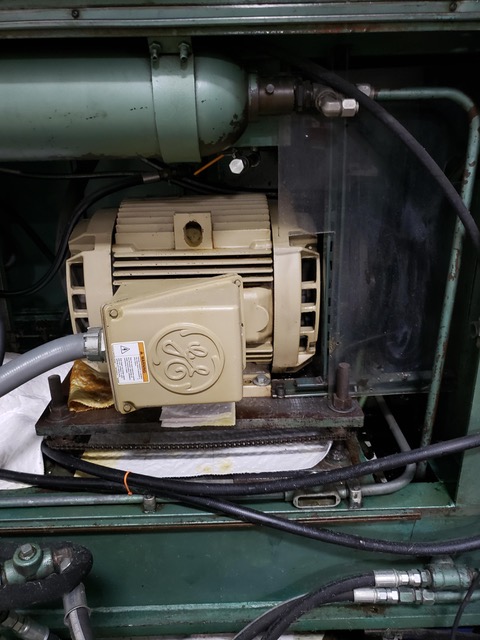

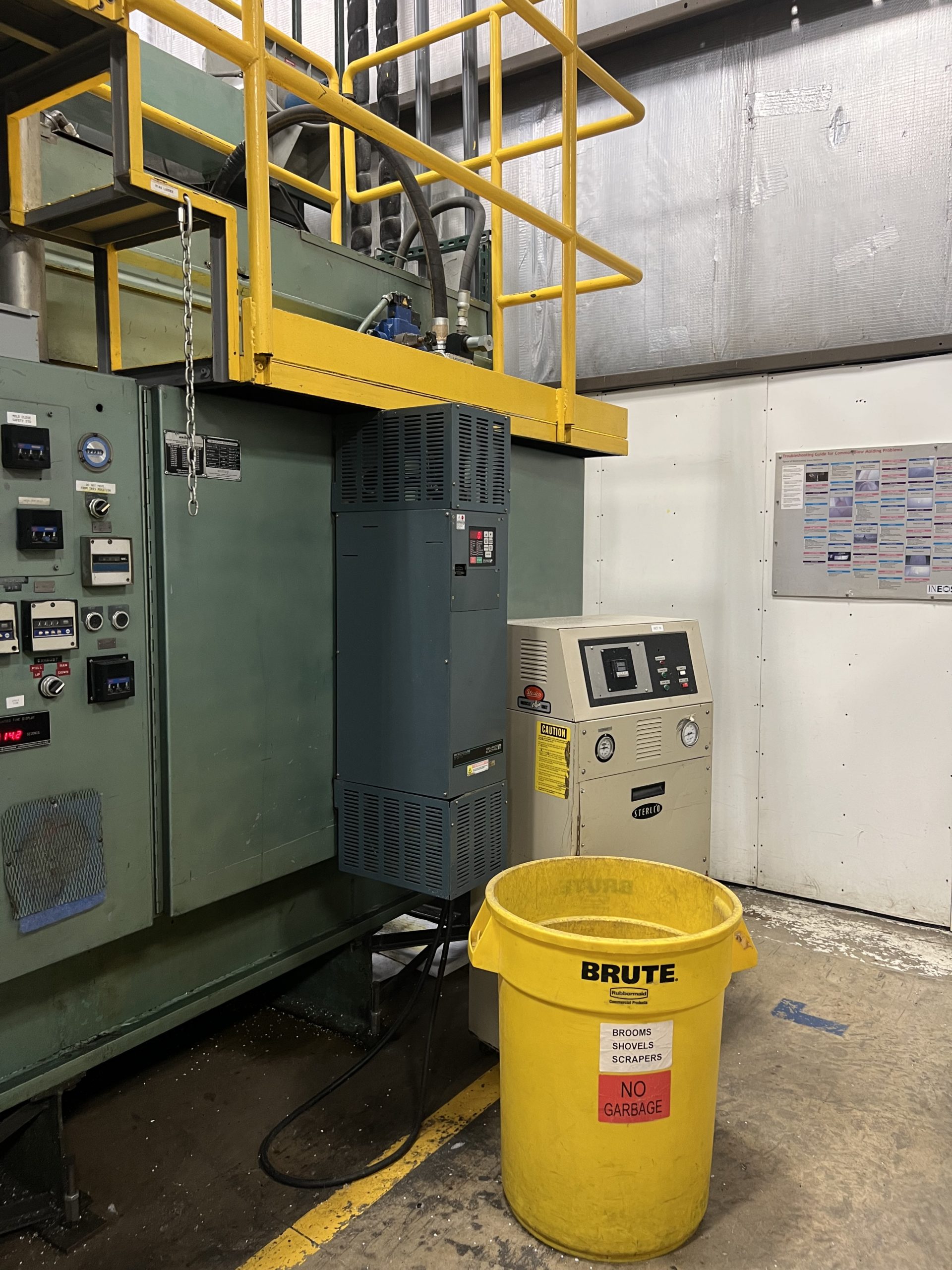

    – 125 horse power motor with Reliance Electric AC Variable Frequency Drive
    – Air cooled barrel
– Offer includes the following:

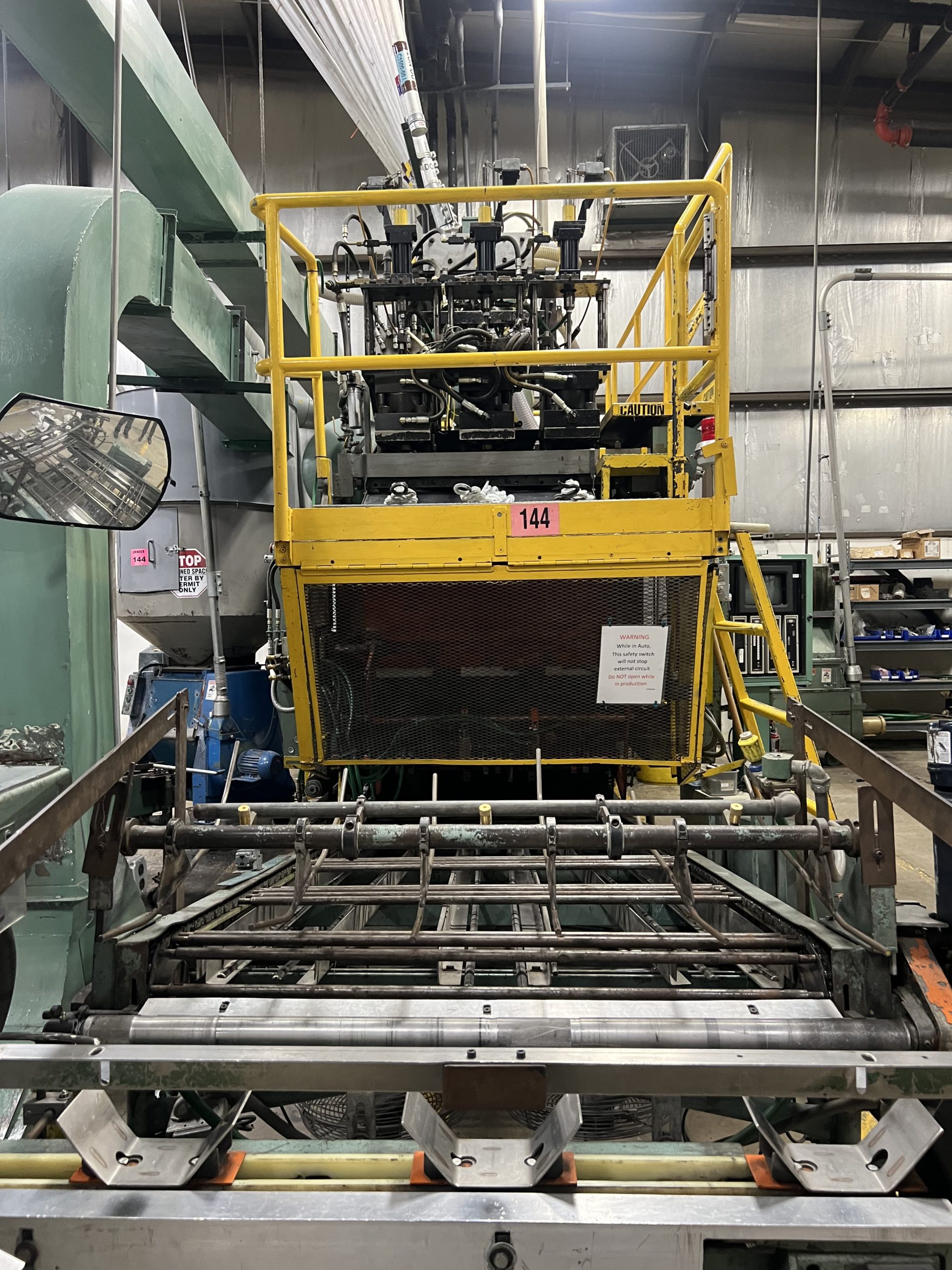

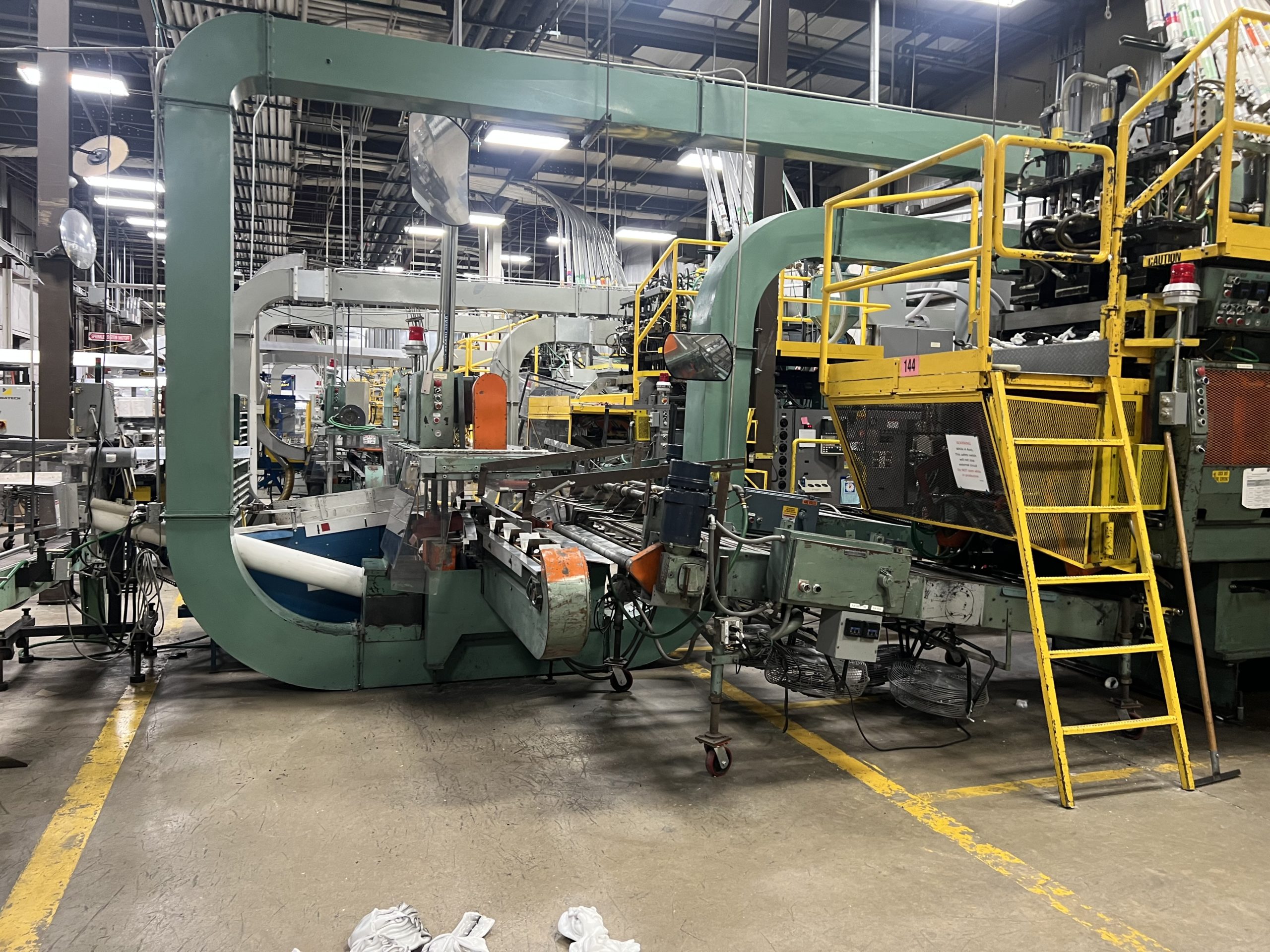

    – Uniloy (3) Lane Cooling Bed

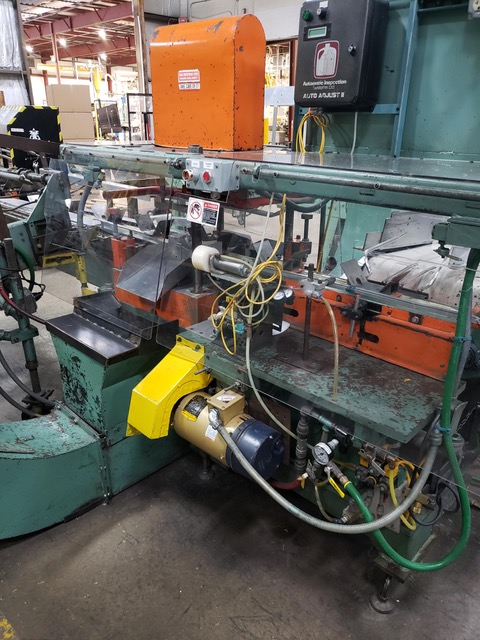

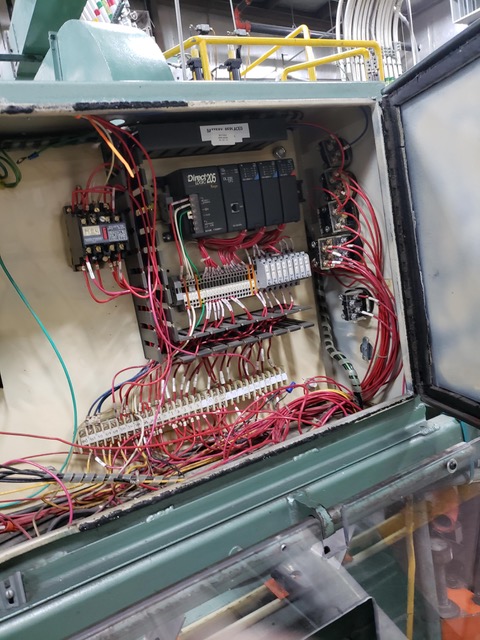

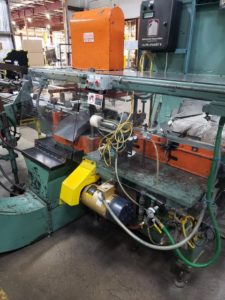

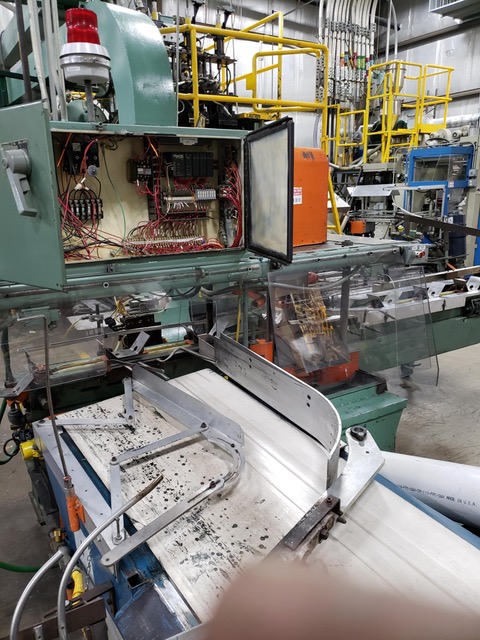

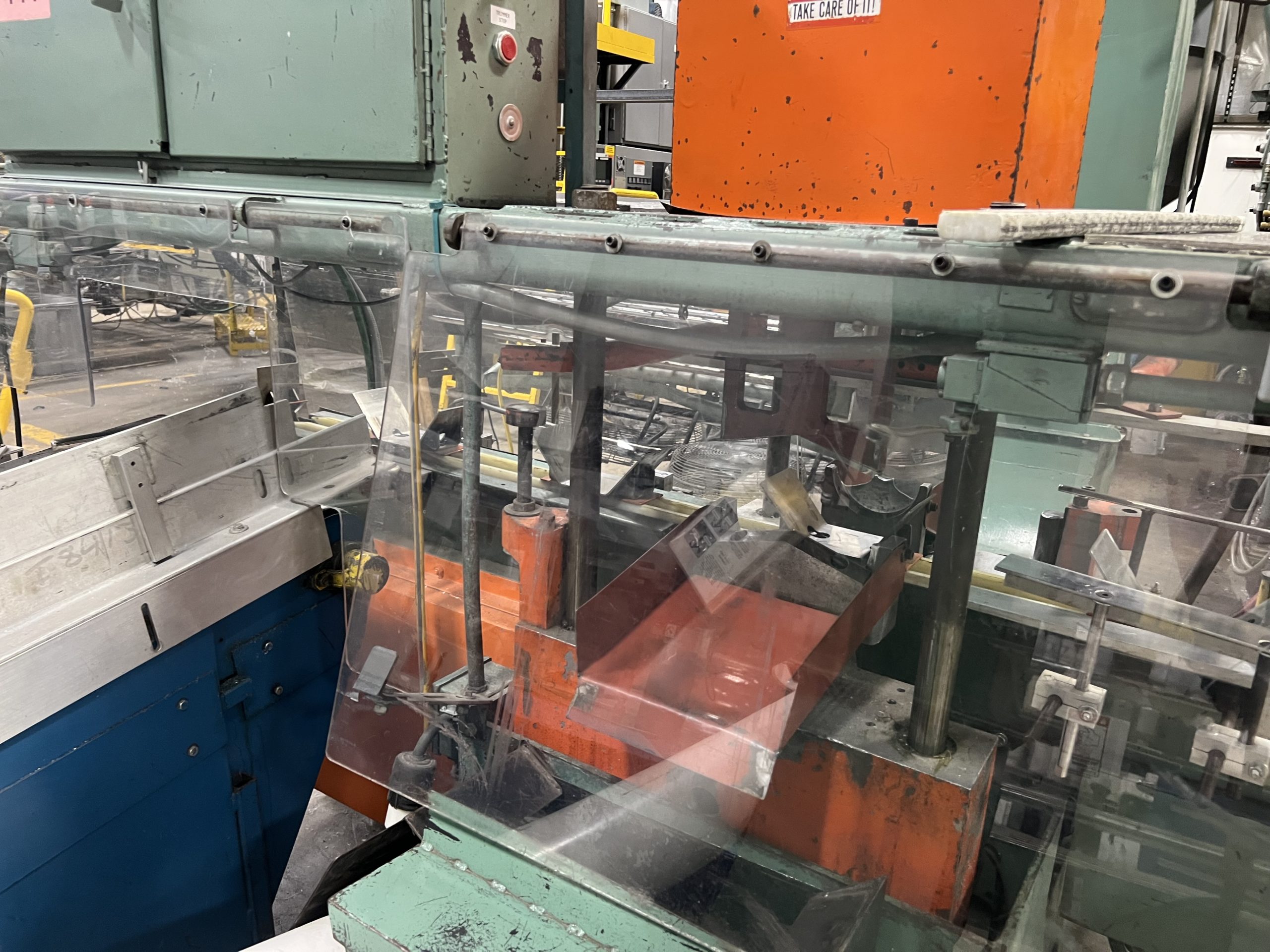

    – Uniloy Single Index Impact Trimming Machine with Direct Logic Model 205 PLC
    – Automatic Inspection Systems Auto Adjust II Leak Detector

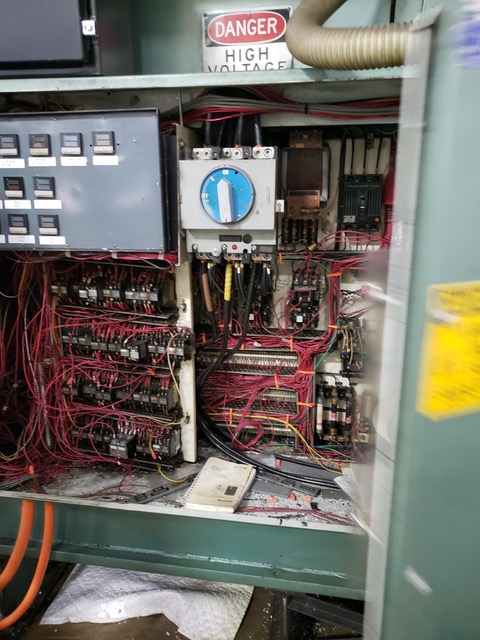

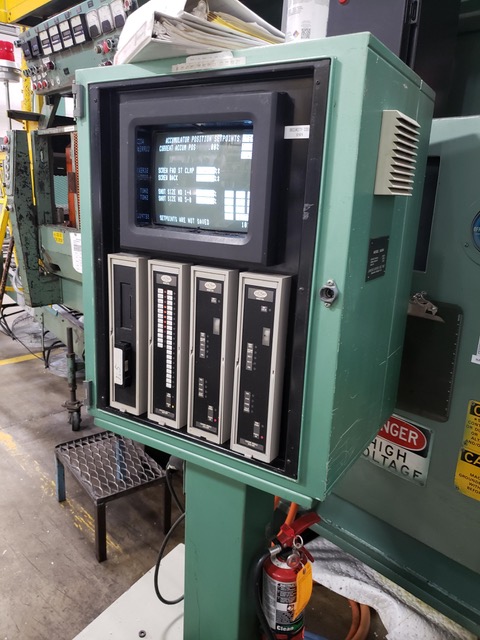

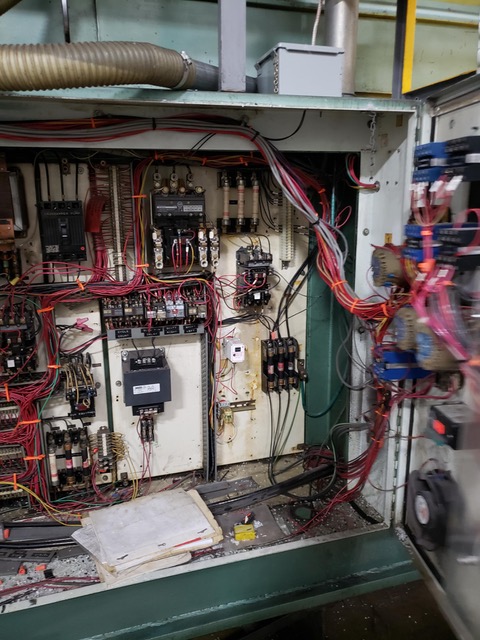

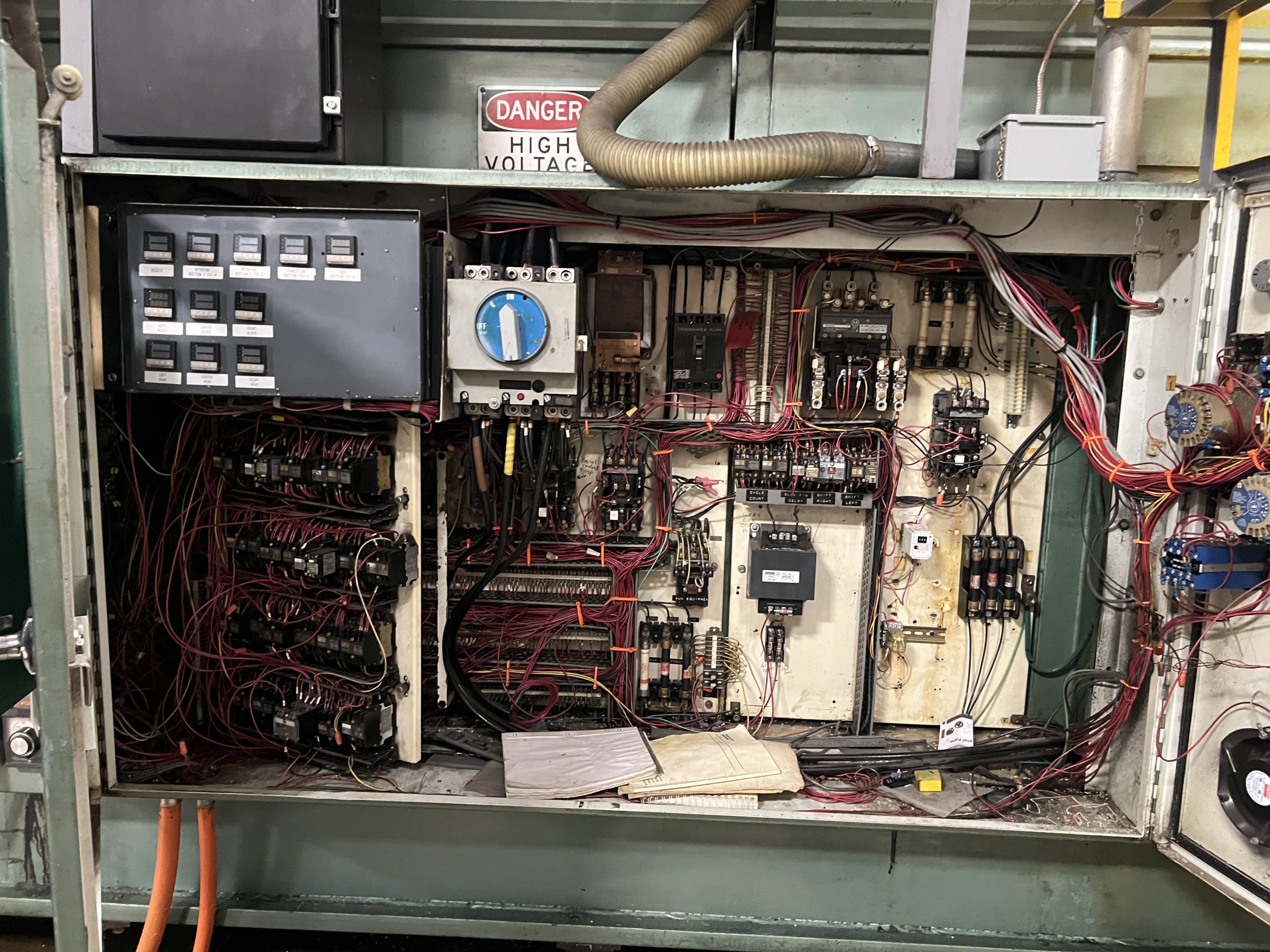

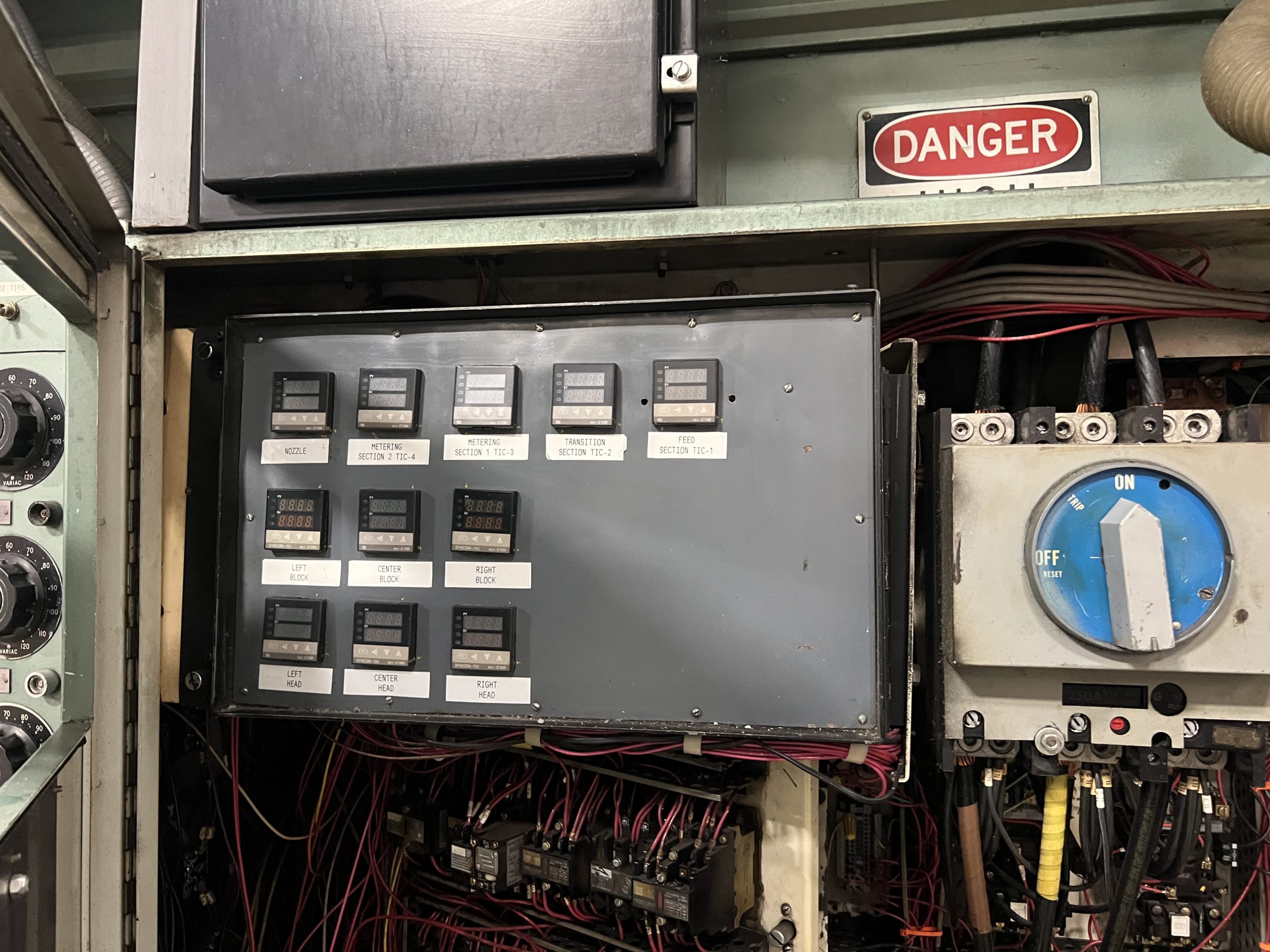

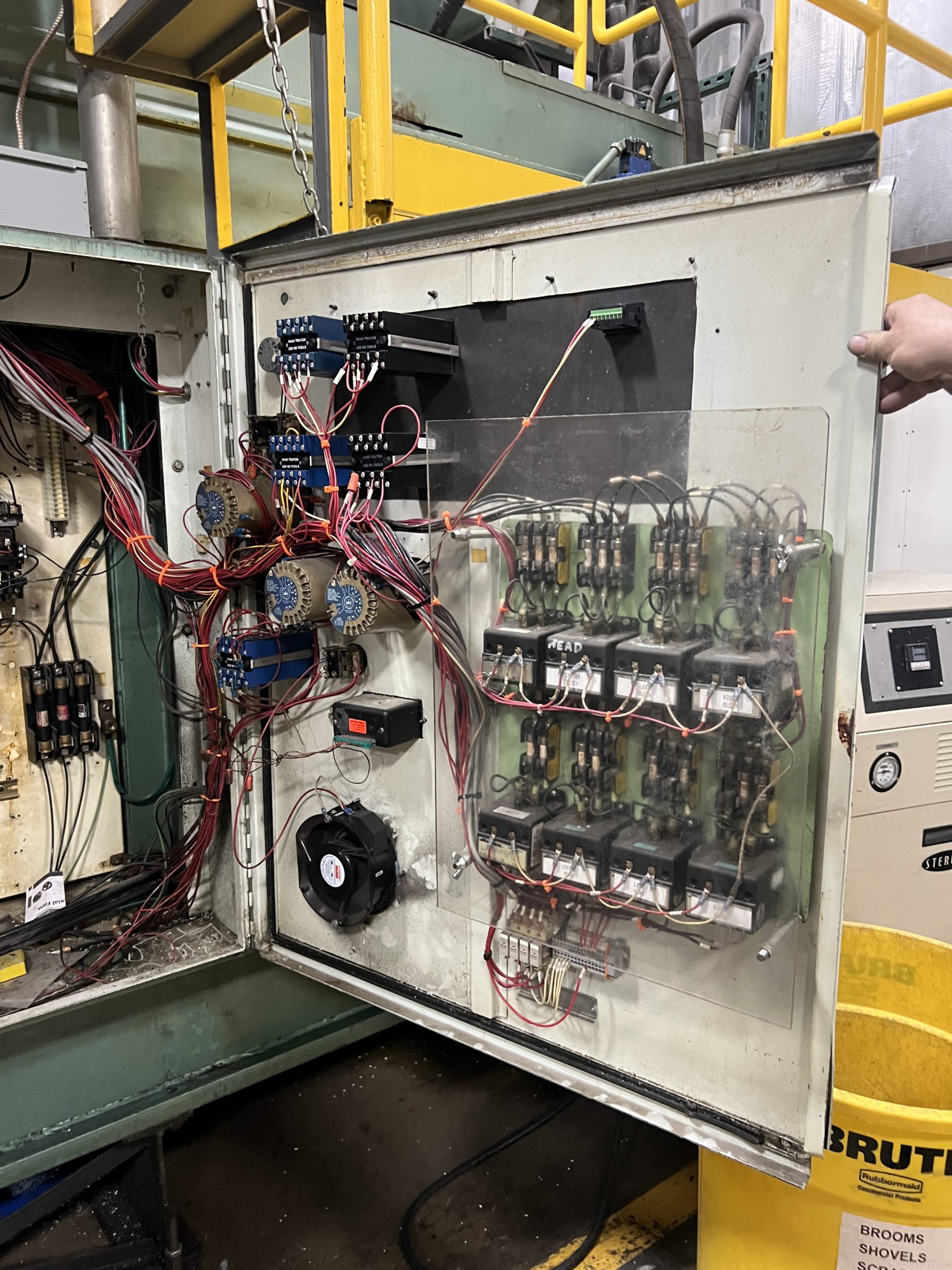

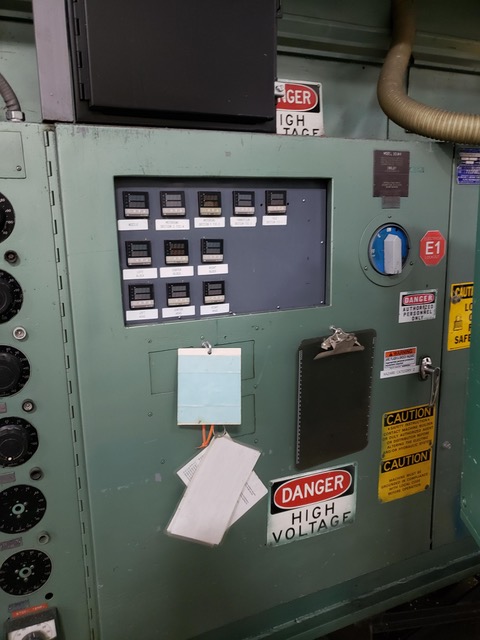

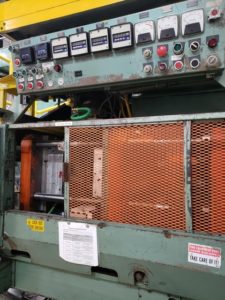

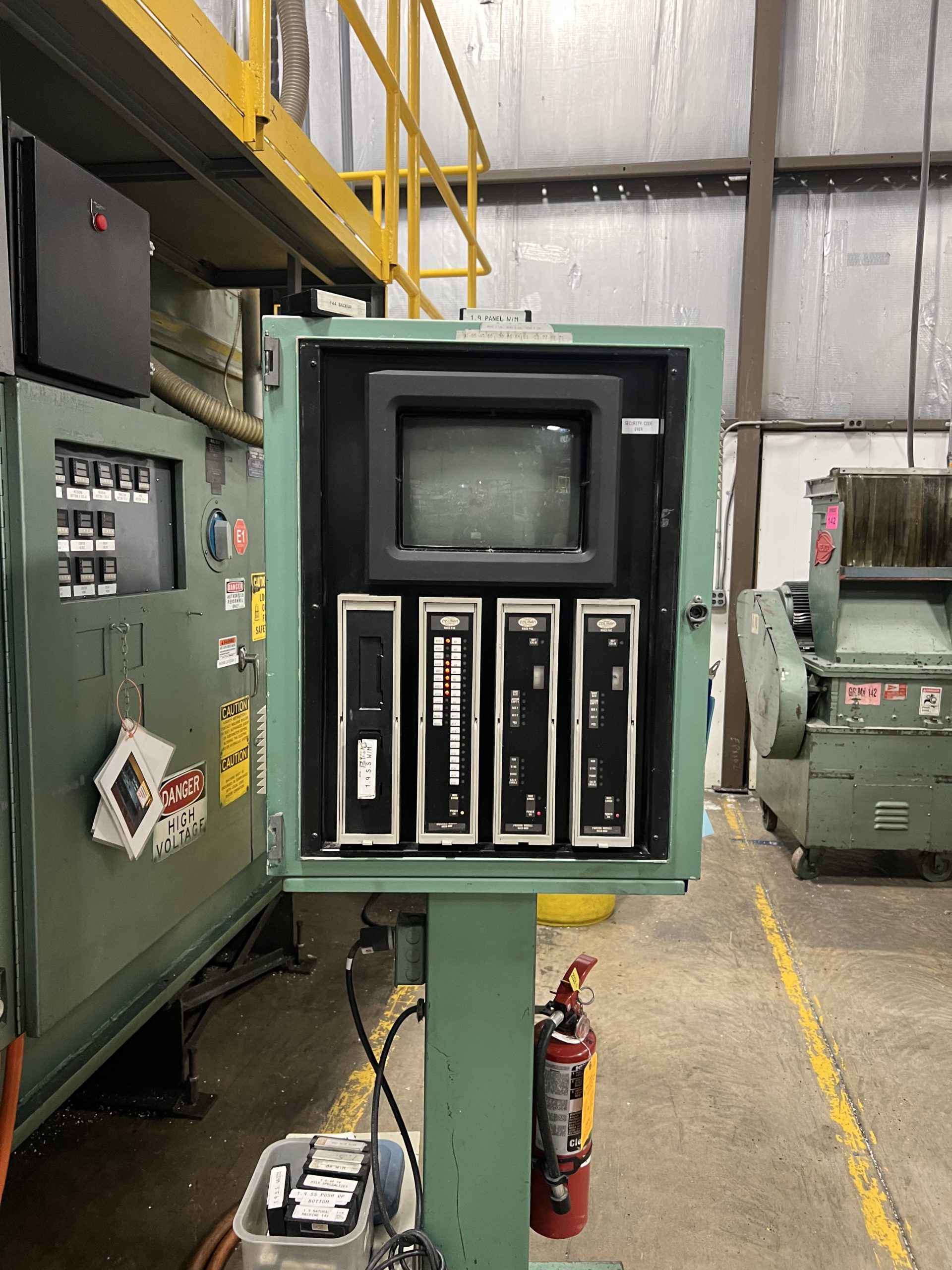

– Controls- Barber Colman Maco 8000 PLC that controls heats, shot size, and parison programming- relay controls for machine sequencing
– Condition- Good operating condition
