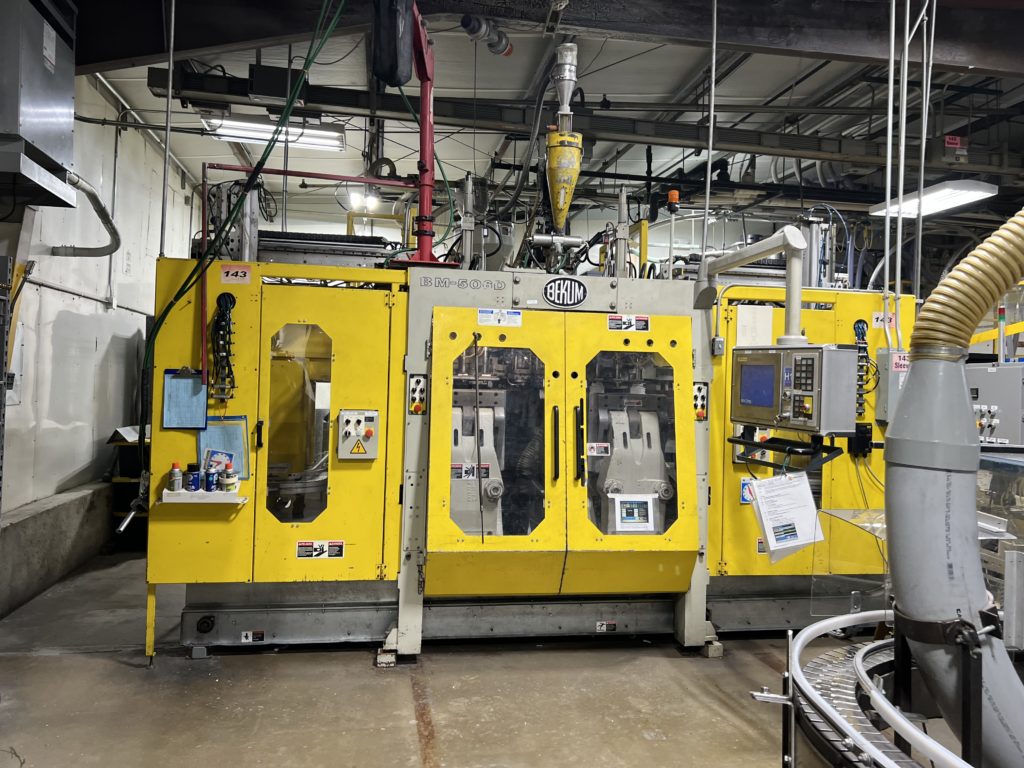

Bekum Model BM-506D Continuous Extrusion Blow Molding Machine

Bekum Model BM-506D Continuous Extrusion Blow Molding Machine

Year of manufacture- 2003

Extruder diameter- 90mm/ 24D smooth barrel set-up, HDPE

Head- Mueller 3 x 140 mm with view stripe

Control system- MACO DS

Additional information:

Press has a horizontal moving quick change clamping mechanism with bobbing extruder

Knife is spear shape

Parison support air and controlled support air (f/3 parisons) was installed

A take out system for singe stage hand-over including pick and place was installed

A manually operated 90 mm Dynisco screen changer was installed

Condition- very good , can be inspected in operation
