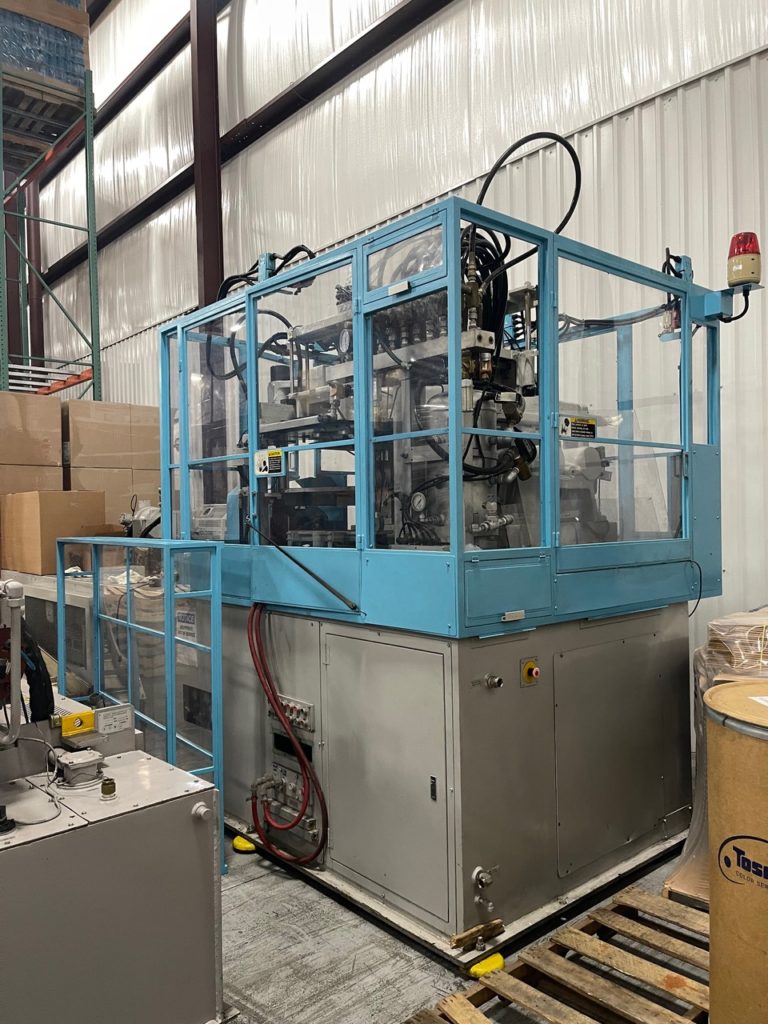

Nissei ASB Model 70 DPH PET One Step Injection Stretch Blow Molding Machine

Nissei ASB Model 70 DPH PET One Step Injection Stretch Blow Molding Machine

---

– Year of manufacture- 2006

– Theoretical injection capacity- 366 cubic centimeters

– Injection clamping force- 687 kN

– Blow clamping force- 242 kN

– Driving power (rated)- 33 kW

– Heater capacity- 38.5 kW

– Maximum blow air pressure- 508 psi

– Machine size (length x width x height)- 5,643 mm x 1,896 mm x 3,208 mm

-Machine weight- 9,000 kilograms

– Max. neck finish (mm)- 2 cavities- 110– 4 cavities- 95– 6 cavities- 60– 12 cavities- 18

– Max. body diameter (mm)- 2 cavities- 153– 4 cavities- 120– 6 cavities- 79– 12 cavities- 37

– Max. height (mm)- 2 cavities- 350– 4 cavities- 350– 6 cavities- 350– 12 cavities- 350

– Max. capacity (liters)- 2 cavities- 4.5– 4 cavities- 3– 6 cavities- 1– 12 cavities- .1

– Offer includes an AEC Desicant Dryer and Hopper

– Condition- Good- servo motor and a few other parts needs changing
