Nissei Model ASB-50MB One Step Stretch Blow Molding Machine

 – Small high-pressure air compressor

   – 3 cavity injection and blow mold to make a oval Boston Round bottles are available at an additional price

Description

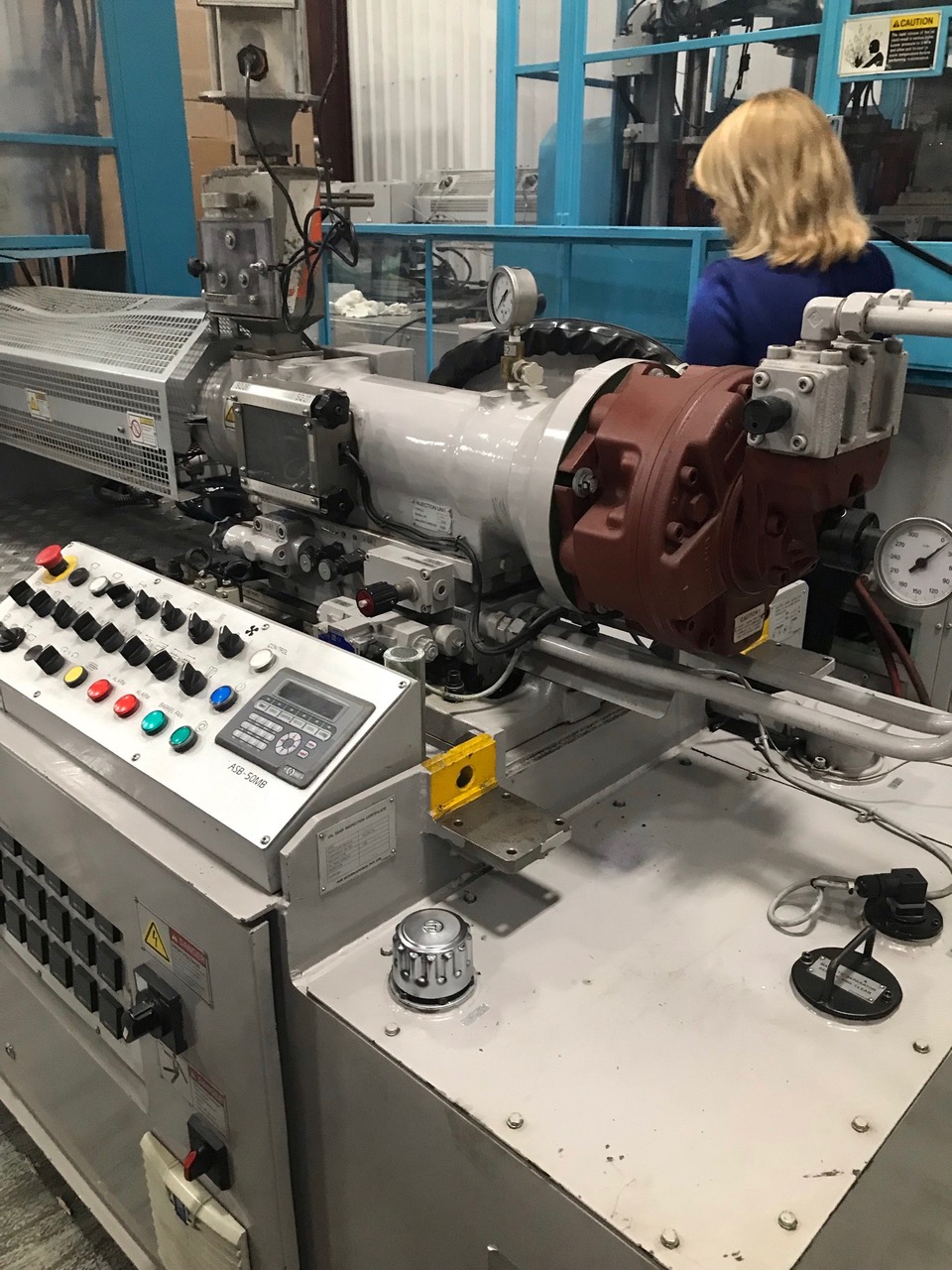

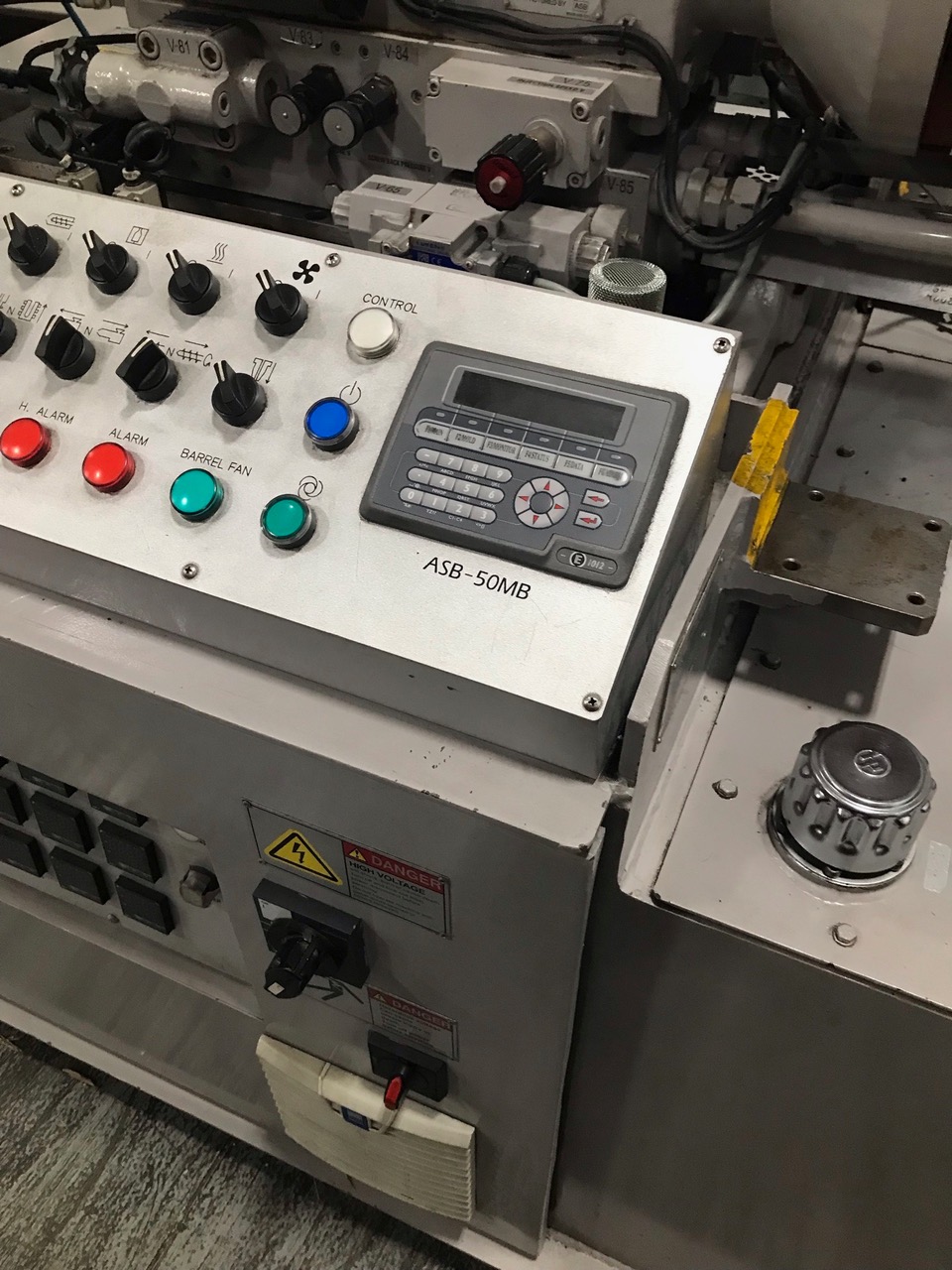

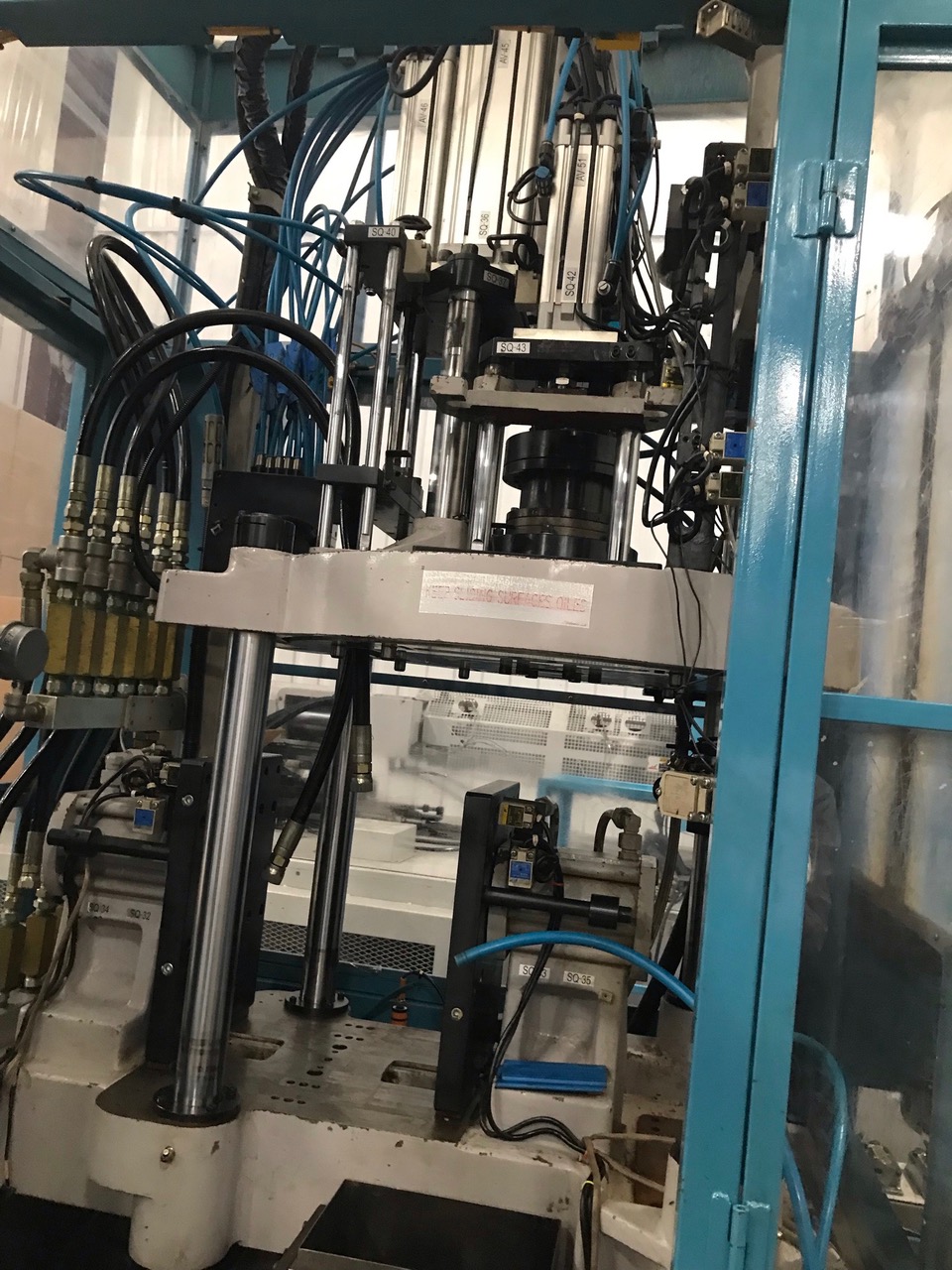

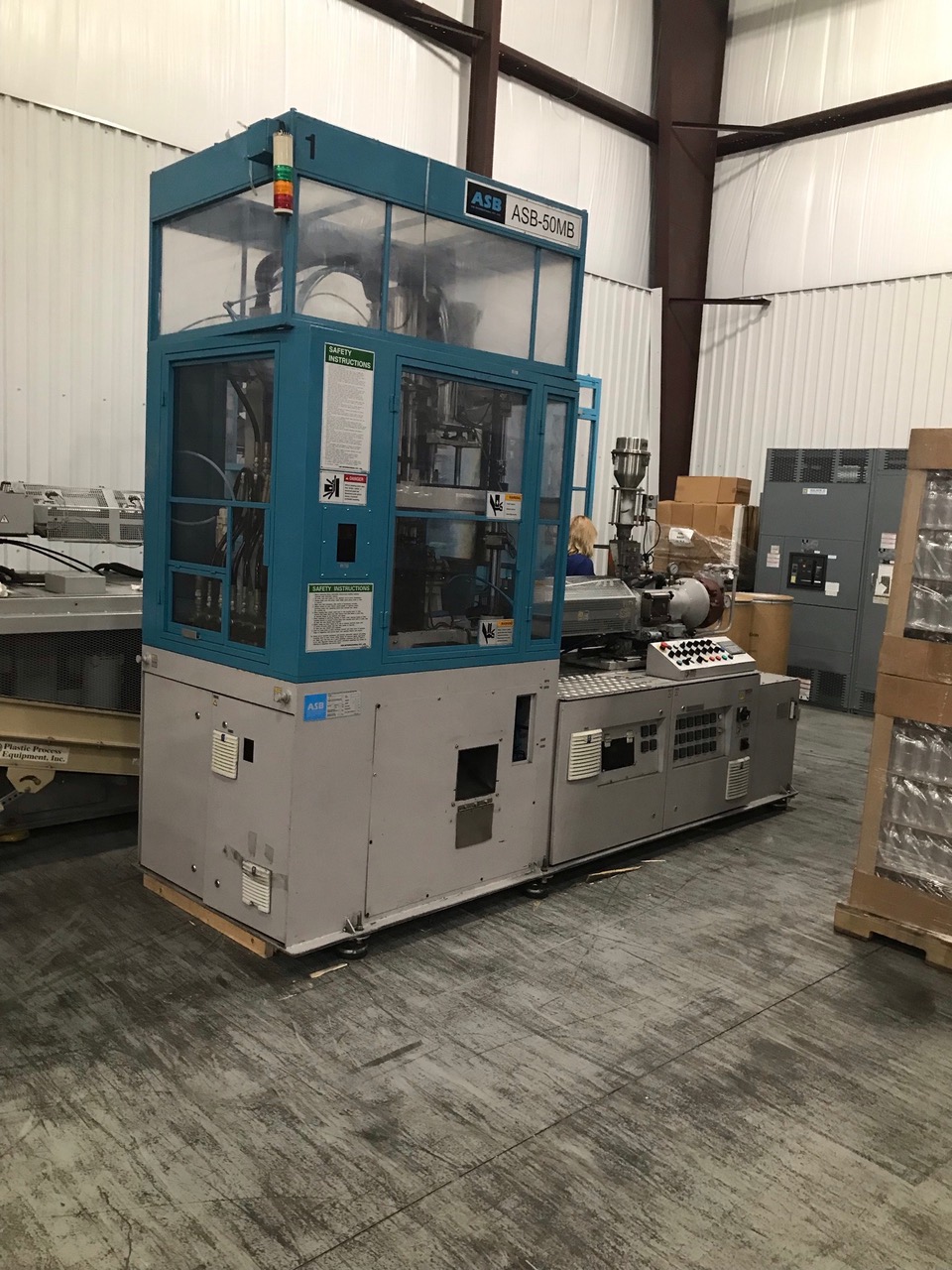

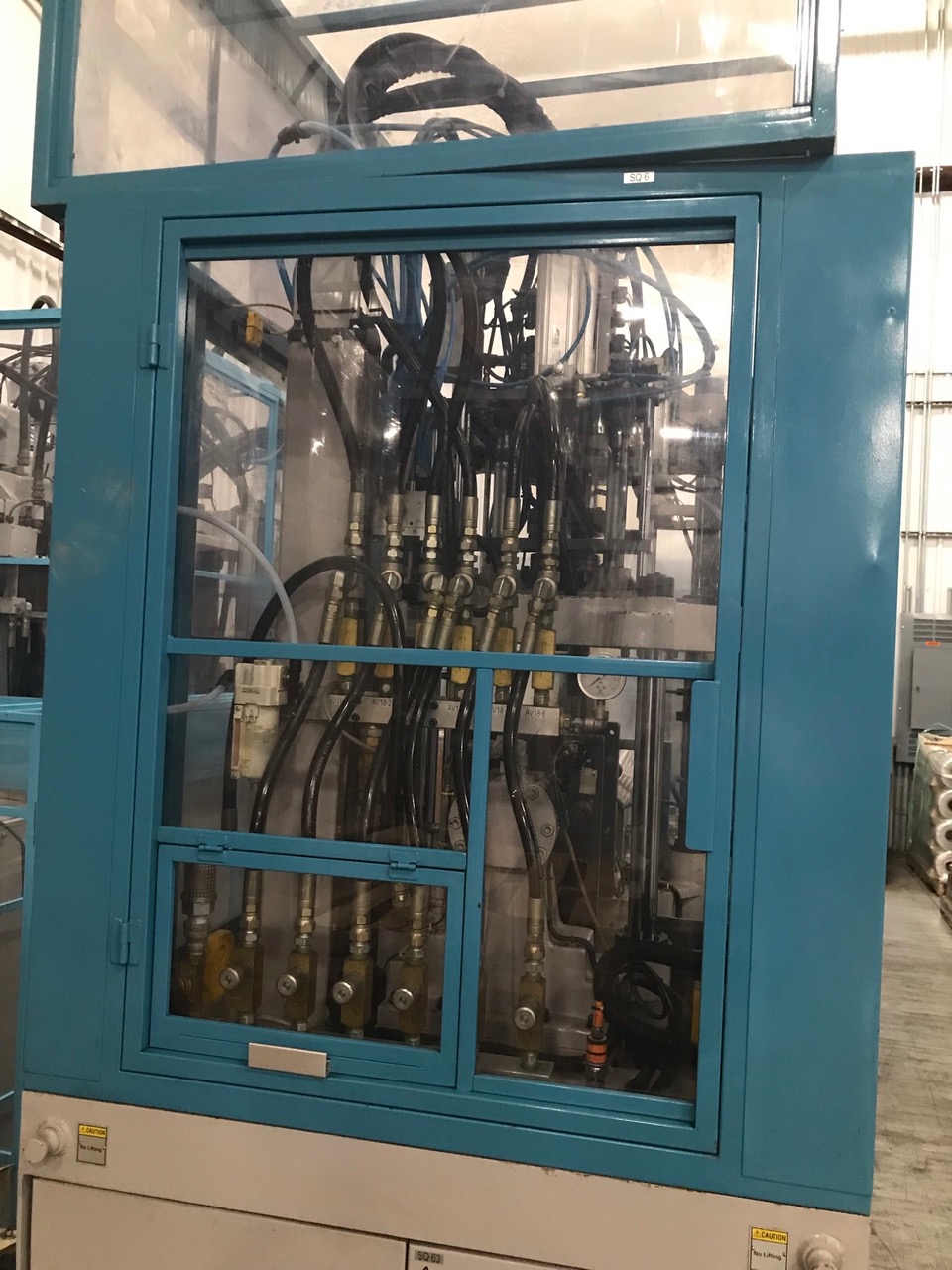

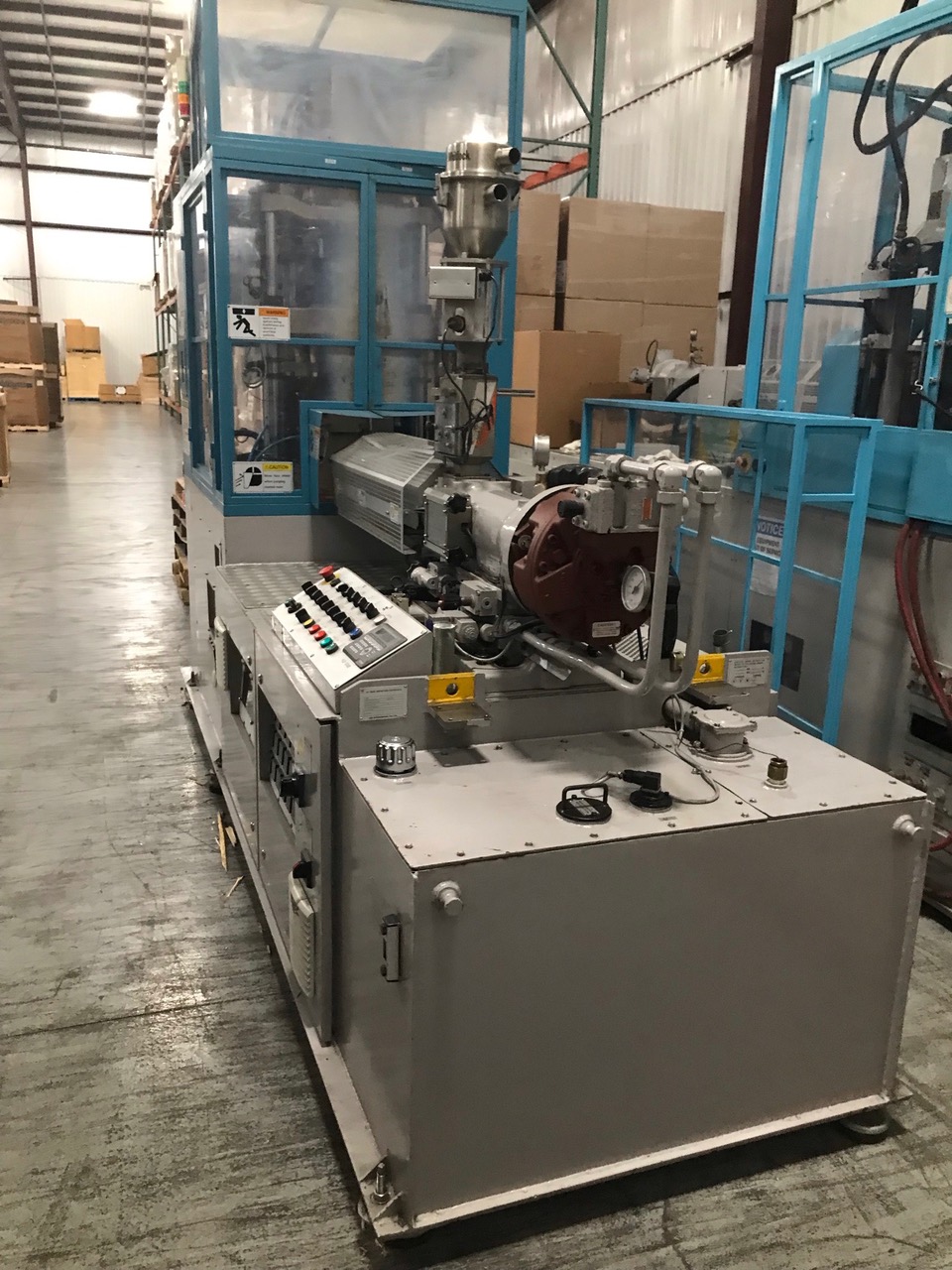

Nissei Model ASB-50MB One Step Stretch Blow Molding Machine

– Year of manufacture- 2002

– Injection clamping force- 60 kN

– Blow clamping force- 78 kN

– Heater capacity- 14 kW

– Pump motor- 19.3 kW

   – Number of cavities                   1      2      3      4      5      6

   – Max. bottle capacity (liters)   2.5   1.5   .6    .25    .1    .03

   – Max. neck diameter (m.m.)    63    42    32    27   25    17

   – Max. body diameter (m.m.)   115  100   74    56   45    35

   – Max. height (m.m.)                 300  300  300  300  300 300

   – Max. weight- (grams)             129   65     43   32    26    22

– Machine dimensions- length x width x height- (meters)- 3.8 x 1.2 x 2.9

– Machine weight (kilograms)- 3 metric tons

– Offer includes the following items:

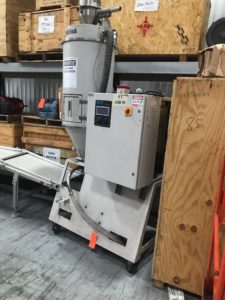

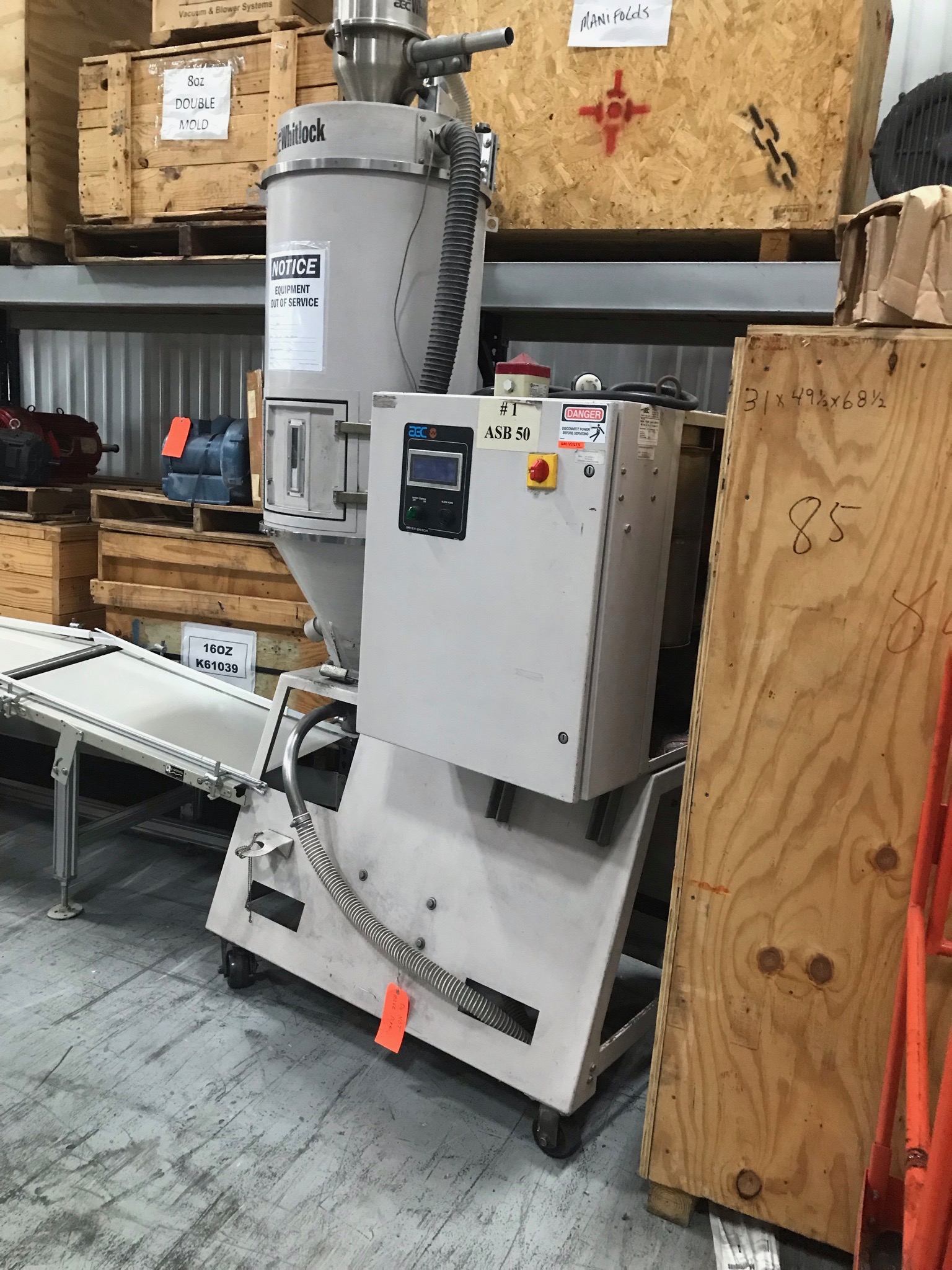

   – Conair Model SC-30 Material Dryer

   – Conair Model CH-18-4 Insulated Material Hopper

   – Small high pressure air compressor

   – 3 cavity injection and blow mold to make a oval Boston Round bottles are available at an additional price
