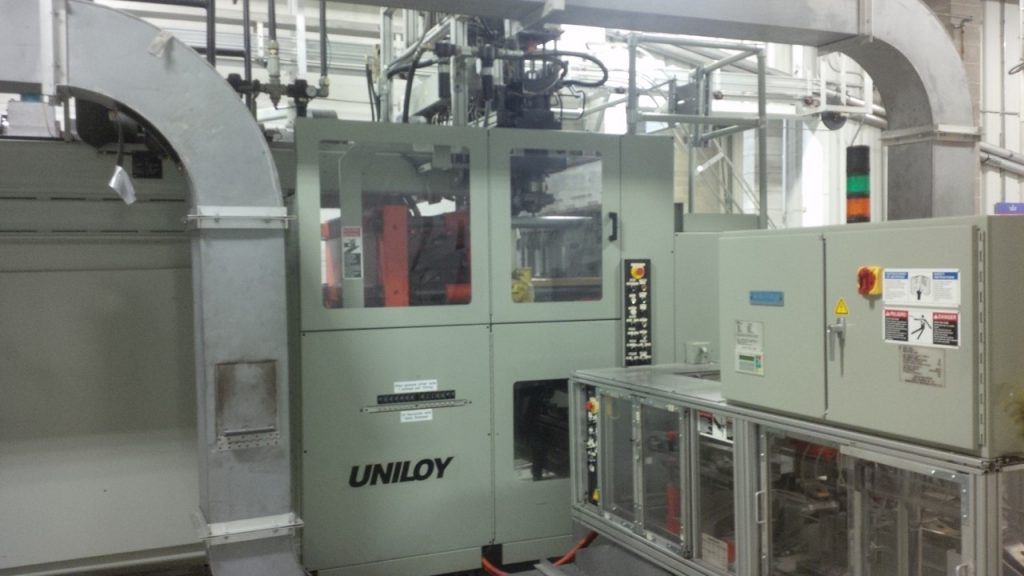

2002 Uniloy Model R2000 (4) Head Reciprocating Screw Blow Molding Machine

2002 Uniloy Model R2000 (4) Head Reciprocating Screw Blow Molding Machine

(Complete Line)

– Operating hours- approximately 20,000

– Head configuration- 4 heads with 12” center to center distances between heads

– Heads are programmable

– Machine is equipped with side shift capability to produce off set center neck bottles

– Extruder diameter/L:D ratio- 3 1/2 “/24:1

– Plasticizing rate- 700 pounds per hour

– Extruder horse power- 100

– Shot size- 1200 grams

– Maximum useable platen size- 21” height x 48” wide

– Clamp force- 90 tons

– Number of clamp tie bars- 6

– Diameter of tie bars- 3”

– Machine equipped with:

– Siemens AC variable frequency drive Air cooled barrel

– Offer includes the following-

– Uniloy Model 10042 impact trimming machine
– Electrical specifications- 460 volts- 60 cycles- 3 phase
– Controls- Siemens PLC including parison programming capability
– Condition- Very good- low operating hours, can be inspected dry cycling
