IPAK/Wexxar Automatic Model TF-200XLQ-TP Tray Former

2015 IPAK/Wexxar Automatic Model TF-200XLQ-TP Tray Former

Set up to run a pallet tray

Condition- Like-new- essentially “0” operating hours

Controls- Allen-Bradley Model CompactLogix PLC

Includes a Nordson Model ProBlue 15 Hot Melt Adhesive System

Description

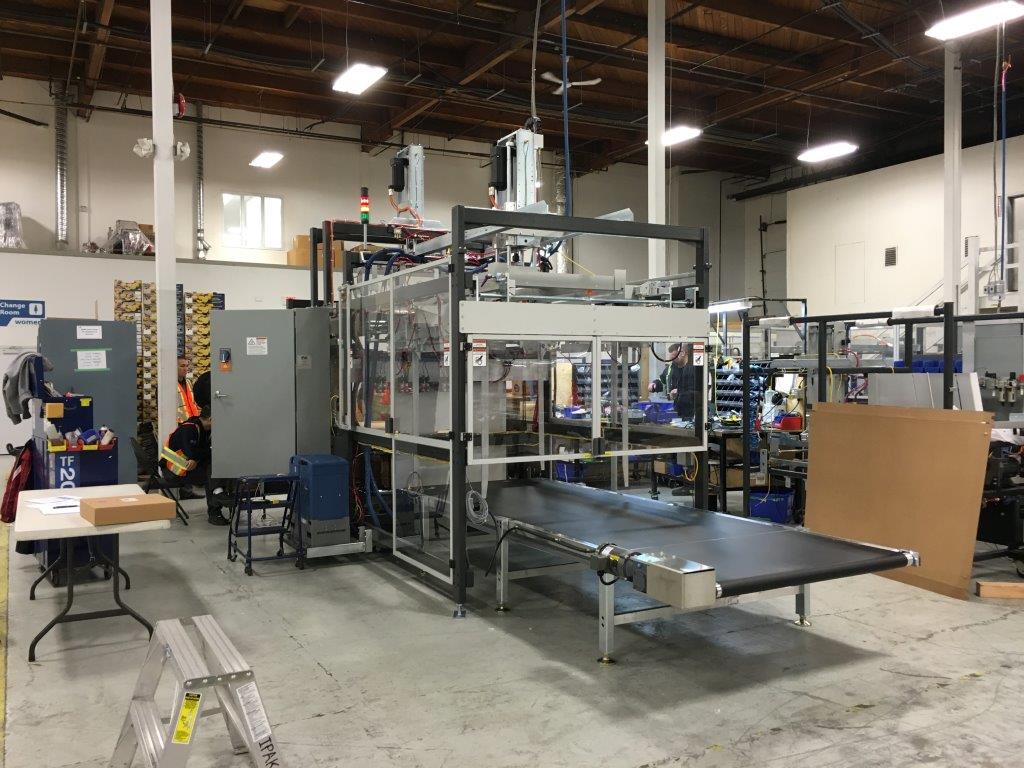

2015 IPAK/Wexxar Automatic Model TF-200XLQ-TP Tray Former

– Machine set up to automatically form a pallet tray- 2 corners are glued so that 3-sides are in the upright position, one side is not glued to facilitate the placement of empty containers in the tray

– Speed- up to 10 trays per minute

– Set up to run a pallet tray

– Inside dimensions of tray that machine is currently set up to form-  56 3/4” long x 44 1/4” wide x 3” high

– Change over time- approximately 20 minutes

– Includes a Nordson Model ProBlue 15 Hot Melt Adhesive System

– Machine dimensions-176 long” x 102” wide x 140” high

– Controls- Allen-Bradley Model CompactLogix PLC– Condition- Like-new- essentially “0” operating hours

– Maximum/Minimum tray sizes- Maximum- 56 1/4” length x 45” width- Minimum-  30” length x 35” width

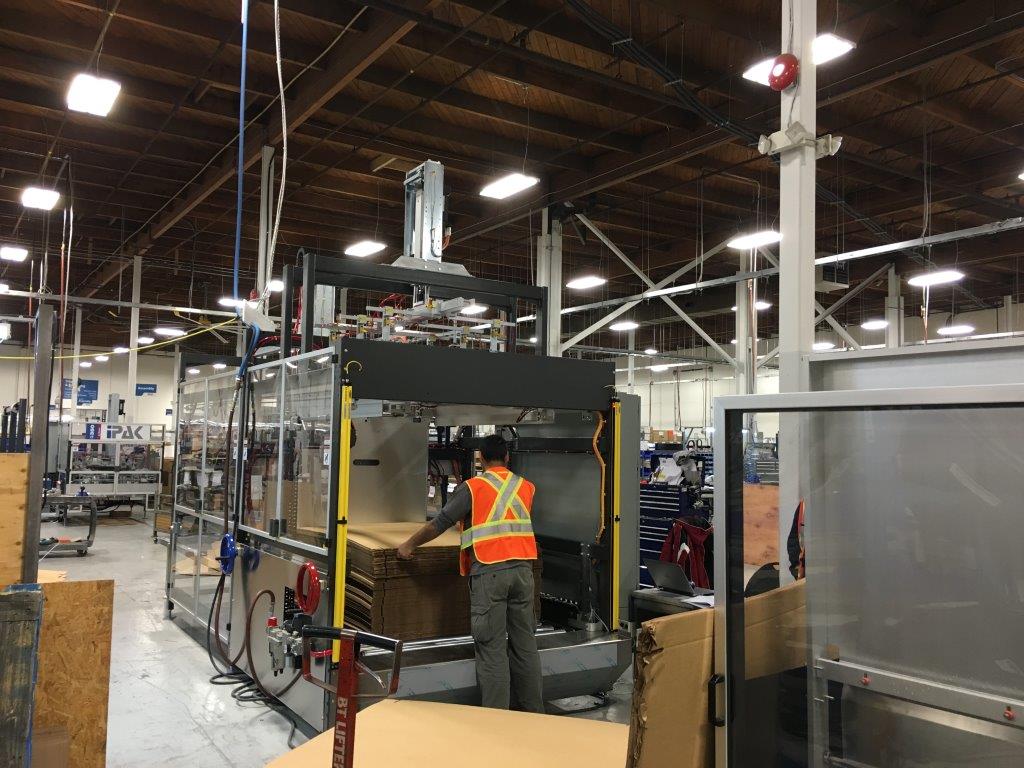

– Includes a “Top Pick” blank loading system which allows for a blank magazine containing a greater number of blanks resulting in less downtime- also facilitates handling of large size blanks
