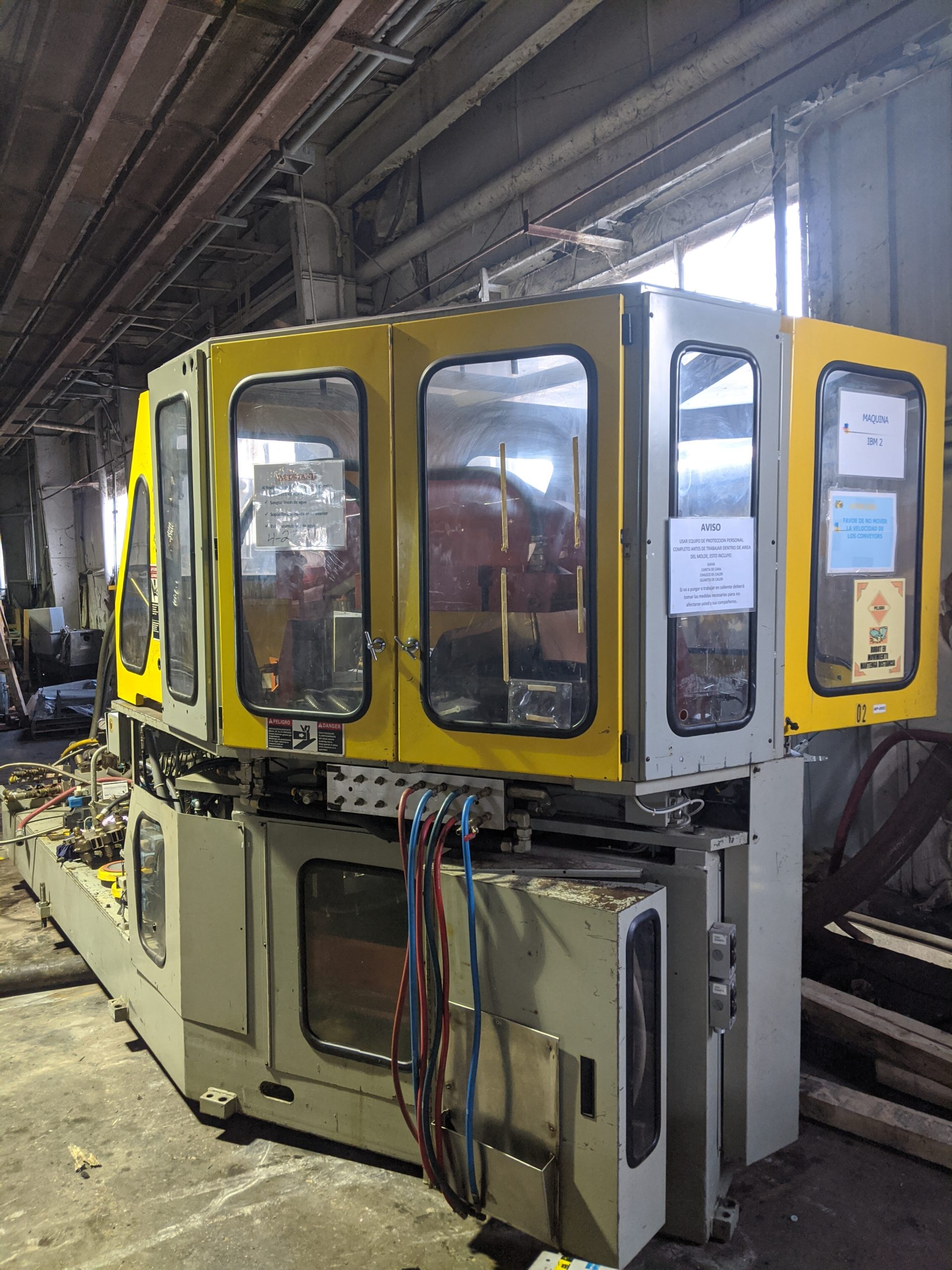

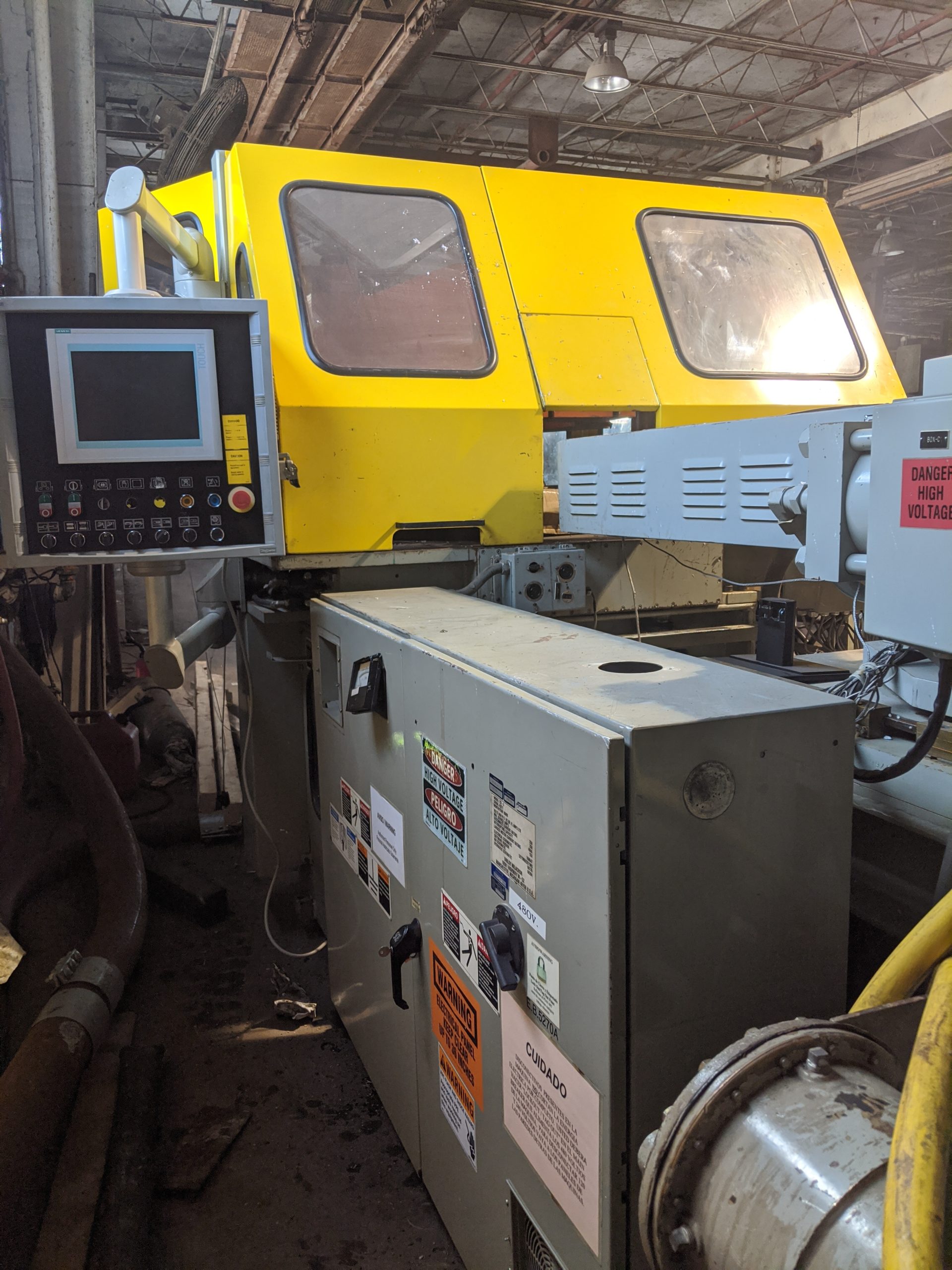

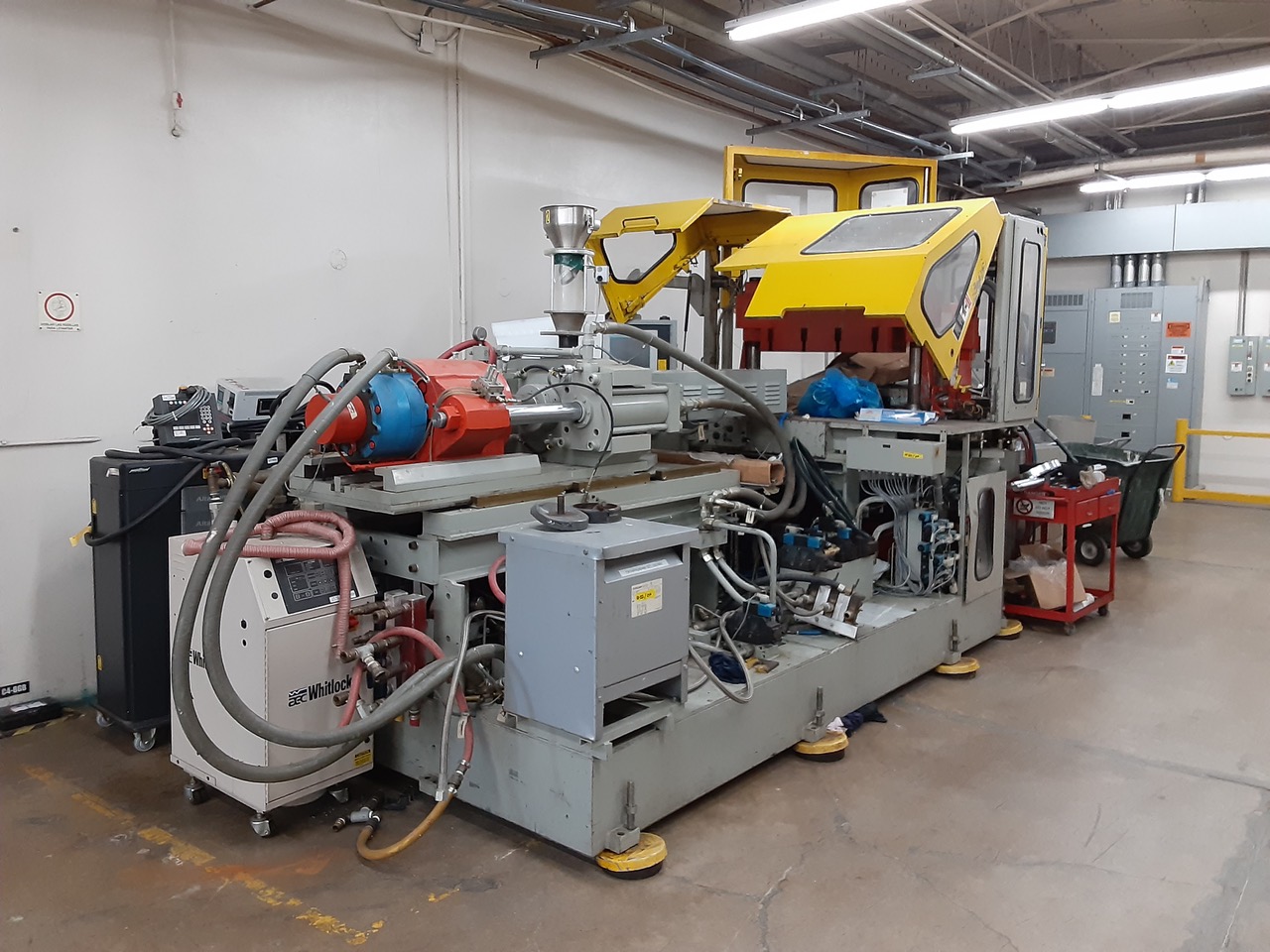

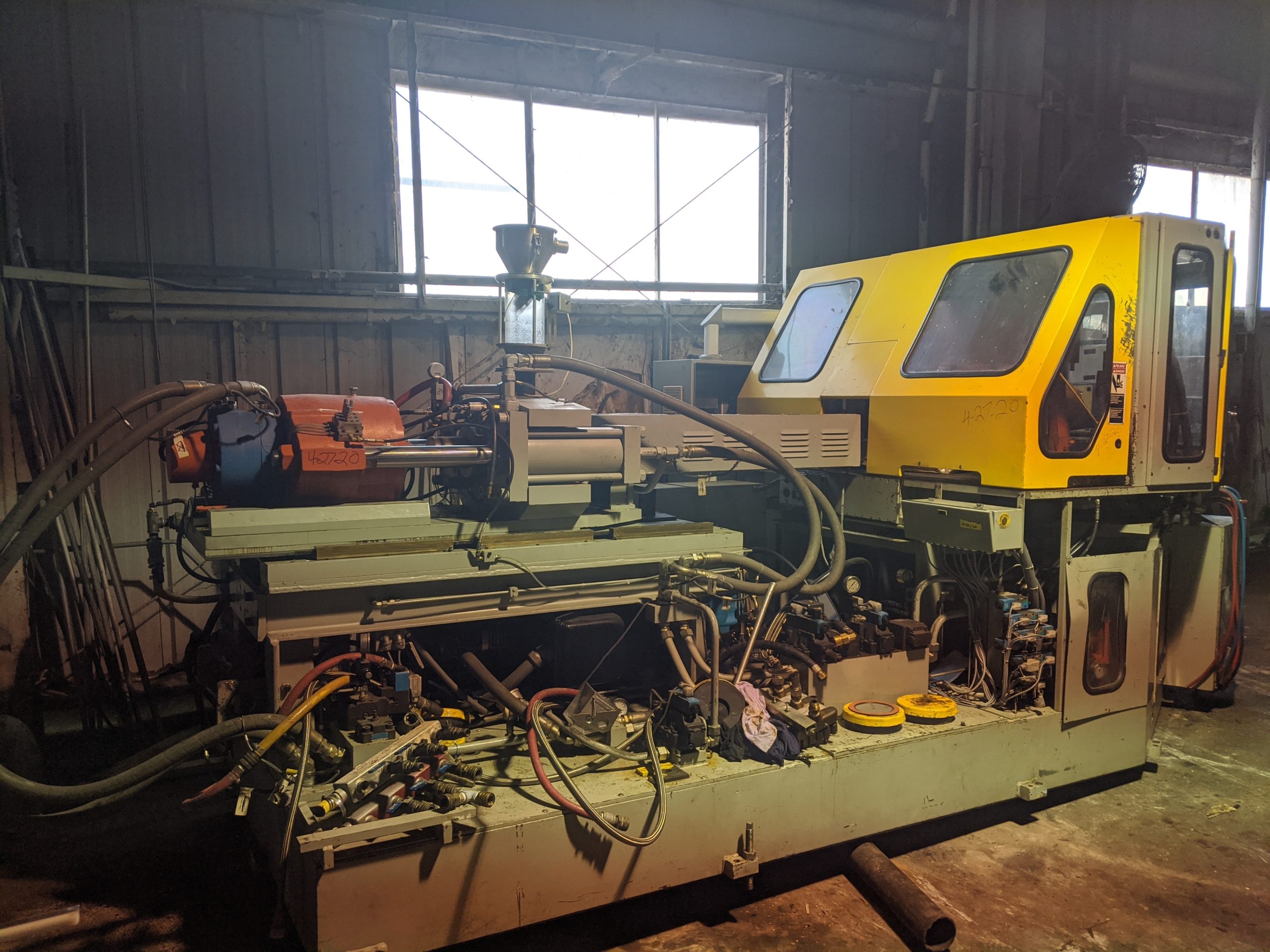

Uniloy Model 122-3 Injection Blow Molding Machine

Uniloy Model 122-3 Injection Blow Molding Machine

Year of manufacture- 2000

Hydraulic pump motor size- 100 H.P.

Air cooled barrel

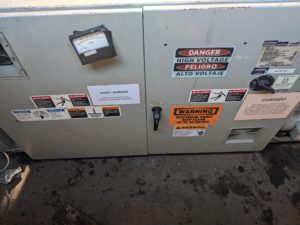

Electrical specifications- 460 volts- 3 phase- 60 cycles

Condition- Good

Description

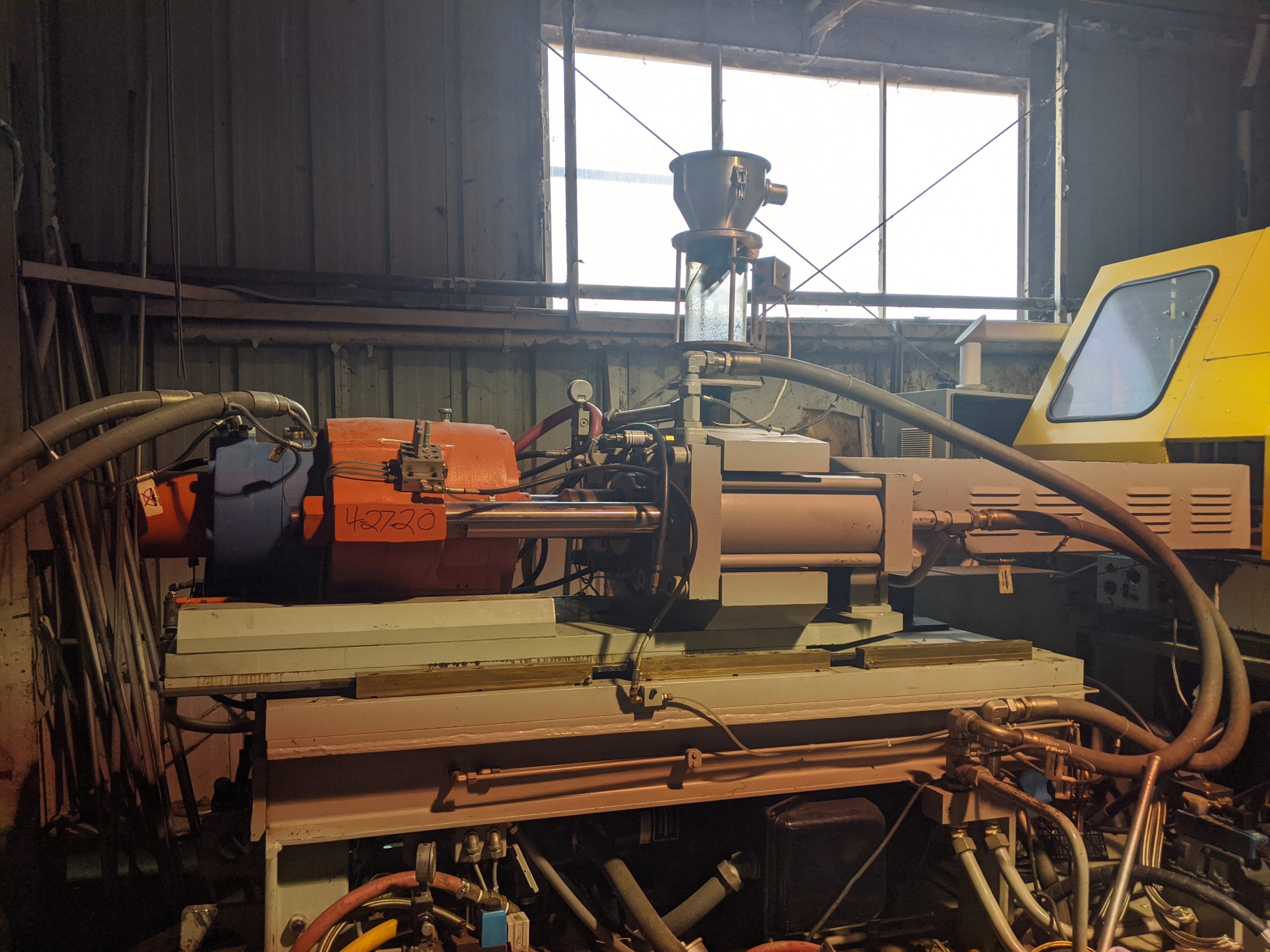

Uniloy Model 122-3 Injection Blow Molding Machine

– Year of manufacture- 2000

– Clamp force- total- 122 tons

– Clamp force- blow side- 19 tons

– Clamp force- injection side-103 tons

– Maximum die set width- 38″

– Maximum stack height- 22”

– Maximum daylight- 15″

– Trigger bar length (maximum useable)- 34″

– Swing radius- 27.75″

– Screw diameter- 2 1/2″

– Extruder L/D ratio- 25:1

– Hydraulic pump motor size- 100 H.P.

– Air cooled barrel

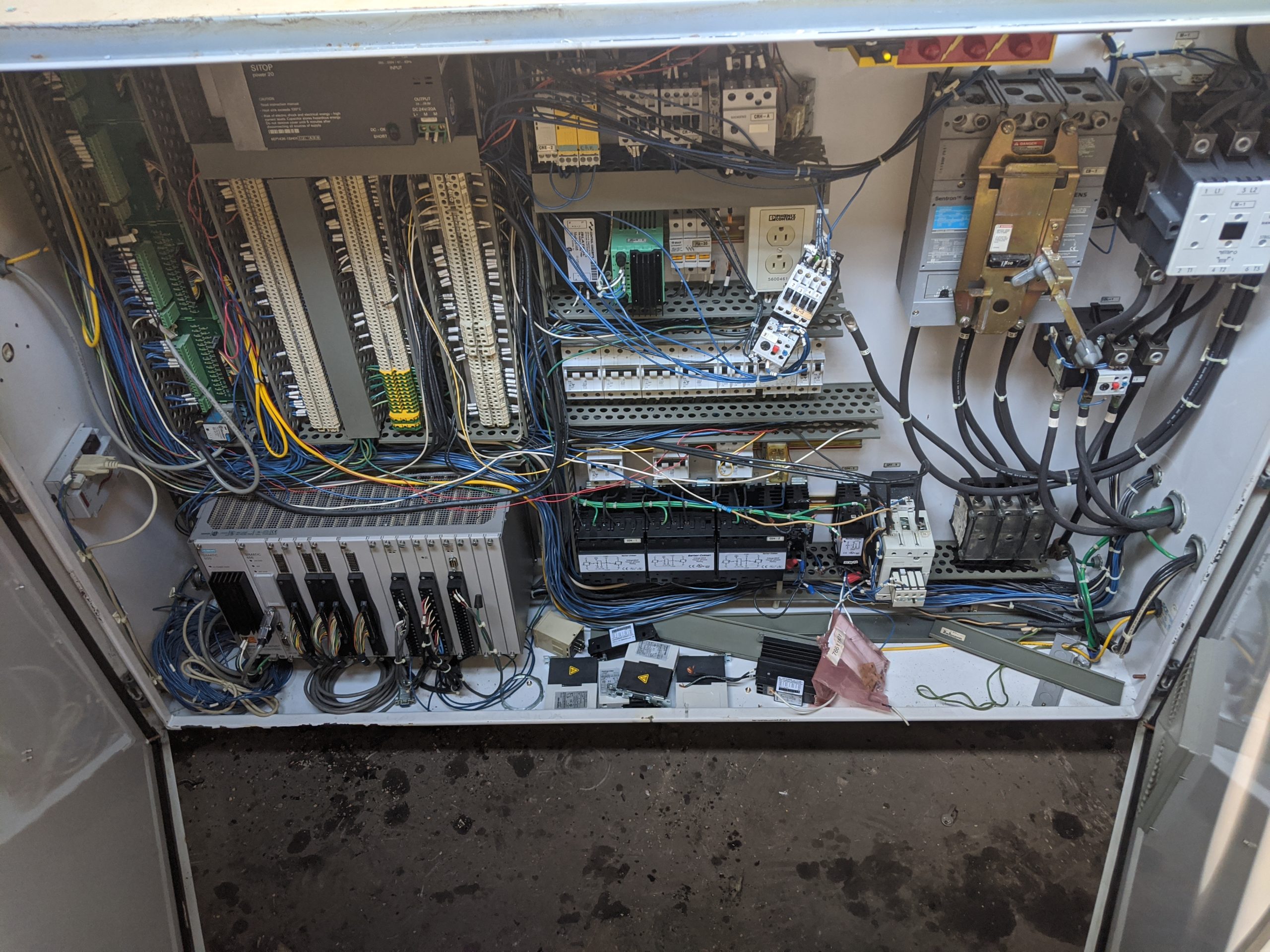

– Electrical specifications- 460 volts- 3 phase- 60 cycles

– Machine dimensions- 192.5” length x 91” wide x 116” tall (including hopper)

– Machine weight- approximately 30,000 pounds

– Condition- Good
