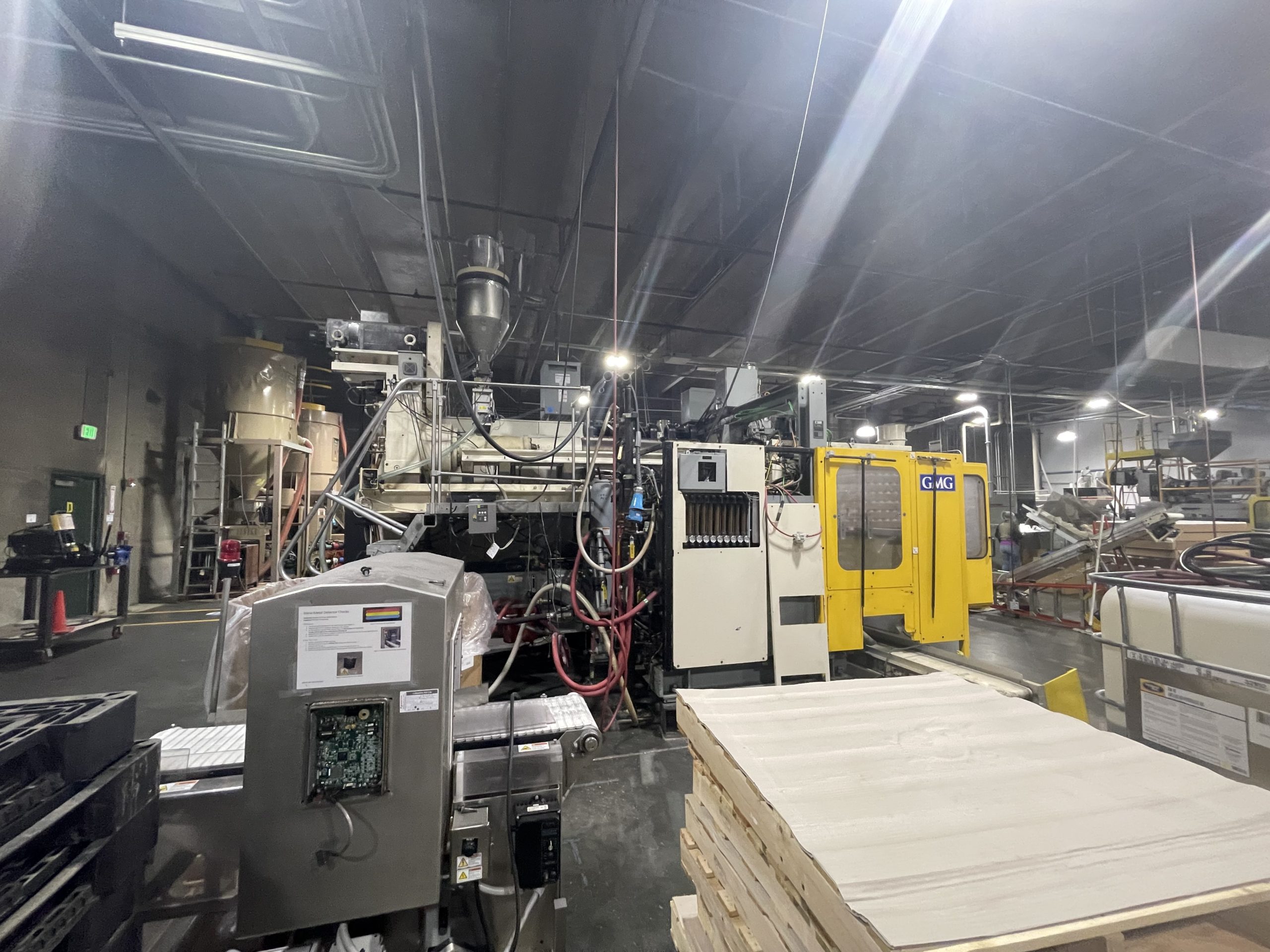

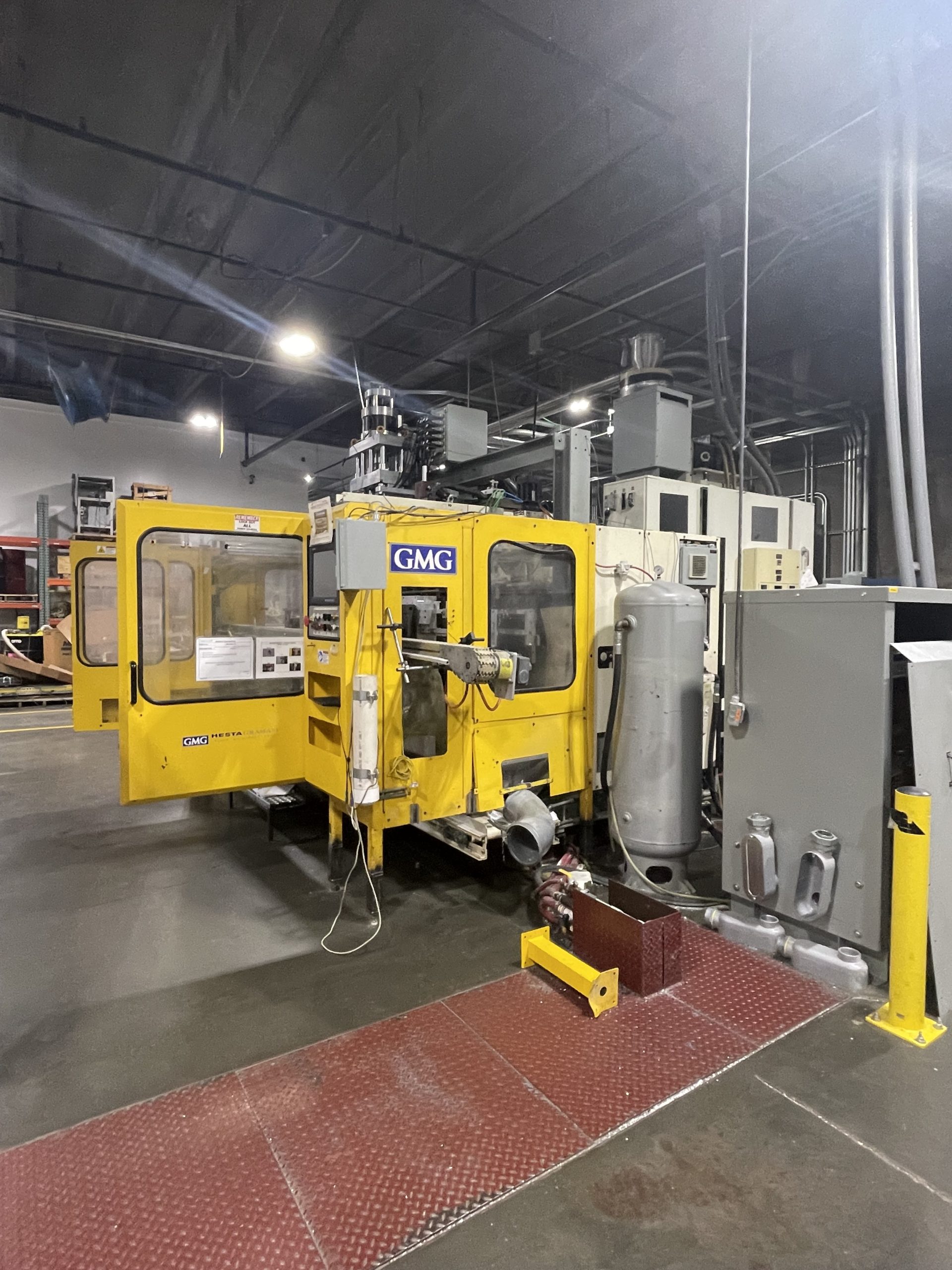

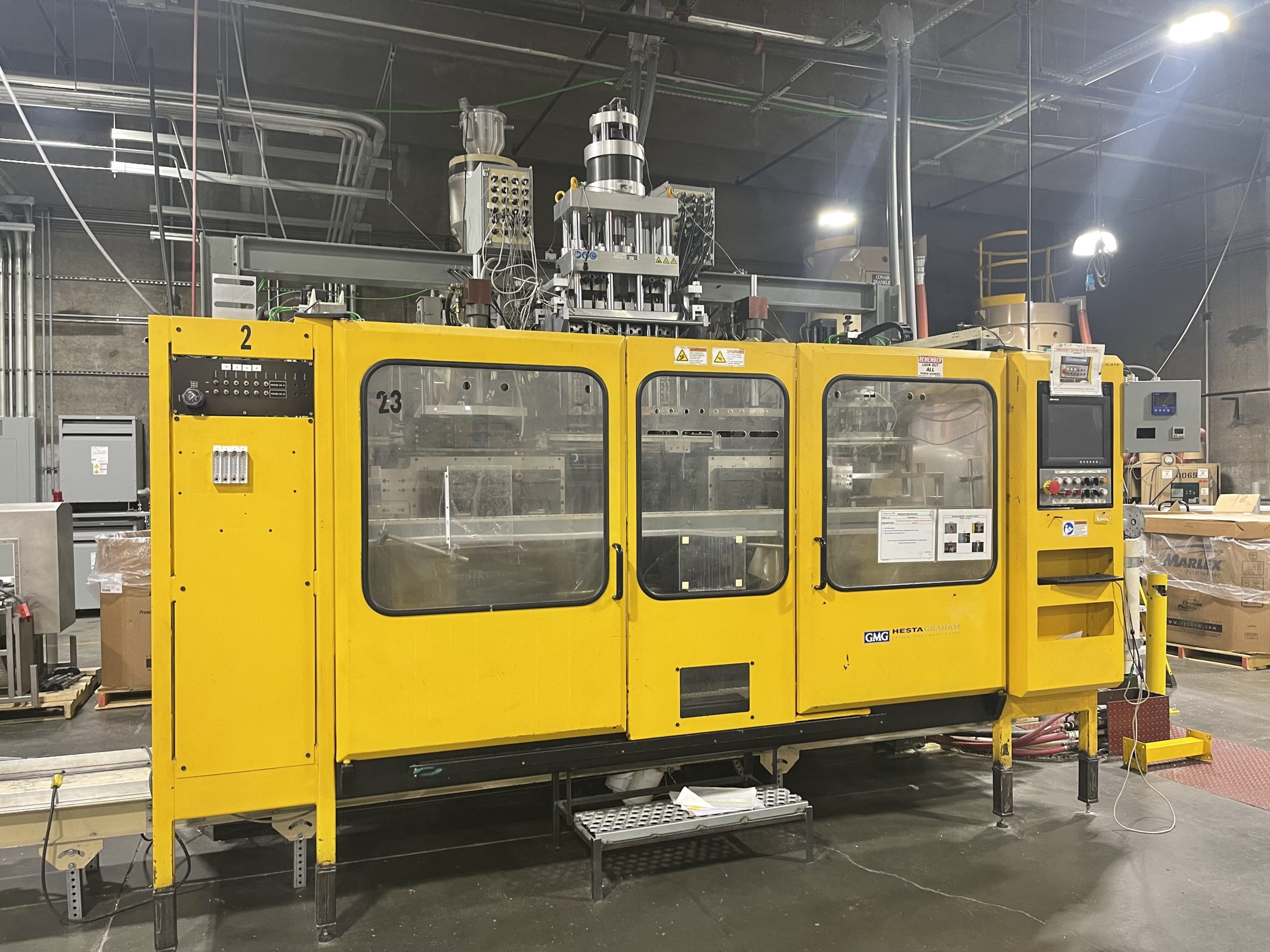

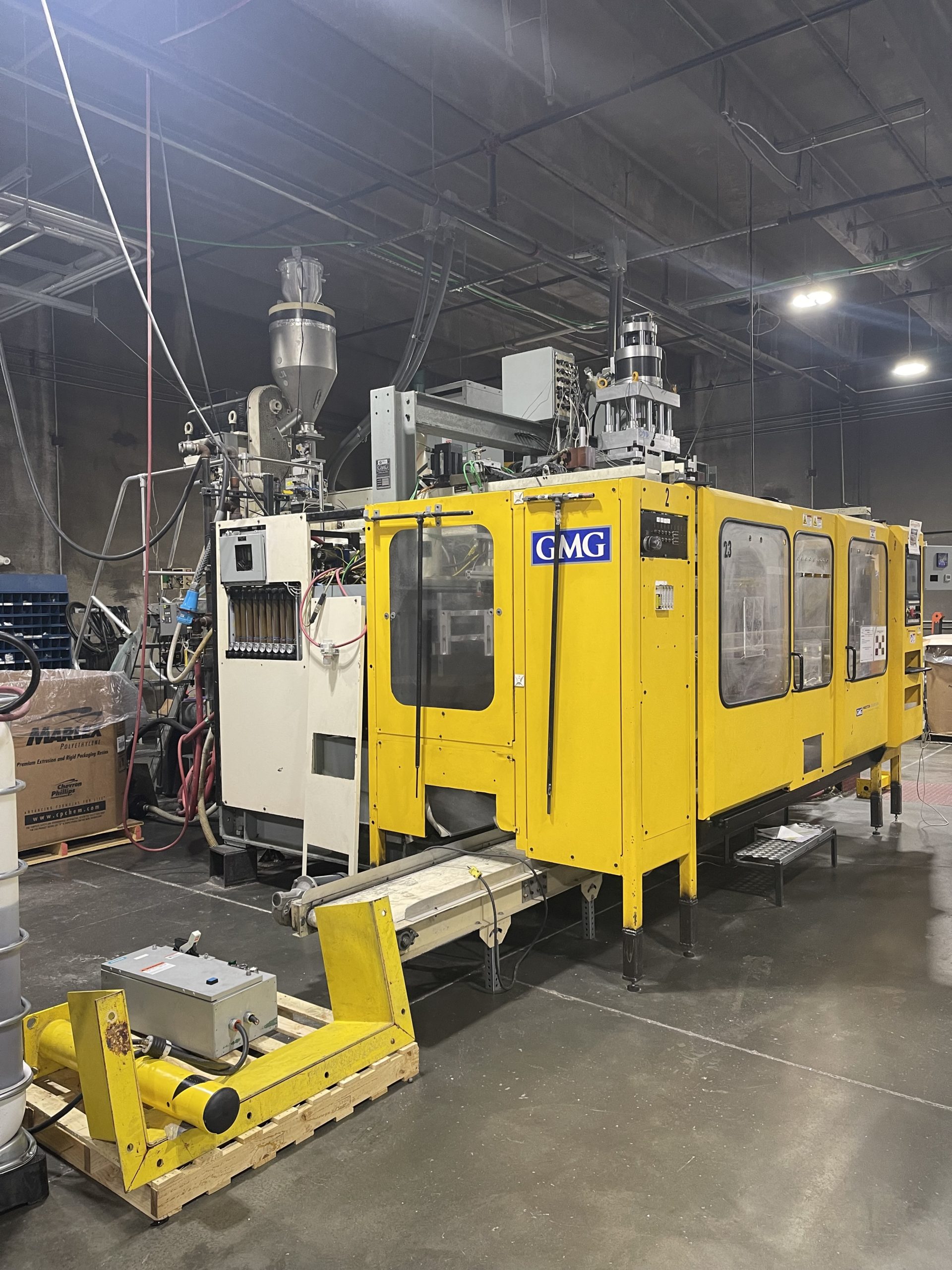

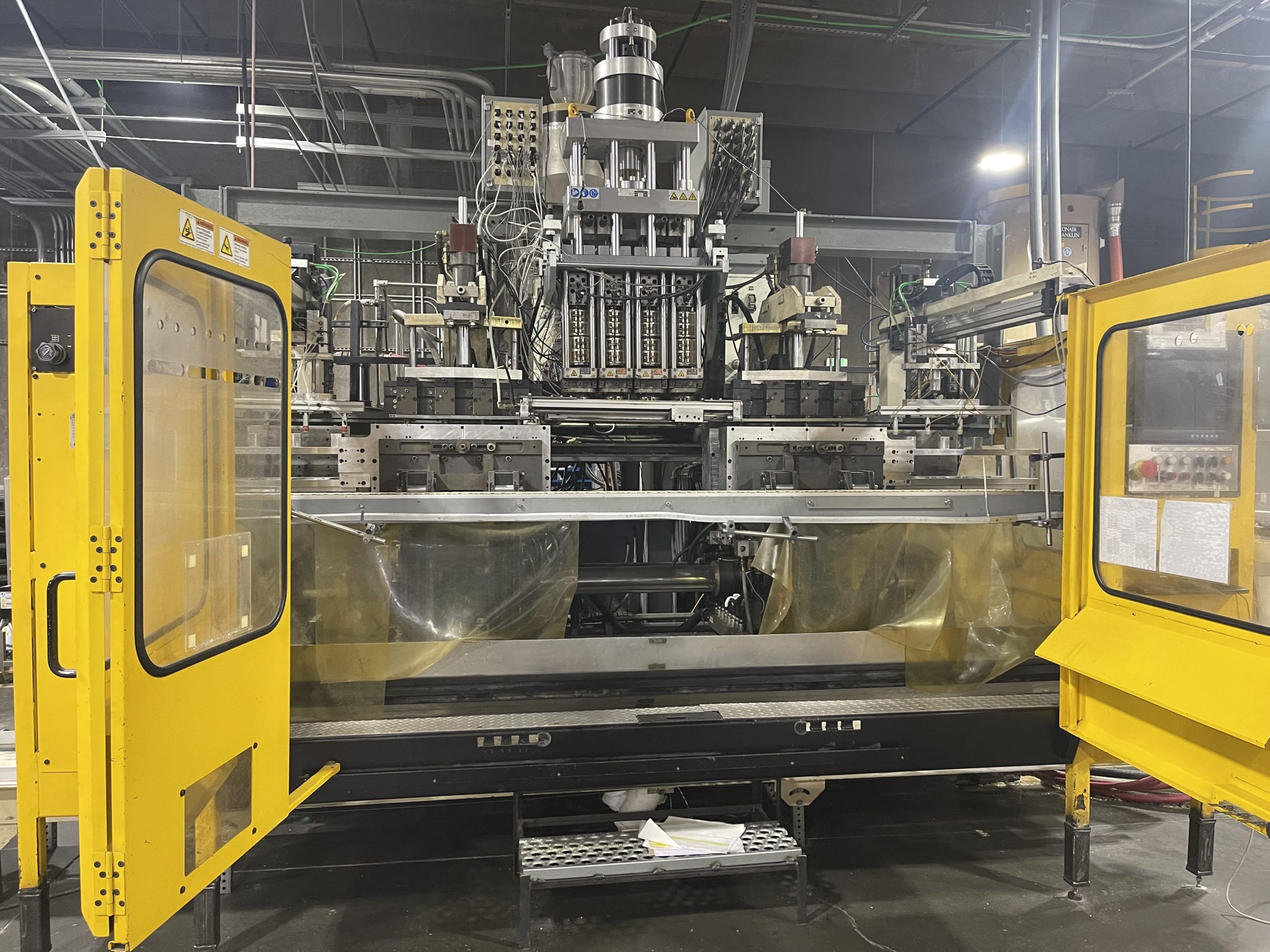

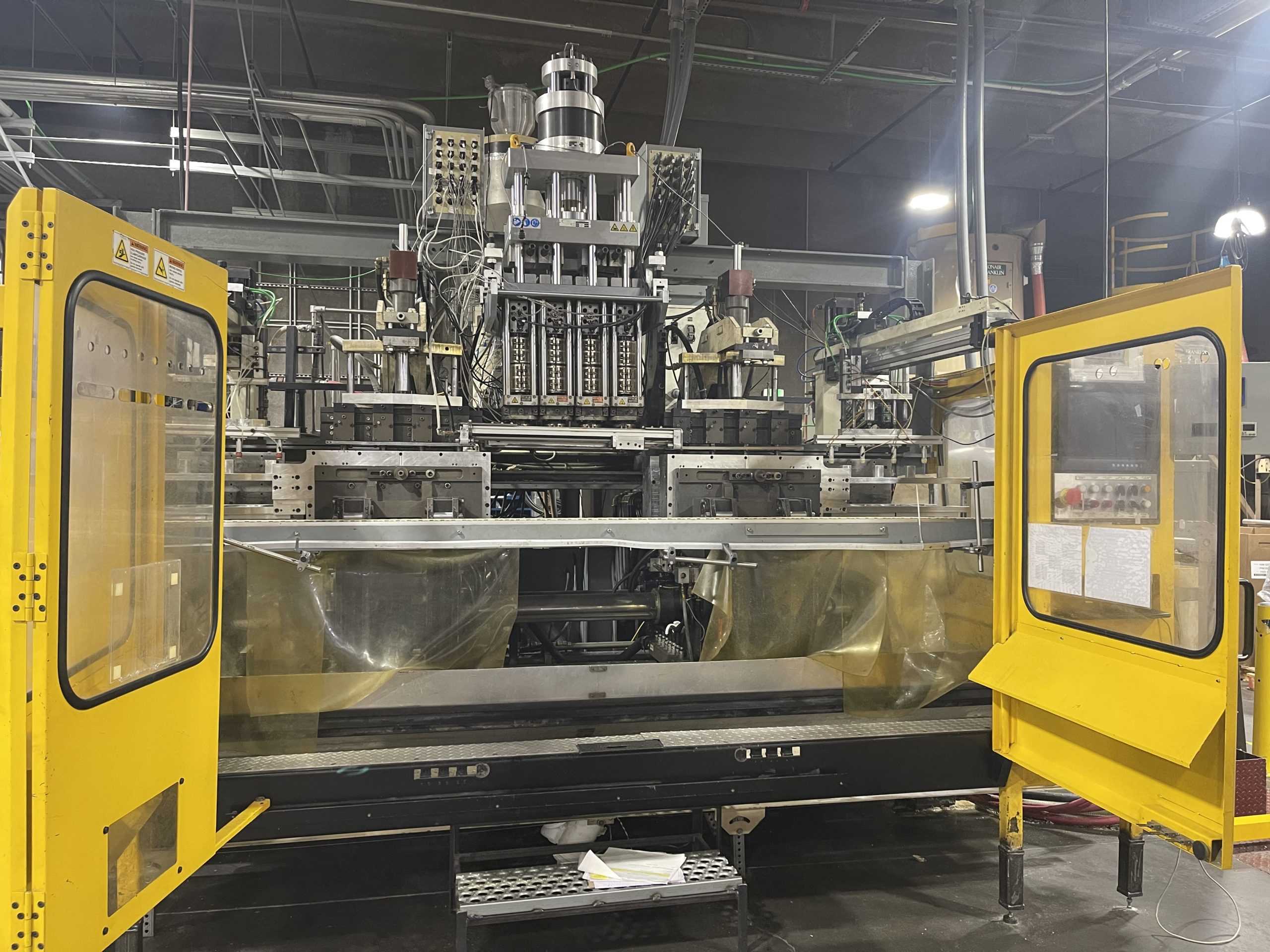

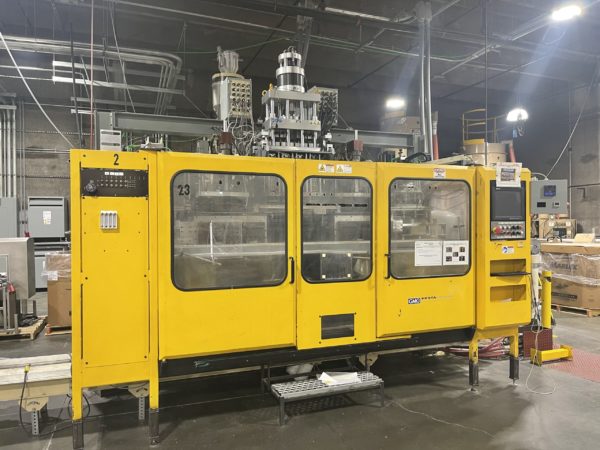

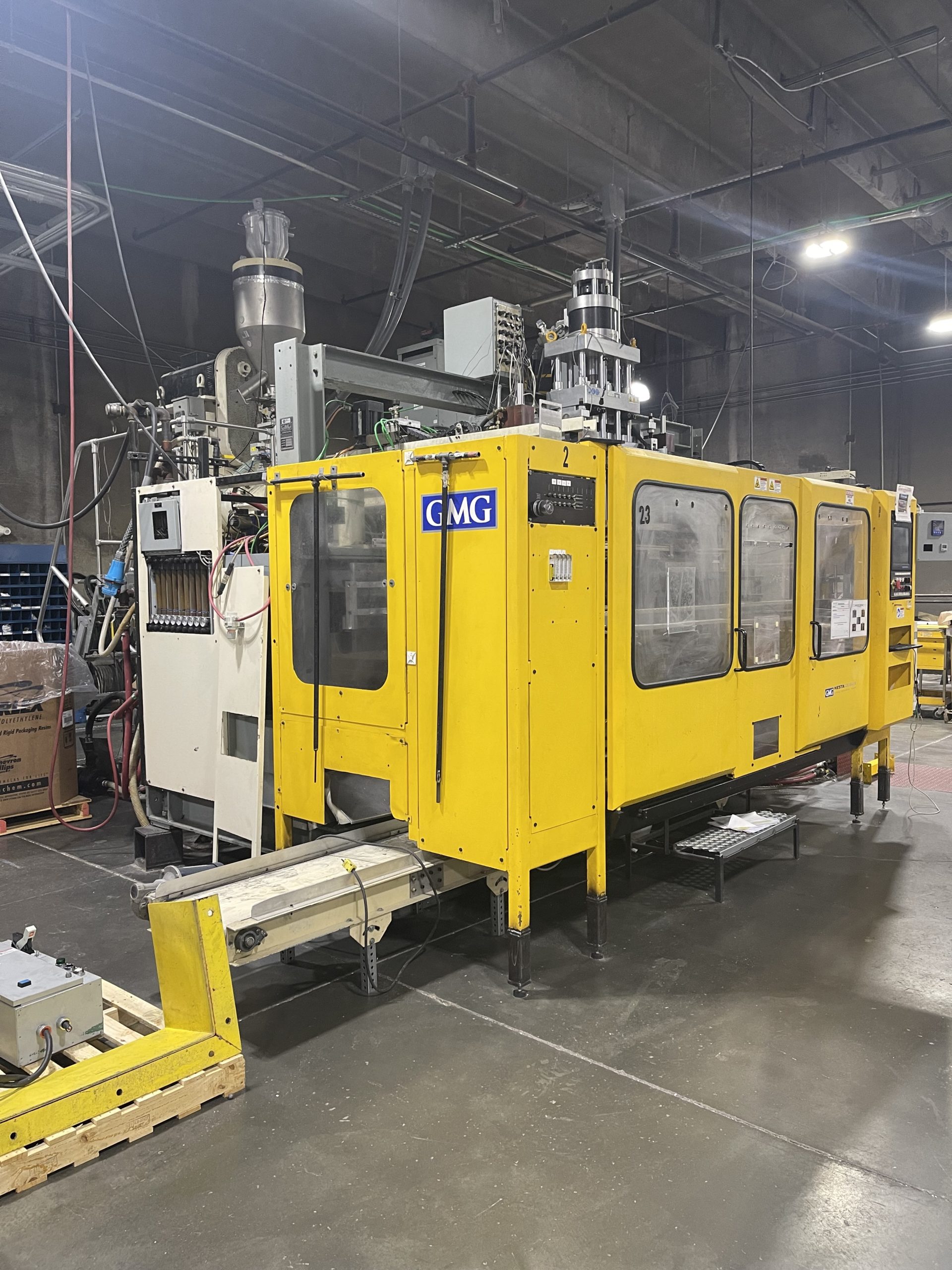

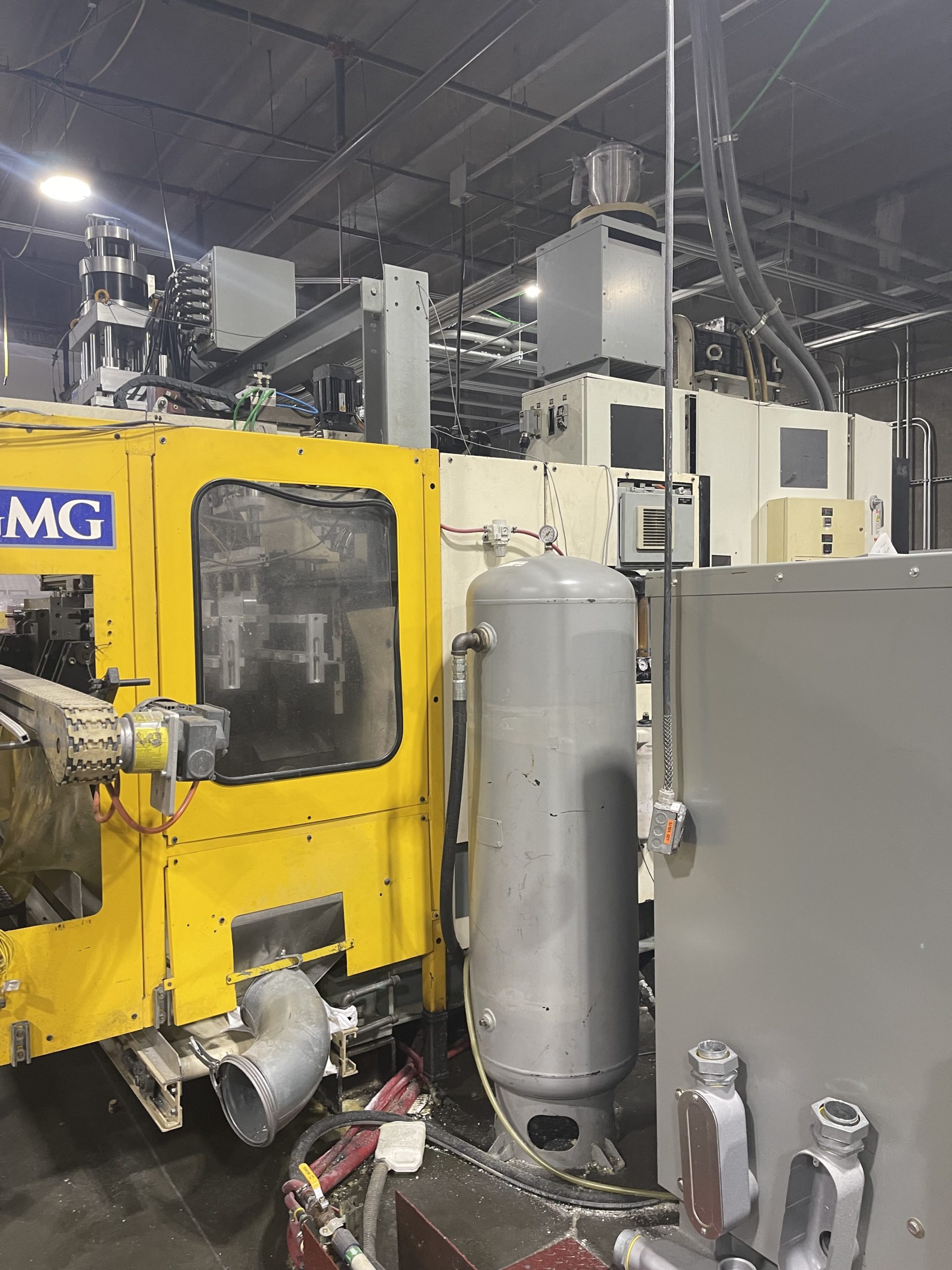

Hesta Graham Model HLD 700-134 Blow Molding Machine

Year 2003

Dual sided

Low operating hours

In machine trimming capability

Description

Hesta Graham Model HLD 700-134 Blow Molding Machine

Year of manufacture- 2003

Press arrangement- dual sided machine

In machine trimming capability

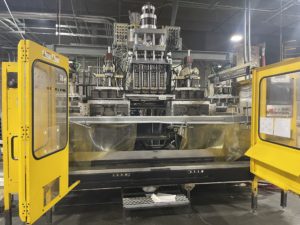

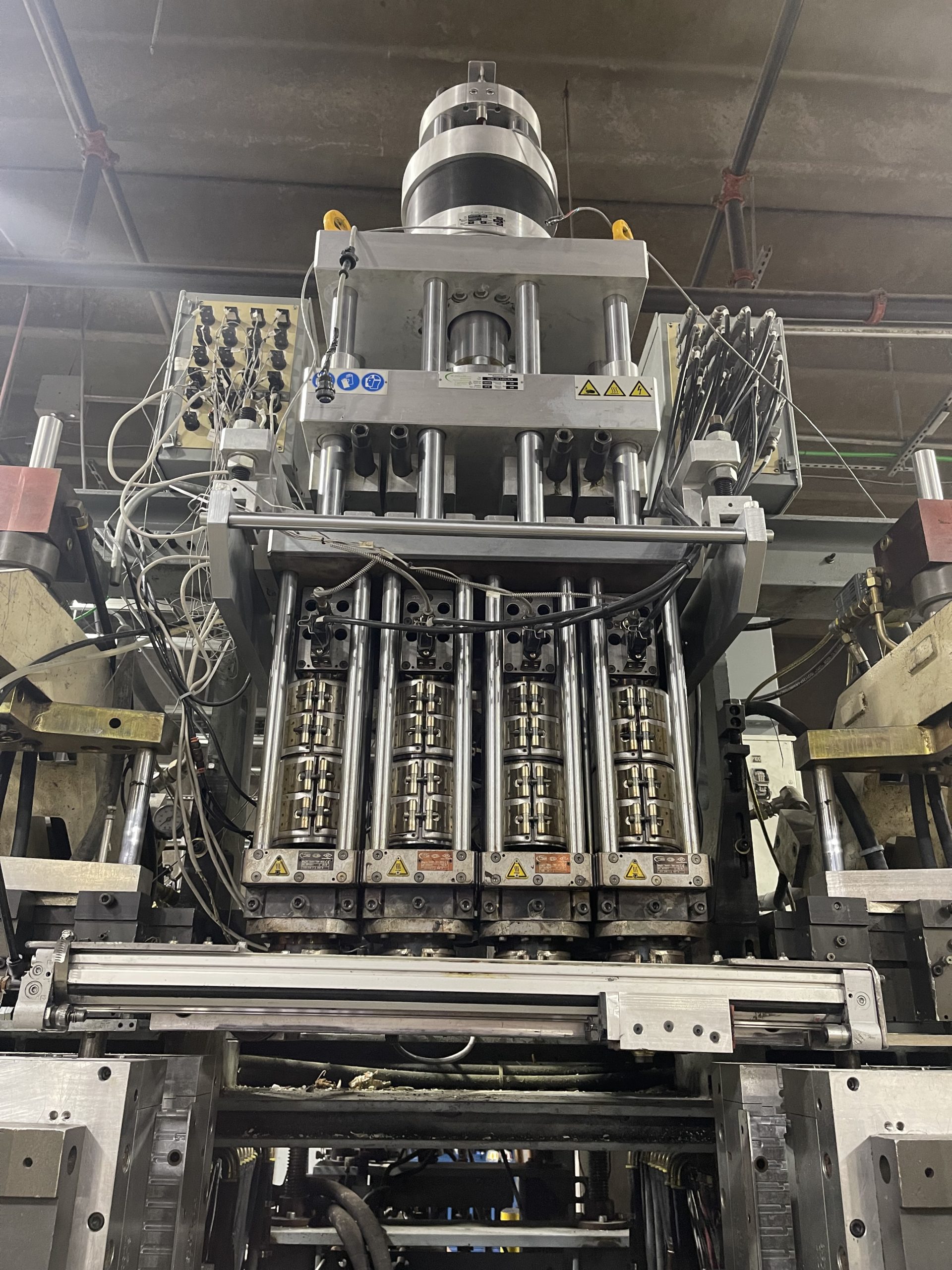

Head configuration- 4 parison head with 150 mm distance between dies

Head type- W. Muller Model S4/90-150 T- PETG TK Head/HDPE built in 2018

Extruder diameter- 100 mm

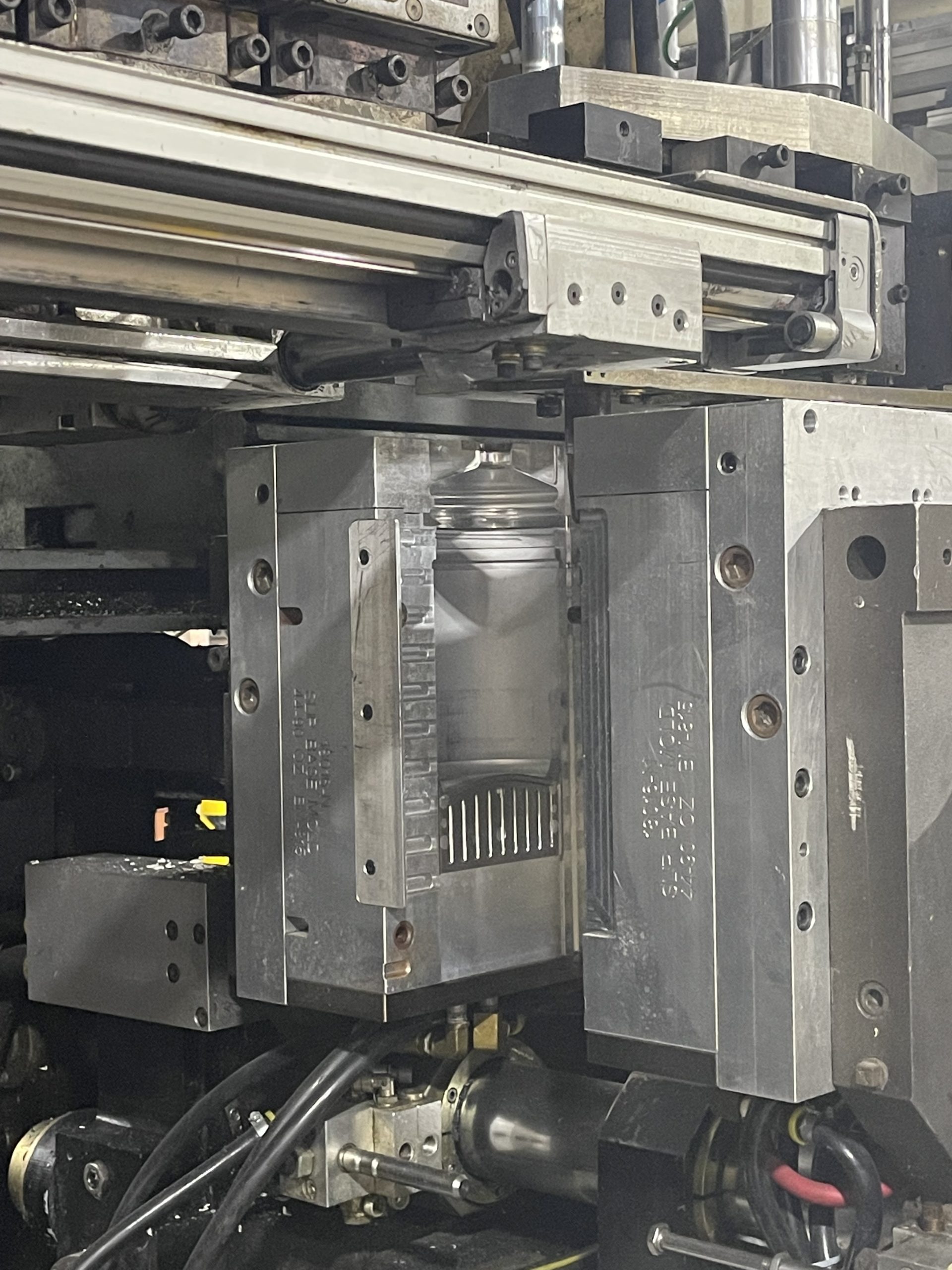

Mold length- 400 mm

Mold width- 680 mm

Mold shut height- 8.7″

Mold thickness- 2 x 90 mm

Platen stroke- 356 mm

Platen daylight- 400 mm

Mold closing force- 16.8 US tons

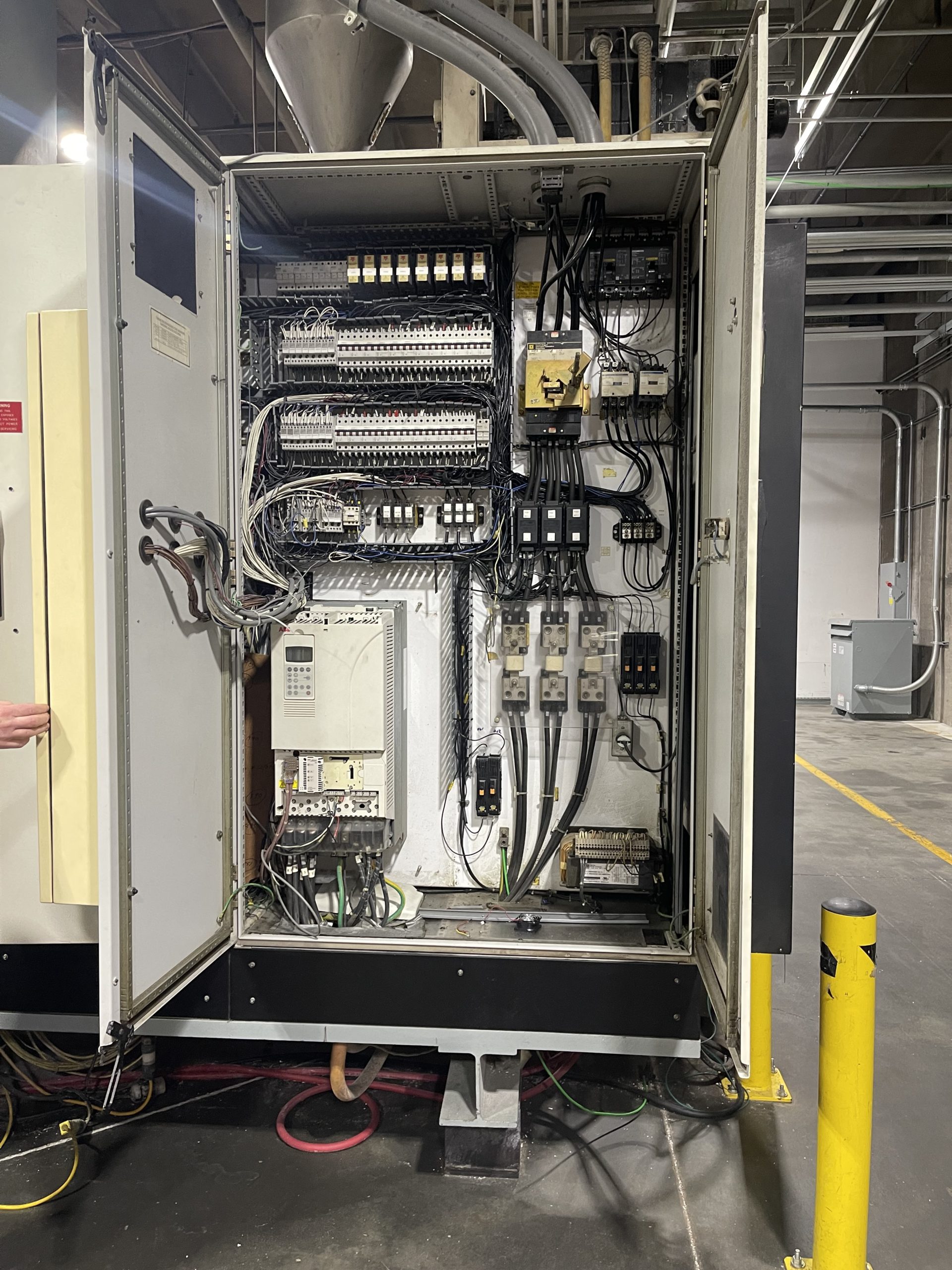

Power specifications- 460 volts- 3 phase- 60 cycles

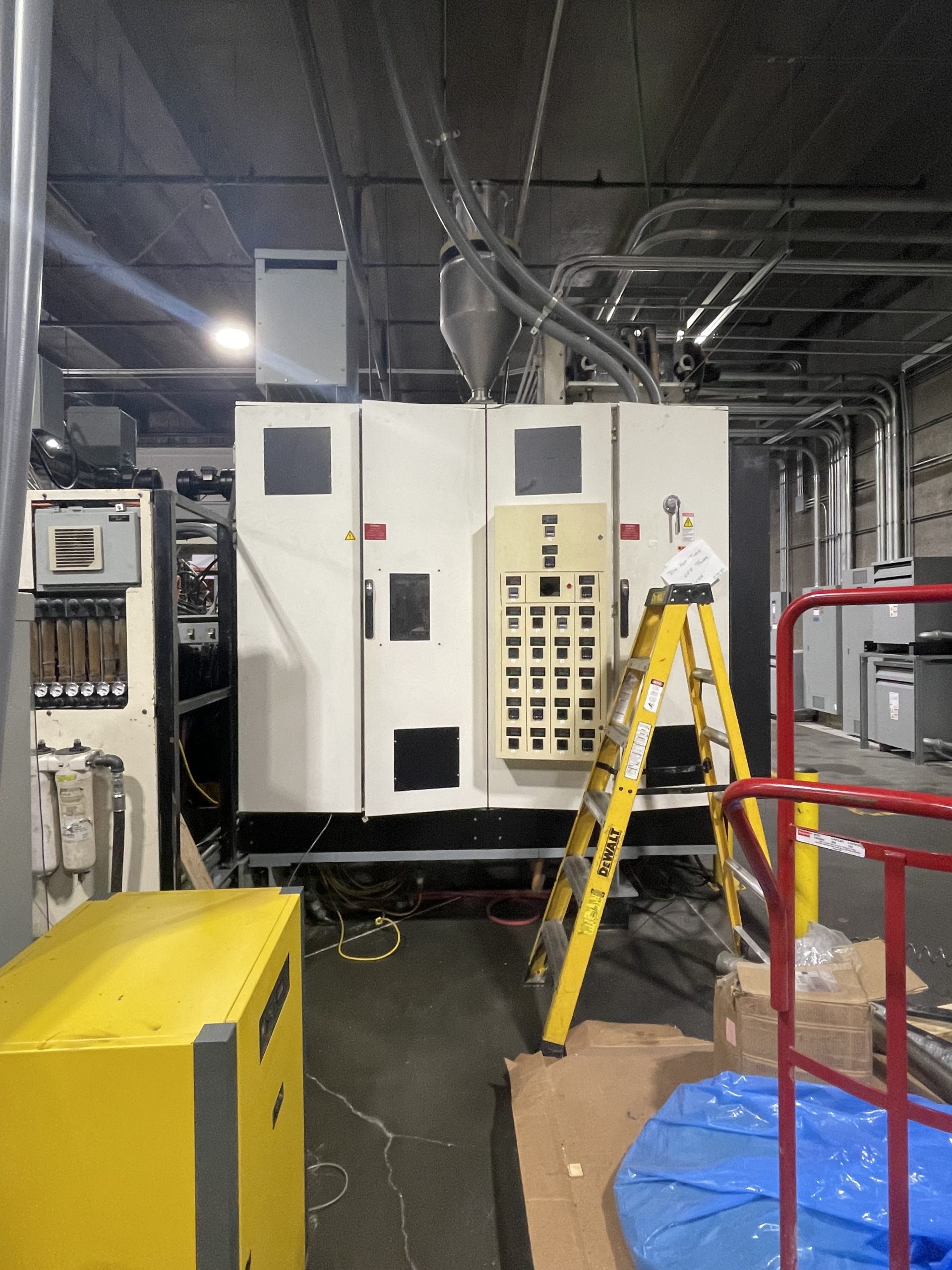

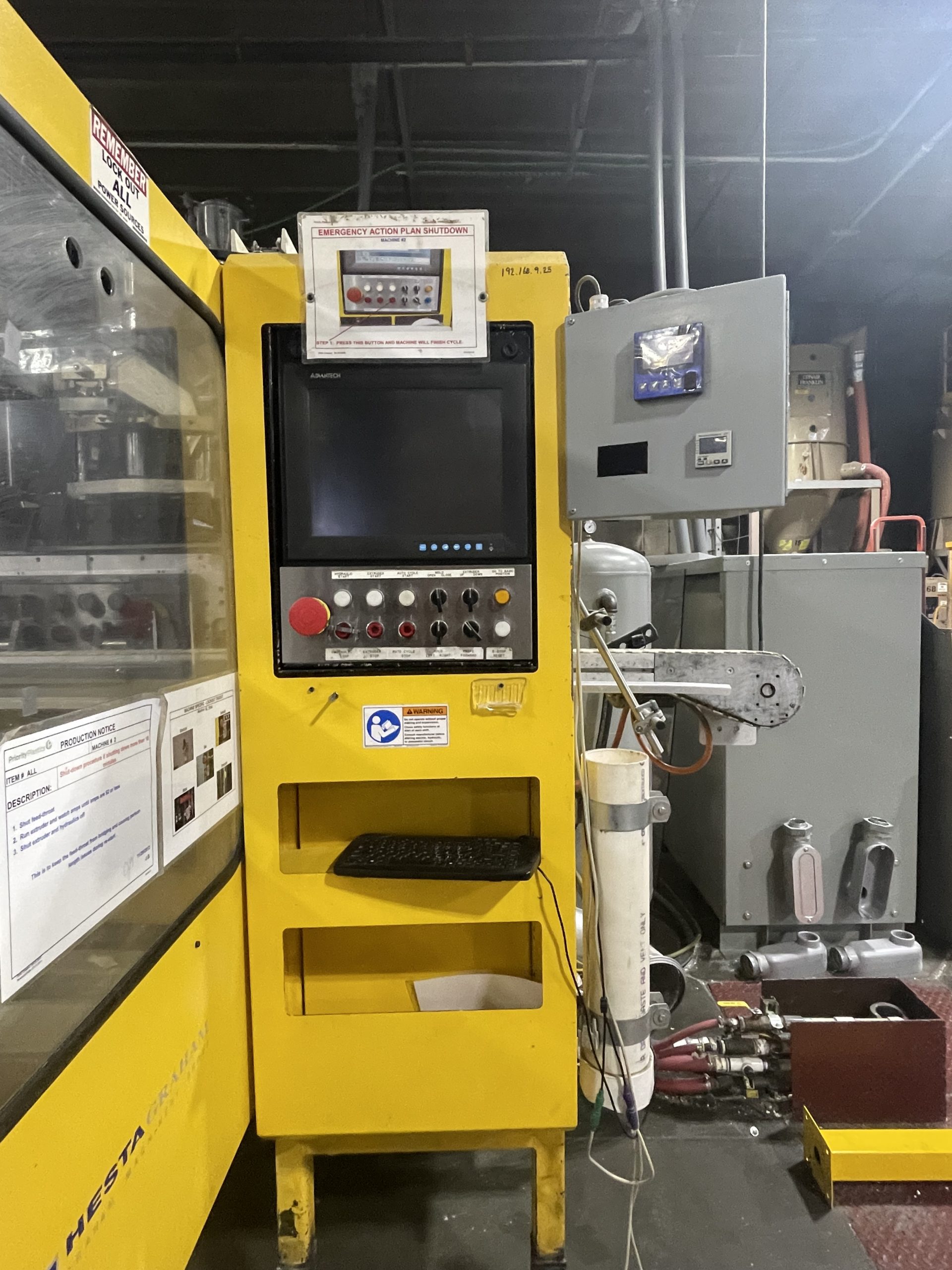

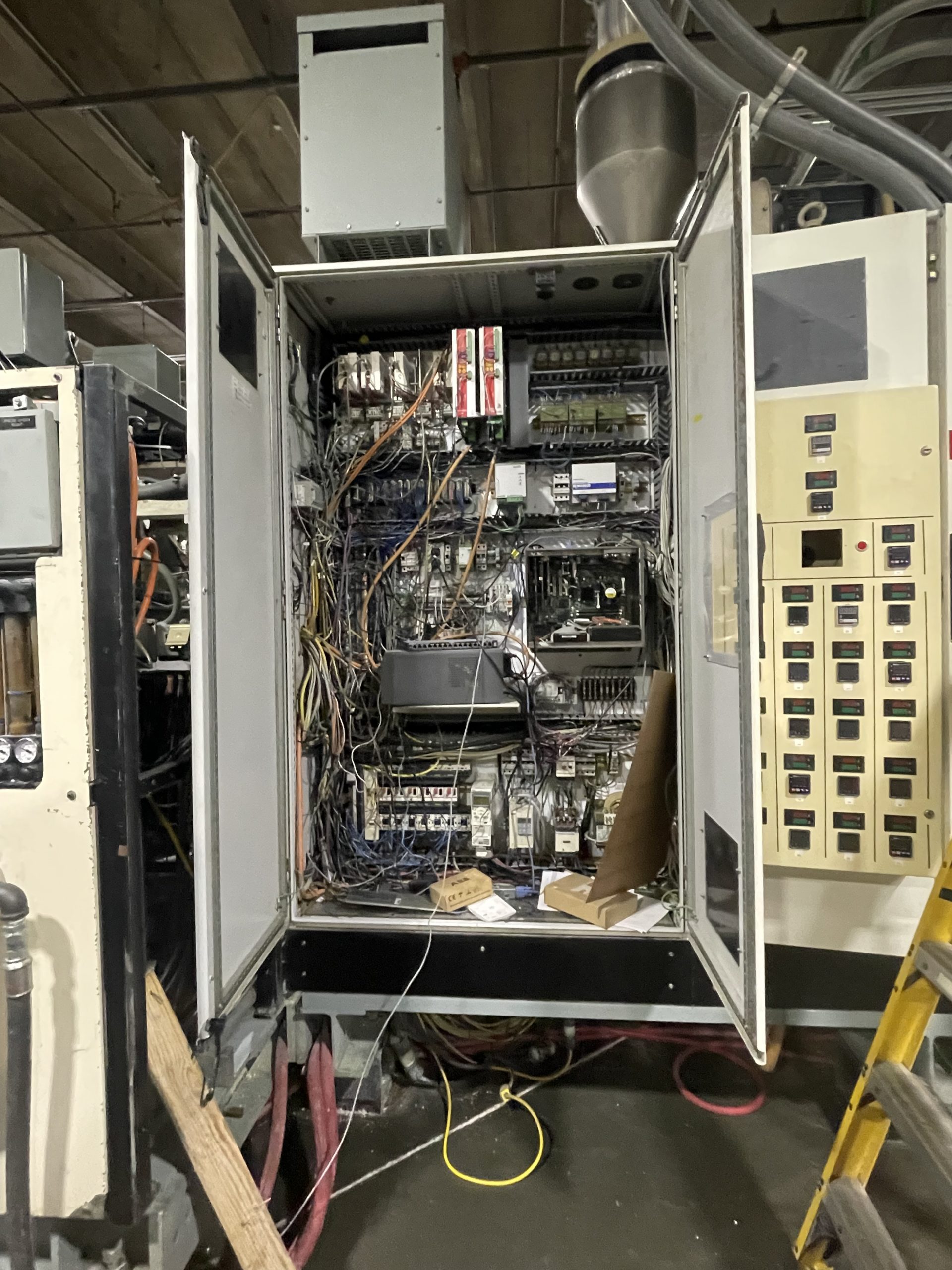

Controller- Beckoff PLC

Condition- Very good- low operating hours
