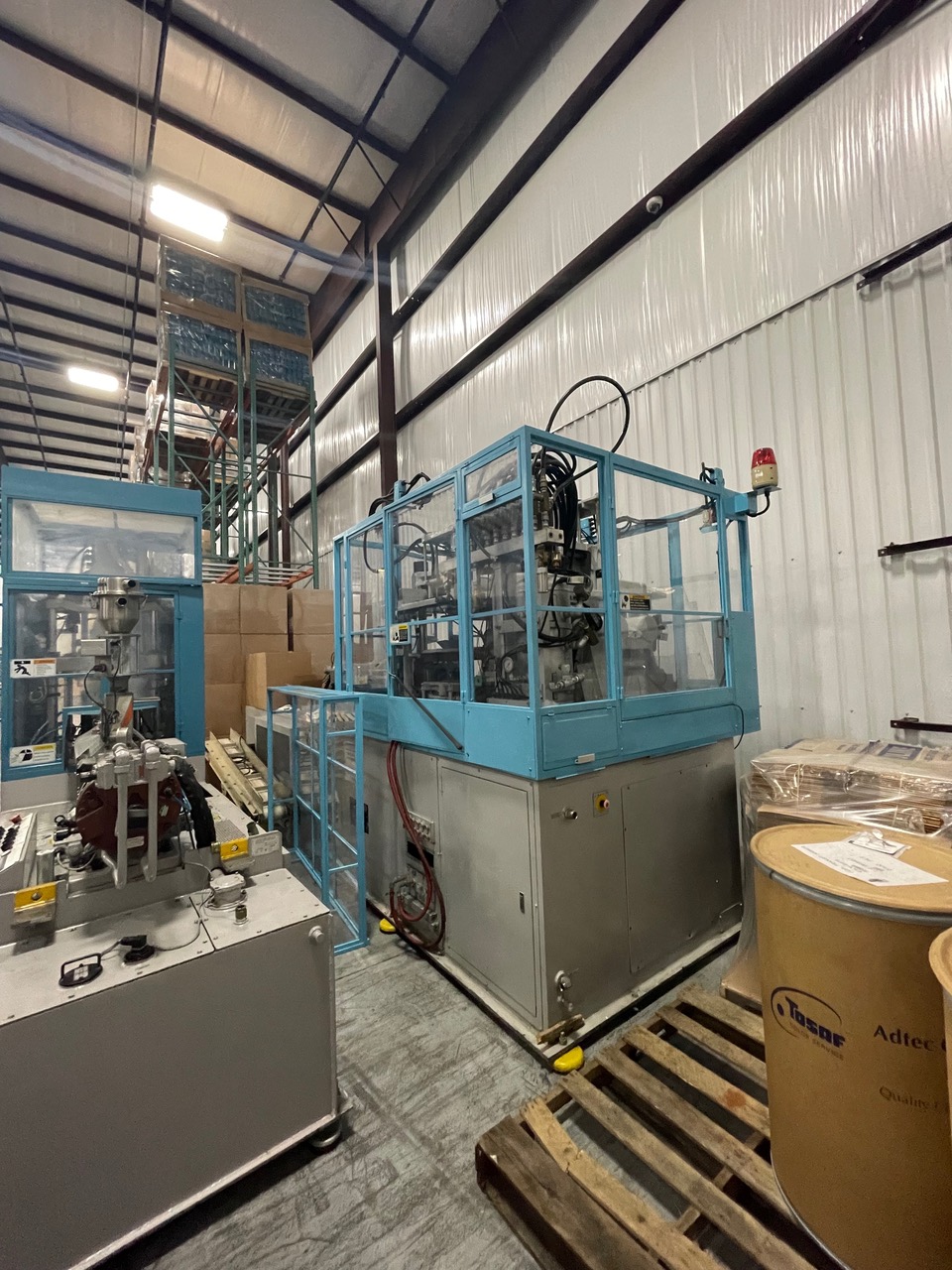

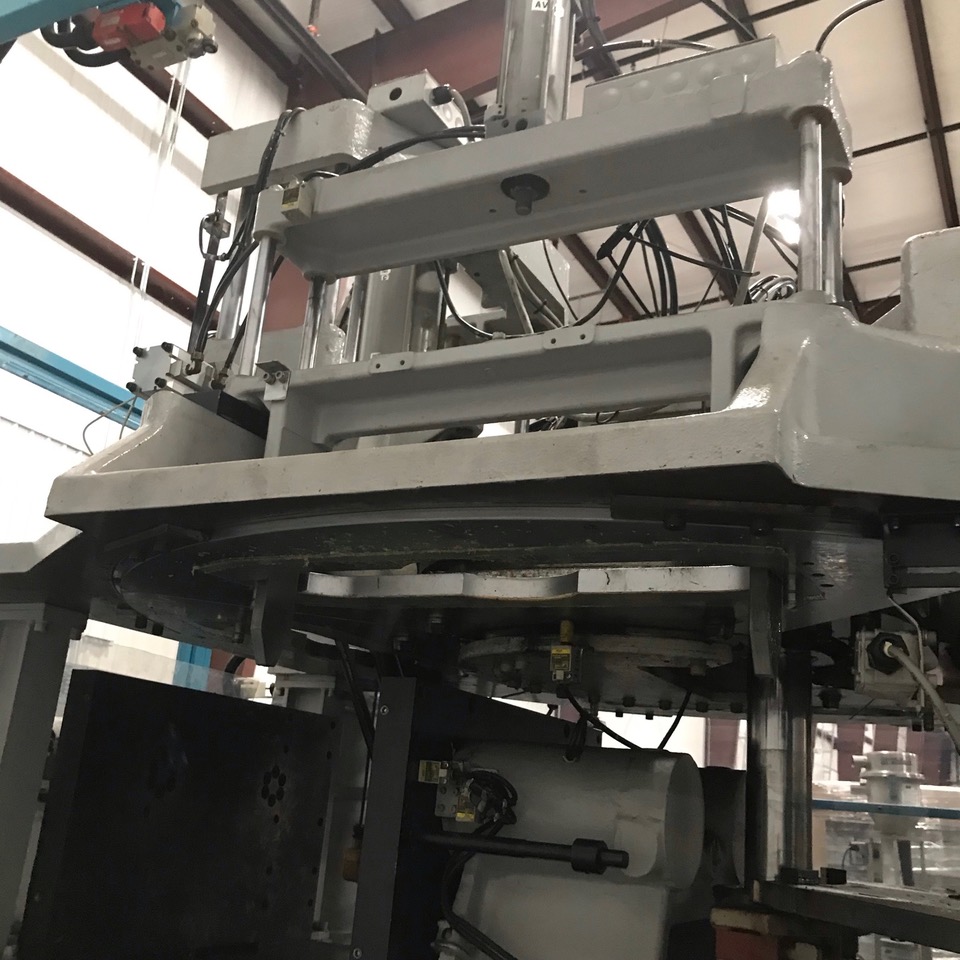

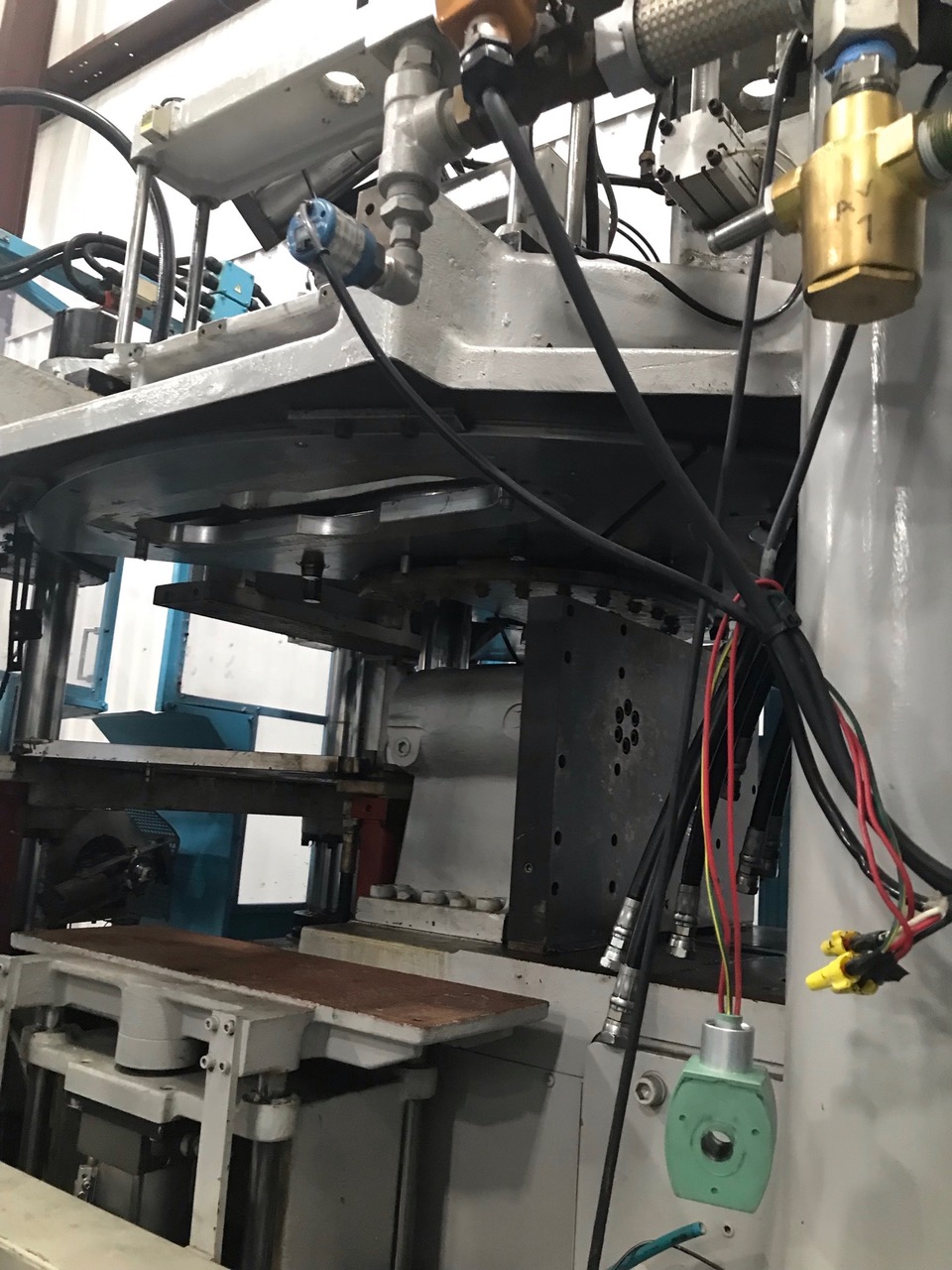

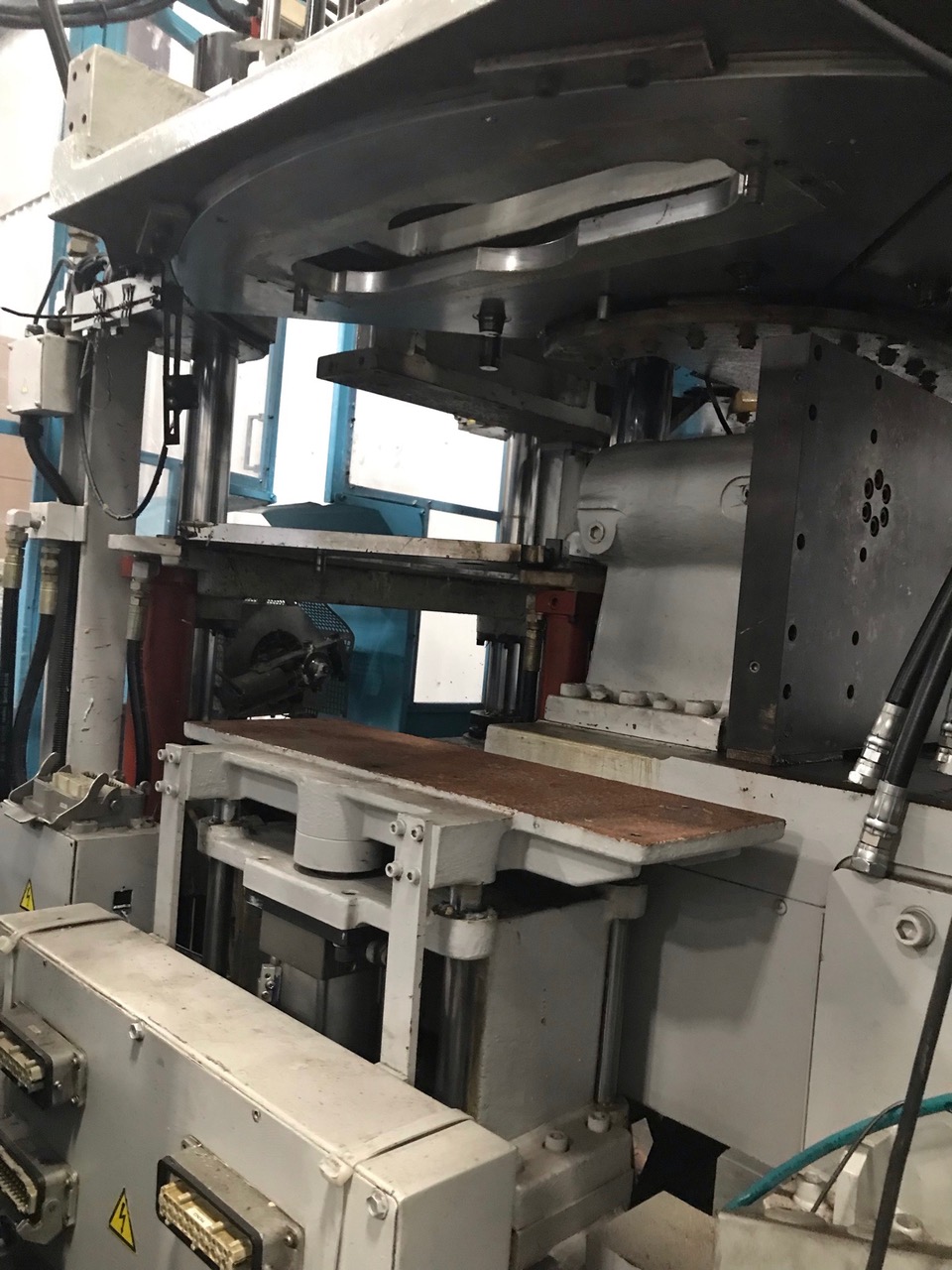

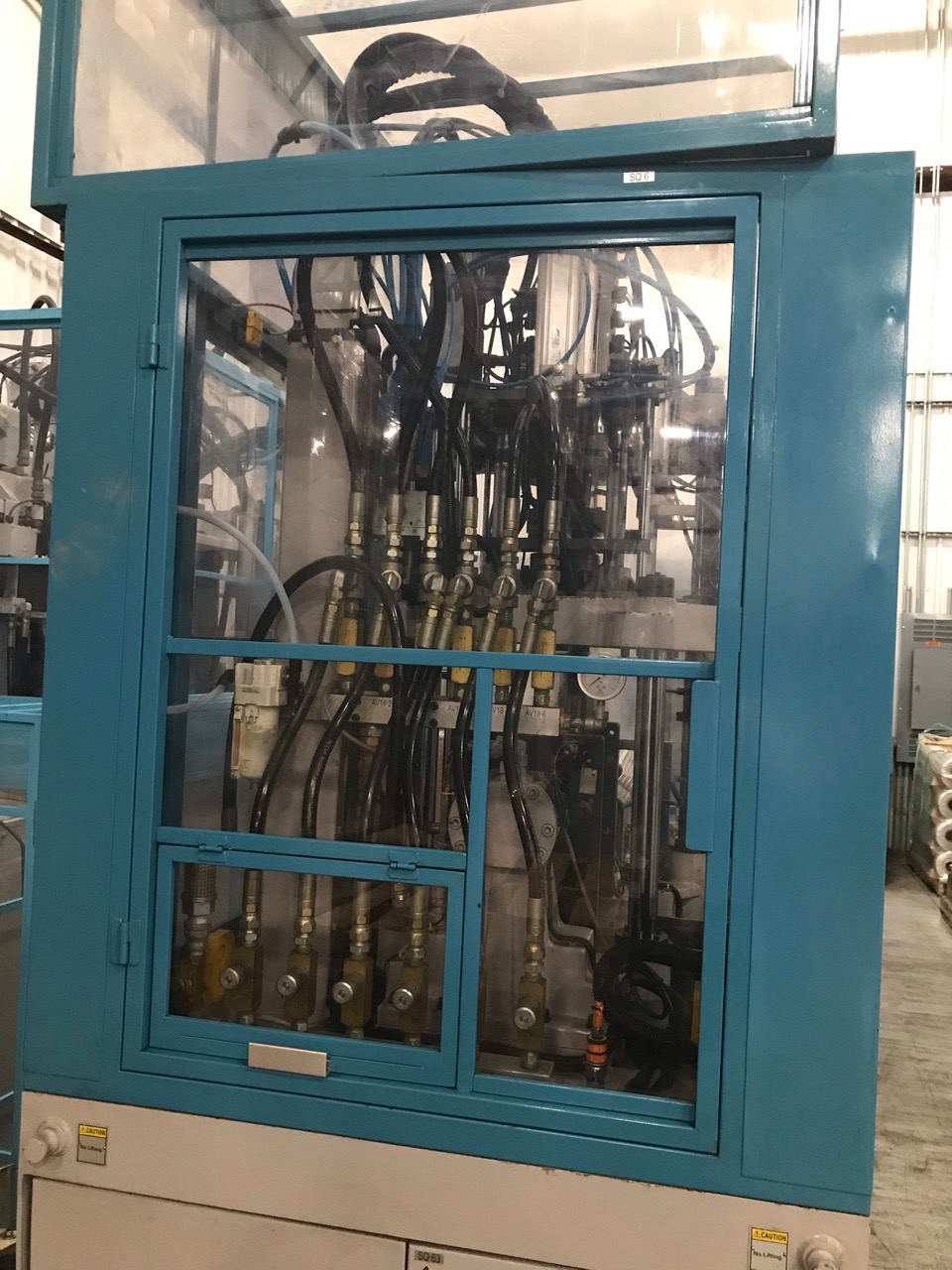

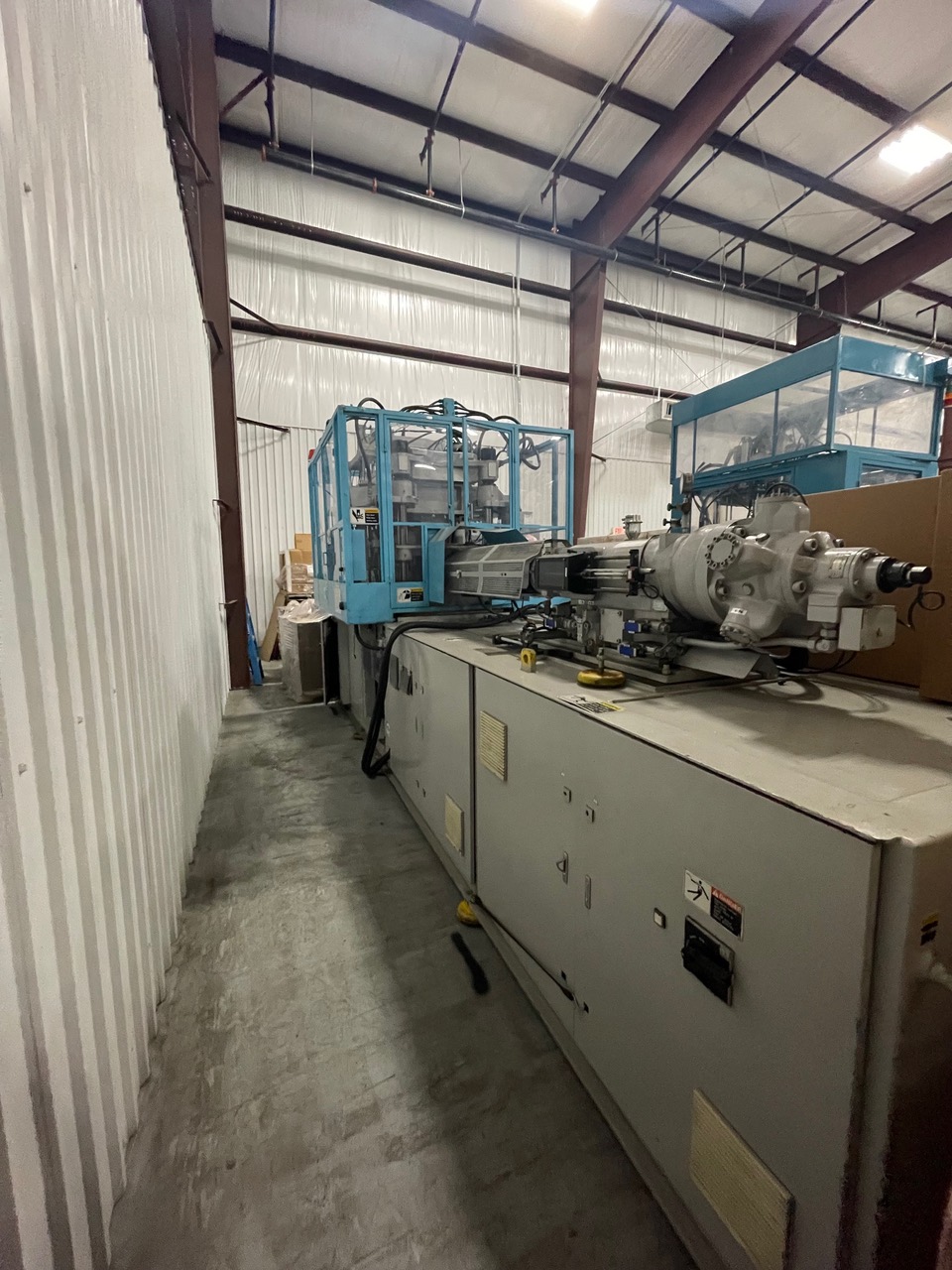

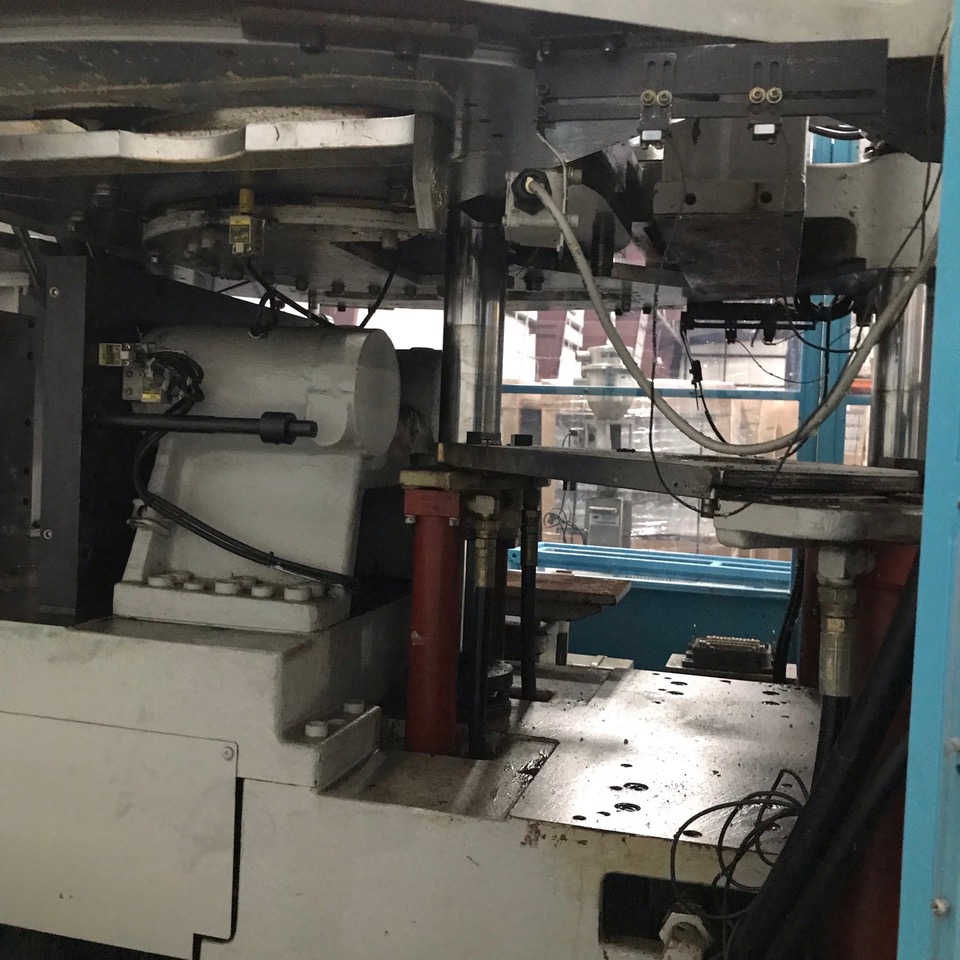

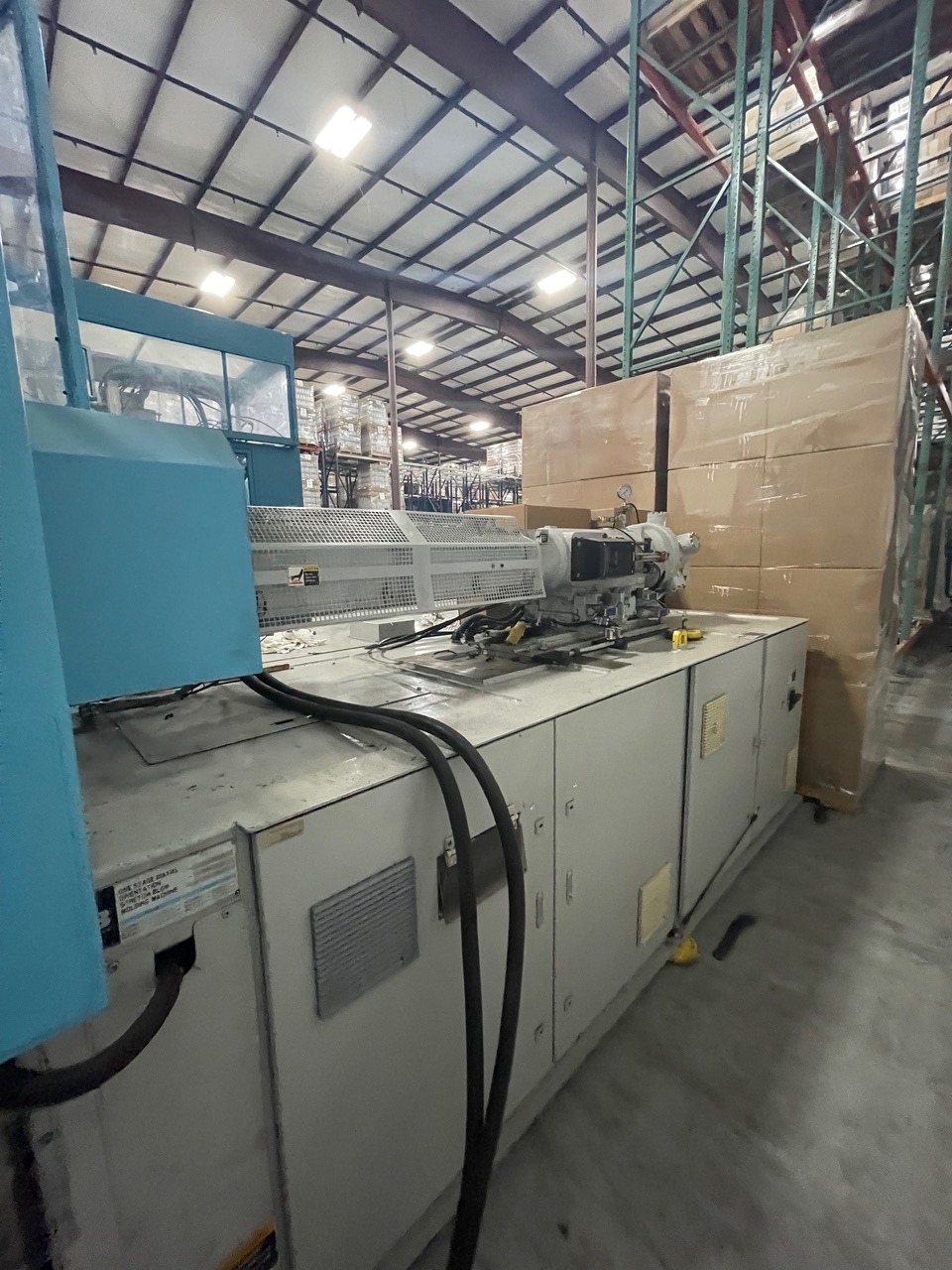

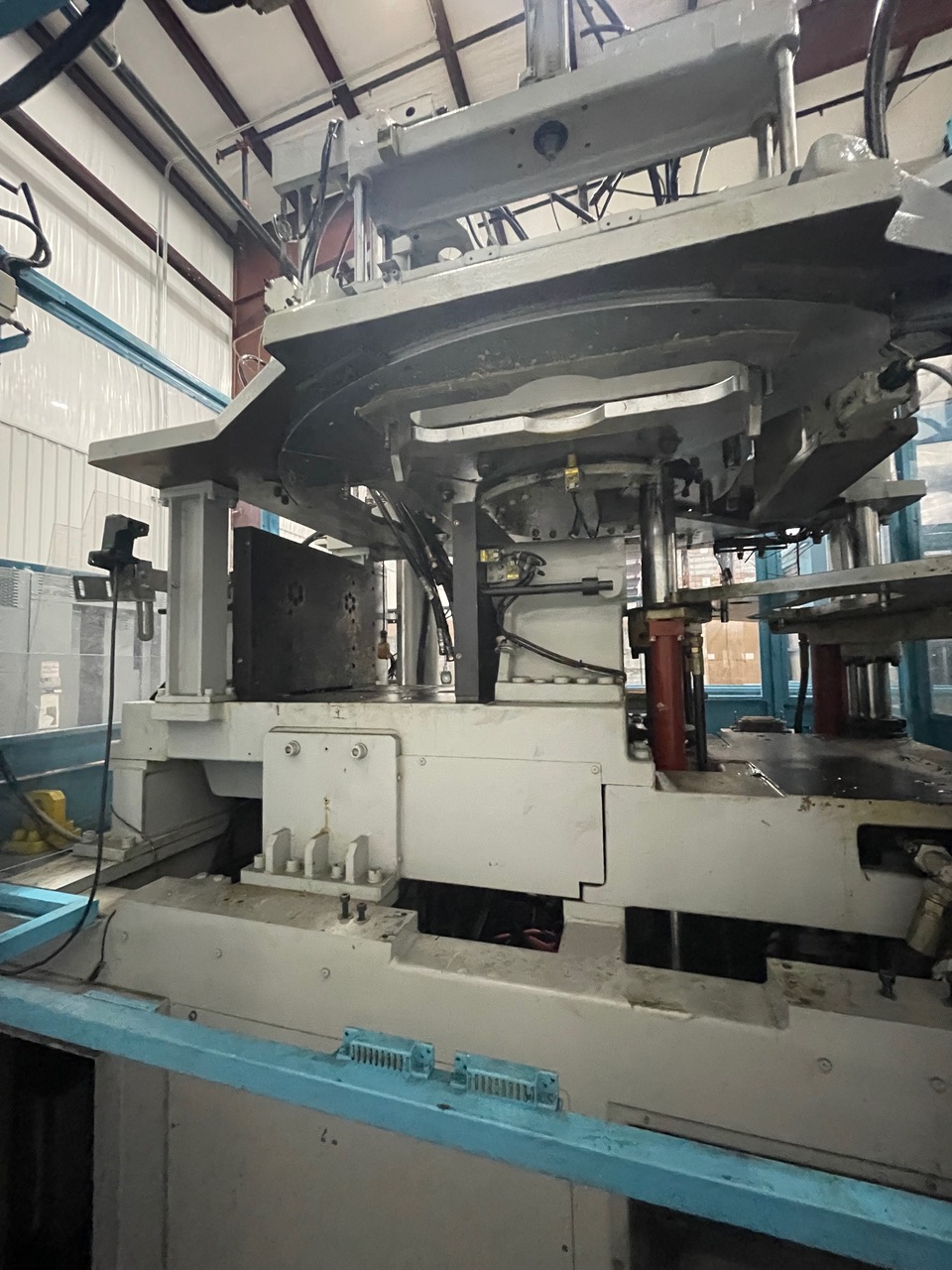

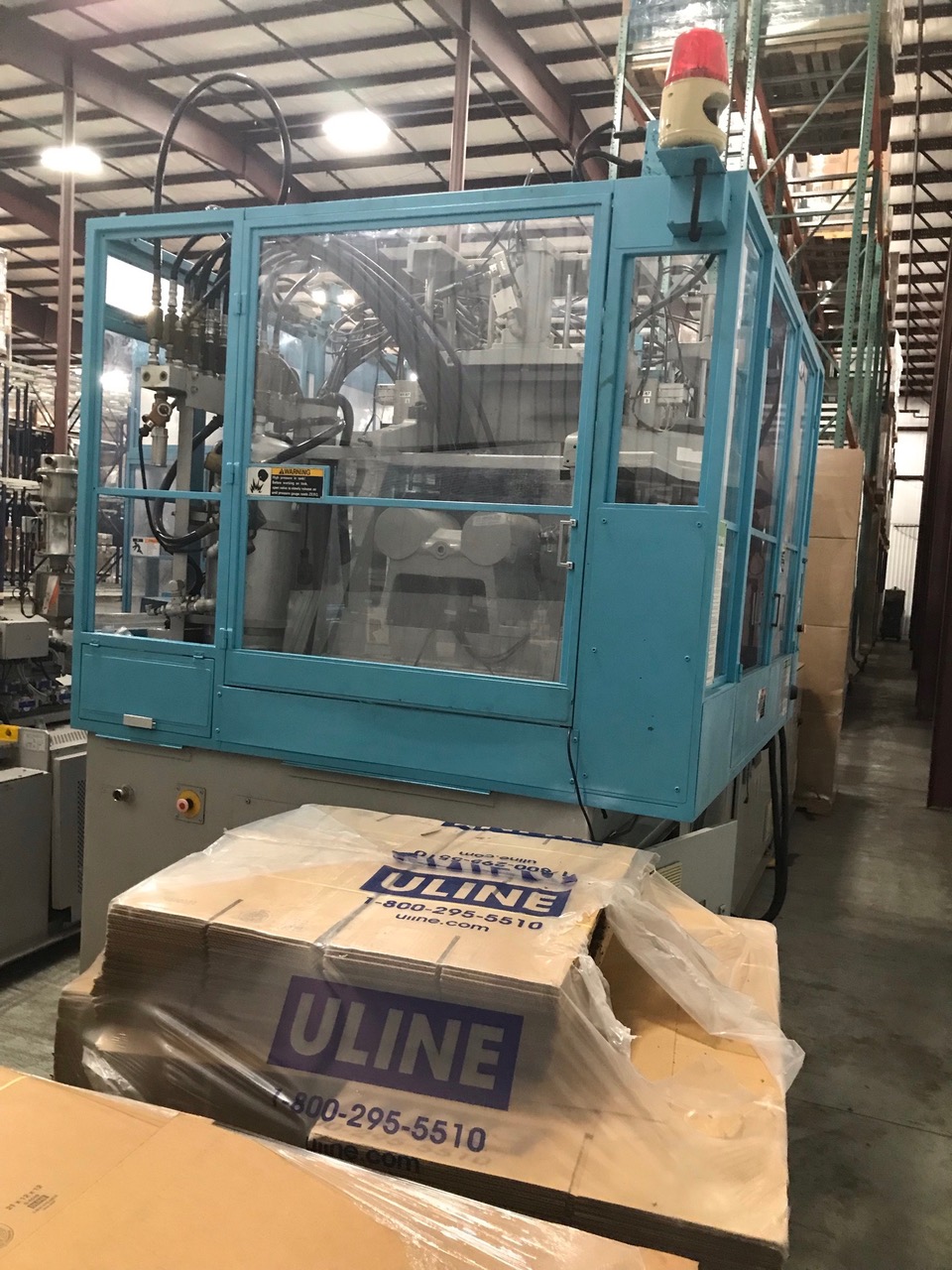

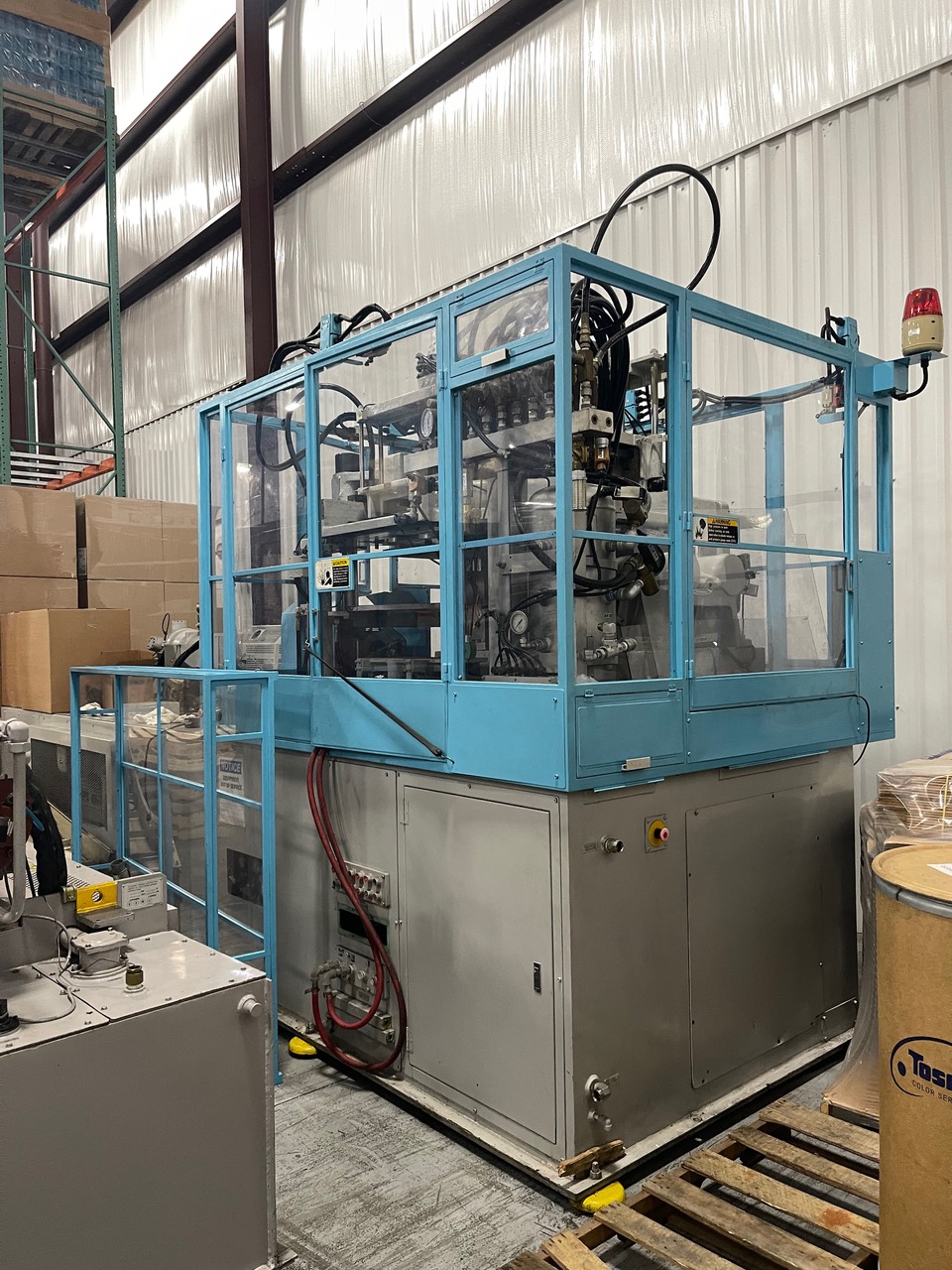

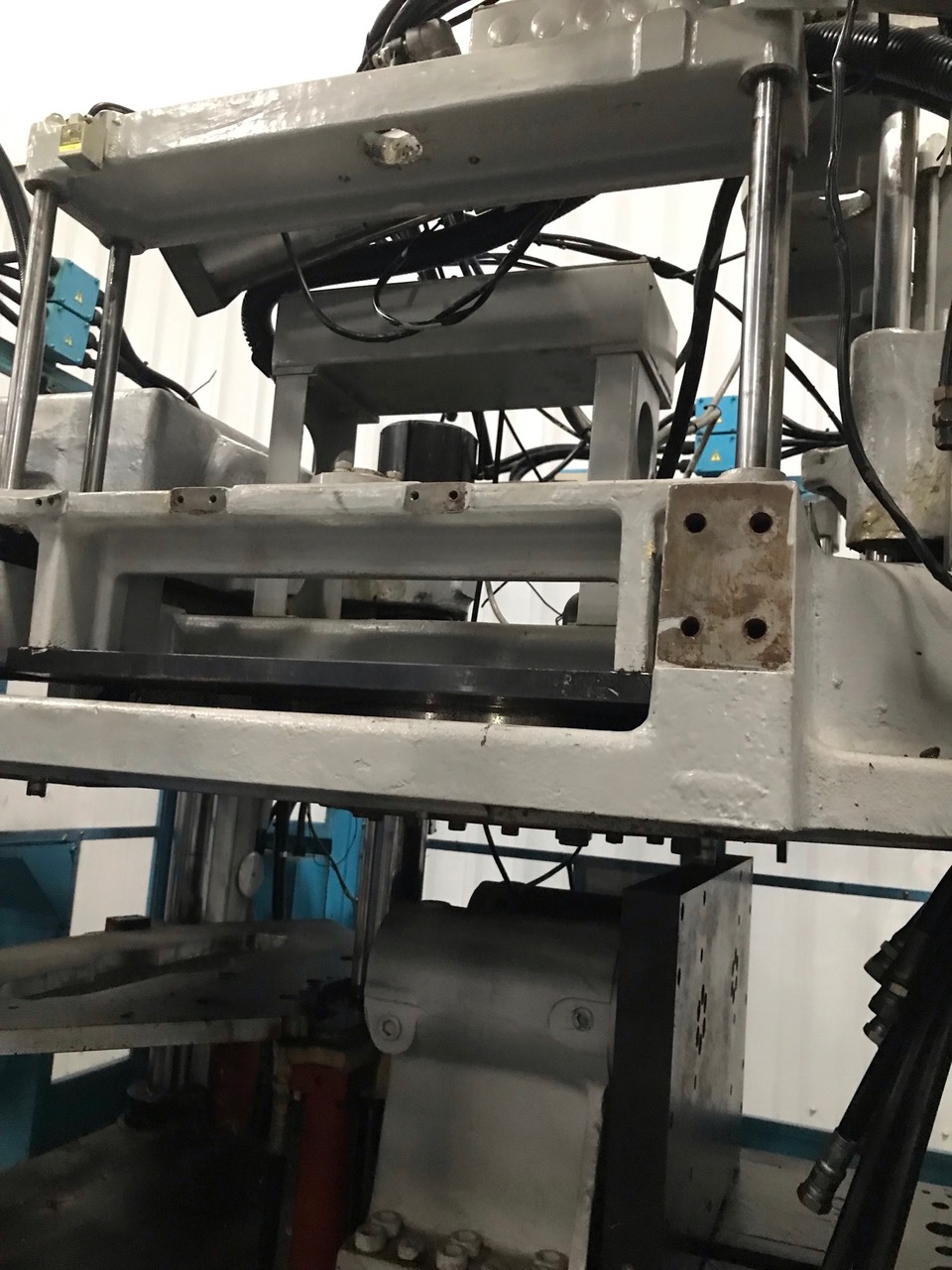

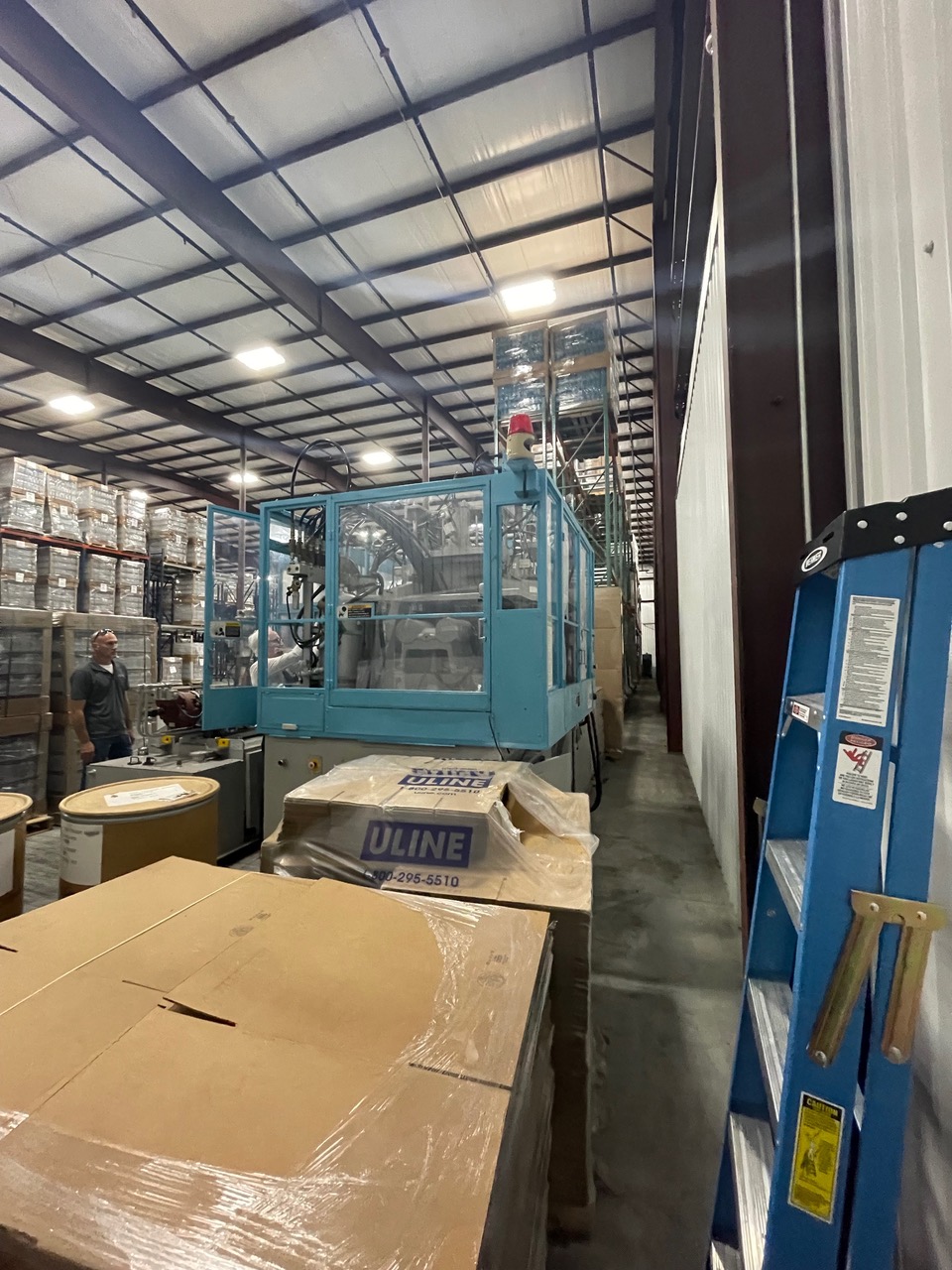

Nissei ASB Model 70 DPH PET One Step Injection Stretch Blow Molding Machine

In operation and Well maintained





Description

Nissei ASB Model 70 DPH PET One Step Injection Stretch Blow Molding Machine
– Year of manufacture- 2005 (Version 3)
– Theoretical injection capacity- 366 cubic centimeters
– Injection clamping force- 687 kN
– Blow clamping force- 242 kN
– Driving power (rated)- 33 kW
– Heater capacity- 38.5 kW
– Maximum blow air pressure- 508 psi
– Machine size (length x width x height)- 5,643 mm x 1,896 mm x 3,208 mm
-Machine weight- 9,000 kilograms
– Max. neck finish (mm)- 2 cavities- 110– 4 cavities- 95– 6 cavities- 60– 12 cavities- 18
– Max. body diameter (mm)- 2 cavities- 153– 4 cavities- 120– 6 cavities- 79– 12 cavities- 37
– Max. height (mm)- 2 cavities- 350– 4 cavities- 350– 6 cavities- 350– 12 cavities- 350
– Max. capacity (liters)- 2 cavities- 4.5– 4 cavities- 3– 6 cavities- 1– 12 cavities- .1
– Offer includes the following:

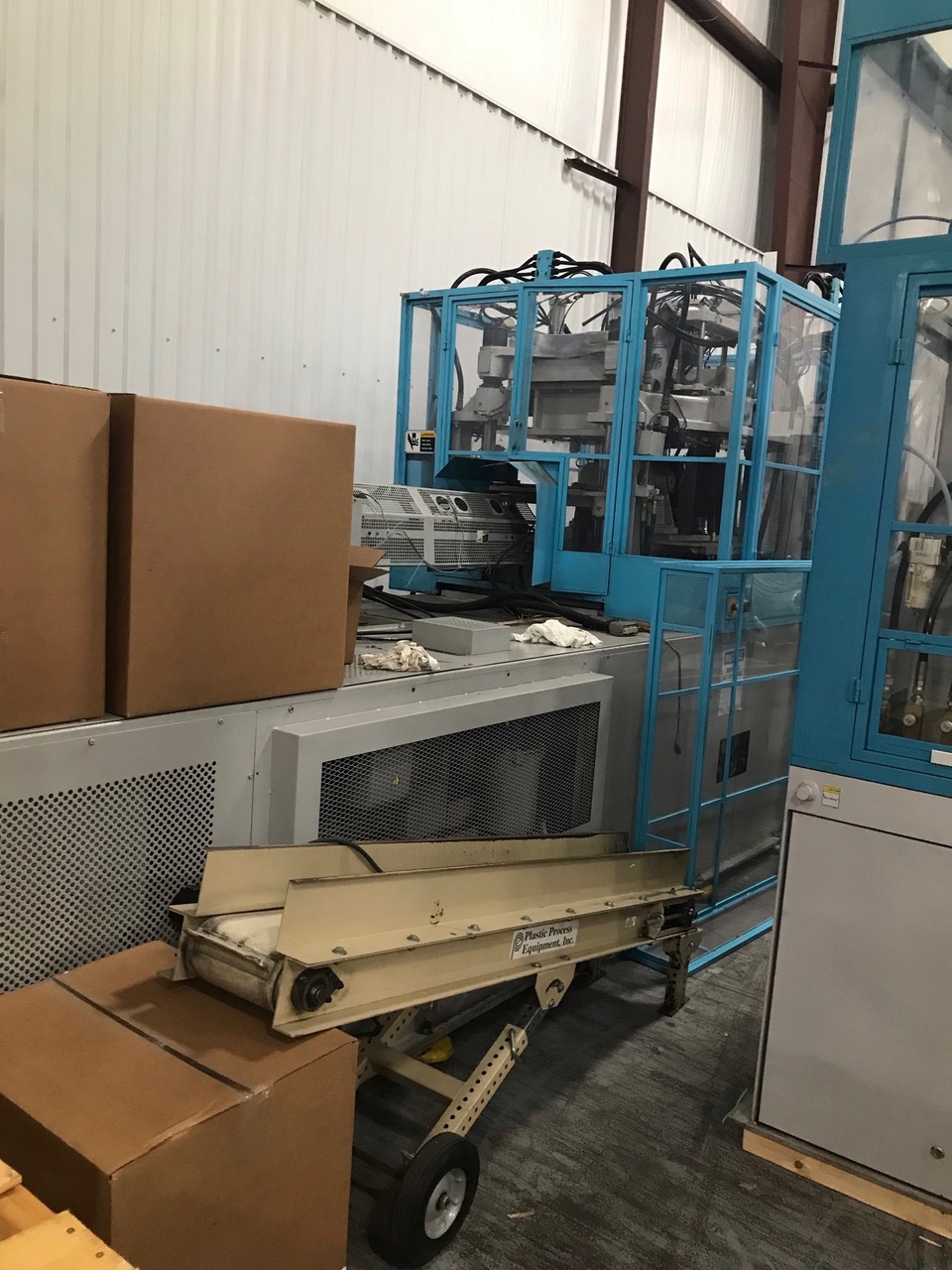

– AEC Model Nomad PD3c Material Dryer with Insulated Hopper
– AEC Vacuum Receiver
– Condition- Very good- one servo motor reportedly needs changing
