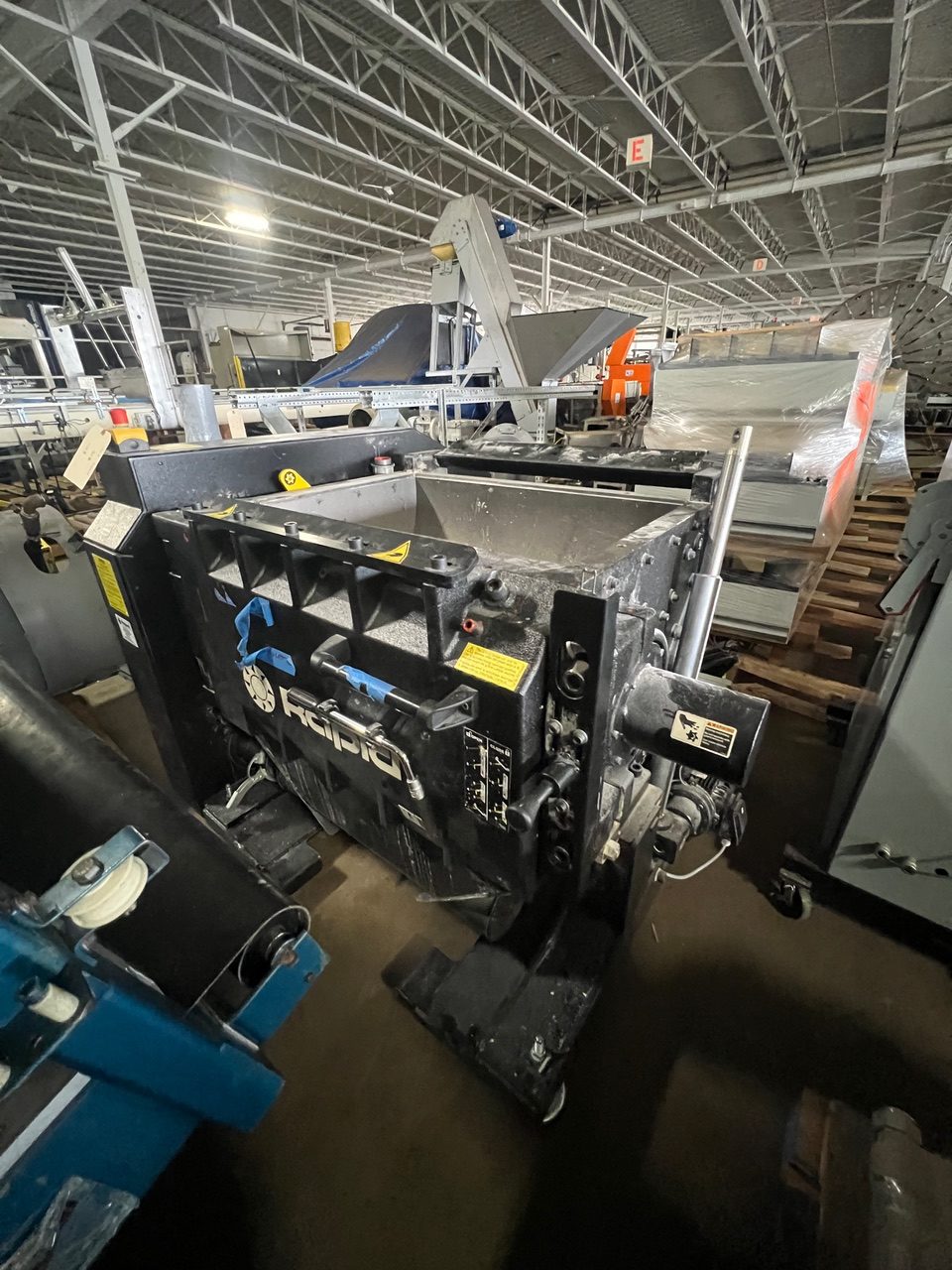

2021 Rapid Model 500-90 (100) Granulator

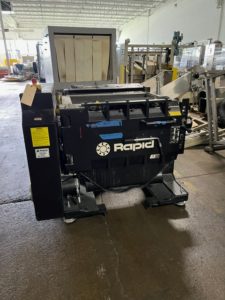

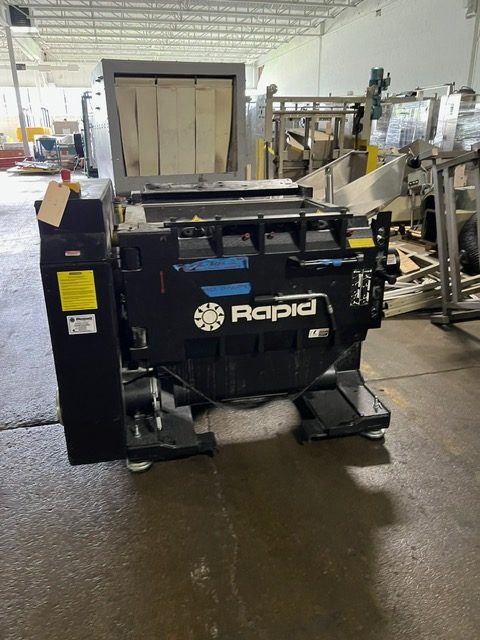

Rapid Model 500-90 (100) Horse Power Granulator

Rapid Model 500-90 (100) Horse Power Granulator.

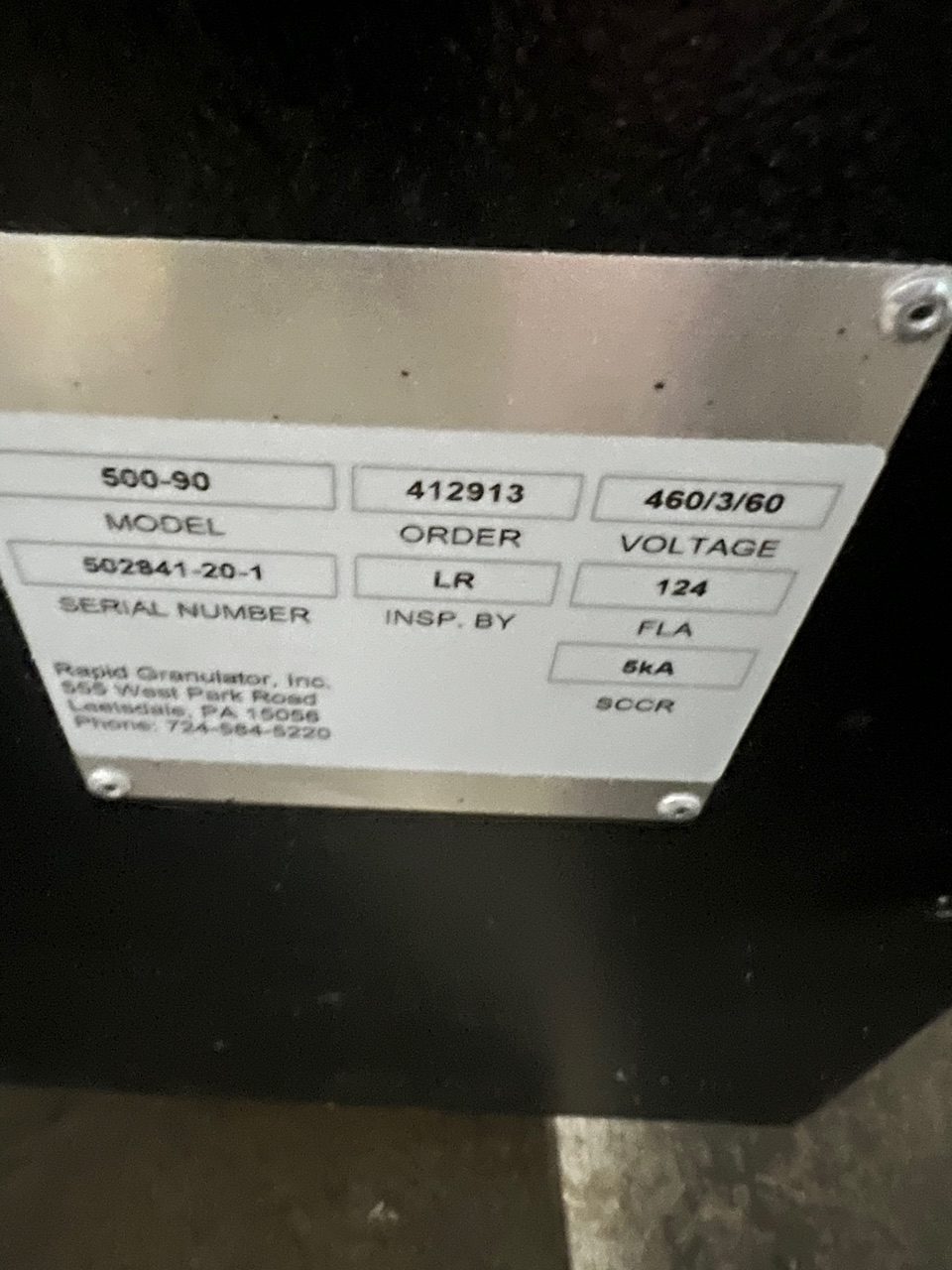

Serial number 502841.20-1
Year- 2021

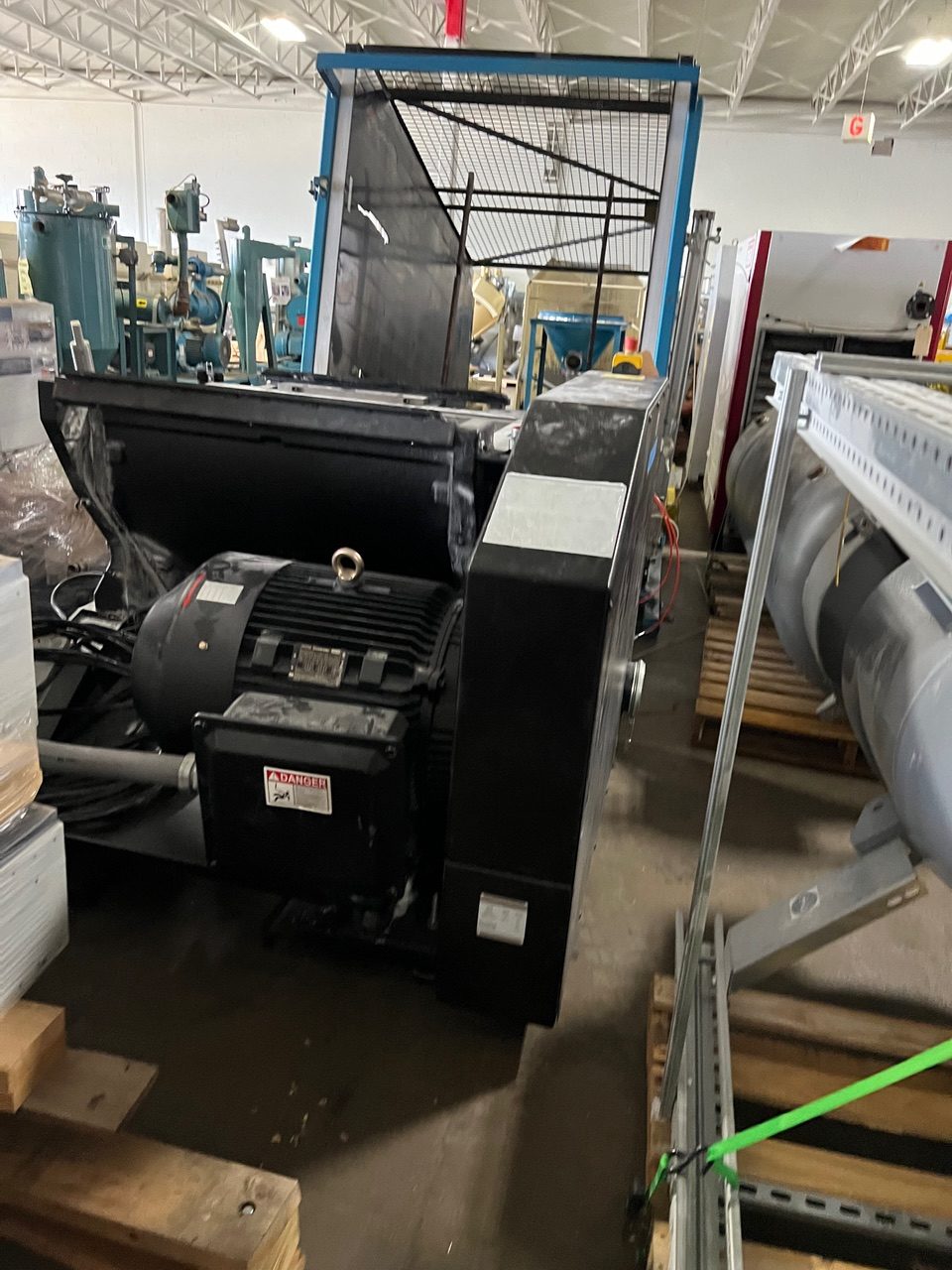

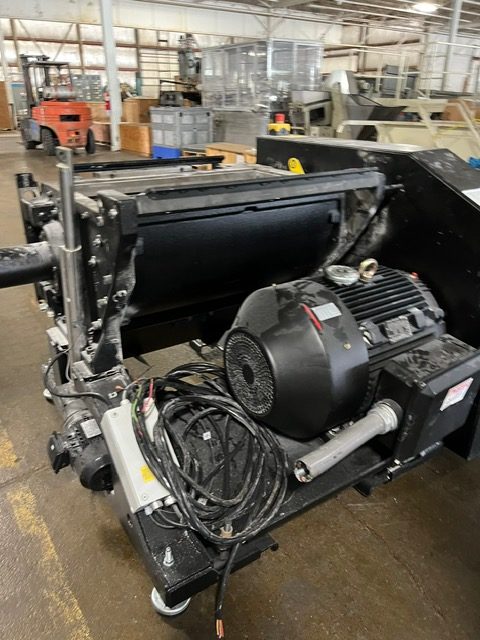

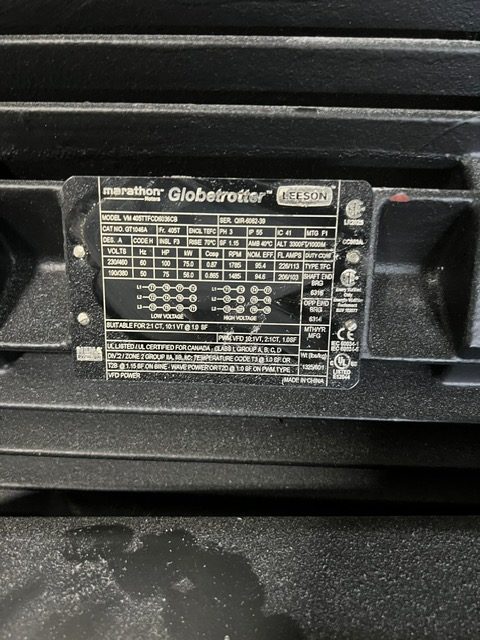

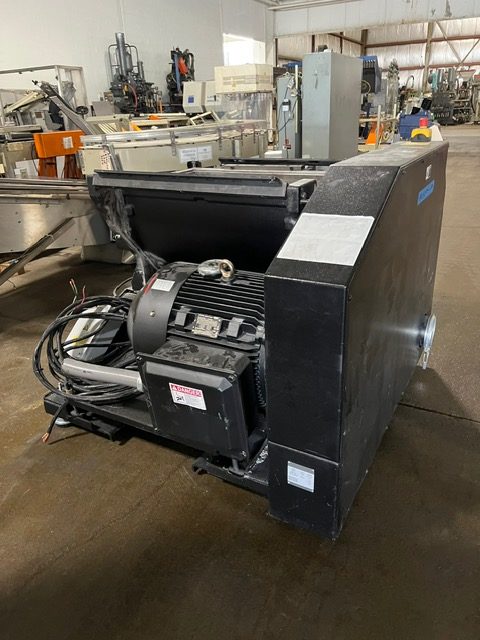

Motor- 100 horse power
Cutting chamber type – super- tangential cutting chamber
Cutting circle- 450 mm (17.5”)
Cutting chamber dimensions- 920 mm x 580 mm ( 36” x 18”)
Rotor knives- 5 knife
Bed knives- 3 knife
Screen size- 10 mm
Feed height- 55”
Hopper dimensions- unknown, need to measure
Some applications- PET preforms, purgings, large blow molded parts, many other items
Additional features:
    Open- hearted for easy access to cutting chamber for cleaning
    High amp alarm

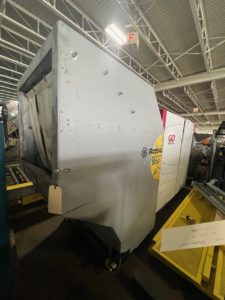

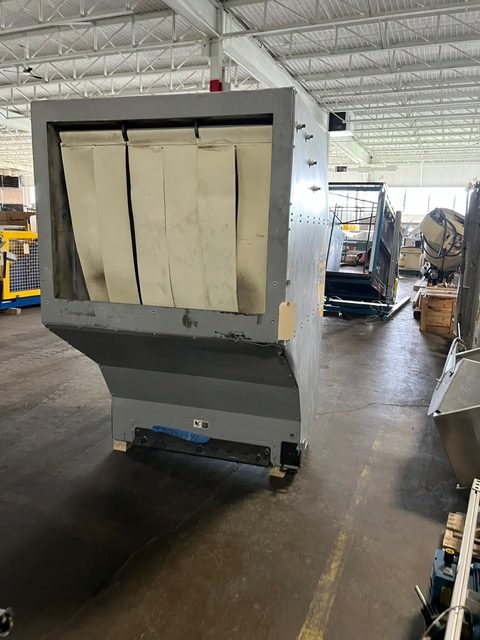

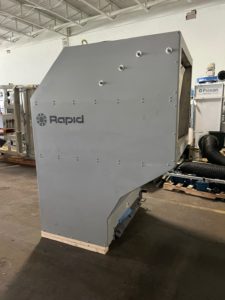

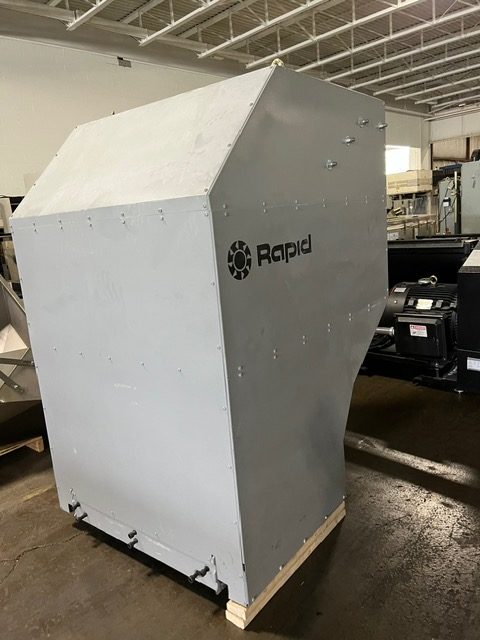

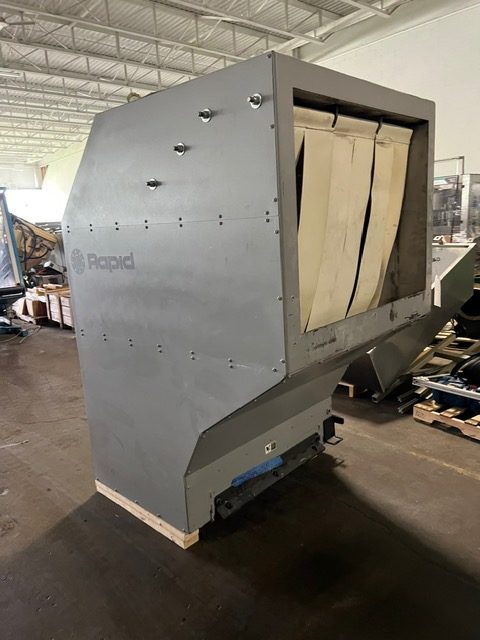

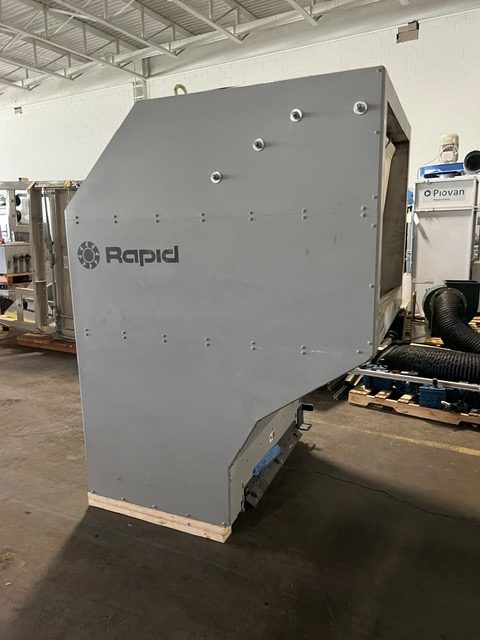

    Hopper with double wall and catch tray for larger parts
Offer includes the following:

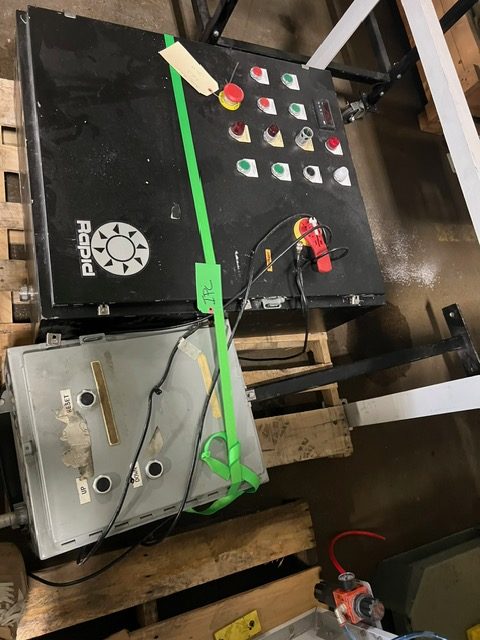

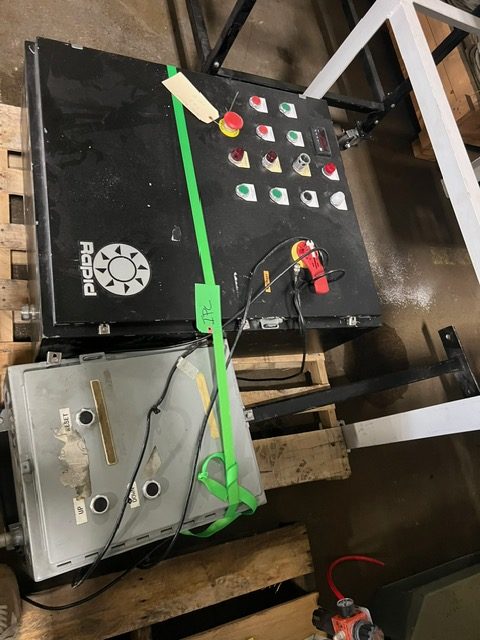

    Control panel

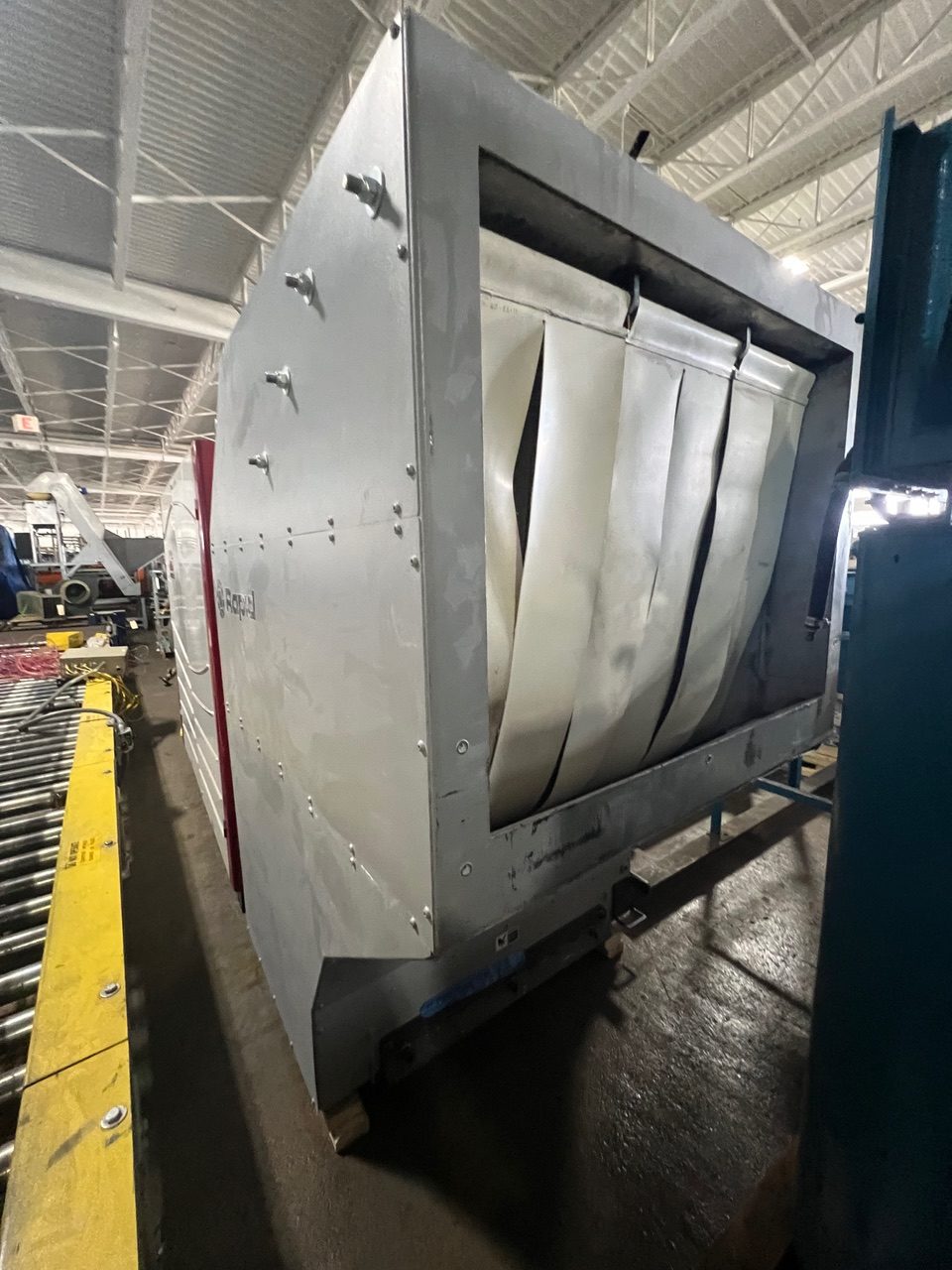

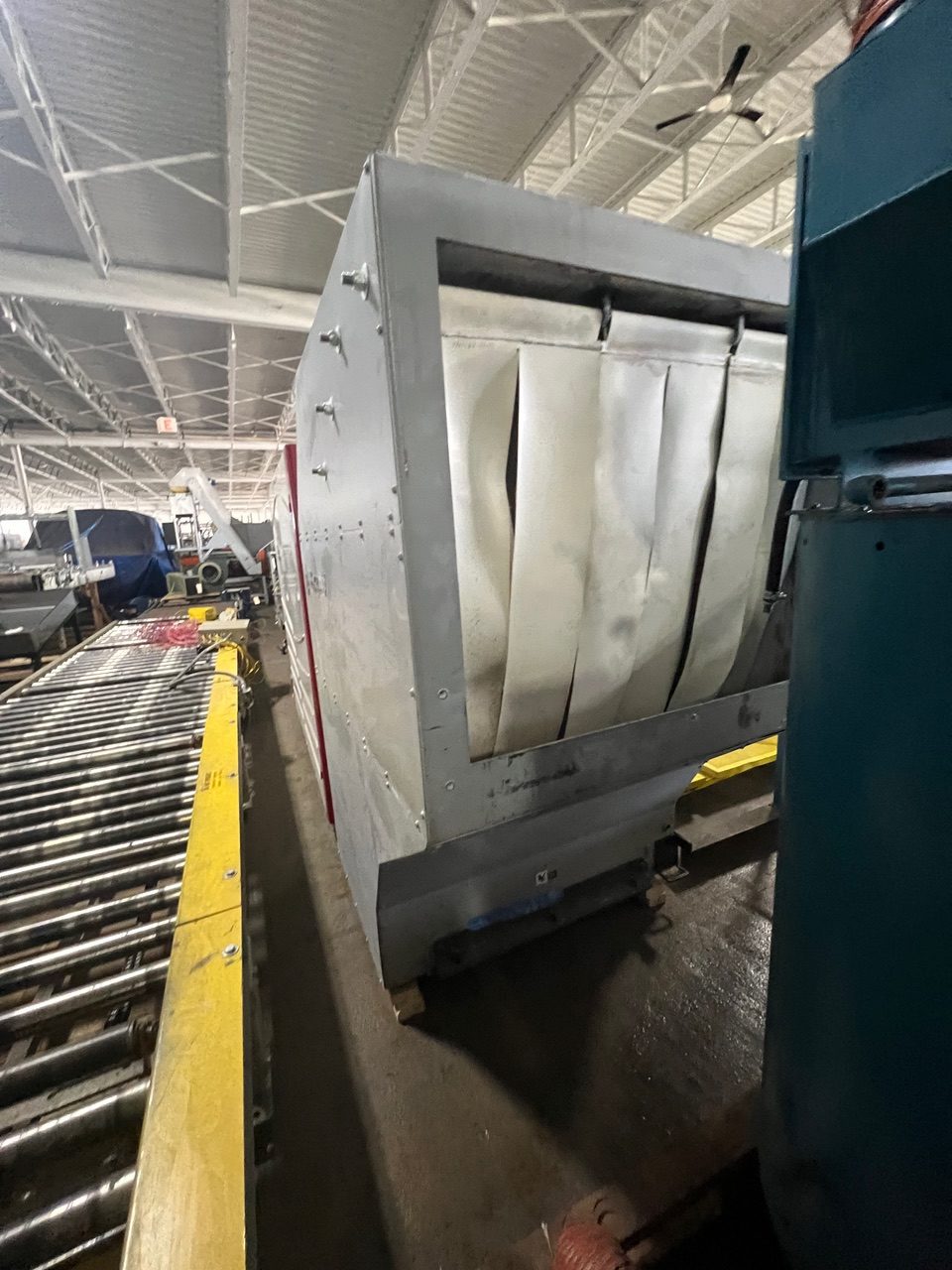

    Evacuation system including blower and cyclone
    Sharpened rotor and bed knives
    New belts
Condition- Excellent

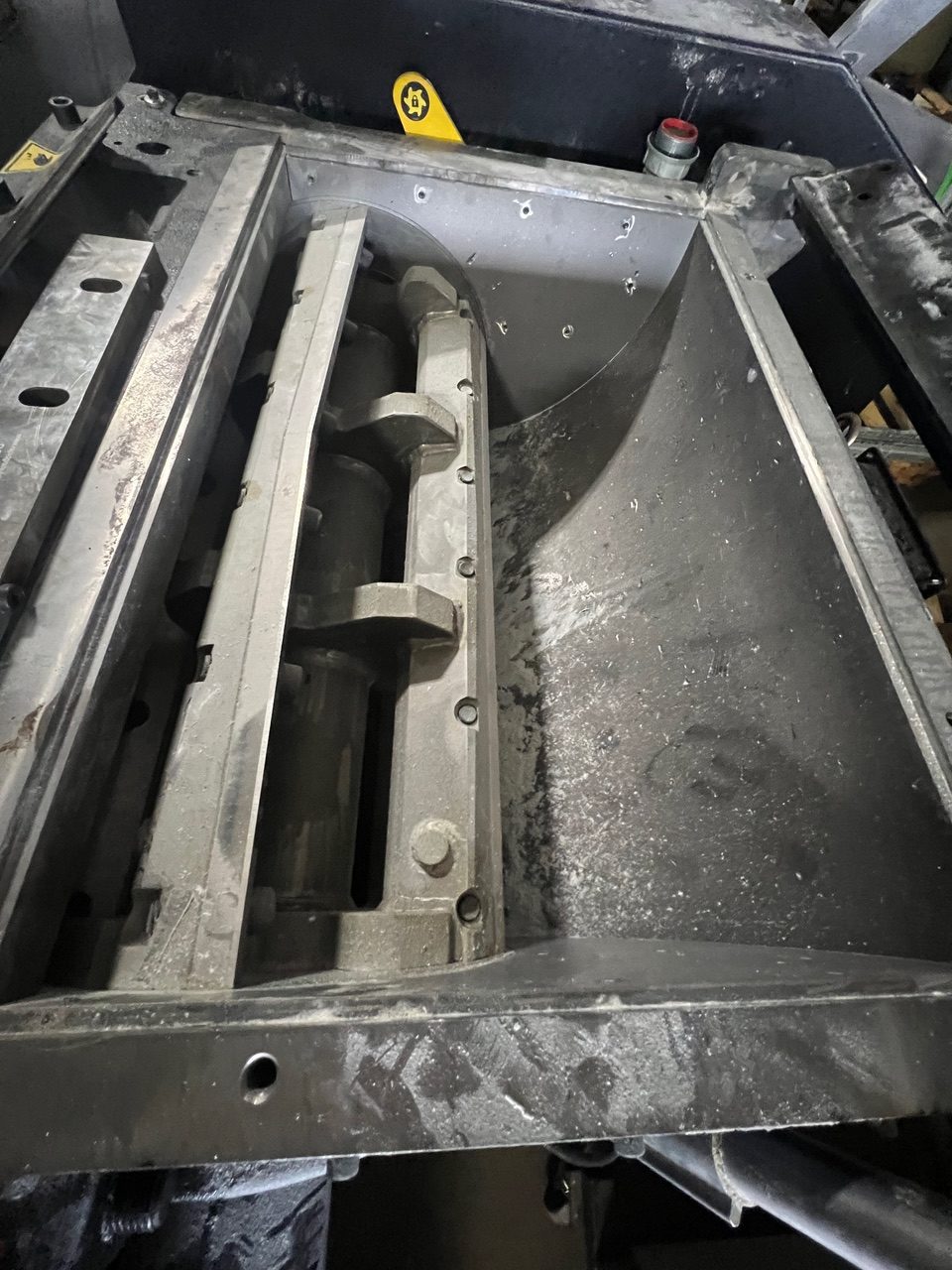

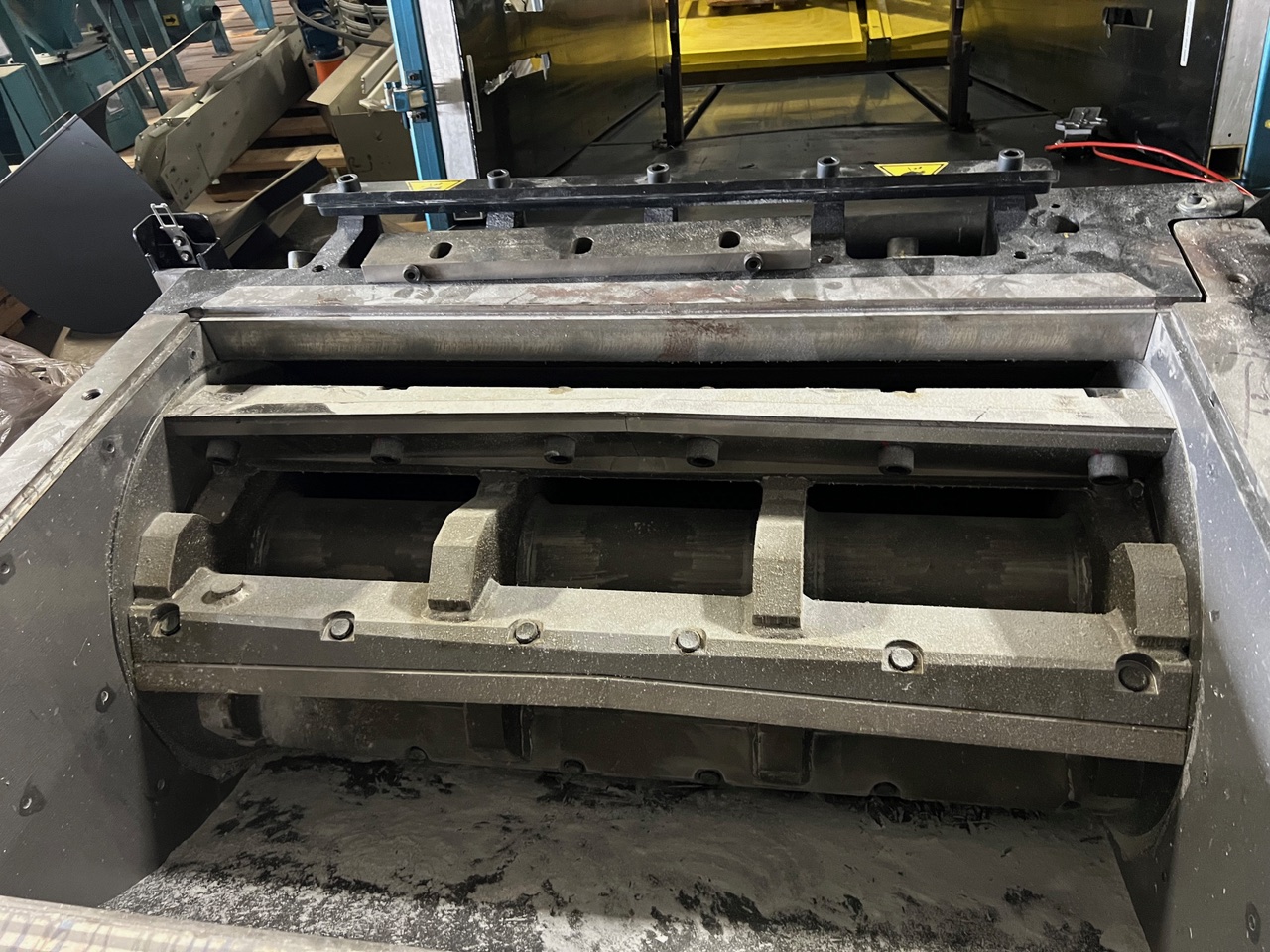

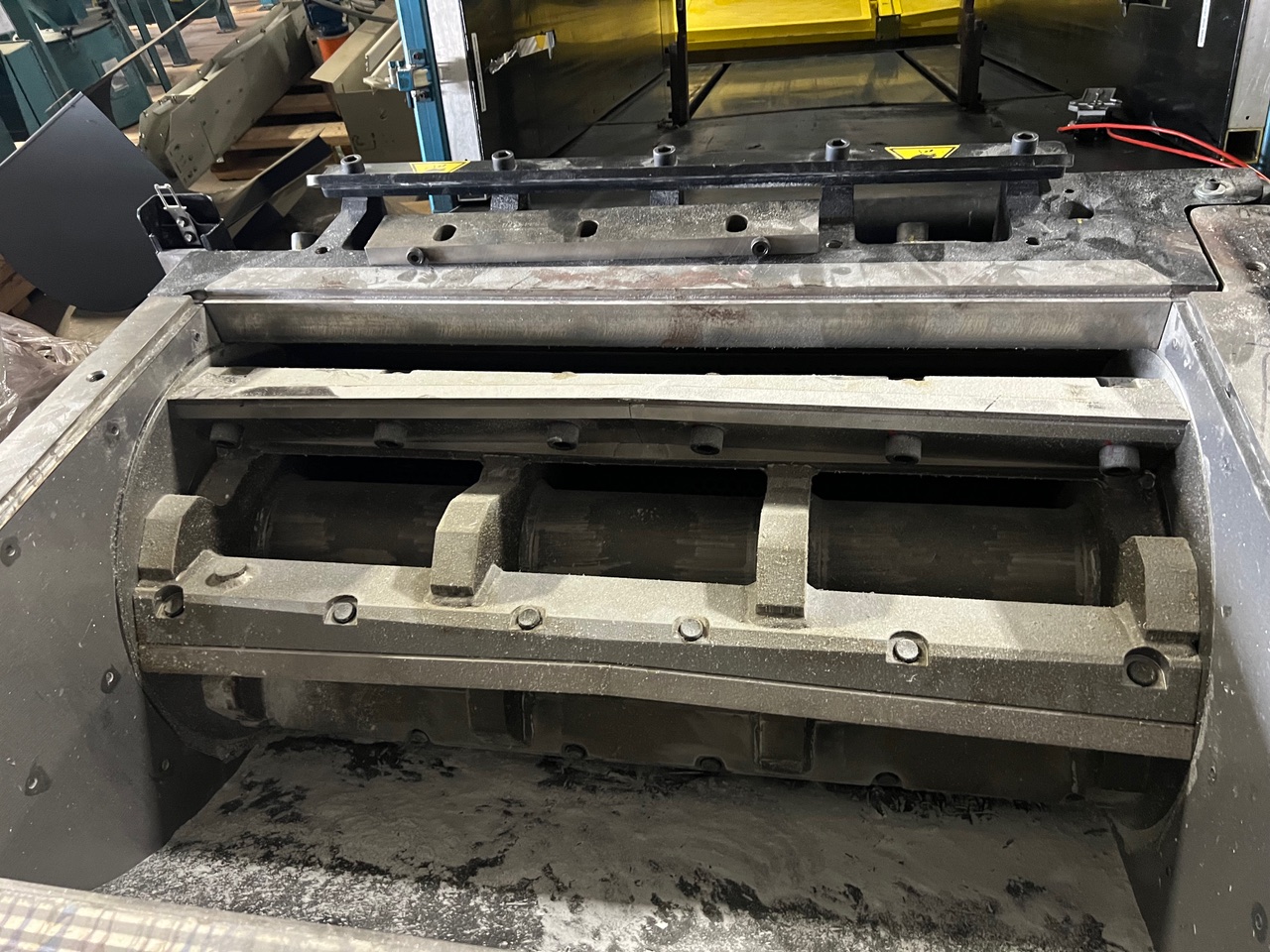

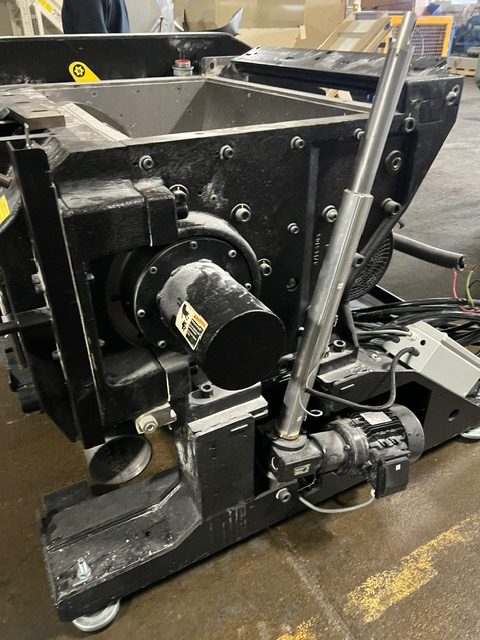

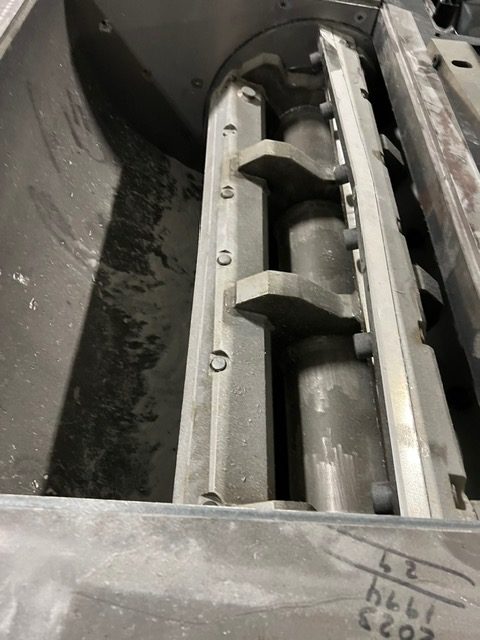

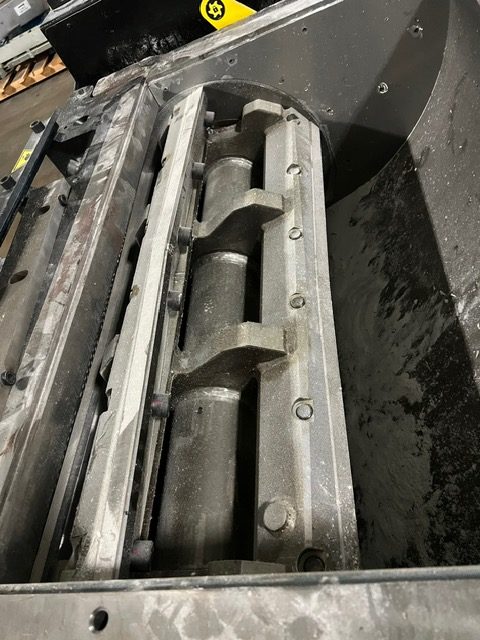

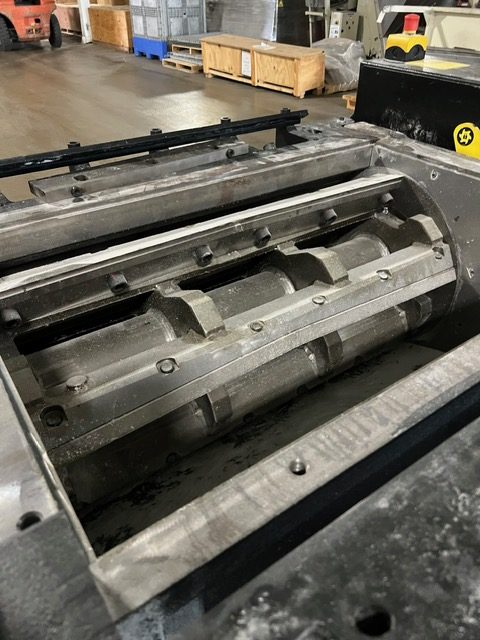

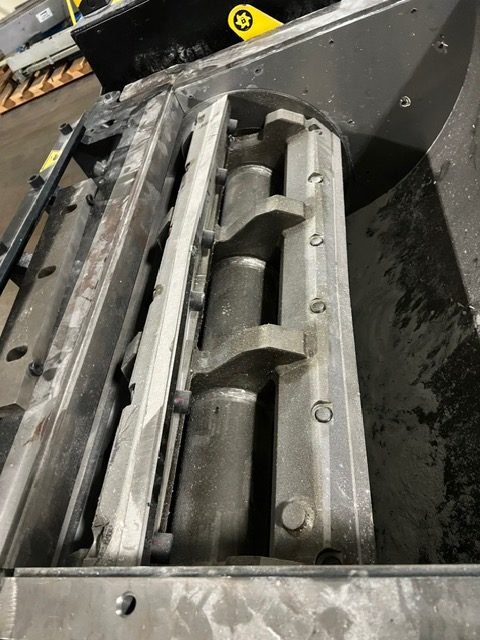

Open Hearted Cutting Chamber: 18″ x 36″ opening. The unique, patent pending, “OPEN-HEARTED” design construction incorporates a hinged front door that quickly swings out of the way for internal cutting chamber access making it surprisingly easy for material changes, color changes, or general maintenance. One bed knife is located in the cutting chamber and one is located in the pivoting front door, all are easily accessible and offer a “V” design opposite that of the rotor to initiate a double scissor cut. The super tangential cutting chamber, with 2 bedknives provides a large belly in the cutting chamber to ensure optimal production results. Available as is an optional fully hardened cutting chamber for use with tough, engineered materials.
Categories: ,

Description

Rapid Model 500-90 (100) Horse Power Granulator

Serial number 502841.20-1
Year- 2021
Motor- 100 horse power
Cutting chamber type – super- tangential cutting chamber
Cutting circle- 450 mm (17.5”)
Cutting chamber dimensions- 920 mm x 580 mm ( 36” x 18”)
Rotor knives- 5 knife
Bed knives- 3 knife
Screen size- 10 mm
Feed height- 55”
Hopper dimensions- unknown, need to measure
Some applications- PET preforms, purgings, large blow molded parts, many other items
Additional features:
    Open- hearted for easy access to cutting chamber for cleaning
    High amp alarm
    Hopper with double wall and catch tray for larger parts
Offer includes the following:
    Control panel
    Evacuation system including blower and cyclone
    Sharpened rotor and bed knives
    New belts
Condition- Excellent
