Description

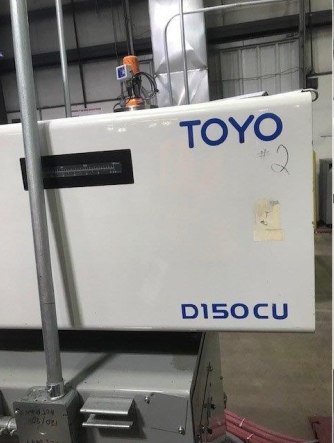

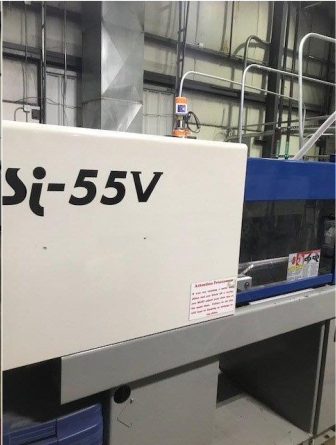

Toyo Model Si-55V-D150CU 55 Ton Injection Molding Machine
Year of manufacture- 2013

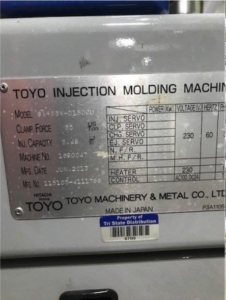

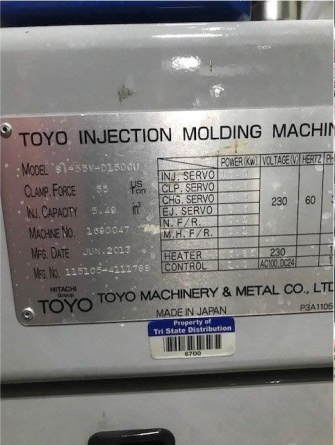

Serial number- 1690047
Machine is ALL ELECTRIC
Number of cycles- 5,102,650
Clamp force- 55 tons
Clamping system- double toggle
Minimum mold height- 5.90”
Maximum mold height- 14.96″
Clamp stroke- 10.62″
Distance between tie bars- 14.17” x 12.79

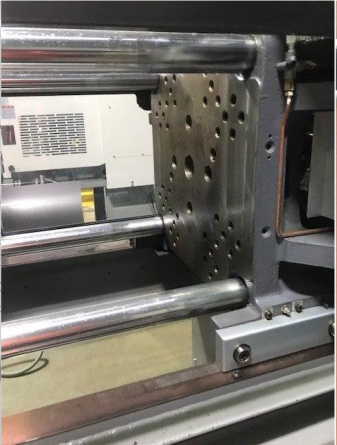

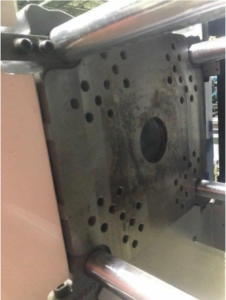

Die plate size- 19.68” x 18.11″
Ejector stroke- 2.75″
Screw diameter- 32 mm
Shot size (PS)- 3.01 ounces
Injection stroke- 4.4″
Theoretical injection capacity- 5.49 cubic inches
Machine weight- 2.7 tons
Condition- Very good- machine has been well maintained
