Description

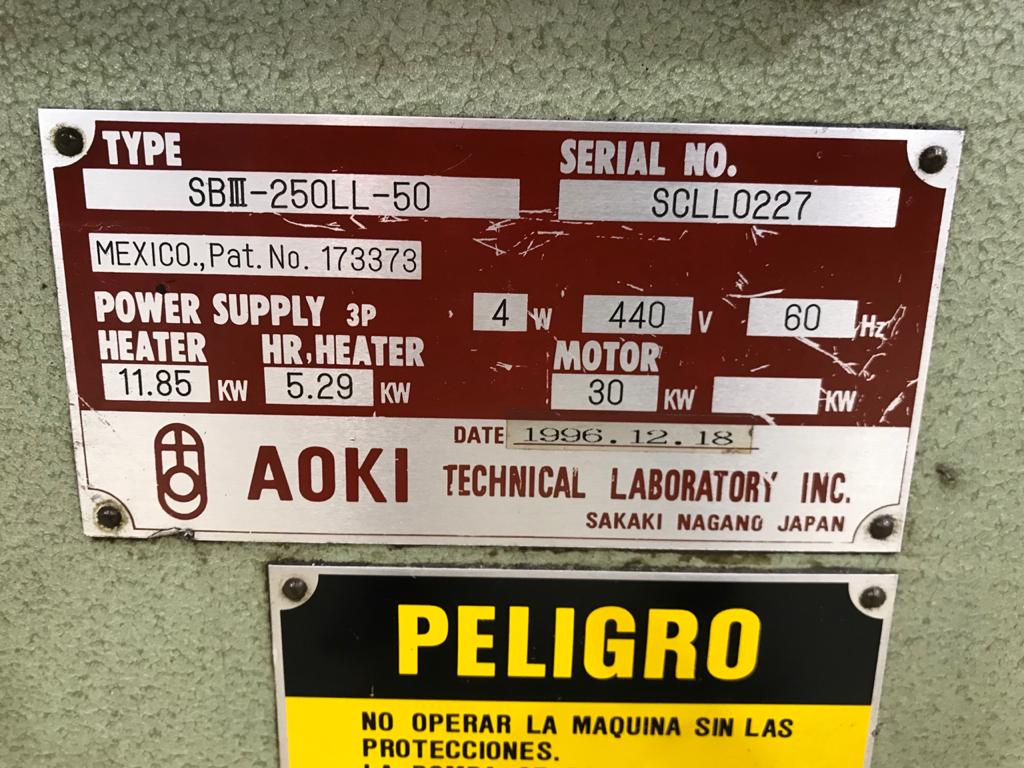

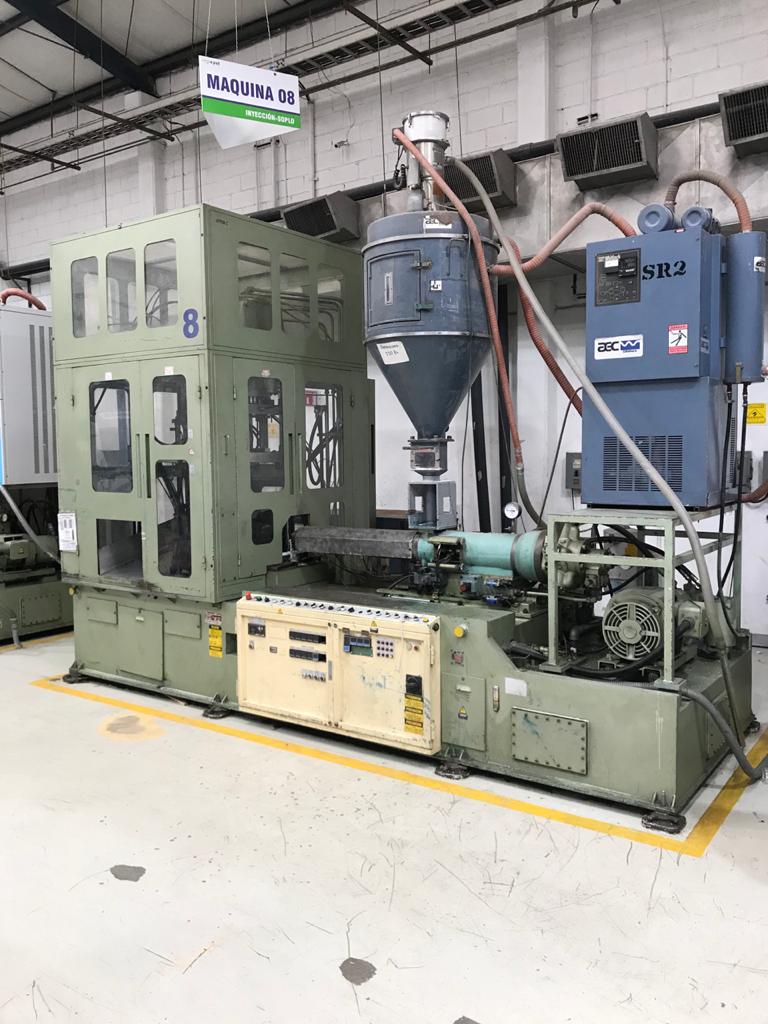

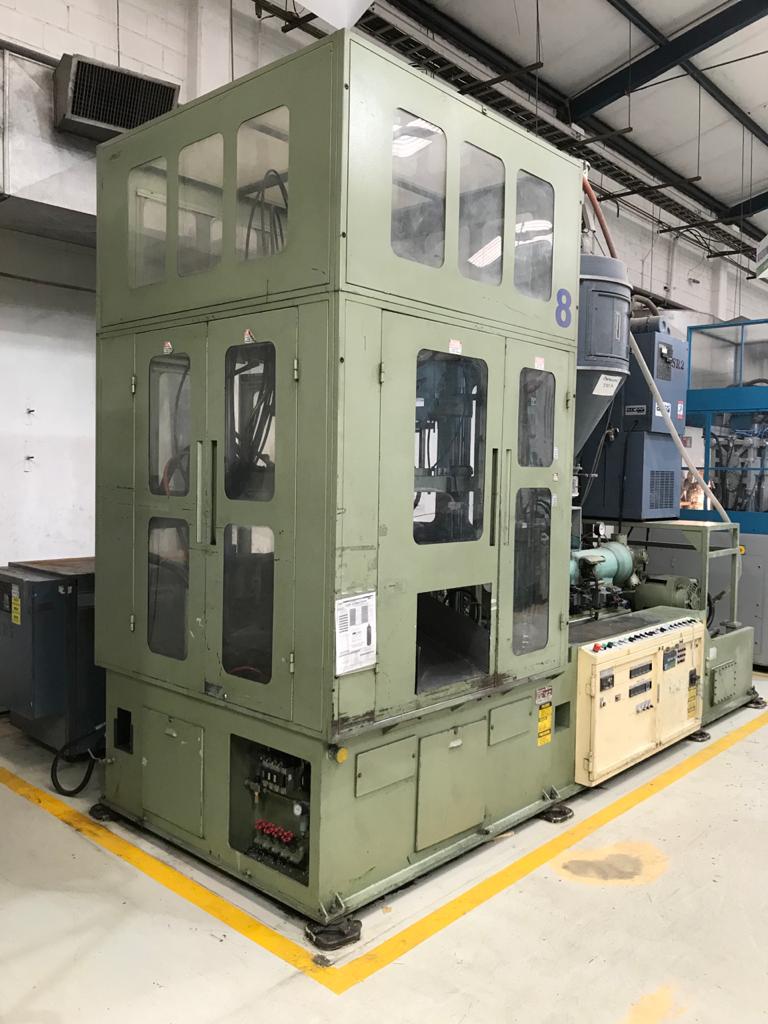

Aoki Model SBIII-250LL-50 PET One Step Stretch Blow Molding Machine
– Year of manufacture- 1996
– Clamp tonnage (metric)- 50
– Screw diameter- 64 mm
– Can make wide mouth and narrow neck bottles
Number of cavities 1 2 3 6
– Max. neck diameter (m.m.) 105 80 72 35
– Max. body diameter (m.m.) 150 105 110 60
– Max. height (m.m.) 290 335 265 250
– Max. capacity (liters) 5 2.5 1 .8 0.6
– Electrical specifications- 460 volts/ 60 Hz/ 3 phase
– Machine dimensions (L x W x H)- 5.34 meters x 2.10 meters x 3.41 meters
– Machine weight- 9,650 KG
– Condition- Good
