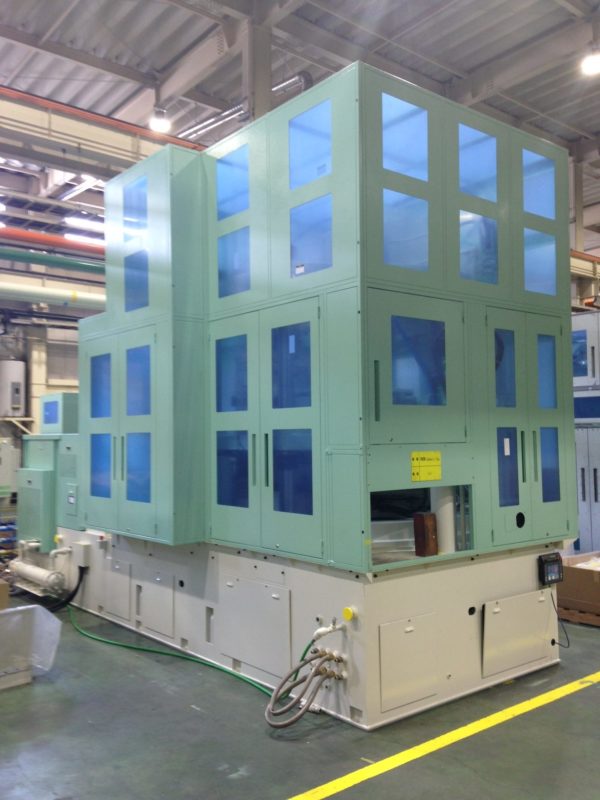

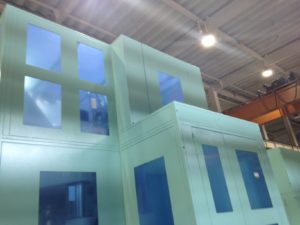

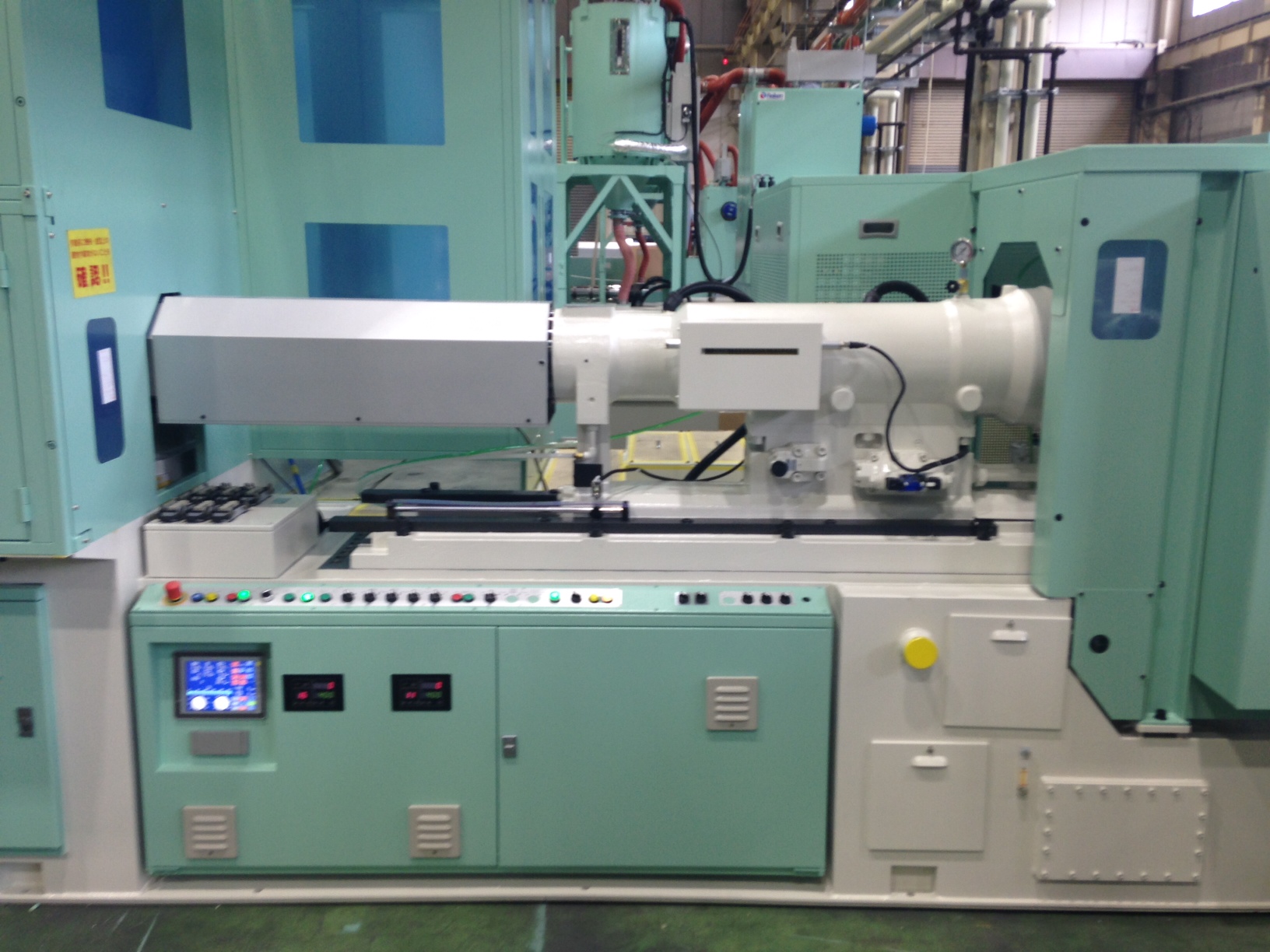

Aoki Model SBIII-1000NL-300 PET Injection Stretch Blow Molding Machine

Aoki Model SBIII-1000NL-300 PET Injection Stretch Blow Molding Machine

– Year of manufacture- 2014

– Condition- Excellent- only 1,854 operating hours- very well maintained

– Machine dimensions (L x W x H)- 6.38 meters x 3.19 meters x 4.26 meters

Description

– Year of manufacture- 2014

– Clamp tonnage (metric)- 300

– Screw diameter- 84 mm

– Injection capacity- 1341.1 cubic meters/shot

– Blow air pressure- 30 bar

– Can make wide mouth and narrow neck bottles

Number of cavities       12 14 16 20
   Neck diameter (m.m.) 90 60 48 40
   Body diameter (m.m.) 100 90 75 60
   Height (m.m.) 250 250 250 250
   Capacity (liters) 1.7 1.4 1.0 .650

– Offer includes resin hopper (dryer not included)

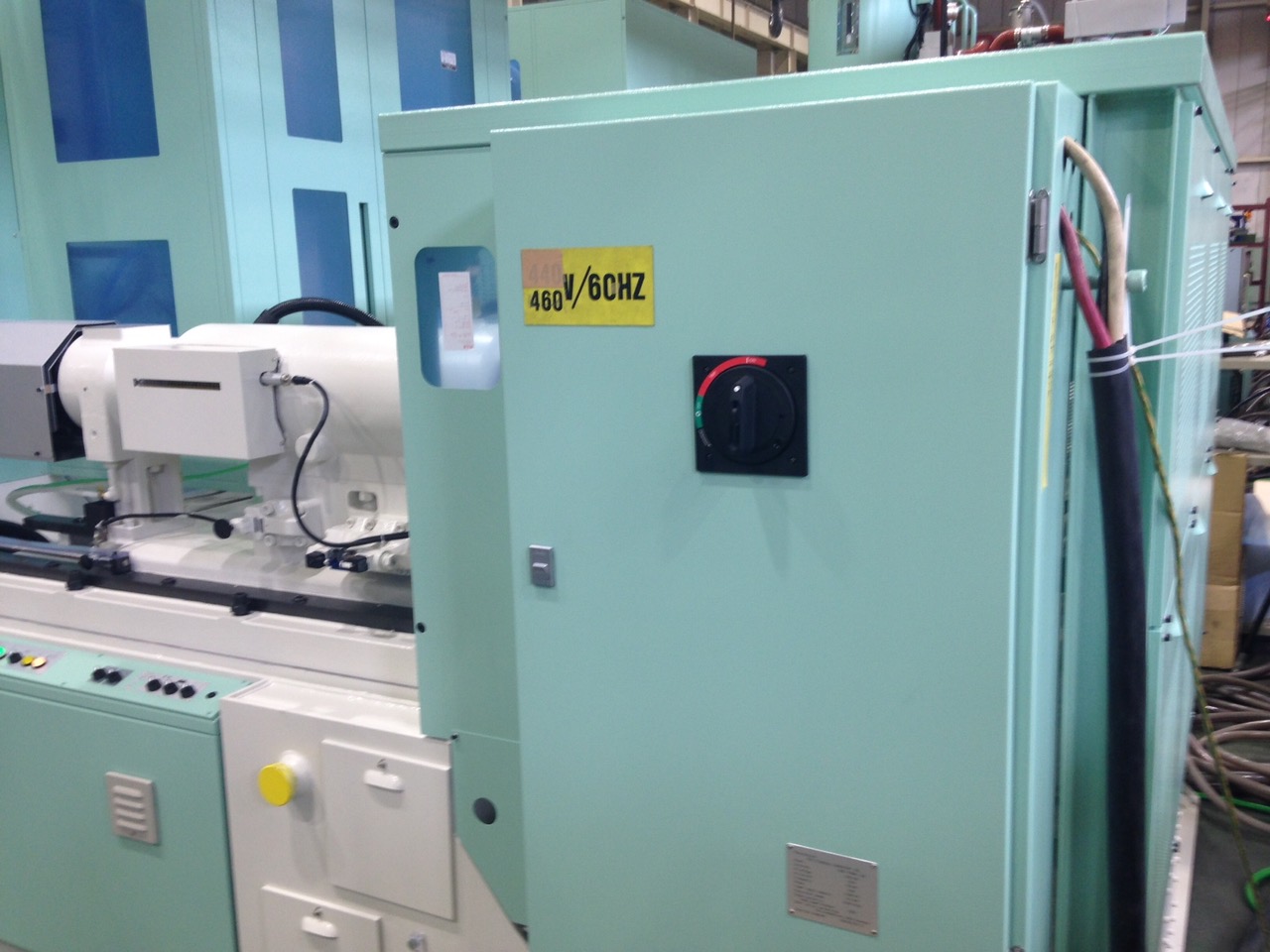

– Electrical specifications- 460 volts/ 60 Hz/ 3 phase

– Machine dimensions (L x W x H)- 6.38 meters x 3.19 meters x 4.26 meters

– Machine weight- approximately 24,000 KG

– Condition- Excellent- only 1,854 operating hours- very well maintained
