Showing 1–32 of 201 results
-
2 x 100 mm Continuous Extrusion Processing Head
Add to cart2 x 100 mm Continuous Extrusion Processing Head
2 x 100 mm Continuous Extrusion Processing Head
Number of parisons produced- 2
Center to center distances between head dies- 100 mm
Number of layers produced- 1
Condition- used
-
2 X 125 mm Continuous Extrusion Processing Head
Add to cart2 X 125 mm Continuous Extrusion Processing Head
2 X 125 mm Continuous Extrusion Processing Head
Number of parisons produced- 2
Center to center distances between head dies- 125 mm
Number of layers produced- 1
Condition- Used, good
-
2 x 140 mm Continuous Extrusion Blow Molding Machine
Add to cart2 x 140 mm Continuous Extrusion Blow Molding Machine
2 x 140 mm Continuous Extrusion Blow Molding Machine
Number of parisons produced- 2
Center to center distances between head dies- 140 mm
Number of layers produced- 1
Condition- Used, very good
-
2000 Davis-Standard/Sterling Extruder with Gear Boxes
Add to cart2000 Davis-Standard/Sterling Extruder with Gear Boxes
2000 Davis-Standard/Sterling Extruder with Gear Boxes
(2) available
Screw diameter- 6”
Includes heater bands
Condition- Good
-
2002 Sidel Model SBO 4 PET Reheat Stretch Blow Molding Machine
Add to cart2002 Sidel Model SBO 4 PET Reheat Stretch Blow Molding Machine
Sidel Model SBO 4 PET Reheat Stretch Blow Molding Machine
Date of manufacture- 2002
Series 2 machine
Number of cavities- 4
Maximum production rate- approximately 6,000 bottles per hour
Maximum bottle size- 2 liters
Oven type- linear
Type mold hangers- GUPM
Offer includes the following:
Change parts for 28-410 mm neck finish diameter
Preform hopper
Perform elevator
Perform orienter
Preform feed rails
Condition- Used- machine is still installed and in operation
-
2002 Sidel Model SBO 4-WP (4) Cavity PET Re-heat Stretch Blow Molding Machine
Add to cart2002 Sidel Model SBO 4-WP (4) Cavity PET Re-heat Stretch Blow Molding Machine
Year of manufacture- 2002
Series 2 machine
Number of cavities- 4
Maximum speed- approximately 6,000 bottles per
Maximum container size- 2 liters
Oven type- linear
Machine has preferential heating capability to run oval/flat bottles
Condition- Very good
-
2003 Sidel Model SBO 20 PET Stretch Blow Molding Machine
Add to cart2003 Sidel Model SBO 20 PET Stretch Blow Molding Machine
2003 Sidel Model SBO 20 PET Stretch Blow Molding Machine
Series II machine
Number of cavities- 20
Nominal capacity of machine- 30,000 per hour (1,500 per hour per cavity)
Condition- Good, Sidel Inspection Report Available upon Request
-
2012 Sidel Model SBO 18 Universal/Matrix PET Reheat Stretch Blow Molding Machine
Add to cart2012 Sidel Model SBO 18 Universal/Matrix PET Reheat Stretch Blow Molding Machine
2012 Sidel Model SBO 18 Universal/Matrix PET Reheat Stretch Blow Molding Machine
Offer includes the following equipment/features:
Perform dumper
Preform hopper/elevator
Preform orienter
Preform in feed rails
Excellent Condition! – Very low operating hours (less than 15,000)
Well maintained – Can be inspected in Operation
-
3 x 125 mm Continuous Extrusion Processing Head
Add to cart3 x 125 mm Continuous Extrusion Processing Head
3 x 125 mm Continuous Extrusion Processing Head
Number of parisons produced- 3
Center to center distances between head dies- 125 mm
Number of layers produced- 1
Condition- Used, good
-
4 x 100 mm Continuous Extrusion Processing Head
Add to cart4 x 100 mm Continuous Extrusion Processing Head
4 x 100 mm Continuous Extrusion Processing Head
Number of parisons- 4
Center to center distances between head dies- 100 mm
Number of layers produced- 1
Condition- Used, good
-
4 x 65 mm Continuous Extrusion Processing Head
Add to cart4 x 65 mm Continuous Extrusion Processing Head
4 x 65 mm Continuous Extrusion Processing Head
Number of parisons produced- 4
Center to center distances between head dies- 65 mm
Number of layers produced- 1
Condition- Used, very good
-
4 x 85 mm Continuous Extrusion Blow Molding Head
Add to cart4 x 85 mm Continuous Extrusion Blow Molding Head
4 x 85 mm Continuous Extrusion Blow Molding Head
Number of parisons produced- 4
Center to center distances between head dies- 85 mm
Number of layers produced- 1
Condition- Used, very good
-
4 x 85 mm Continuous Extrusion Processing Head
Add to cart4 x 85 mm Continuous Extrusion Processing Head
4 x 85 mm Continuous Extrusion Processing Head
Number of parisons- 4
Center to center distances between head dies- 85mm
Number of layers produced- 1
Condition- Used, good
-
ADS Model G62C13 PET Reheat Stretch Blow Molding Machine
Add to cartADS Model G62C13 PET Reheat Stretch Blow Molding Machine
ADS Model G62C13 PET Reheat Stretch Blow Molding Machine
Year of manufacture- 2004
Serial number- 62297
Number of cavities- 2
Distance between mold centers- 120 mm
Maximum bottles per hour- 3,200
Maximum bottle height 350 mm
Maximum bottle diameter- 105 mm
Range of bottle capacity- 0.2 liters to 2.5 liters
Machine currently is set up to run bottle with a 38 mm neck finish
Number of heating modules inwoven- 3
Offer includes the following:
Preform hopper/elevator
Preform orienter
Preform feed rails
Some spare parts
Condition- Used, well maintained, was decommissioned in good operating condition and is supported by 1 BLOW technicians for spare parts and installation
-
ADS Model G63 PET Reheat Stretch Blow Molding Machine
Add to cartADS Model G63 PET Reheat Stretch Blow Molding Machine
ADS Model G63 PET Reheat Stretch Blow Molding Machine
Year of manufacture- 2005
Number of cavities- 3
Type machine- linear
Approximate number of operating hours- 10,000
Operating speed- approximately 2,500 per hour
Offer includes the following:
Preform dumper
Preform hopper
Preform elevator
Preform orienter
Preform feed rails
Set of 4 liter rectangular molds
Water cooled chiller
Condition- Very good- can be inspected dry cycling
-
Aoki Model SBIII-1000NL-300 PET Injection Stretch Blow Molding Machine
Add to cartAoki Model SBIII-1000NL-300 PET Injection Stretch Blow Molding Machine
Aoki Model SBIII-1000NL-300 PET Injection Stretch Blow Molding Machine
– Year of manufacture- 2014
– Condition- Excellent- only 1,854 operating hours- very well maintained
– Machine dimensions (L x W x H)- 6.38 meters x 3.19 meters x 4.26 meters
-
Aoki Model SBIII-250LL-50 PET One Step Stretch Blow Molding Machine
Add to cartAoki Model SBIII-250LL-50 PET One Step Stretch Blow Molding Machine
Aoki Model SBIII-250LL-50 PET One Step Stretch Blow Molding Machine
Year of manufacture- 1996
Can make wide mouth and narrow neck bottles
Condition- Good
-
Aoki Model SBIII-350LL-100 Blow Molding Machine
Add to cartAoki Model SBIII-350LL-100 Blow Molding Machine
Aoki Model SBIII-350LL-100 Injection Stretch Blow Molding
Year of manufacture- 2 available- 2013 and 2010
Screw diameter- 68 mm
Injection Capacity- 510.3 cubic centimeters per shot
Injection mold clamp force- 983.4 kN
Blow mold clamp force- 388.2 kN
Product size capabilities:
Number of products 2 4 6 8 10
Mouth diameter(mm) 120 90 60 37 26
Body diameter (mm) 180 40 90 70 55
Height (mm) 335 335 335 265 250
Approximate capacity (ml) 6000 3000 1500 900 350
Machine dimensions (meters)- 5.25 L x 2.55 width x 3.50 height
Approximate machine weight- (kilograms)- 14,000
Electrical specifications- 460 volts/ 3 phase/ 60 hertz
Offer includes the following items
– Resin dryer
– Resin hopper
– Gardner Denver Low Pressure Air Compressor with Air Dryer and Air Reservoir- variable speed
– Hycomp high pressure air compressor with Air Dryer and Air Reservoir
– Fanuc Part- Take Out System
– Frigel Water Cooled Chiller
– Table top conveyor
– Automation Ideas Semi- Automatic Bagging Machine
Condition- Used- machines are currently in operation
Note- (2) machines available, year 2013 and 2010
-

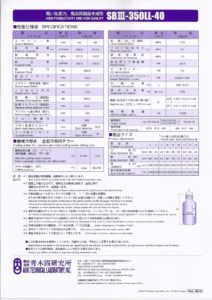

Aoki Model SBIII-350LL-40 PET One Step Injection Stretch Blow Molding Machine
Add to cartAoki Model SBIII-350LL-40 PET One Step Injection Stretch Blow Molding Machine
Number of cavities 6 8 10 12 Max. neck diameter (m.m.) 40 35 30 30 Max. body diameter (m.m.) 105 80 67 55 Max. height (m.m.) 335 300 250 250 Max. capacity (liters) 2.0 1.25 .6 .35 Low operating hours
-
Aoki Model SBIII-500N-60 PET Injection Stretch Blow Molding Machine
Add to cartAoki Model SBIII-500N-60 PET Injection Stretch Blow Molding Machine
Aoki Model SBIII-500N-60 PET Injection Stretch Blow Molding Machine
– (2) available
– Year of manufacture- 2003
– Offer can include a series of injection (preform) molds and several blow molds at an attractive additional price
– Condition- Very good- taken out of production in approximately October 2020
-
Battenfeld 2 x 180mm Continuous Extrusion Processing Head
Add to cartBattenfeld 2 x 180mm Continuous Extrusion Processing Head
Battenfeld 2 x 180mm Continuous Extrusion Processing Head
Manufacturer- Battenfeld
Type- 80065189
Number of parisons produced- 2
Center to center distances between head dies-180 mm
Number of layers produced- 1
Condition- Used, good
-
Battenfeld Fischer Model FHB 106-2 Continuous Extrusion Blow Molding Machine
Add to cartBattenfeld Fischer Model FHB 106-2 Continuous Extrusion Blow Molding Machine
This machine can be inspected in operation
-
Bekum 4 x 125 mm Continuous Extrusion Processing Head
Add to cartBekum 4 x 125 mm Continuous Extrusion Processing Head
Bekum 4 x 125 mm Continuous Extrusion Processing Head
Manufacturer- Bekum
Type- BKZ55 174661-020
Number of parisons produced- 4
Center to center distances between head dies- 125 mm
Number of layers produced-1
-
Bekum Model BKZ55 Continuous Extrusion Head
Add to cartBekum Model BKZ55 Continuous Extrusion Head
Bekum Model BKZ55 Continuous Extrusion Head
Center to center distances between dies- 4 x 125
-
Bekum Model BM-304DE Continuous Extrusion Blow Molding Machine
Add to cartBekum Model BM-304DE Continuous Extrusion Blow Molding Machine
Year of manufacture- 1997
Press arrangement- dual sided machine
In machine trimming capability
Head configuration- triple parison with 100 mm distances between head centers
Mold length- 400 mm
Mold width- 340 mm
Mold thickness- 2 x 100 mm
Daylight maximum – 200 mm
Extruder diameters- one extruder is 80 mm, one extruder is 40 mm
Condition- Very good
-
Bekum Model BM-406D Continuous Extrusion Blow Molding Machine
Add to cartBekum Model BM-406D Continuous Extrusion Blow Molding Machine
Bekum Model BM-406D Continuous Extrusion Blow Molding Machine
Year of manufacture- 2006
Line was reported to have averaged approximately 11,250 bottles per hour
Head specifications- 6 parison head with 70 mm distances between die centers
Extruder diameter- 100 mm
Mold width- 500 mm
Mold length- 470 mm
Mold depth- 2 x 130 mm
Daylight opening- 250 mm
Clamp force- 15.7 tons
Electrical specifications- 460 volts/3 phase/60 Hz
Offer includes the following:
– (2) sets of 12 cavity molds that make 8 ounce dairy bottles (each cavity produces 2 bottles)
– Air reservoir tank
– (2) Sentra Thermolators
-Pace Model M410 Bottle Orienter
– Spare parts
Controller- Barber Colman Model DS8C-00B0-E00-Z-00 PLC
Condition- Very good
-
Bekum Model BM-506D Continuous Extrusion Blow Molding Machine
Add to cartBekum Model BM-506D Continuous Extrusion Blow Molding Machine
Bekum Model BM-506D Continuous Extrusion Blow Molding Machine
Year of manufacture- 2003
Extruder diameter- 90mm/ 24D smooth barrel set-up, HDPE
Head- Mueller 3 x 140 mm with view stripe
Control system- MACO DS
Additional information:
Press has a horizontal moving quick change clamping mechanism with bobbing extruder
Knife is spear shape
Parison support air and controlled support air (f/3 parisons) was installed
A take out system for singe stage hand-over including pick and place was installed
A manually operated 90 mm Dynisco screen changer was installed
Condition- very good , can be inspected in operation
-
Bekum Model BM-506D Continuous Extrusion Blow Molding Machine
Add to cartBekum Model BM-506D Continuous Extrusion Blow Molding Machine
Bekum Model BM-506D Continuous Extrusion Blow Molding Machine
Year of manufacture- 2002
Press arrangement- dual sided
Mold length, maximum- 550 mm (21.65″)
Mold width, maximun- 500 mm (19.68″)
Mold depth- 2 x 150 mm (2 x 5.91″)
Mold daylight- 340 mm (13.38″)
Mold closing force- 170 kN (19″)
Extruder diameter- 90 mm
Electrical specifications- 460 volts/3 phase/60 Hz
Note- head is not included with offer
Controls- Barber Coleman PLC
Condition- Good- can be inspected in operation
