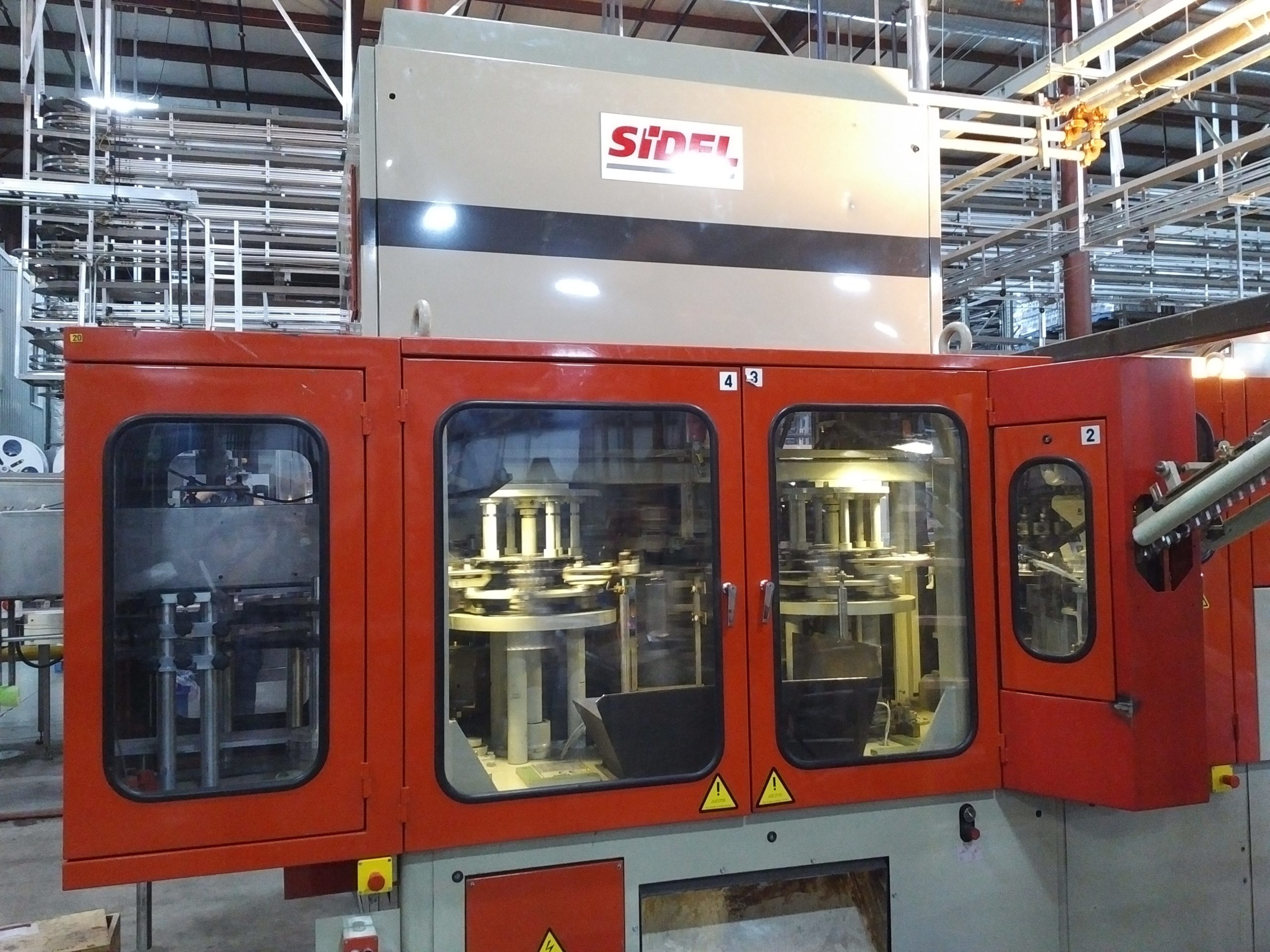

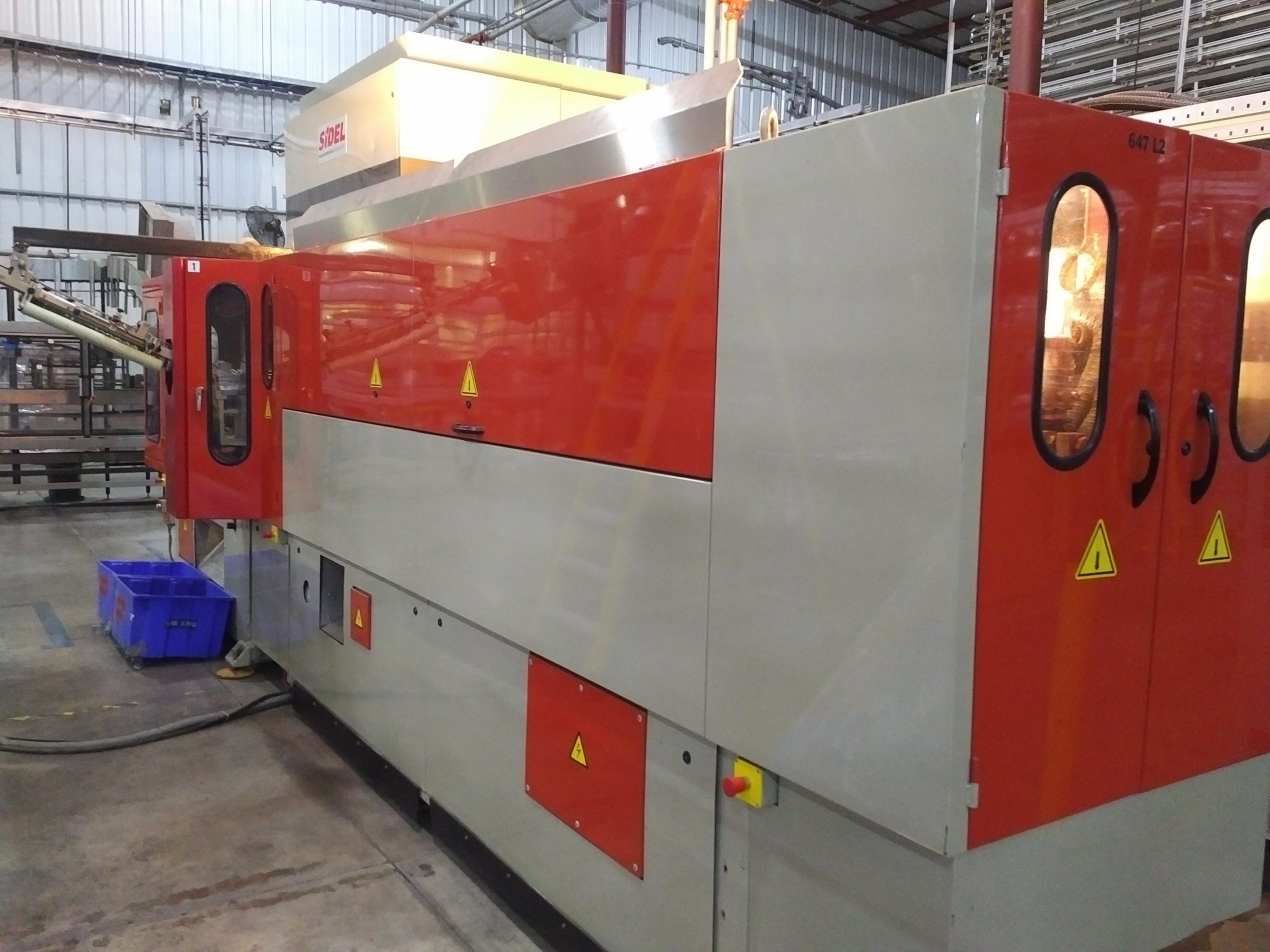

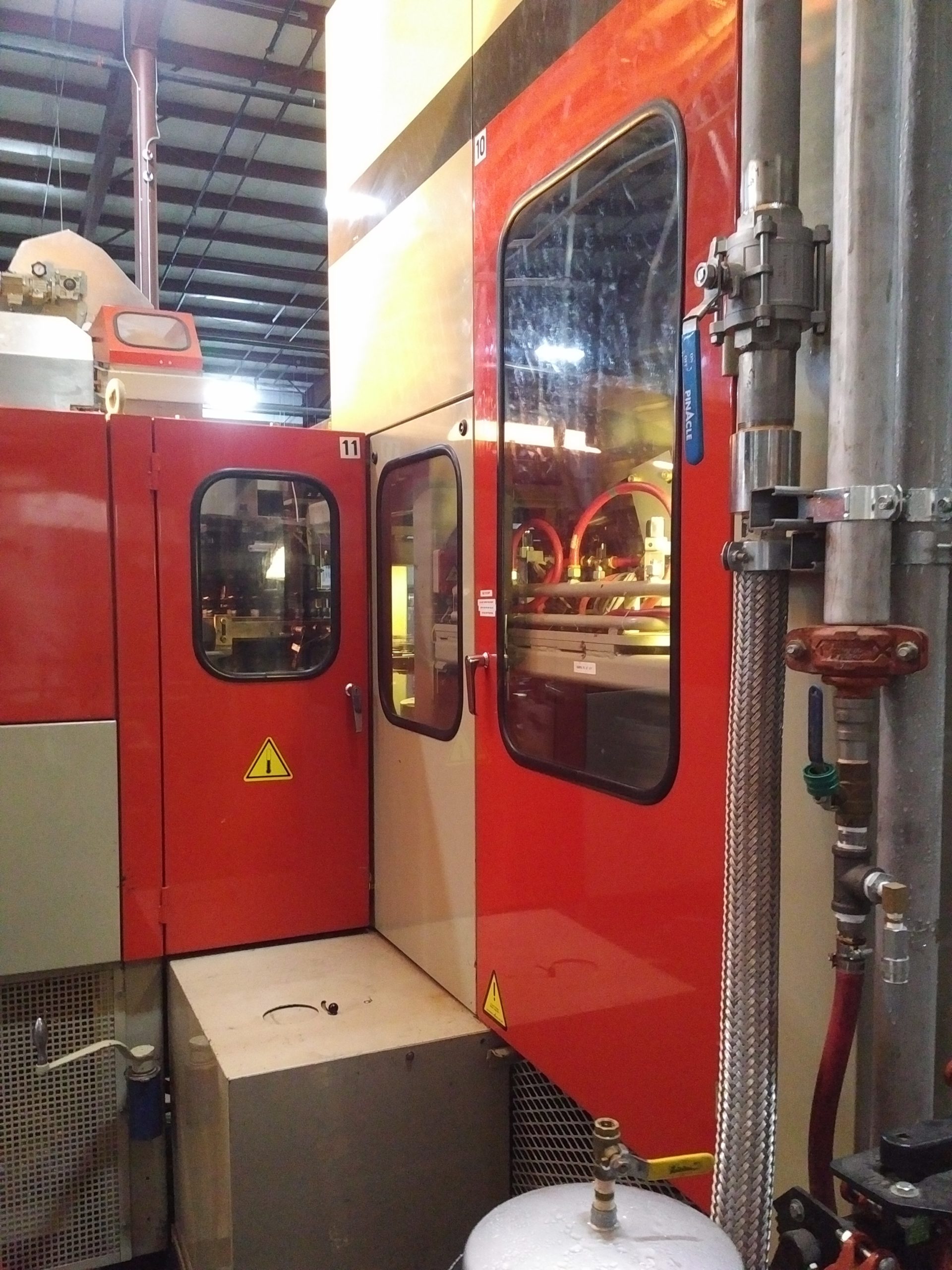

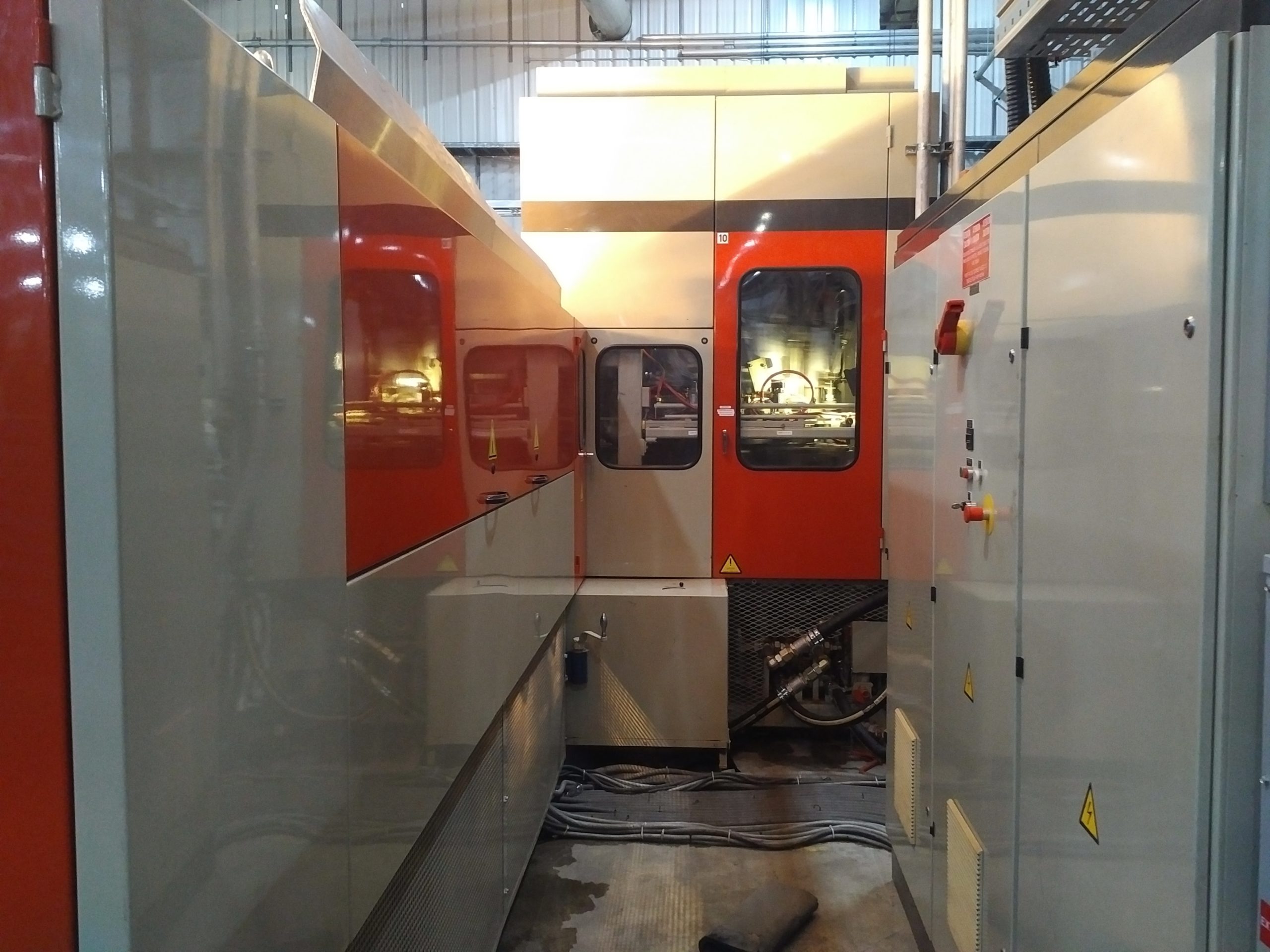

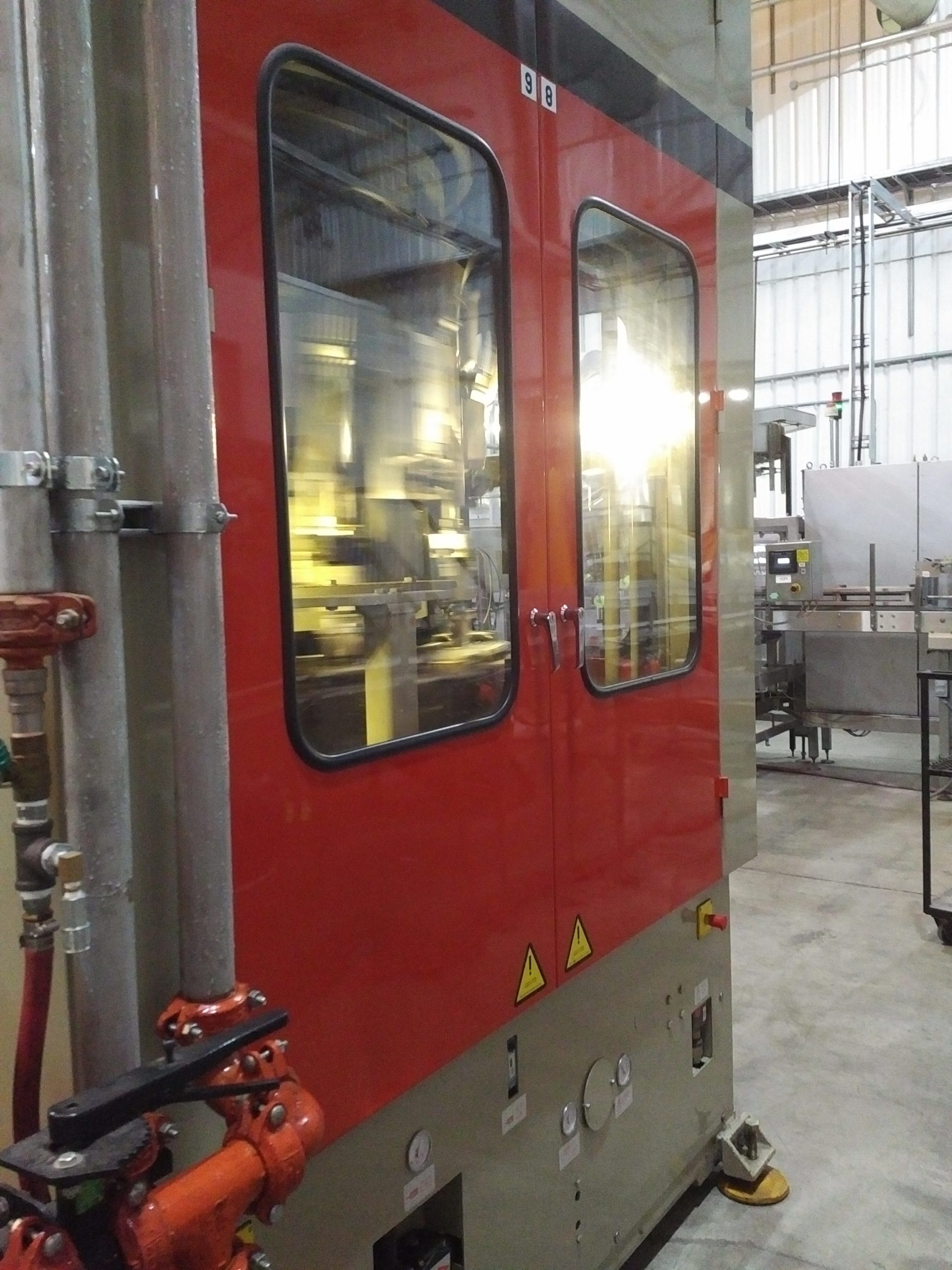

Sidel Model SBO 10 PET Reheat Stretch Blow Molding Machine

Product Description

Sidel Model SBO 10 PET Reheat Stretch Blow Molding Machine

– Year of manufacture- 1994

– Series 1 machine

– Number of cavities- 10

– Production capacity- maximum nominal output- approximately 12,000 bottles per hour

– Type mold hangers- GUPM

– Preform inside neck diameter- maximum- 34 m.m.

– Preform support ring diameter- maximum- 51 m.m.

– Preform length including neck- maximum- 210 m.m.

– Bottle diameter- maximum- 130 m.m.

– Bottle height- maximum- 388 m.m.

– Number of oven sections- 14

– Power specifications- 460 volts/60 cycles

– Offer includes the following:

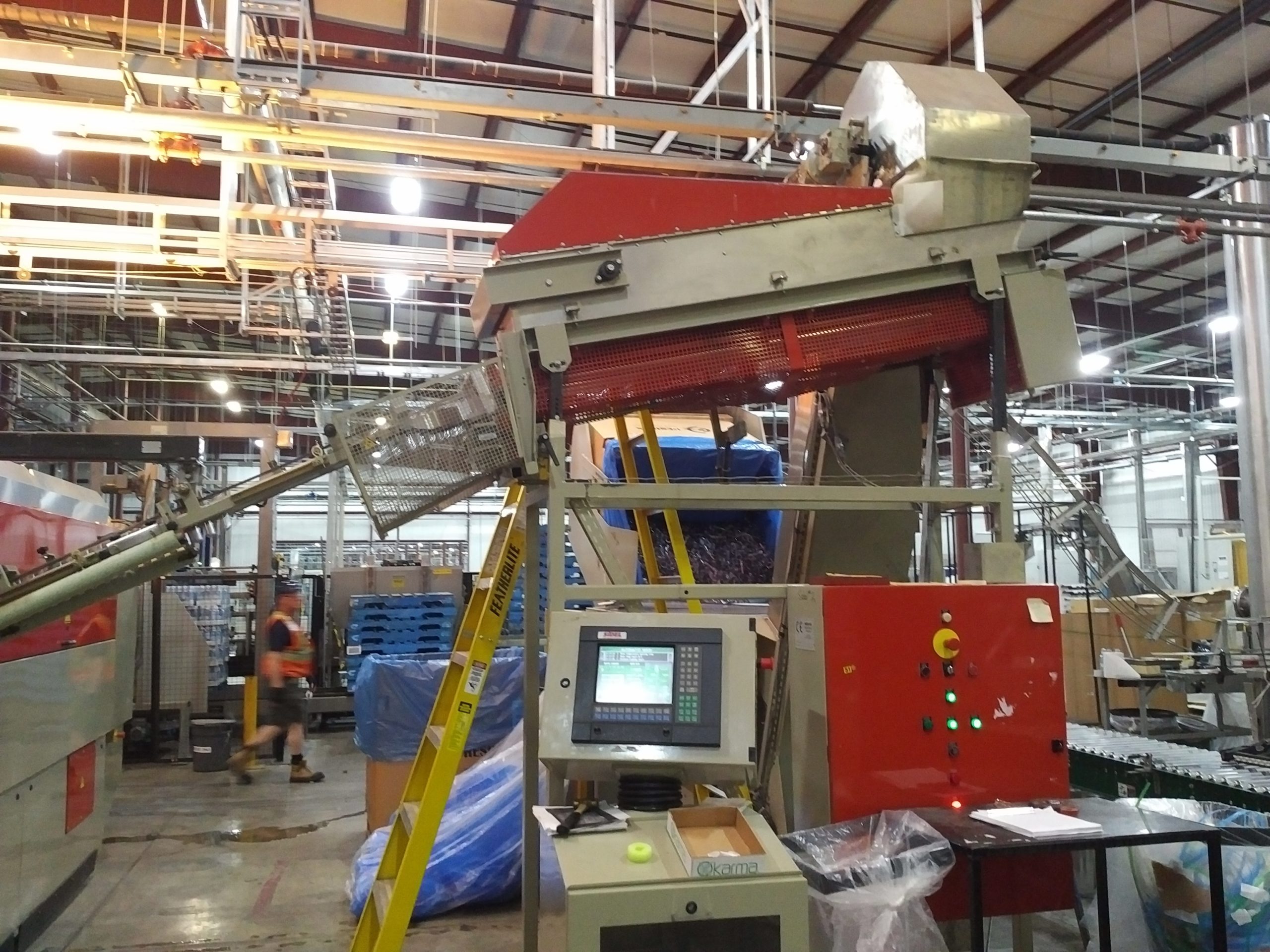

   – Preform dumper

   – Preform hopper/elevator

   – Preform unscrammbler

-Preform feed rails

– Condition- Good- well maintained- machine can be inspected in storage
