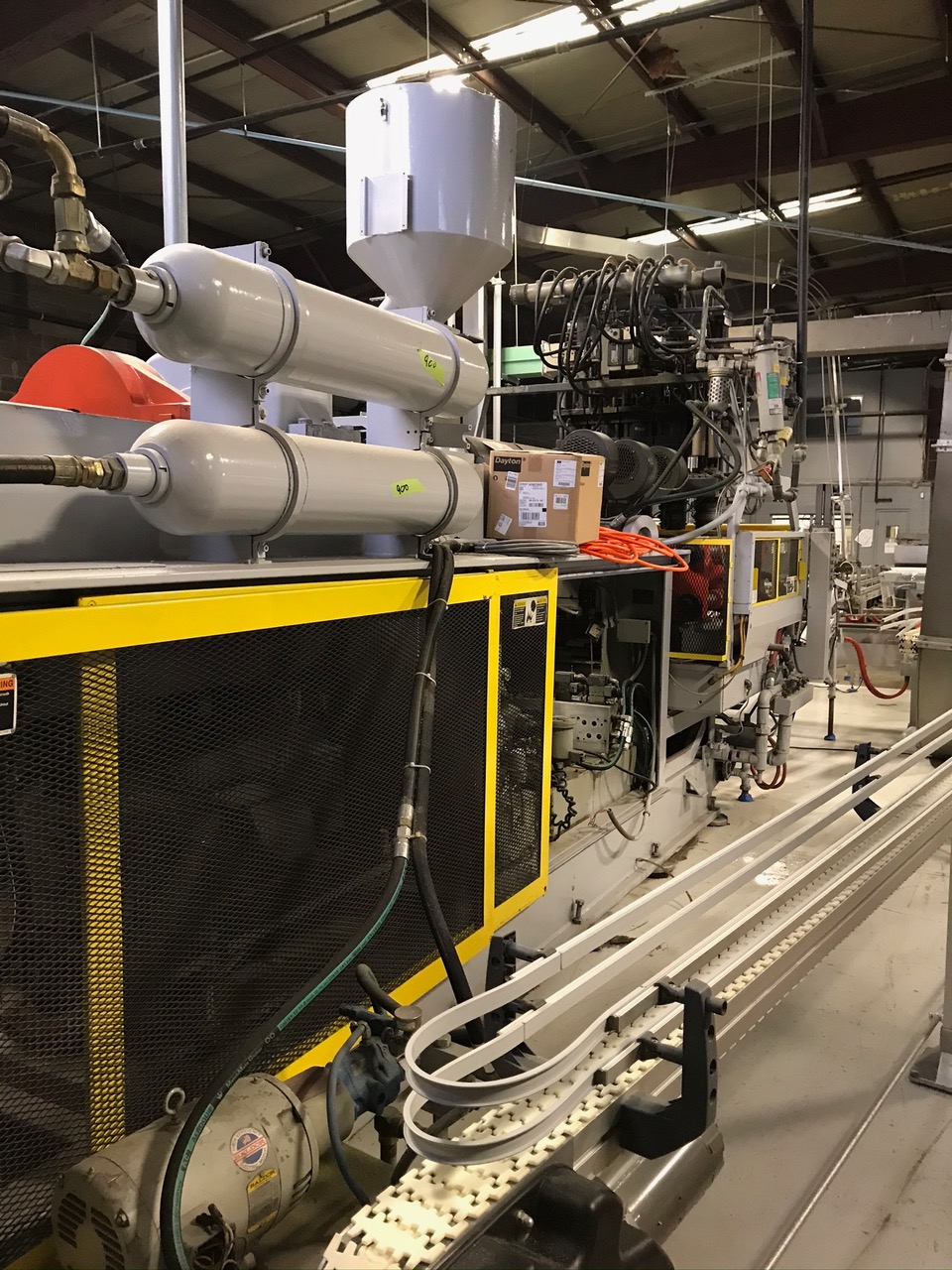

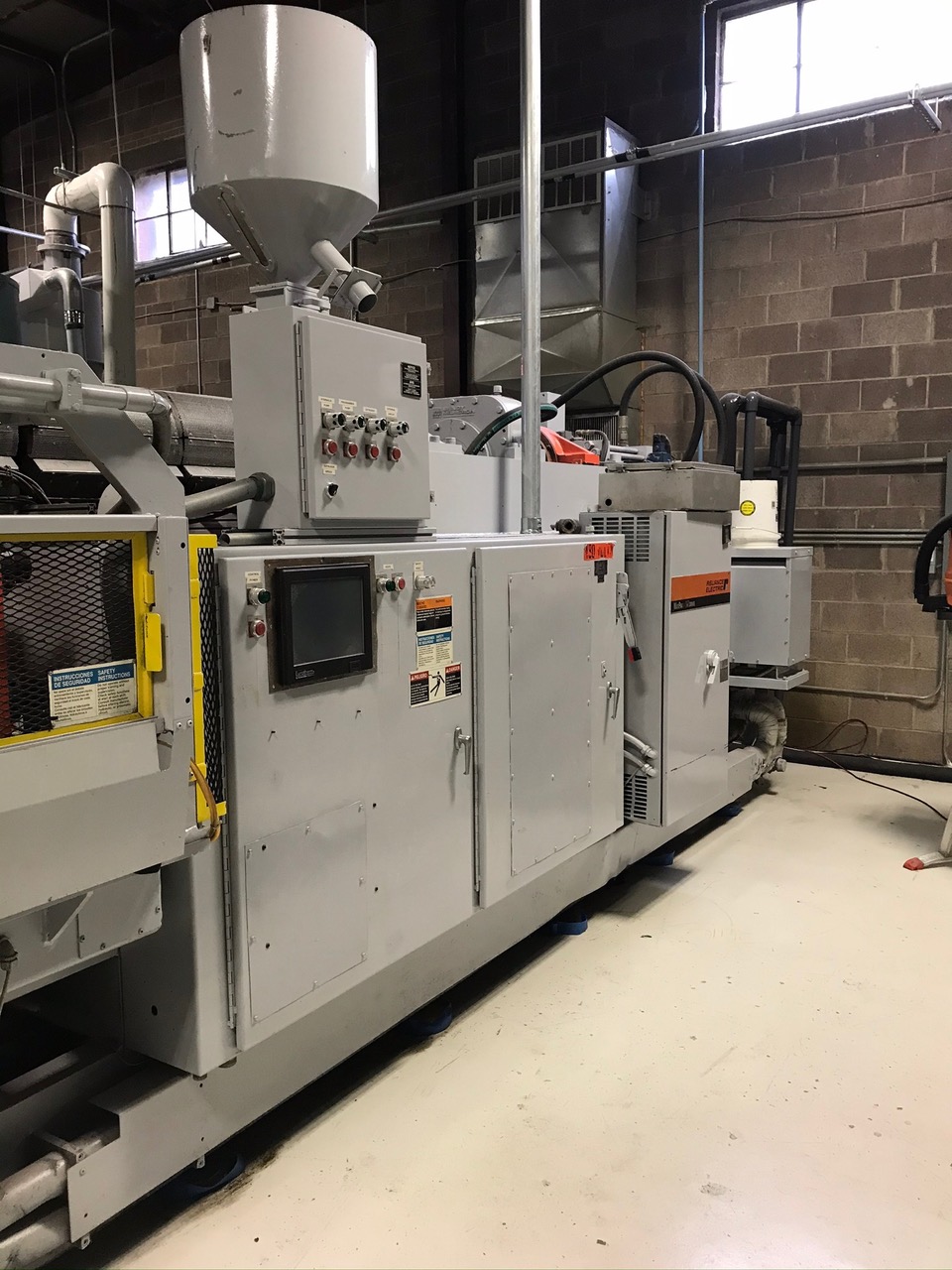

Uniloy Model 350 R4 (5) Head Reciprocating Screw Blow Molding Machine

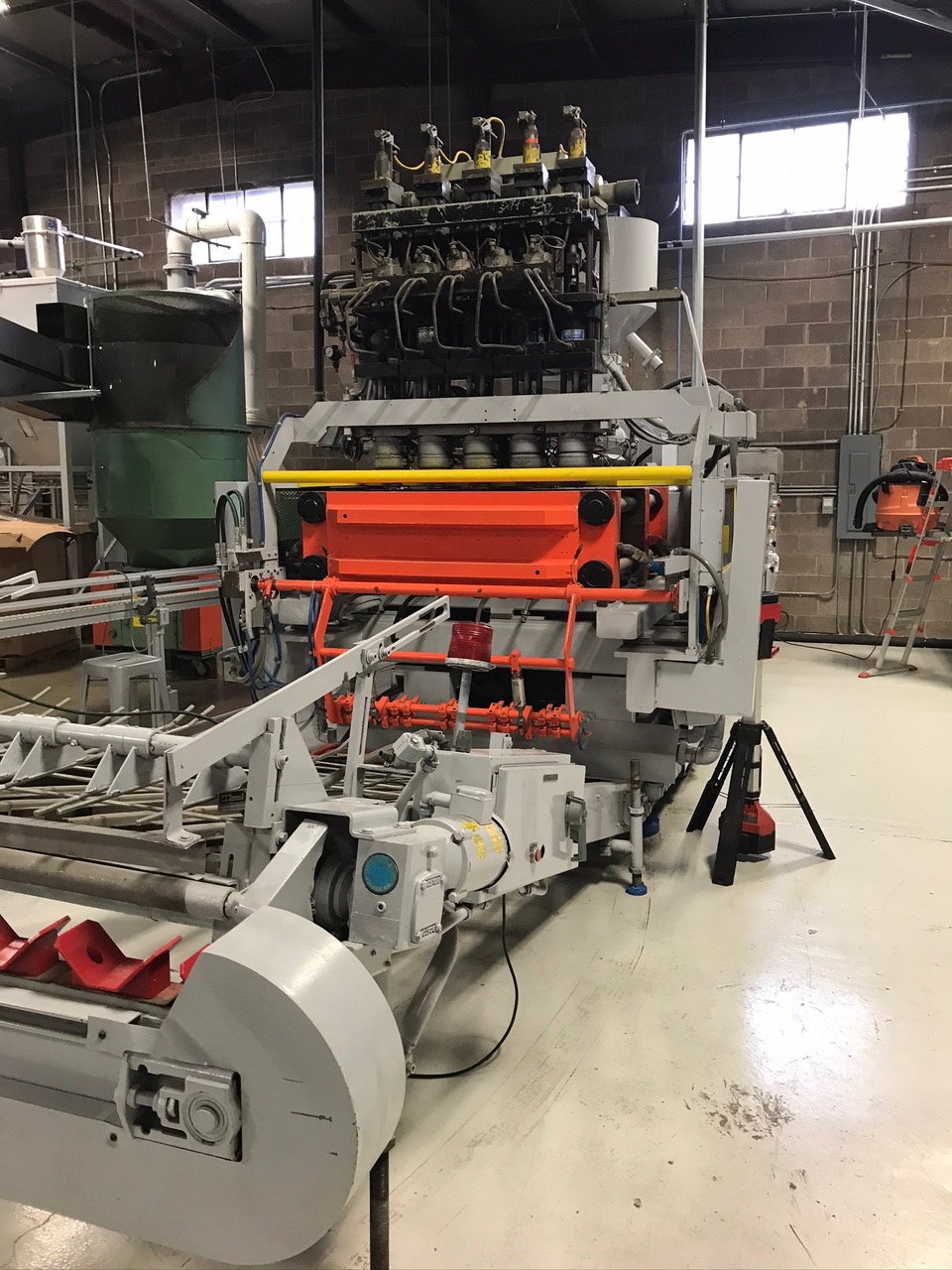

Uniloy Model 350 R4 (5) Head Reciprocating Screw Blow Molding Machine (Complete Line)

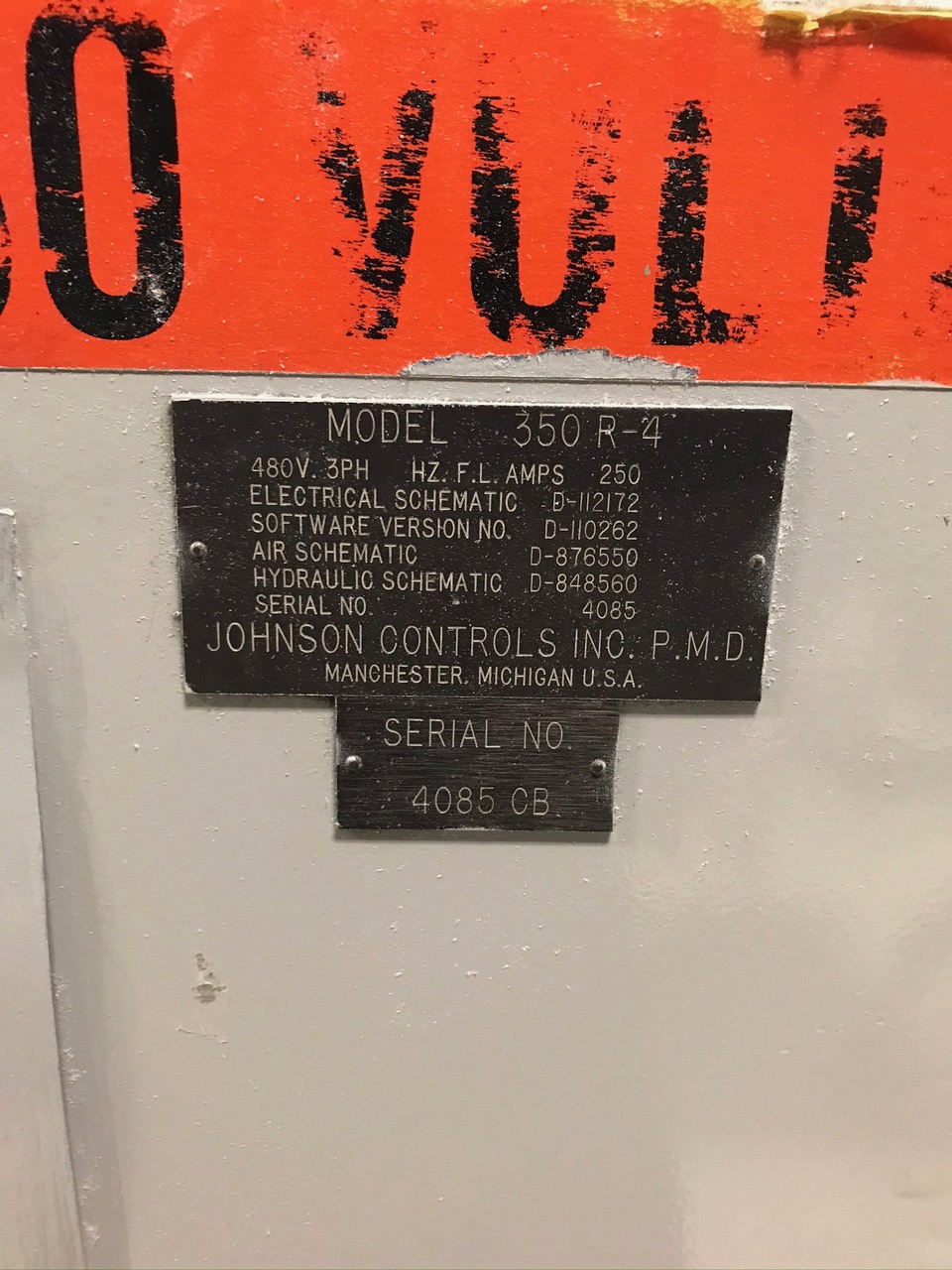

Serial number- 4085
Machine has side shift capability that enables the
machine to produce off set center neck finishes

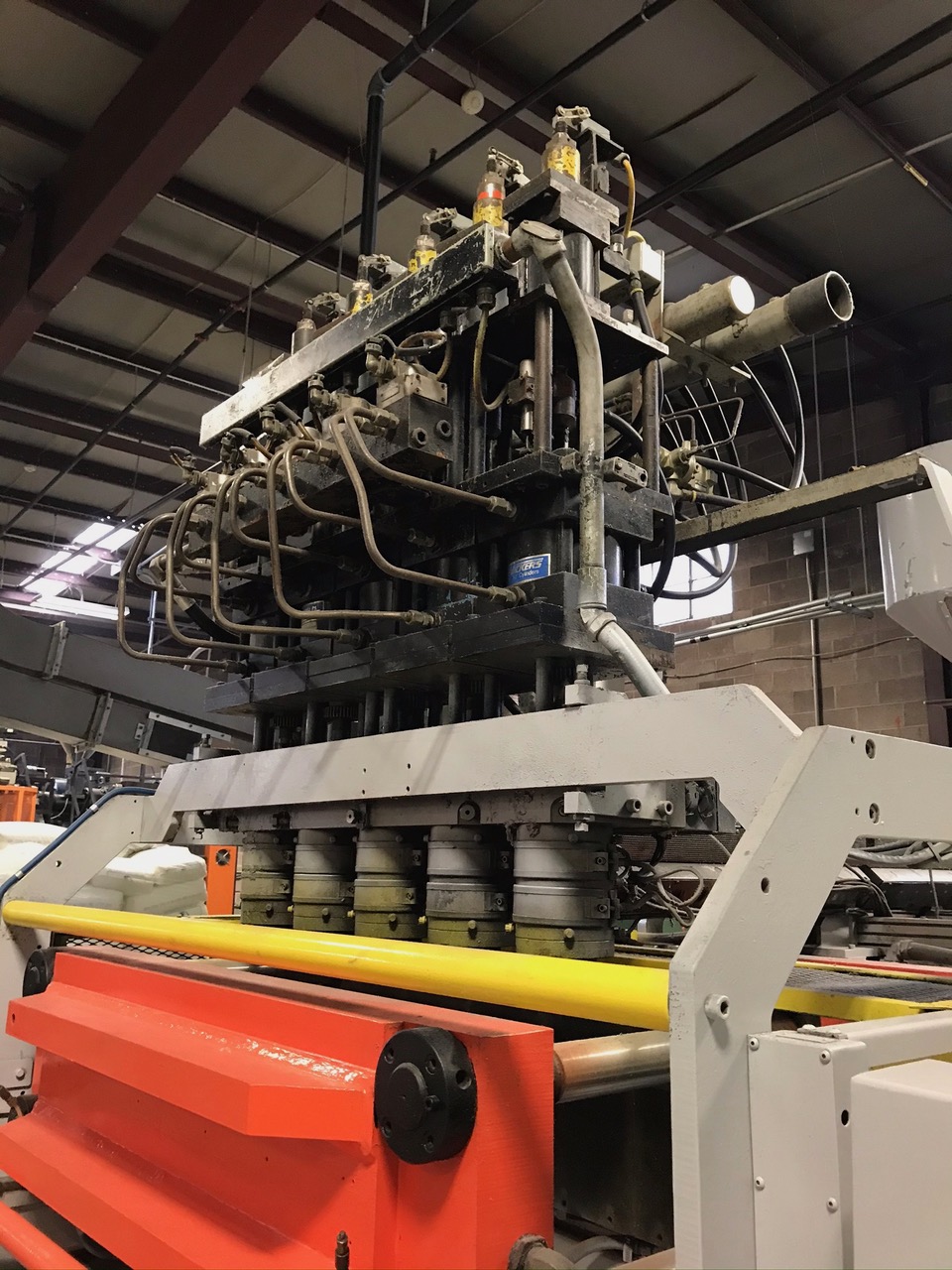

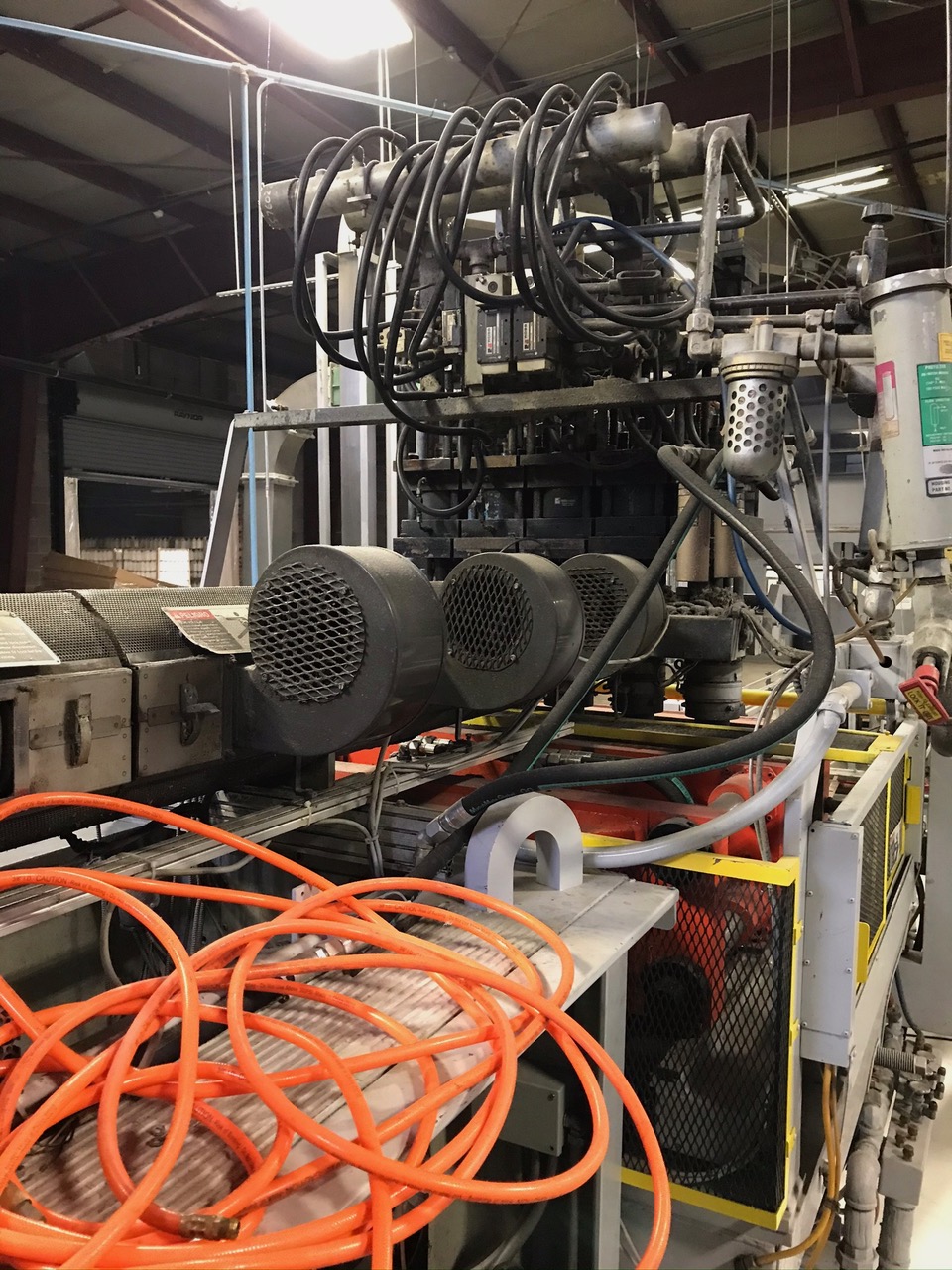

Head configuration- 5 heads with 8” center to center
distances between heads
Heads are programmable

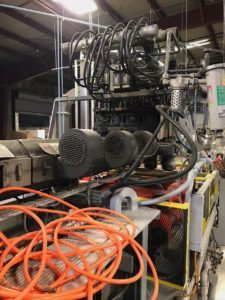

Extruder size- 3 1/2 “

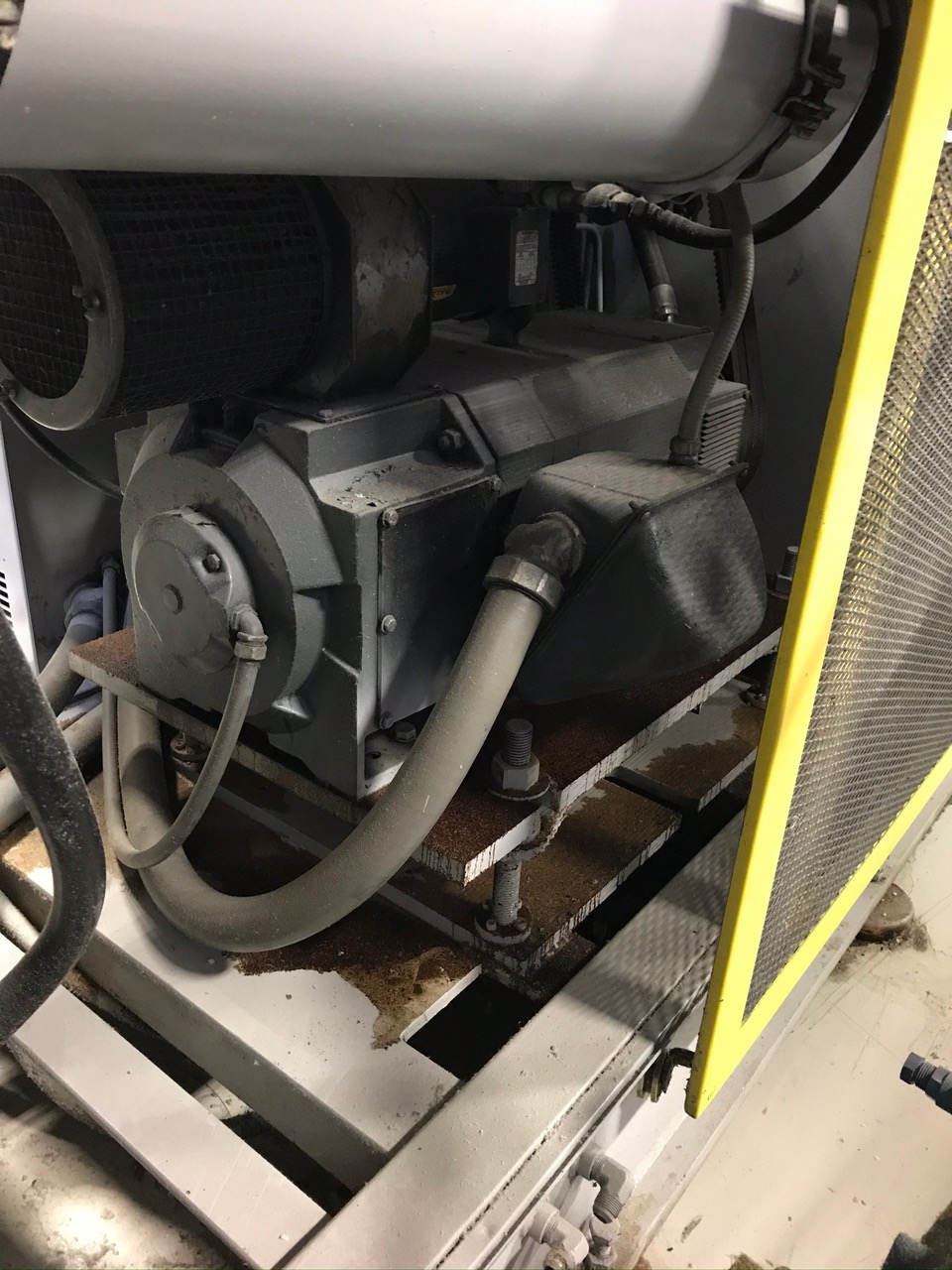

Extruder motor horse power- 125
Shot size- nominal 1600 grams

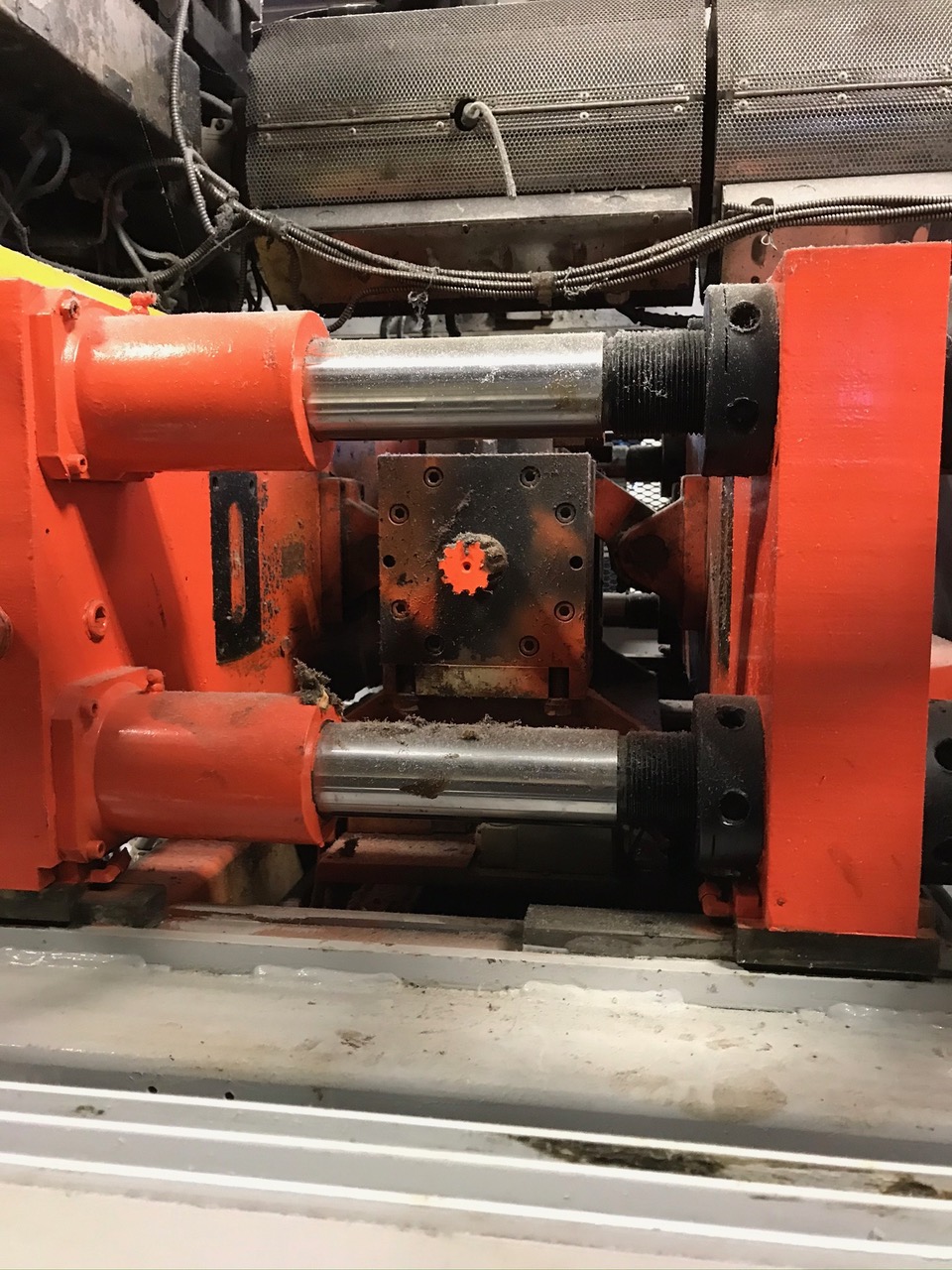

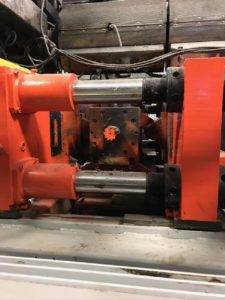

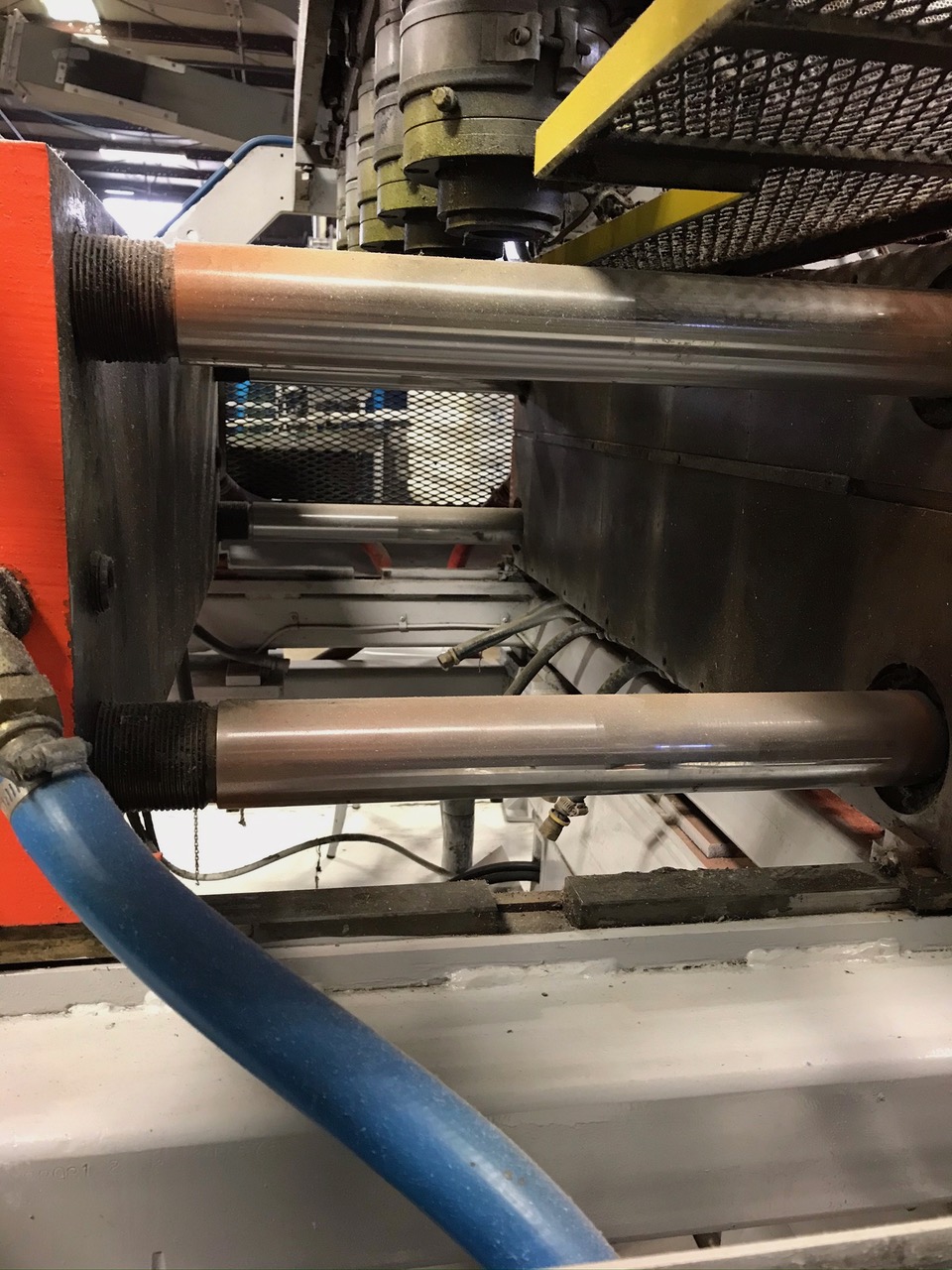

Clamp dimensions- 48” wide x 21 3/4” high

Machine has been upgraded as follows:
– Air cooled barrel installed

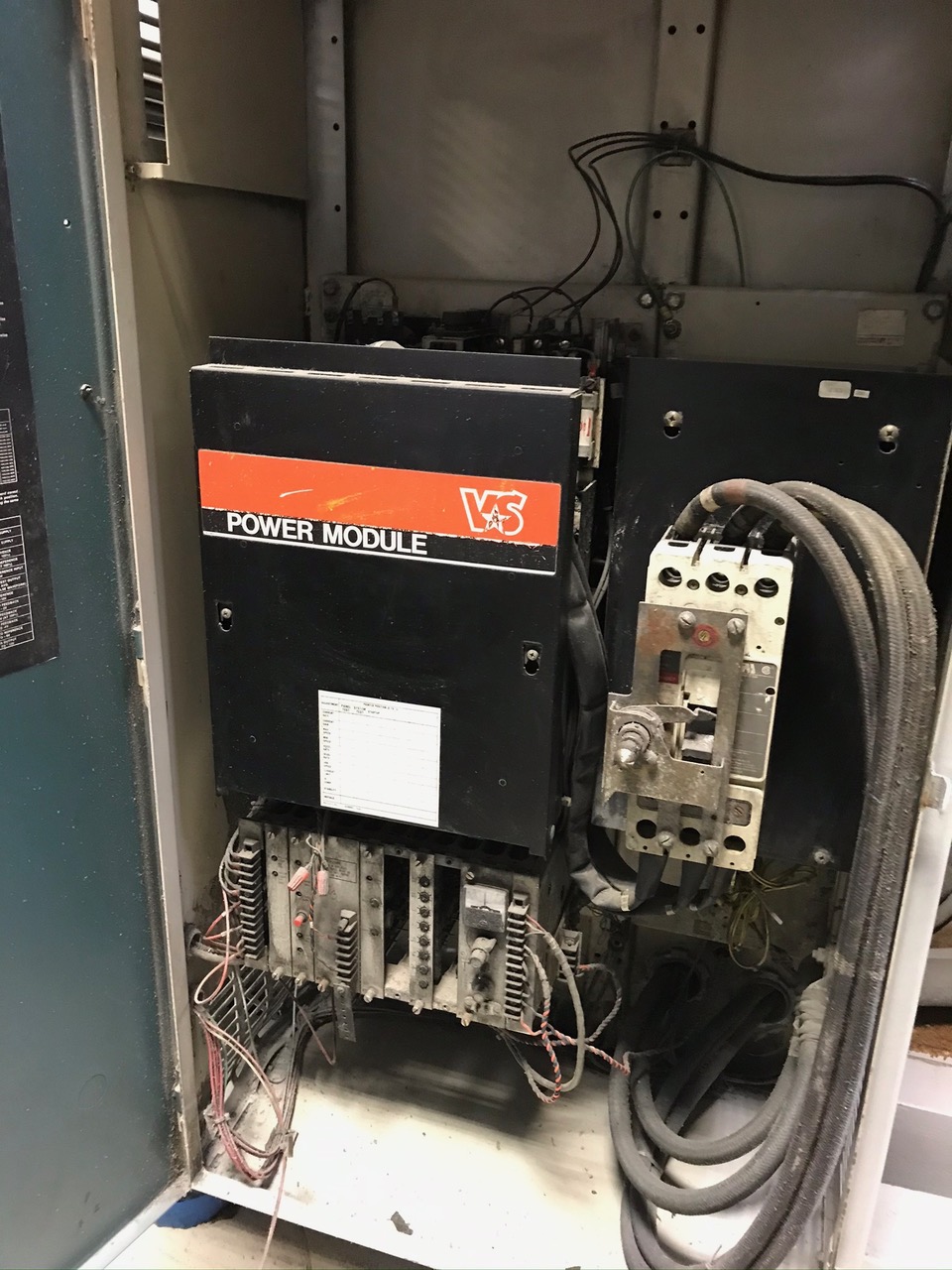

– G.E. Model AF-300E$ AC variable frequency drive installed

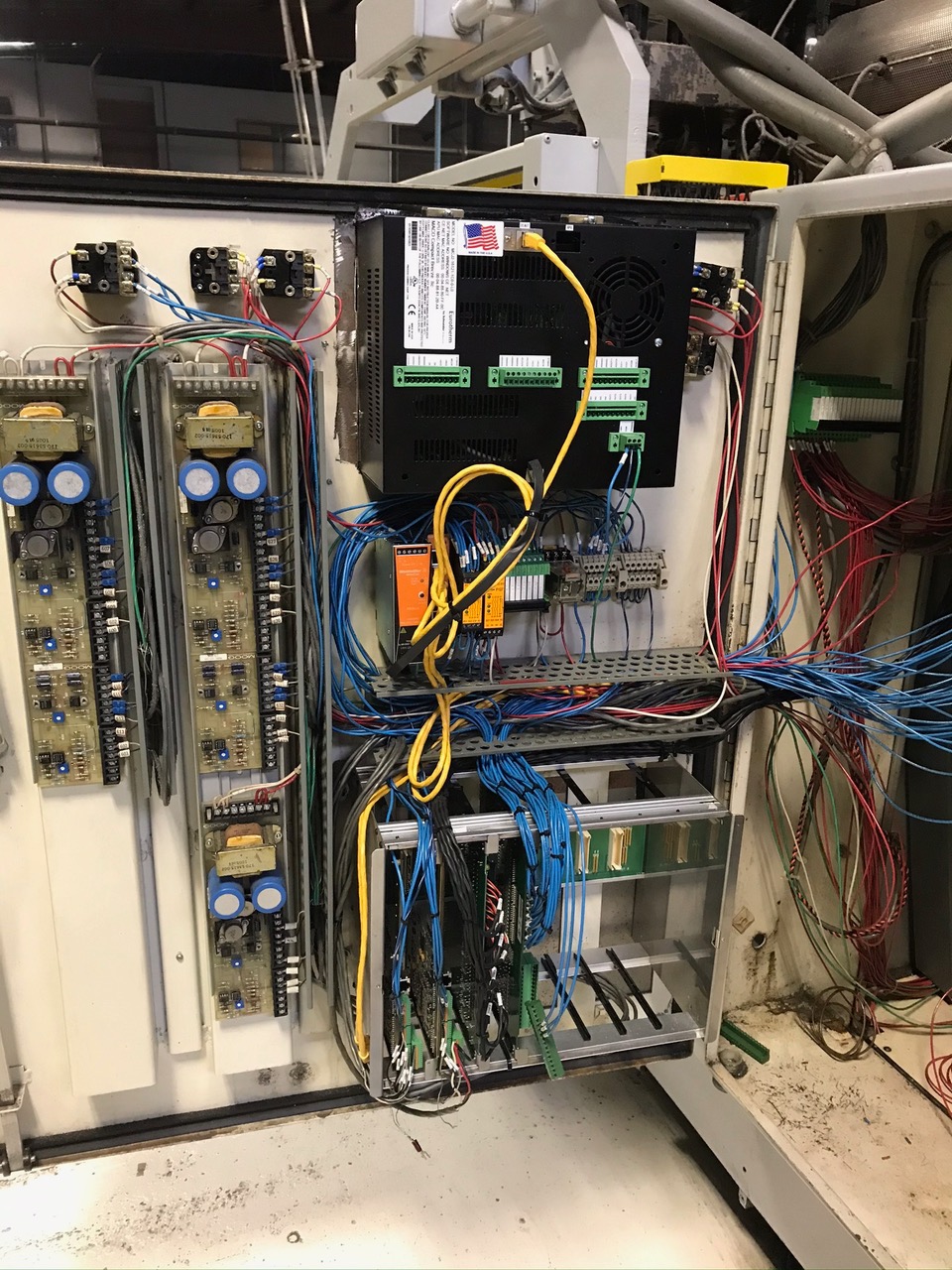

– New Instrucon Model Maco Compact PLC installed
– One new program cylinder installed

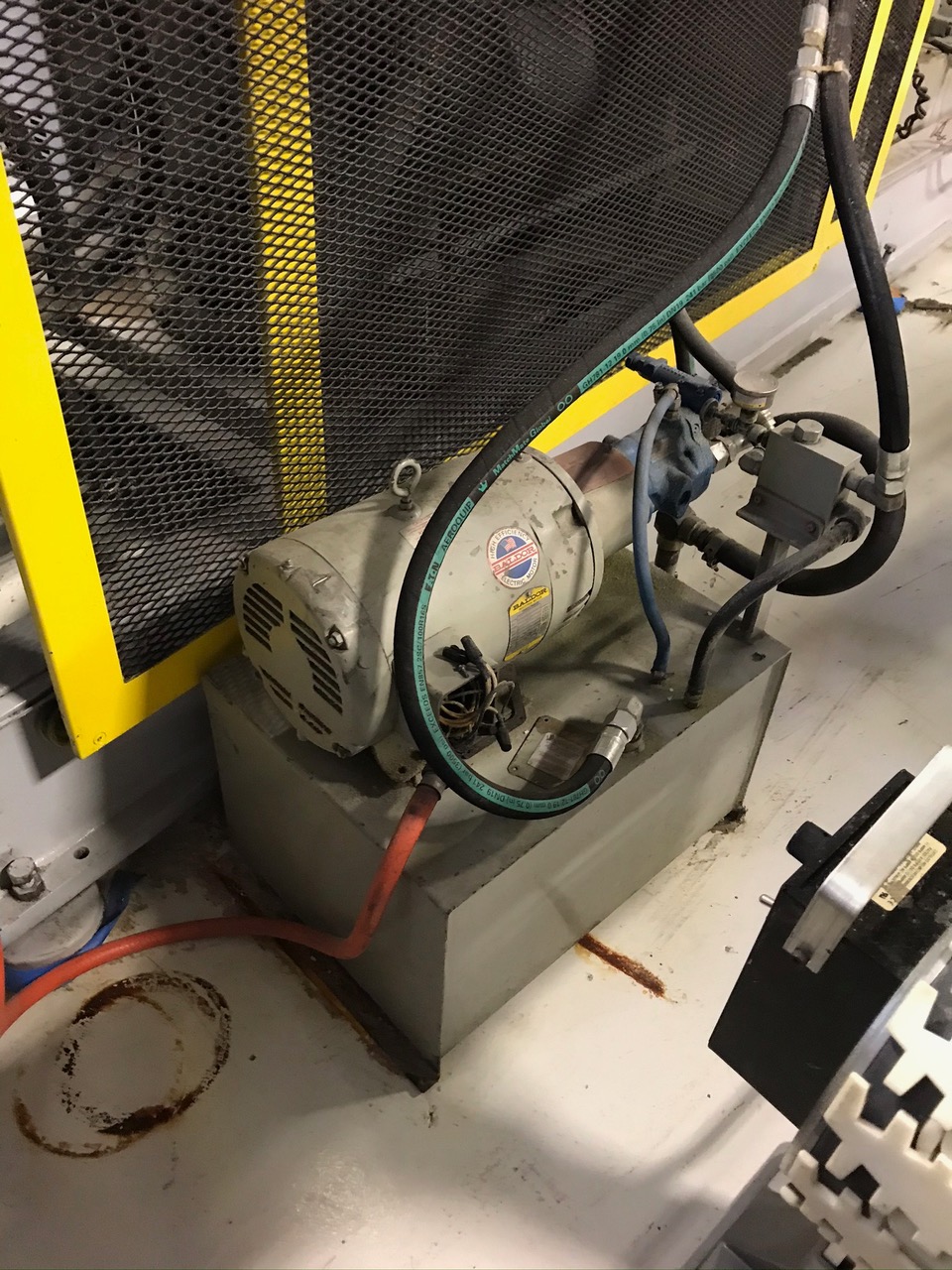

– Hydraulic hoses changed
– New open/close valve installed
– All clamp bearings changed
– New PLC installed on Cooling Bed
– New Allen Bradley MicroLogix PLC installed on Trimming Machine
– New Plastech Leak Detector installed on Trimming Machine
– Line includes the following:

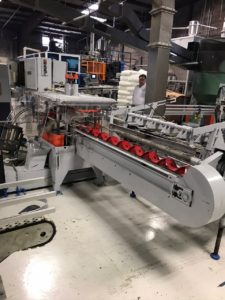

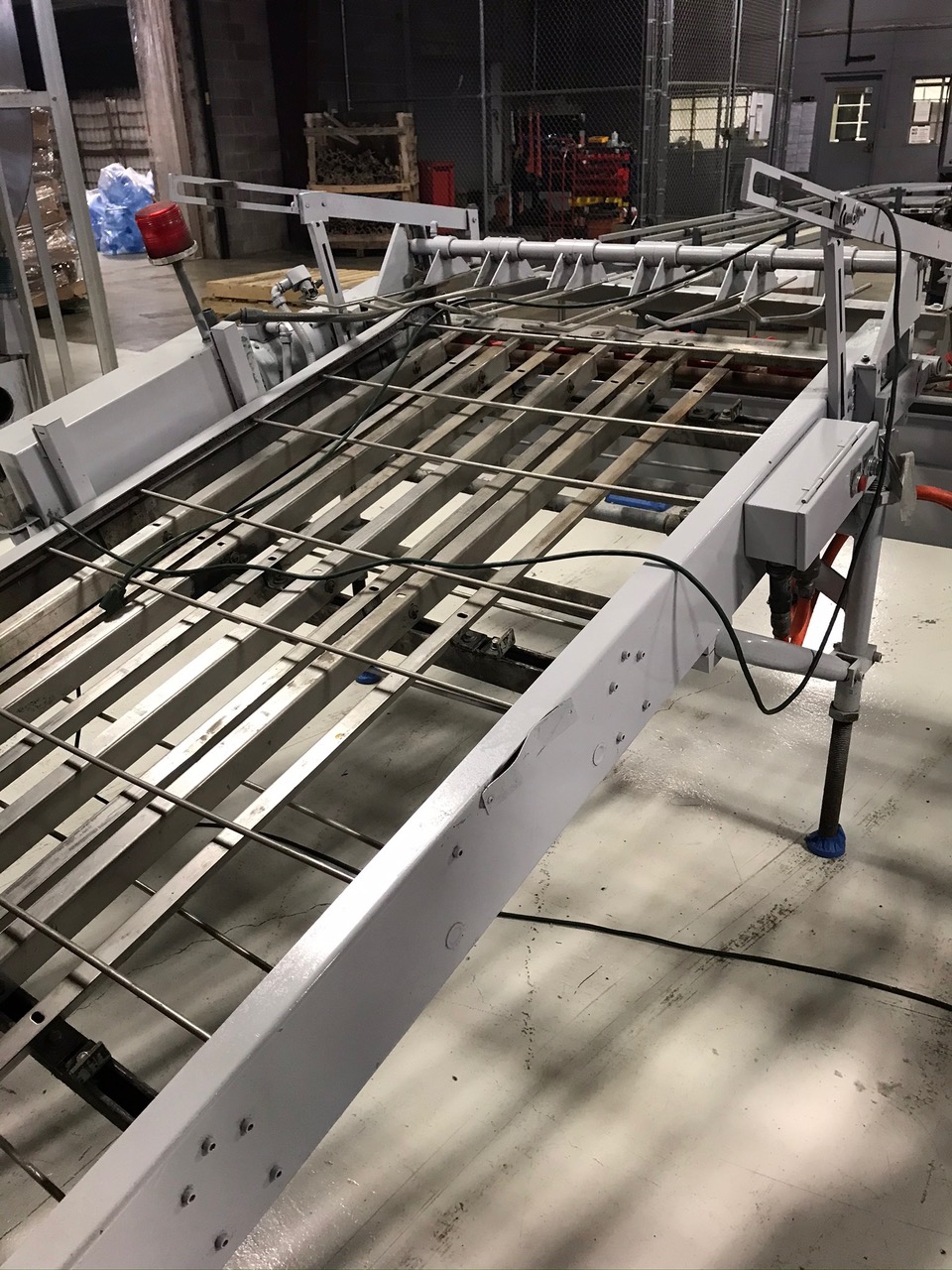

– Uniloy Cooling Bed

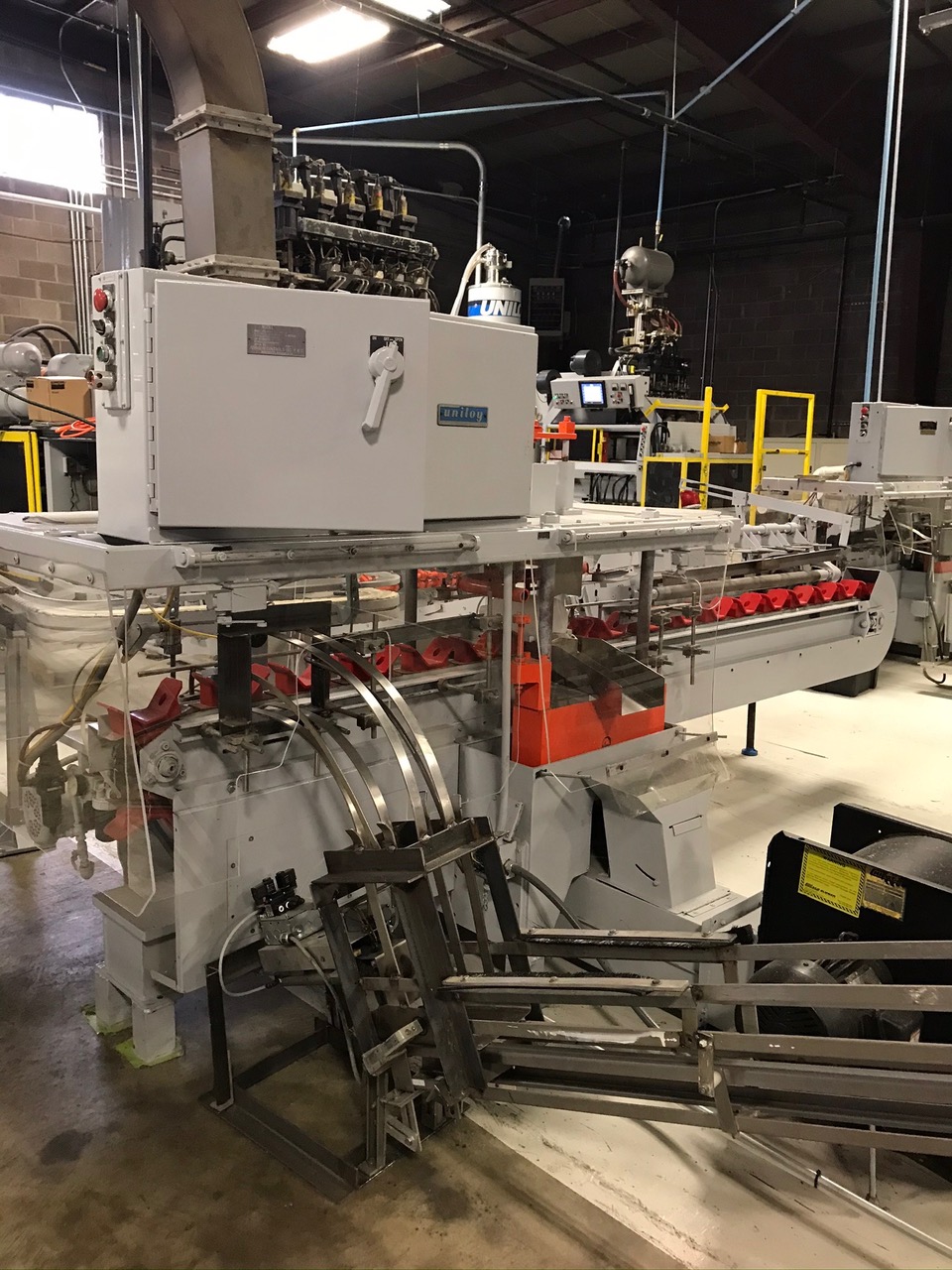

– Uniloy Model 10042 Trimming Machine

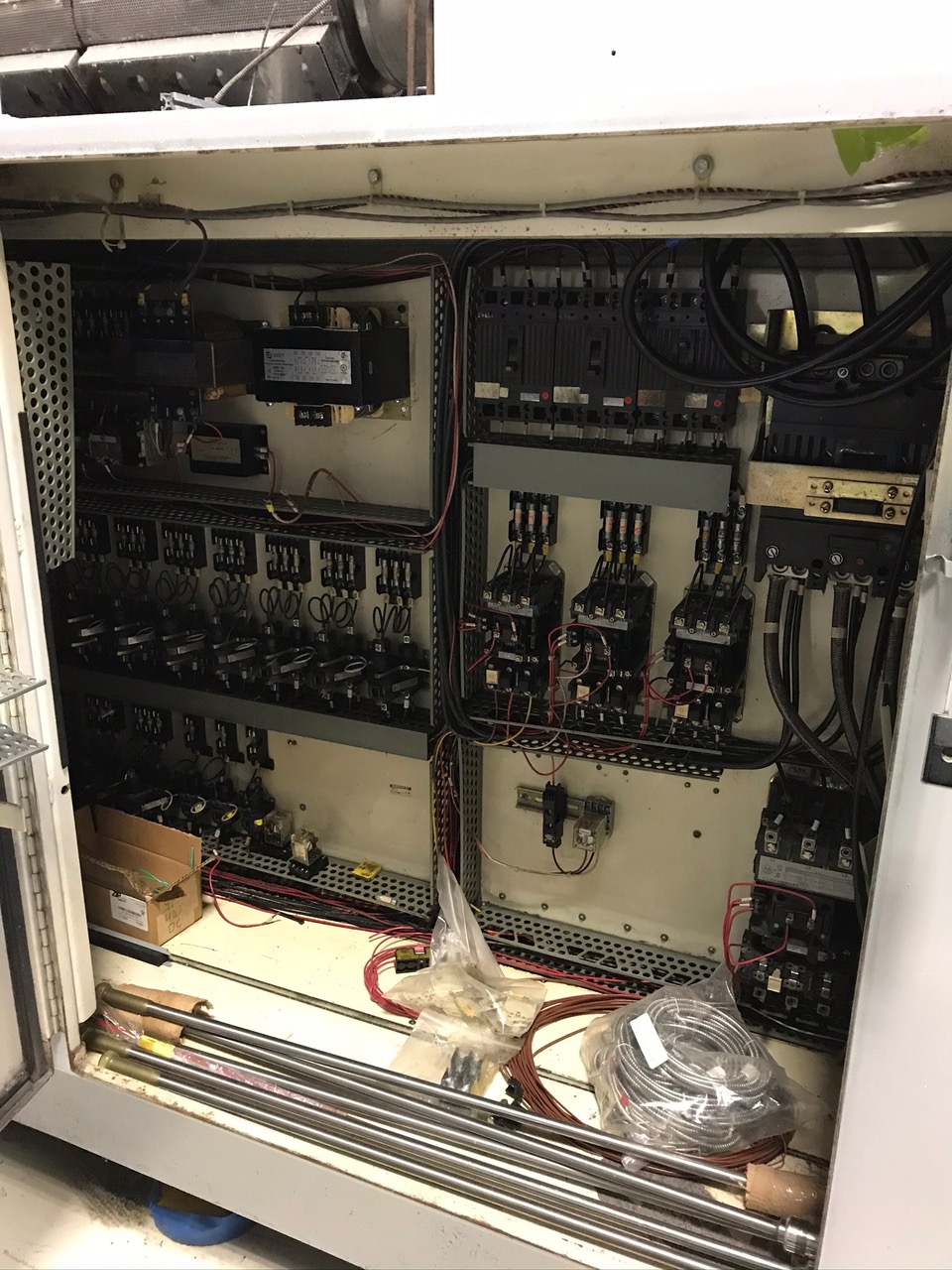

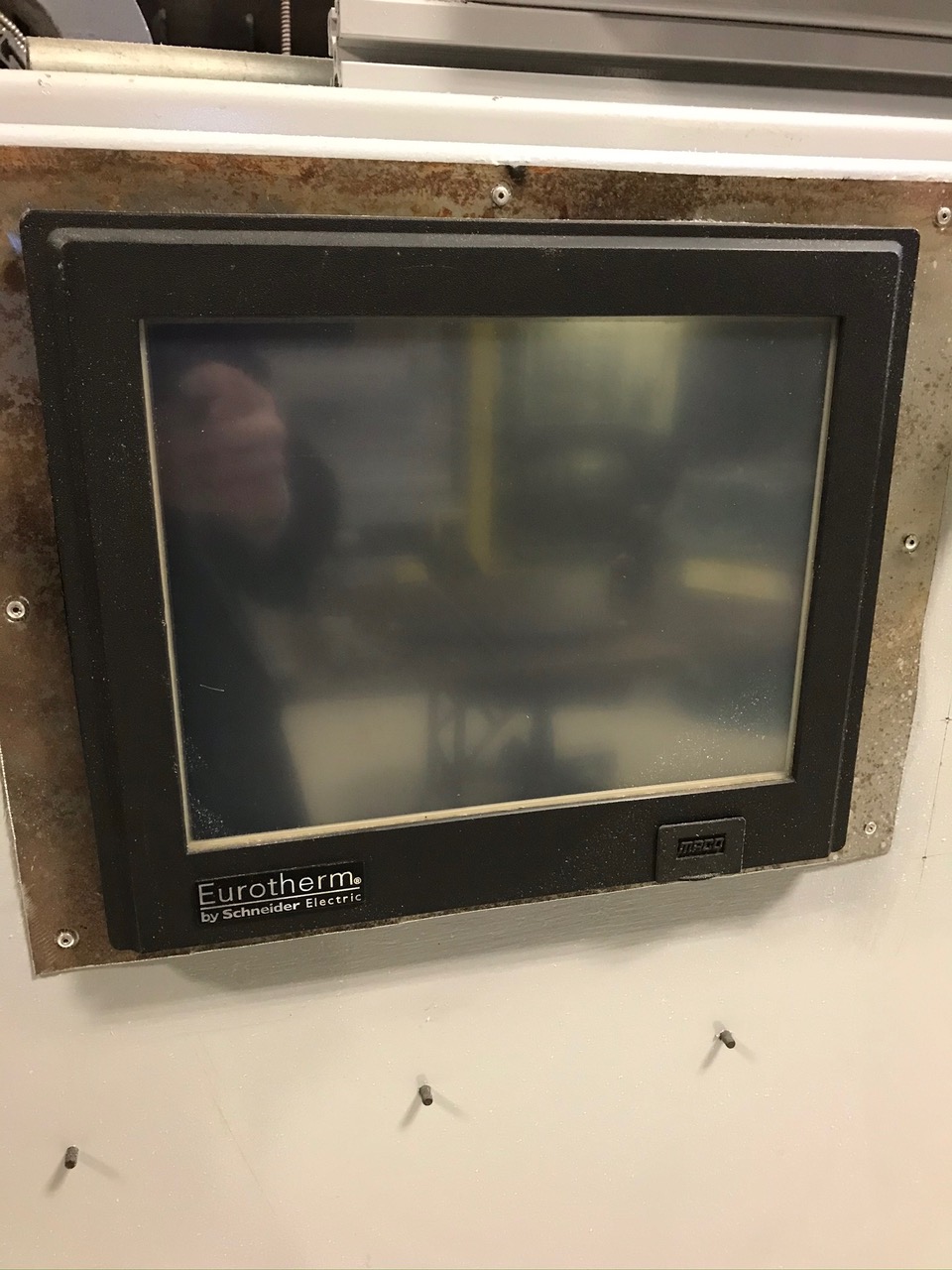

Controls- New Instrucon Model Maco Compact PLC
Condition- Very good- equipment can be inspected dry cycling
